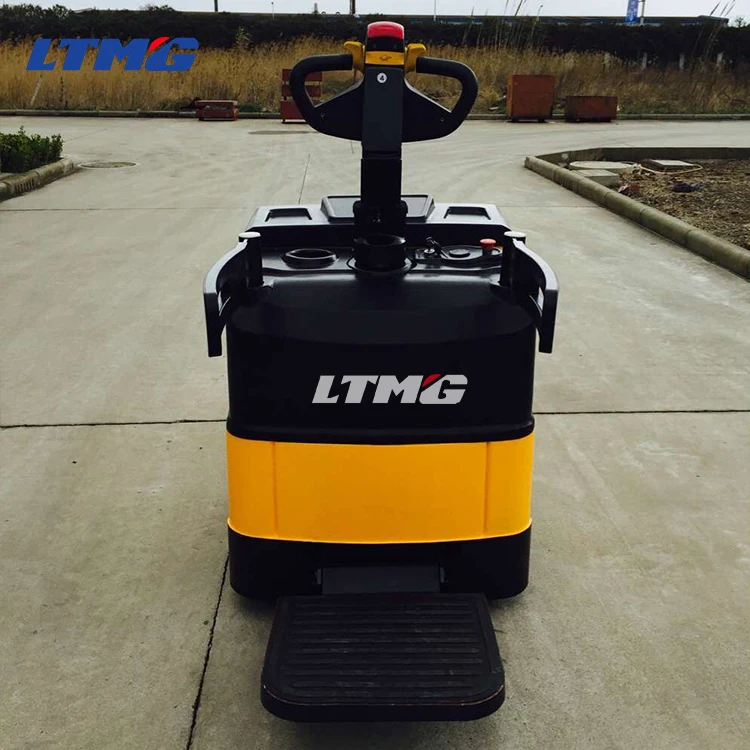

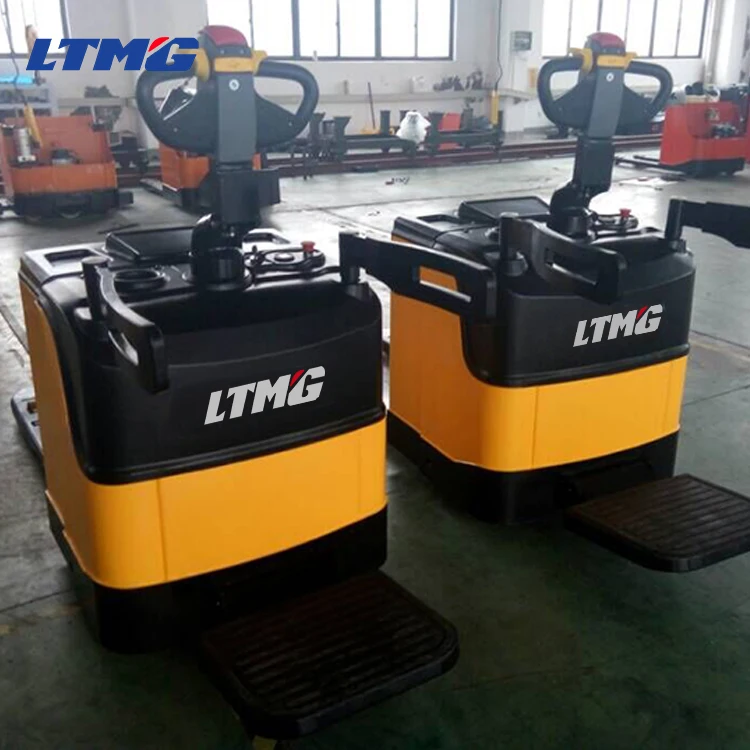

LTMG hot-sale electric pallet truck 2 ton electric pallet jacks

Supplier: Xiamen Ltmg Co., Ltd.
Region: Fujian, China
Contact: Ms Susan Li
Price: $2012.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Battery weight:	230kg;	Operating type:	Stand-on type;
Controller:	CURTIS;	Fork length:	1150mm;
Feature:	electric pallet truck;	Color:	customized;
Packaging Detail:	nude packing;	Wheel base:	1480mm;
Item:	pallet jacks;	Min.turning radius:	1735mm;
Model Number:	FEP20T;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Product Name:	2 ton electric pallet truck;	Brand Name:	LTMG;
Place of Origin:	Fujian China (Mainland);	Lift Drive / Actuation:	Electric Motor;

Product Description

Specification of electric pallet jack 2 ton electric pallet truck
Model		FEP20T
Load capacity	kg	2000
Load center	mm	600
Wheel base	mm	1480
Operating type		Stand
Wheels
Wheel type		PU
Wheel quantity driving wheel/Balance wheel/Bearing wheel		1/2/4
Driving wheel size	mm	248×75
Balance wheel size	mm	80×80(Double wheels)
Bearing wheel size	mm	115×55
Demension
Min.fork lowered height	mm	85
Max.fork lifting height	mm	205
Max.lifting height	mm	120
Overall fork width	mm	540/600/685/1070
Fork length	mm	1150
Fork width	mm	185
Fork thickness	mm	55
Overall length	mm	1900
Overall width	mm	735
Overall height(With handle)	mm	1455
Overall height(Without handle)	mm	900
Min.turning radius	mm	1735
Min.aisle width for pallets 800×1200	mm	2060
Min.aisle width for pallets 1000×1200	mm	2090
Performance
Travel speed,laden/unladen	km/h	5.7/6
Lift speed,laden/unladen	mm/s	30/45
Travel speed,laden/unladen	mm/s	45/30
Gradeability,laden/unladen	%	6/8
Electric configuration
Drive motor	kw	AC 1.5
Lift motor	kw	DC 2.0
Steering motor	kw	DC 0.15
Battery voltage/capacity	V/Ah	24/210-240
Brake		Electromagnetic
Controller		CURTIS
Weight
Battery weight	kg	200-230
Service weight with battery	kg	790-820

Packing & Delivery

Our Company

LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors.If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://www.xlteng.com/ (Group)
http://www.ltma-forklift.com/ (Forklift)
http://www.ltma-loader.com/ (Loader)
http://www.airport-gse.com/ (Airport GSE)

Customer meeting

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

Our Service

After-sale Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
