Professional manufacture of heavy duty 12v electro-hydraulic jack

Supplier: Jinyun Zhaoshi Tool Co., Ltd.
Region: Zhejiang, China
Contact: Ms Vicky Zhao
Price: $48.00 /set
Min. Order: 1 set

Click here to contact

Product details

port:	Ningbo, Shanghai	Packaging Details:	Packaging: Color box with foam Jack weight 5.0kgs Jack size 321515cm Color box size L35W16.5H20 Weight 5.4/5.6KG KGS Set/ctn 4pcs NW/GW 21.6/22.3KGS Carton size 36.5X35X42CM 20FT 2236
20 feet:	2236	type:	Hydraulic jacks
product name:	Electro-hydraulic jack	Operating Voltage:	DC12V
Maximum current:	13A	Color box size:	L35W16.5H20
Lifting range:	155-450mm	maximum height:	360mm/450mm
brand:	ZS	rated power:	150W
Capacity (load):	1-10T	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Maximum load weight:	3.5T	Jack Dimensions:	321515cm
Origin:	Zhejiang, China	power cable:	3.5m
Minimum height:	135mm/155mm	Certification:	CE,USANSI 2009.ROHS,ISO9001
Supply capacity:	5000 boxes of electro-hydraulic jacks per month	model:	ZSY02

Specification

Professional electric jack/electric wrench manufacturer

Jinyun County Zhaoshi Tools Co., Ltd. has 15 years of tool manufacturing experience, and the company's reputation and quality have been recognized at home and abroad.

With multiple production lines, the quality is high and the quality assurance system is perfect. It can independently develop, produce and sell high-tech products such as vehicle electric jacks, vehicle wrenches, and vehicle air pumps.

We repeatedly check the workmanship and quality of products, high quality and fast shipment, especially for auto parts and hardware products, we have very rich experience in production and sales, with high quality standards.

Zhao's team, as always, strives for survival by quality, development by reputation, continuous progress and innovation, and has been recognized by all walks of life in the market.

feature:

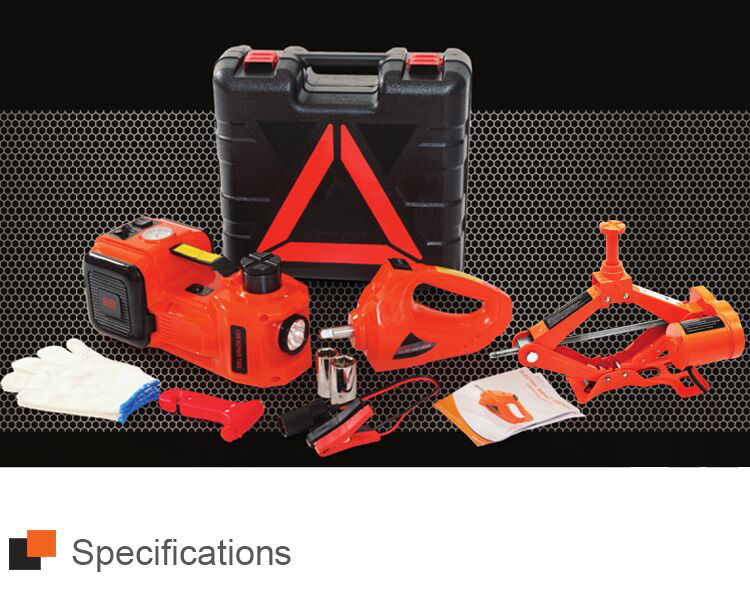

1. Complete set of electric car jack and electric impact wrench car maintenance tool kit.
2. Three in one: lifting + inflation + wheel change.
3. It is packaged in BMC, easy to carry.
4. Ultra-low pressure lever, specially designed for sports cars.
5. The front LED light is convenient for lighting at night.
6. Portable, economical and practical tool kit.
7. A complete set of relevant small tools, such as safety hammers and gloves.
8. Easy to operate, one step to solve the problem.
9. Passed CE, USANSI 2009, ROHS, ISO9001 certification, the quality is guaranteed.

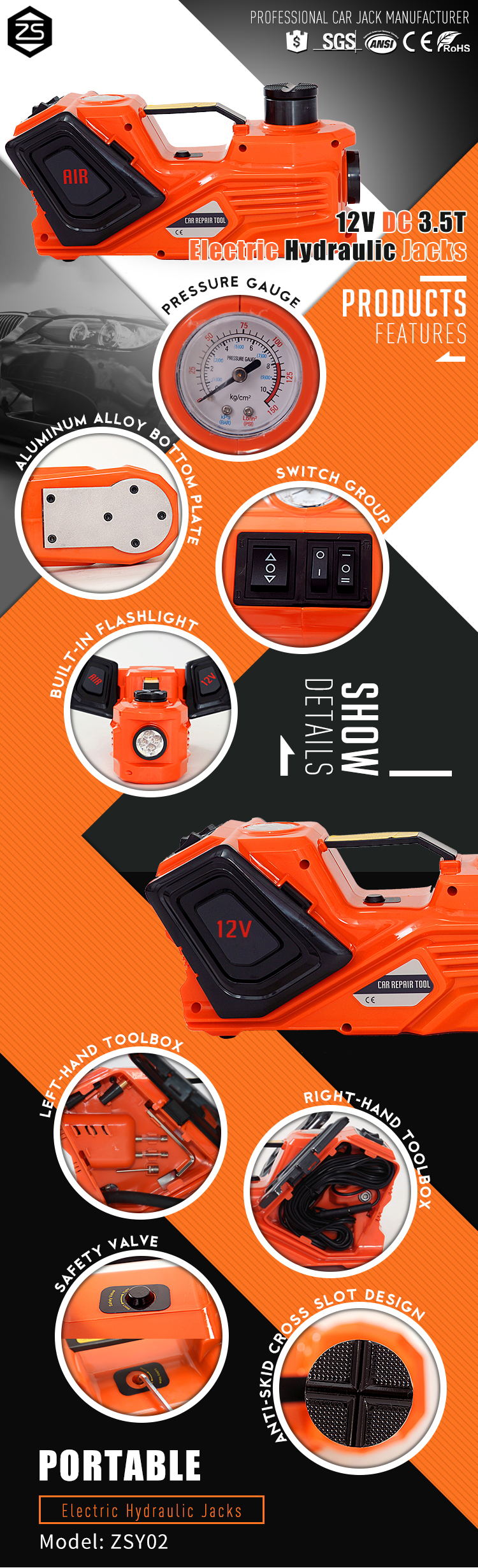

There are also hidden cooling vents to prevent water splashing.
Anti-skid cross groove design. Freely adjust the height. Widen the aluminum plate to make it stable.
A new exterior design that looks like a car. Have fun. Built-in dual motor drivers, work independently.
Engineered ABS shell makes it stronger.
The 3.5M power cord inside the right side cover.

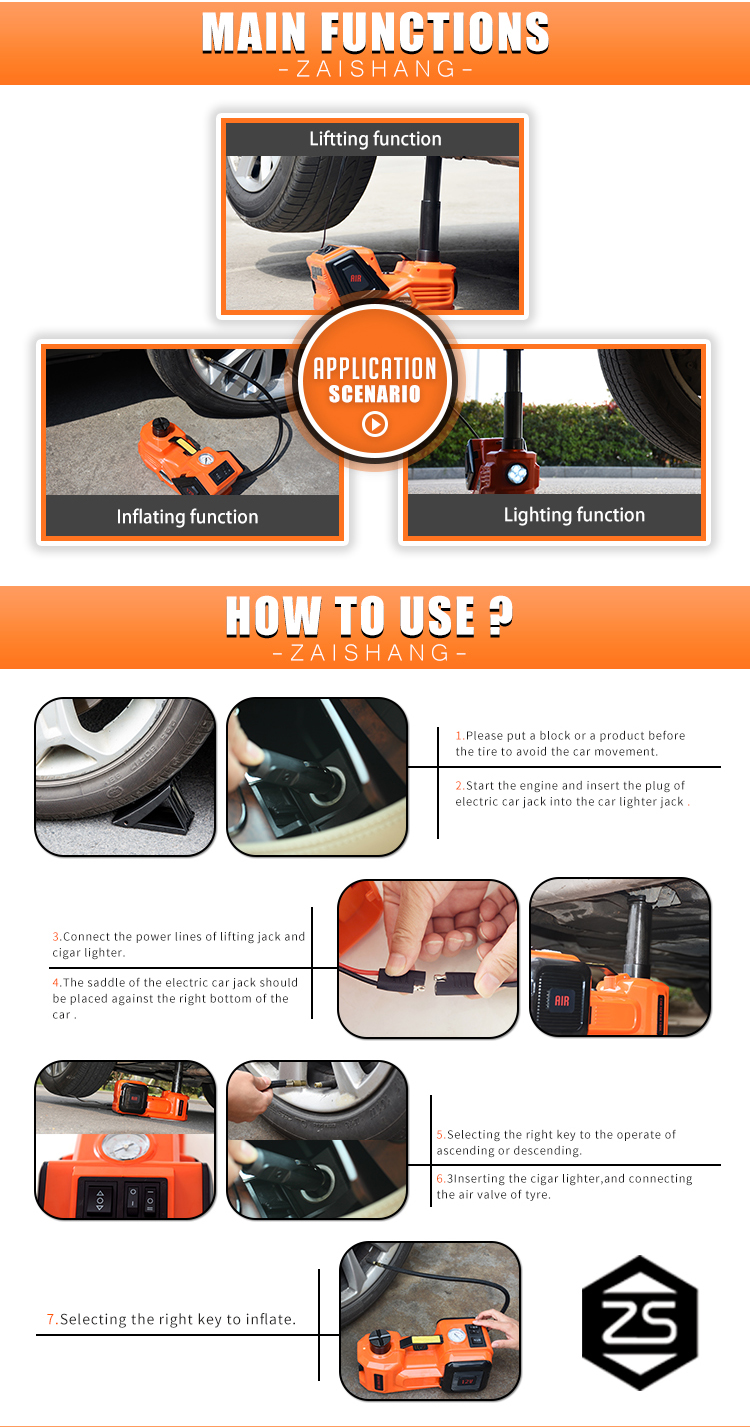

usage:
1. Insert the power plug into the car cigarette lighter
2. Make sure that the center of the pressure rod is aligned with the load-bearing part of the car chassis

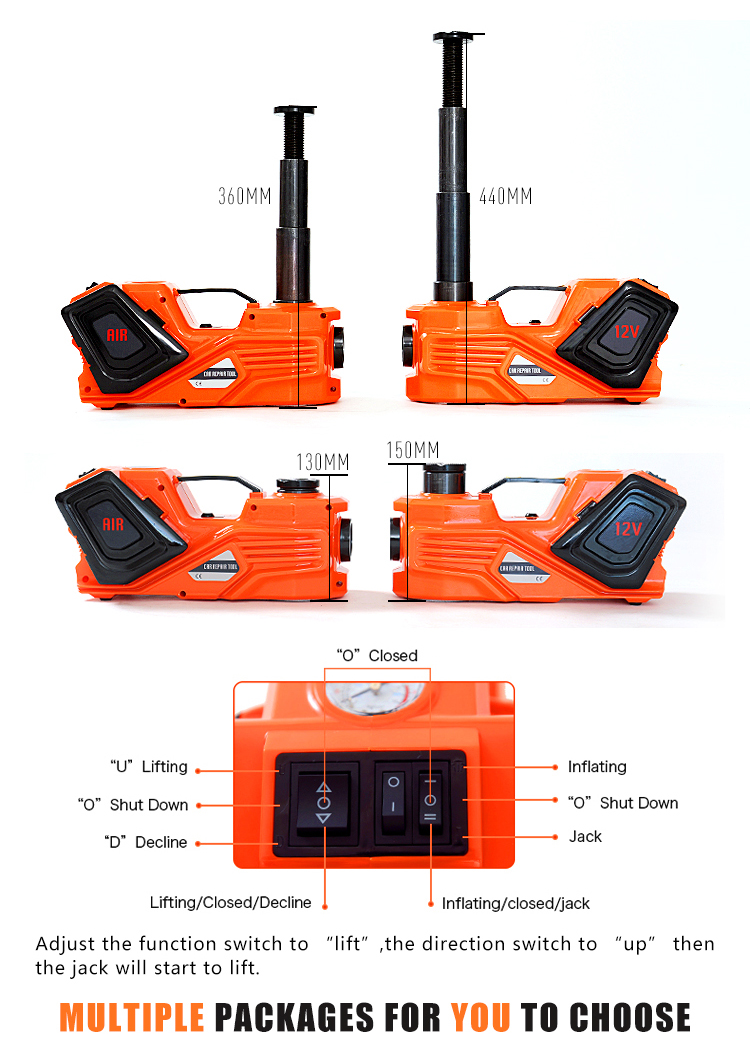

3. Adjust the function switch to the "jack" direction switch to the top, and the jack starts to work until the distance between the car tires is reached.

Product Details

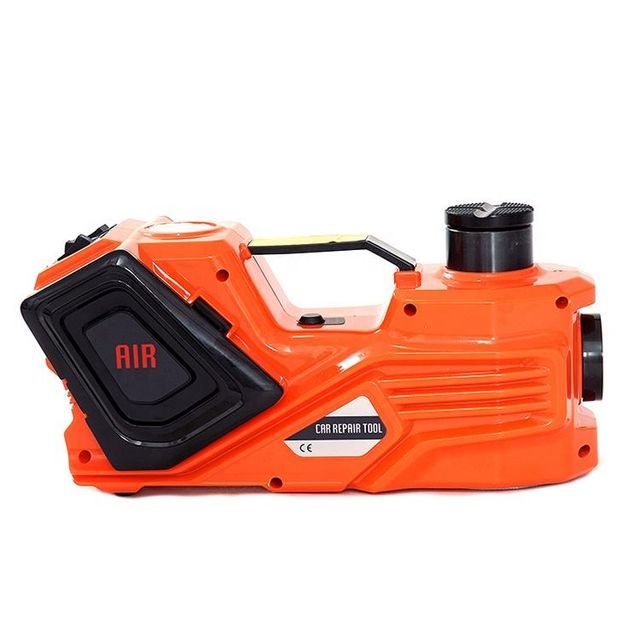

Product name: 12V DC 3.5T multifunctional electro-hydraulic jack
type	Common	renew
Model	ZsmallY01(Two in one: lifting + inflation)	ZsmallY02(Two in one: lifting + inflation)
Enhanced functional specifications
rated power	150W	150W
Operating Voltage	DC12V	DC12V
Maximum current	13A	13A
Maximum load weight	3.5T	3.5T
Lifting range	135-360mm	155-450mm
Inflatable function description
greatest pressure	150psi	150psi
air flow	35 l/min	35 l/min
current	10A	10A
Tracheal length	0.65m	0.65m
Ppower cable	3.5M	3.5M
Package	ZsmallY01	ZsmallY02
pack	Packing: color box with foam	Packing: color box with foam
JayConfirm the weight	4.7 kg	5.0 kg
Jaybackpack size	321515cm	321515cm
Color box size	L35W16.5H20	L35W16.5H20
weight	5.18/5.4KGS	5.4/5.6KG kg
smalletc./box	4	4
Net weight/Gross weight	20.72/21.5KGS	21.6/22.3KGS
Carton size	36.5X35X42CM	36.5X35X42CM
20 feet	2236	2236
