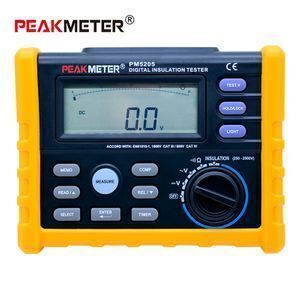

With Multimeter Analogue Display 2500V Digital Insulation Resistance Tester Megger 100G Ohm MS5205
- 68.79 piece
| Place of Origin: | Guangdong China; | Testing Voltage: | 0~2500V; |
| AC Volt (Multimeter): | 0.1~750V; | Measuring Range: | 0.01MΩ~100.00GΩ; |
| Package Type: | 6pcs/carton, 14KGS/carton, CTN Size: 56 x 36 x 33.5 cm; | Brand Name: | Peakmeter; |
| Model Number: | MS5205; | Continuity test (Multimeter): | 0.01Ω ~200Ω; |
| Package Preview: | https://sc02.alicdn.com/kf/HTB1TYO.eaWs3KVjSZFxq6yWUXXab.jpg_640x640.jpg; | Single gross weight: | 3 KG; |
| Dimensions: | 180*140*65mm; | Accuracy Class: | ±(3% + 5); |
| Single package size: | 36X29X13 cm; | DC Volt (Multimeter): | 0.1~1000V; |
| Short Circuit Current: | Approx. 3mA; | Operating Temperature: | 0 - 40 ℃; |
| Selling Units: | Single item; | Display Type: | Analogue and Digital; |
MS5205 With Multimeter Analogue Display 2500V Digital Insulation Resistance Tester Megger 100G Ohm
Features | ||
Digital & Analogue Display | ||
Low Battery Display | ||
Auto Power Off | ||
Display Backlight | ||

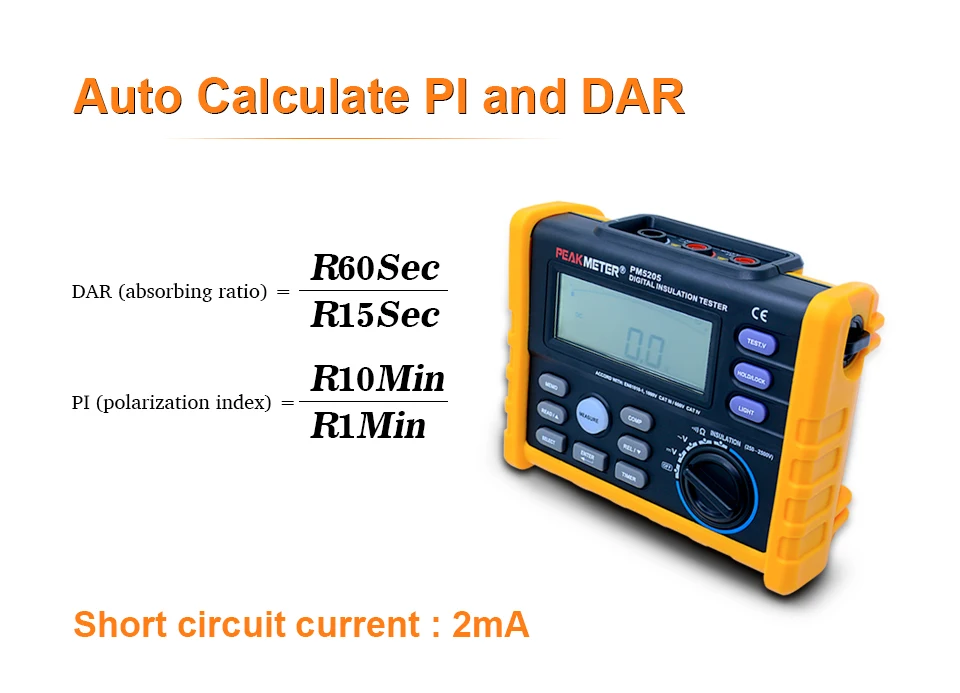

Auto Calculate PI and DAR | ||
Store /Load Function | ||
Compare function | ||
Auto discharge for capacitive load | ||
Timer Function for insulation test | ||
Lock function for insulation test | ||
DCV and ACV Test | ||
Continuity test | ||
Power supply | 6 x1.5v AA batteries | |
Weight | Approx 950g | |
Size | 180mm x 140mm x65mm | |
Safety Rating | CE ETL CAT.III 1000V .CAT IV 600V RoHS | |
Specifications | ||
Insulation Test | Source Output Voltage | Measuring Range |
250V( 0 % - 20%) | 0.01MΩ - 250MΩ±(3%+5) | |
500V( 0% - 20%) | 0.01MΩ - 500MΩ±(3%+5) | |
1000V( 0% - 20%) | 0.01MΩ - 1000MΩ±(3%+5) | |
1.00GΩ – 5.00MΩ±(5%+0.1GΩ) | ||
5.00GΩ – 10.00 MΩ±(10%+0.2GΩ) | ||
2500V( 0% - 20%) | 0.01MΩ – 2.00GΩ±(3%+5) | |
2.00GΩ - 20.00GΩ±(5%+0.2GΩ) | ||
20.00GΩ – 100.00 GΩ ±(5%+0.2GΩ) | ||
Short Circuit Current | 2mA | |

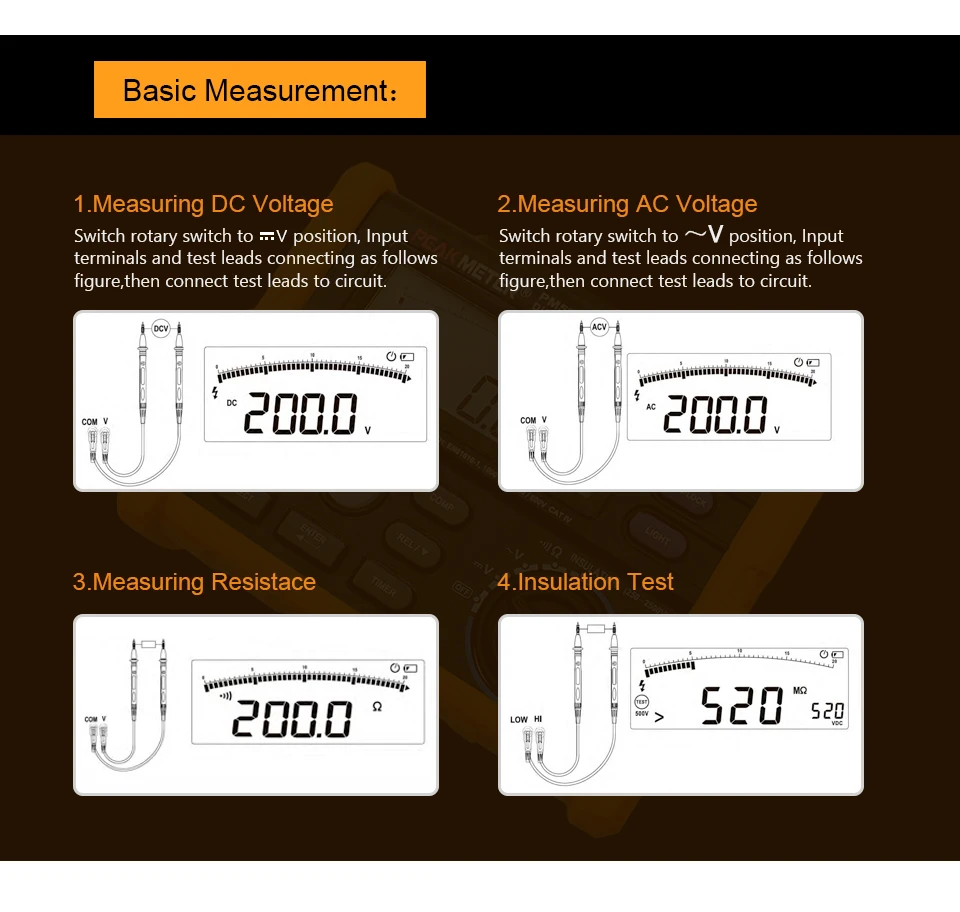

Multimeter | DC Voltage Test | 0.1 - 1000V ±0.5% |
AC Voltage Test | 0.1 - 750V ±1% | |
Continuity Test | 0.01Ω - 200Ω ±0.5% | |

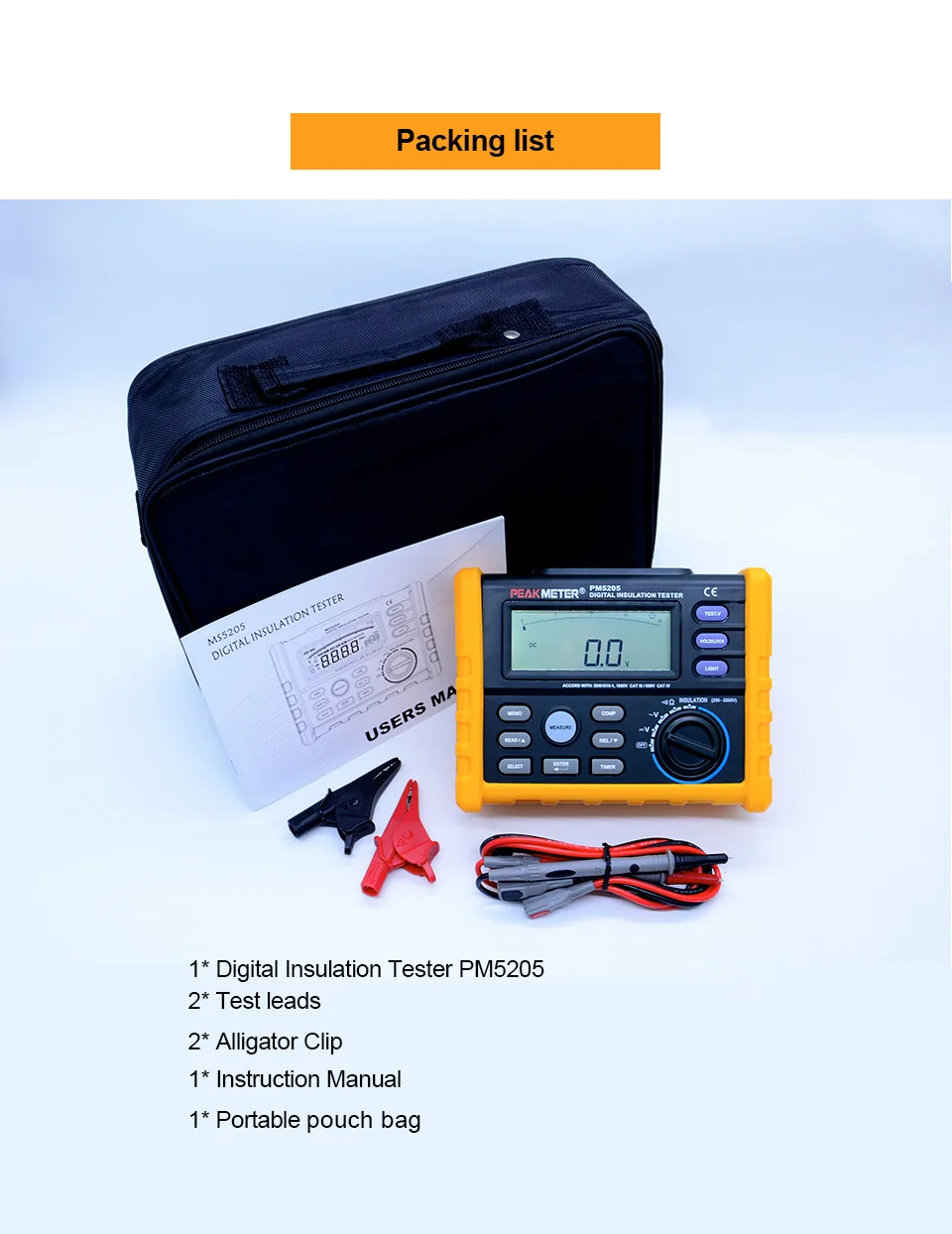

MS5205 2500V Digital Insulation Resistance Tester Megger
Test lead | One set |
Clips | One set |
User’s manual | One piece |
1.5V AA battery | Six pieces |
Carry case | One piece |
Gift box | One piece |
