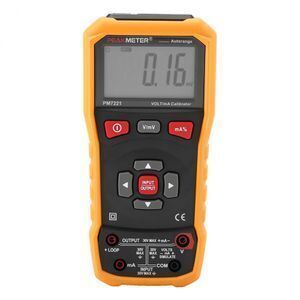

4-20ma 0-10v signal generator 4-20mA Voltage Calibrator MS7221

Supplier: Shenzhen Peakmeter Tech Co., Ltd.
Region: Guangdong, China
Contact: Ms Sabrina Lei
Price: $101.99 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Type:	10pcs/carton, 11KGS/Carton;;	Brand Name:	PEAKMETER;
Package Preview:	https://sc01.alicdn.com/kf/Hc22397cfd40a4146b27154f762c3565aM.jpg_640x640.jpg;	Model Number:	PM7221;
Place of Origin:	Guangdong China;	Single package size:	23X16X8 cm;
Single gross weight:	0.8 KG;	Selling Units:	Single item;
Type:	process calibrator;

MS7221 4-20ma 0-10v signal generator 4-20mA Voltage Calibrator

Product Description

Features

Generation of output Volt signal up to 10V DC
Volt measurement up to 10V DC
Generation of output current signal up to 24mA DC
Measure Loop current 0 to 24mA DC with 0.015% accuracy and 1uA resolution
Selection of 0-20 mA and 4-20 mA outputs
24V DC source loop power supply
Loop current measurement of external transducers
Simulating of an external transducer
Backlight
Auto power off

Specifications
Function	Range	Resolution	Accuracy, ± (% of Reading + digits)
Measured mV DC (INPUT)	0.01 to 100.00mV	0.01mV	0.02% + 2
Measured V DC (INPUT)	0.0001 to 10.000V	0.001V	0.02% + 2
Generated mV DC (OUTPUT)	0.01 to 100.00mV	0.01mV	0.02% +2
Generated V DC (OUTPUT)	0.0001 to 10.000V	0.001V	0.02% + 2
Measured Current DC (% of span)	0.001 to 24.000mA	0.001mA	0.0015% + 4
Source and Simulate Generated Current DC (% of span)	0.001 to 24.000mA	0.001mA	0.0015% + 4
Source and Simulate Generated Current DC (% of span)	-25.00 to 125.00%	0.01%	0.0015% + 4
Loop Power	24VDC		10%

+

Environmental Specifications
Operating Temperature	-10 ºC to 55 ºC
Storage Temperature	-40 ºC to 60 ºC
Temperature Coefficient	0.005 x range per ºC

+

Mechanical & General Specifications
Size	204 x 93 x 57 mm
Weight	Approx.550g
Batteries	4 x 1.5V AA batteries
Warranty	1 year
Electrical Safety	EN61010-1, EN61326-1
