With RCD Test EU Standard 230V Plug Socket Tester PM6860DR
- 2.49 >=60 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Dimensions: | 61*61*55 mm; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| Measuring Range: | 230V; | Supply Voltage: | 230V; |
| Supply Ability: | 300000 Piece/Pieces per Month; | Model Number: | PM6860DR; |
| Operating Temperature: | 0~40 ℃; | Display Type: | LED; |
| Packaging Detail: | 60pcs/carton, 11KGS/carton; | Tripping mA: | >30mA; |
| Place of Origin: | Guangdong China (Mainland); | RCD test: | yes; |
| Accuracy Class: | High; | Weight: | 50g; |
| Brand Name: | PEAKMETER; | Port: | Shenzhen; |

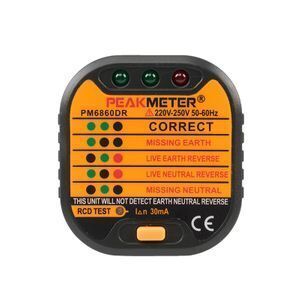

PM6860DR With RCD Test EU Standard 230V Plug Socket Tester
Product Description
EU & UK Plug Socket Tester

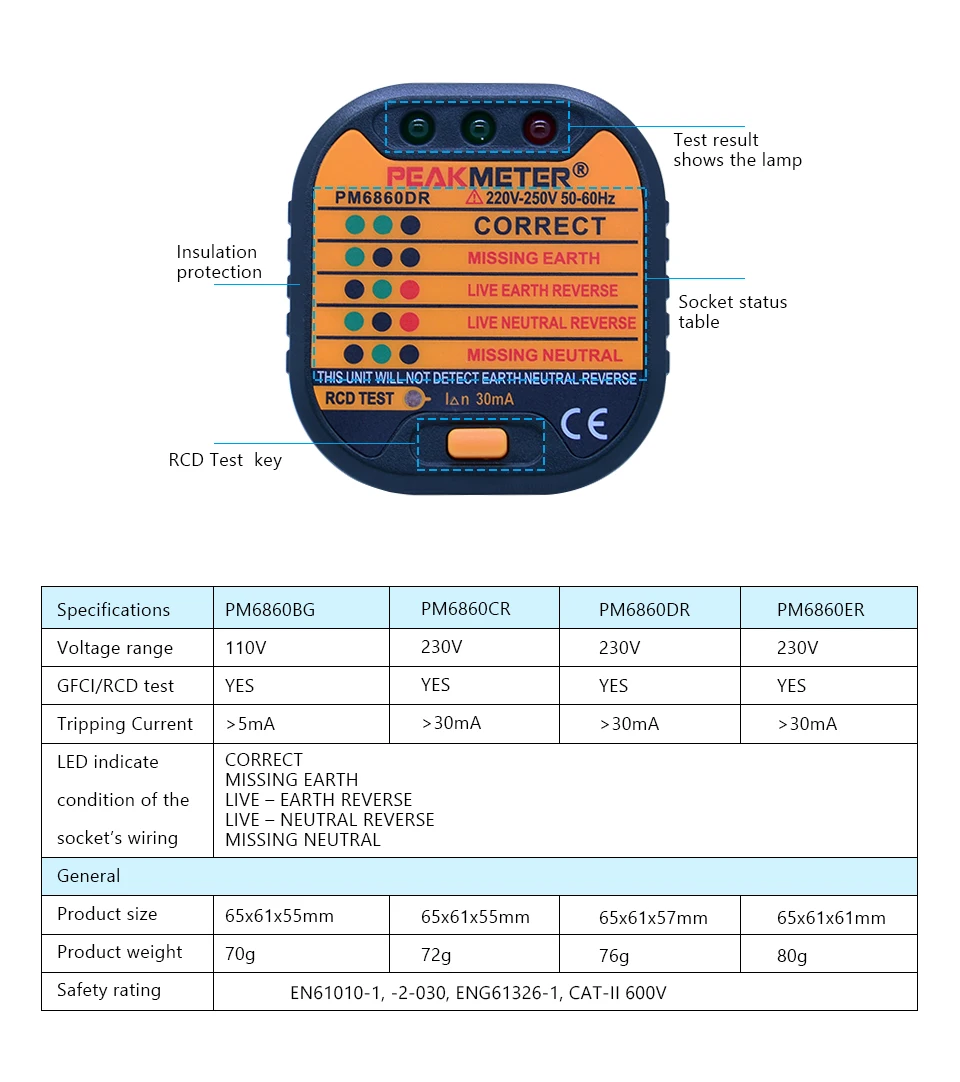

Specifications | ||||
| PM6860D | PM6860DR | PM6860E | PM6860ER |
Voltage range | 230V | 230V | 230V | 230V |
GFCI / RCD test |
| √ |
| √ |
Tripping current |
| >30mA |
| >30mA |

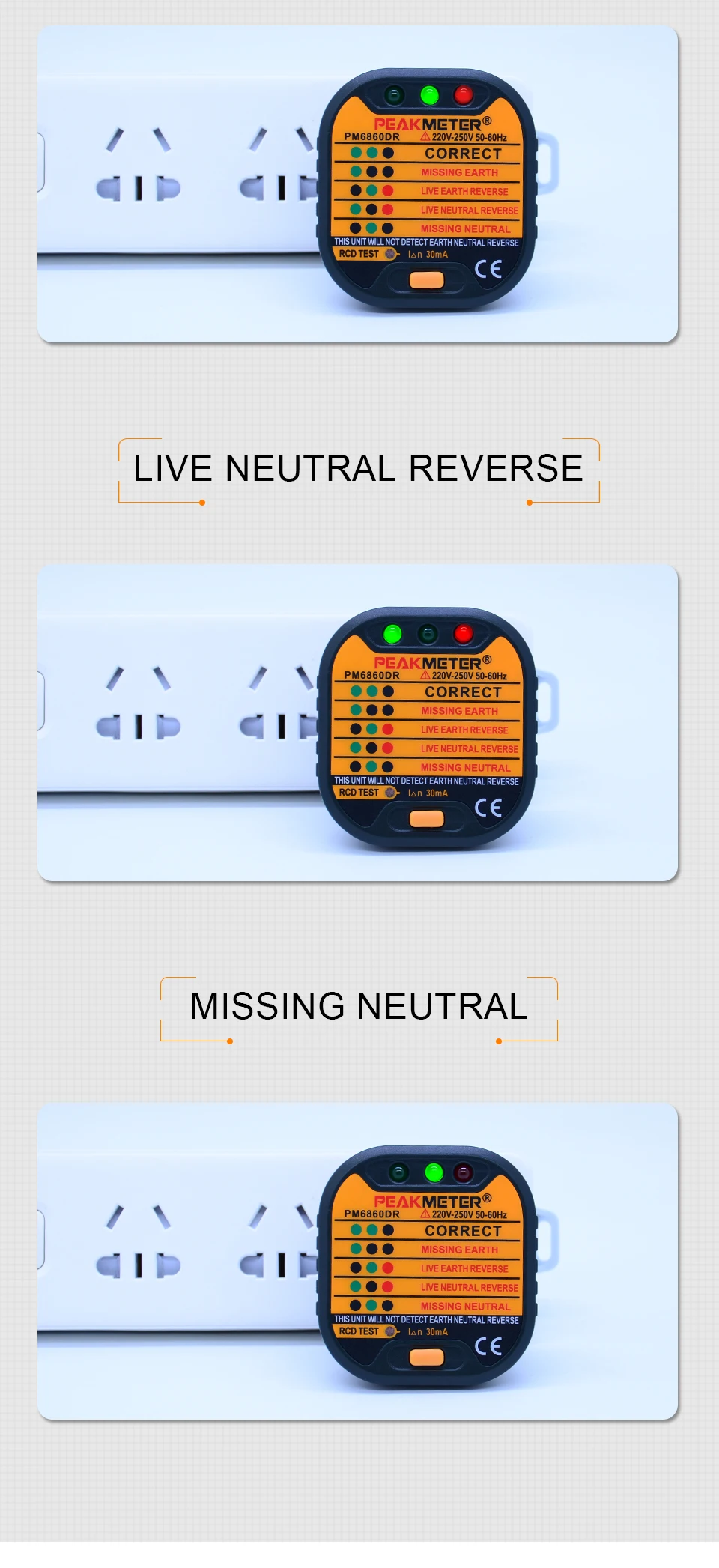

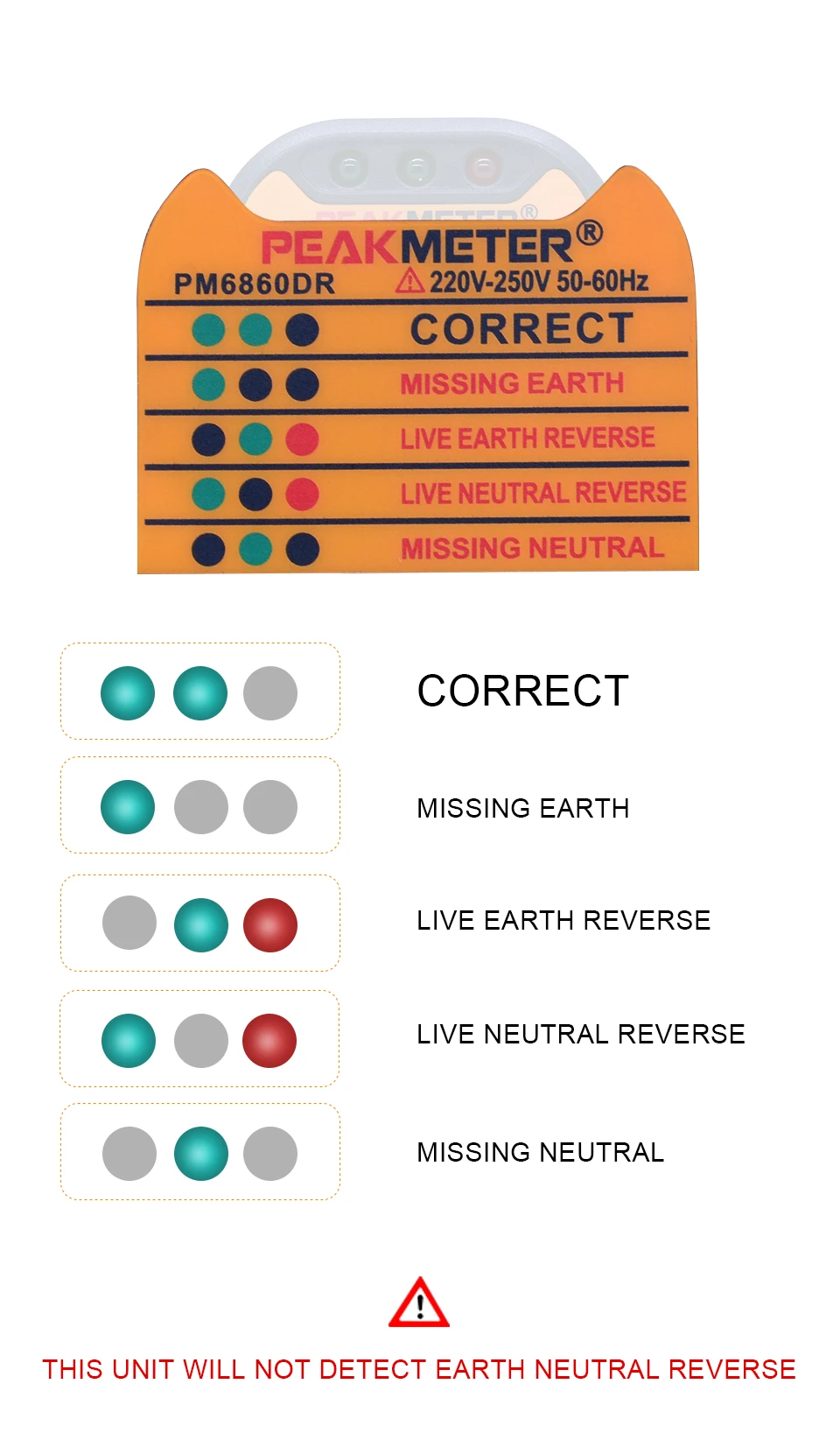

LED Indication of socket wiring | Missing Earth | |||
Live-Earth reverse | ||||
Live-neutral reverse | ||||
Missing neutral | ||||
Mechanical & General Specifications | ||||
Weight | 56g | 60g | ||
Size | 65×61×57mm | 65×61×61mm | ||
Safety Rating | EN 61010-1, -2-030, EN 61010-2-033, EN61326-1, CAT.III 1000V | |||
Detailed Images
