MS2302 Digital & Analog Bar Display Range 4K ohm Earth Volt 200V Data Logging 100 Groups Earth Ground Tester

Click here to contact

Product details

Accuracy Class:	±(2% + 6);	Model Number:	MS2302;
Selling Units:	Single item;	Current Test:	80Hz/3mA;
Single package size:	36X29X13 cm;	Display Type:	Analogue and Digital;
Dimensions:	18014065mm;	Testing Voltage:	0-200V;
Single gross weight:	3.5 KG;	Package Preview:	https://sc01.alicdn.com/kf/HTB1dTyYaoY1gK0jSZFMq6yWcVXaW.jpg_640x640.jpg;
Brand Name:	Peakmeter;	Package Type:	6pcs/carton, 18.5KGS/carton, CTN Size: 56 x 36 x 33.5 cm;
Data logging:	100 groups;	Place of Origin:	Guangdong China;
Measuring Range:	0 - 4.00KΩ;	Operating Temperature:	0 - 40 ℃;

Product Description

Features (MS2302 Earth Ground Tester)
Digital Display & Analog Bars Display
Low Battery Display
Auto Power Off
Display Backlight
Earth Resistance By Constant Current Inverter 800Hz/3mA
MAX/MIN/AVG/REL Measurement Functions
Data logging And recall	100 groups

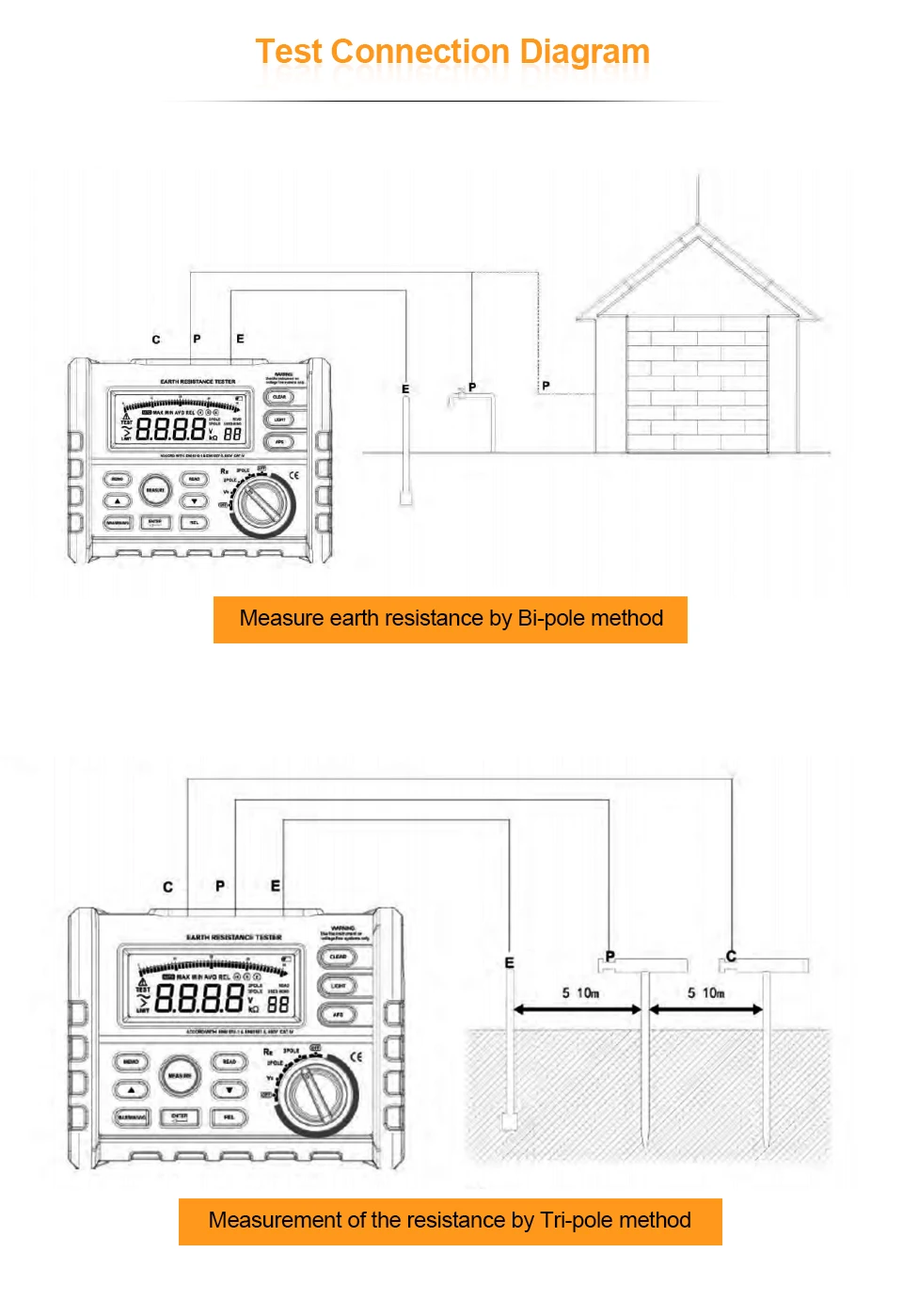

Test method	2 Pole and 3 Pole Mode
Power supply	6x1.5v AA batteries
Weight	Approx 950g
Size	180mm x 140mm x65mm
Safety Rating	CE ETL CAT.Ⅲ1000V RoHS
Specifications
Range	Accuracy	Resolution
Resistance
0Ω ~ 29.99Ω	±(2% + 6dgt)	0.01Ω
30Ω ~ 99.9Ω	±(3% + 3dgt)	0.1Ω
100Ω ~ 999.9Ω	±(3% + 3dgt)	1Ω
1.00KΩ ~ 4.0000KΩ	±(3% + 3dgt)	10Ω
Voltage
0V to 200V (50 to 60Hz)	±(1%+5dgt))	0.1V

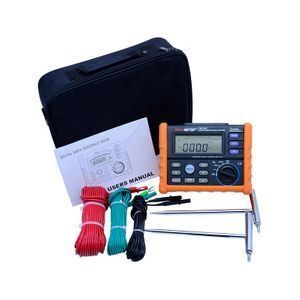

Accessories

MS2302 Earth Ground Tester
