Vertical Hydraulic Head Cylinder Honing Machine Model: THM170

Supplier: Shaanxi APS Machinery Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms Karen yan
Price: $9500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	shanghai,Guangzhou,China;	Max honing depth:	300mm;
Weight:	1200/1400KGS;	Max honing diameter:	170mm;
Packaging Detail:	standard export plywood case;	Place of Origin:	CHINA;
Place of Origin:	CN;SHA;	Condition:	New;
Power(W):	1.1/1.5KW;	Dimension(LWH):	1800x1300x2200 mm;
Certification:	ISO9001;	After-sales Service Provided:	Online support,Video technical support;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Supply Ability:	100 Set/Sets per Month;
Voltage:	220V/380V/415V;	Warranty:	1 Year;
CNC or Not:	Normal;

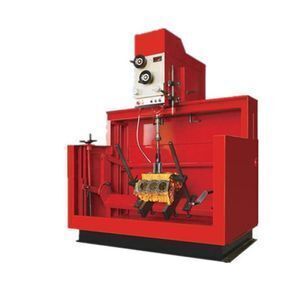

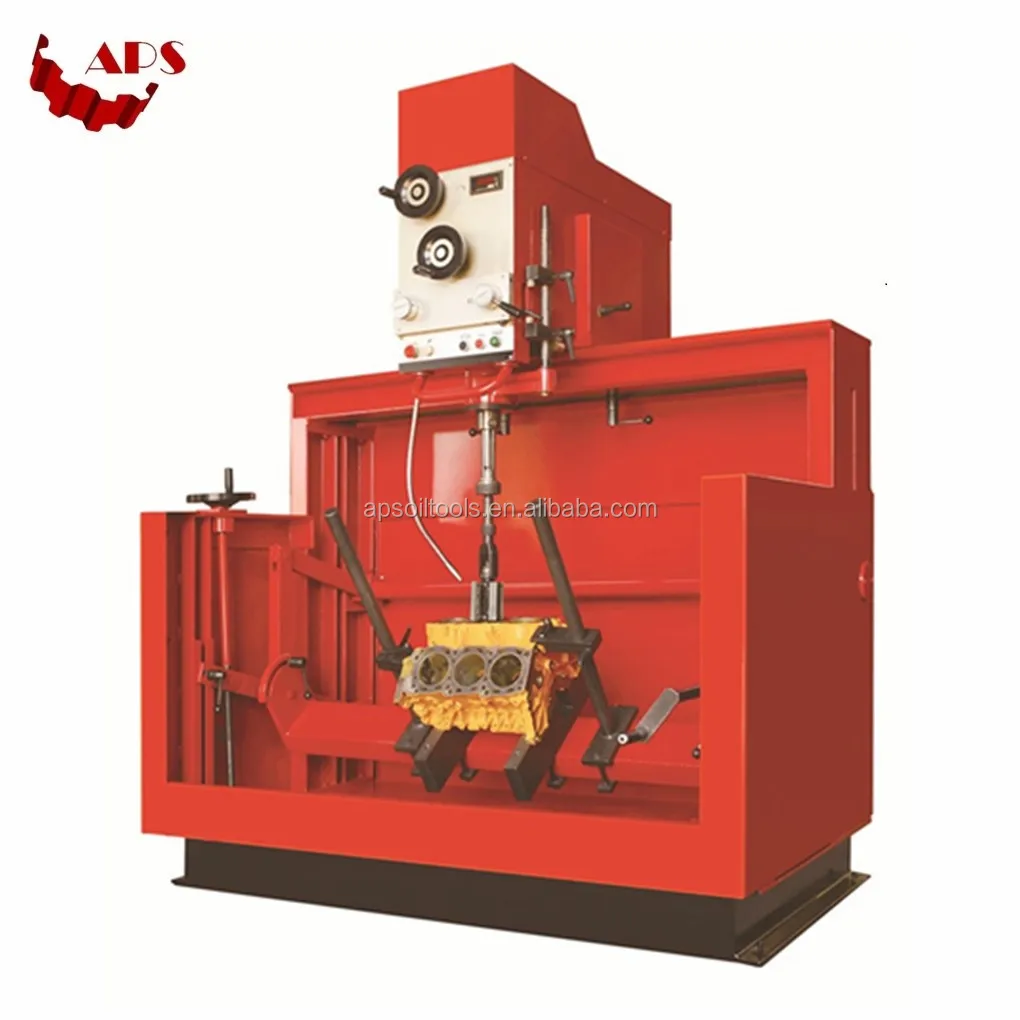

Hydraulic Vertical Fine Cylinder Honing Machine THM170

Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece.

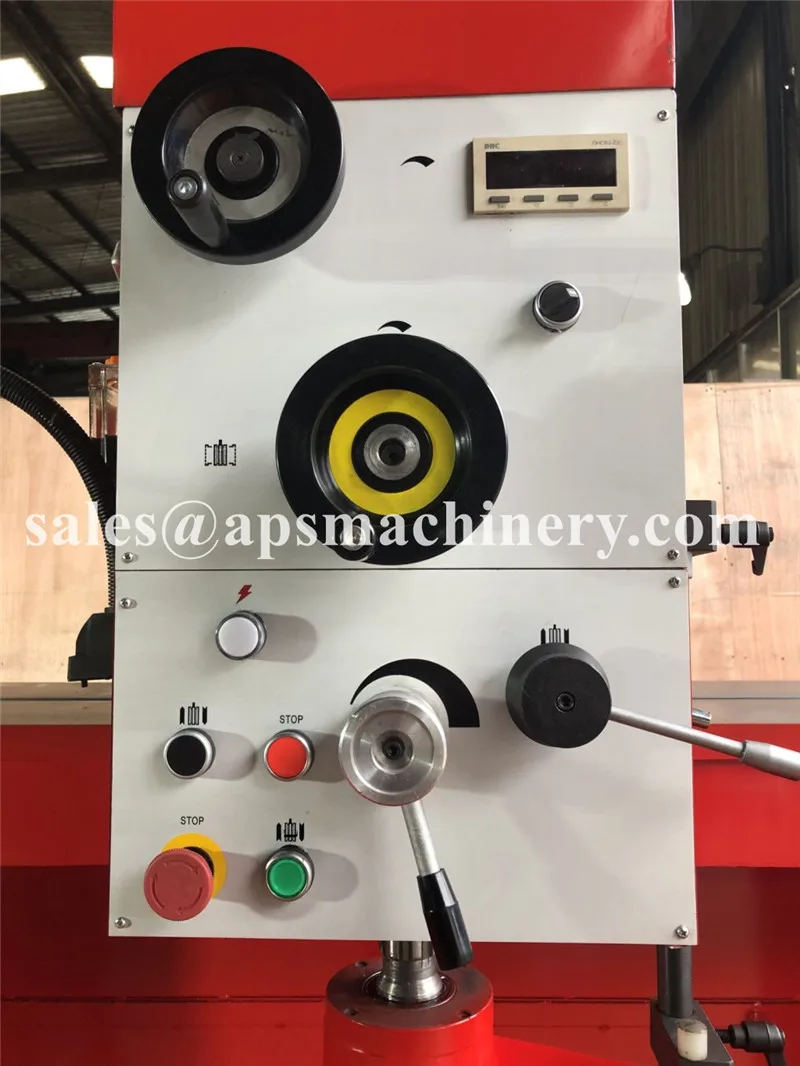

The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks. Honing spindle with steplessly variable ratation speed visualized on the control panel.

Product Description

Characteristics:
1. The spindle adopts the stepless variable speed for its reciprocating motion and rotation.

2. Short-stroke honing can be easily realized at any position within the travel of spindle to conveniently revise the workpiece.

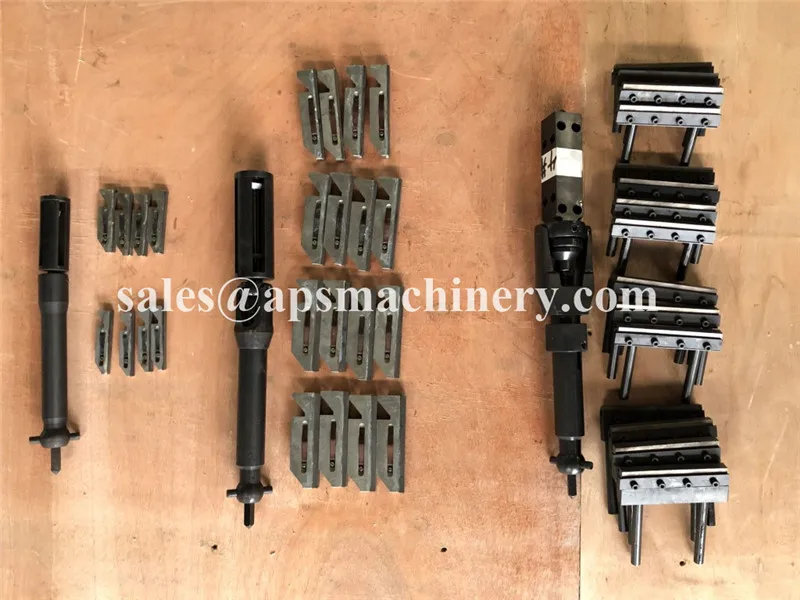

3. Diameter of the honing head can be optionally changed during honing.

4. The spindle box is provided with pneumatic system for its convenient and flexible movement and easy centering.

5. Frame type worktable can realize up-down motion and rotation as well as the machining of v-shaped block and any other complicated workpiece even without the special fixture.

Main specifications

Model	THM170
Max honing diameter	170 mm
Minimum honing diameter with automatic expansion honer	35mm
Max honing depth	300 mm
Workpiece max. length	1200 mm
Cylinder bearing plates width	400 mm
Workpiece max. length	600 mm
Roundness of honing hole	0.0025mm
Cylindricity of honing hole	0.008
Roundness of honing hole surface	Ra0.2ua
Spindle head longitudinal stroke	1100 mm
Spindle head transversal stroke	80 mm
Max load of worktable	200 kgs
Spindle motor	1.1kw
Hydraulic plant motor	1.5kw
Electropump power	90w
Spindle rotating speed	100-300 rpm
Spindle alternative motion speed	0-18 m/min
Overall dimensions(L×W×H)	1800×1300×2200 mm
Packing dimensions(L×W×H)	2220×1640×2290 mm
.W./G.W.	1200 /1400 kg
