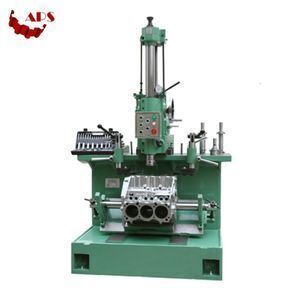

Cylinder Vertical Air-Floating Fine Boring Machine TB8016
- 5950.00 set
| Port: | SHANGHAI,CHINA; | Boring depth: | 320mm; |
| Weight: | 1300kgs; | Certification: | ISO; |
| Condition: | New; | Production Capacity: | 100; |
| Max Boring diameter: | 160mm; | Voltage: | 220V/380V /415; |
| Power(W): | 1.1KW; | Warranty: | 1 Year; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; | Dimension(L*W*H): | 1250x1050x1970mm; |
| Supply Ability: | 200 Set/Sets per Month; | Place of Origin: | Shaanxi China; |
| Packaging Detail: | Standard export plywood case; | Min Boring diameter: | 39mm; |
| CNC or Not: | Normal; | After-sales Service Provided: | Online support,Video technical support,Free spare parts,Field installation, commissioning and training; |
The boring machine TB8016
Vertical Air-floating Fine Boring Machine
The boring machine is a mecharically electrically-pneumatically-integrated new product of our works which is applicable for boring various, bores especially those bores on automobile and tractor cylinders. If V-shaped baseplaces are provided the machine can also bore various V-engine cylinders. After air-float boring head it can rapid search the center of cylinder with accuracy. It has the features of operation, quick location, high precision and high productivity.
·Reliable performance widely use , processing accuracy , high productivity
·Easy and flexible operation
·Air-floating location quick and precise , automatic pressure
·Spindle speed is suitability
·The tool setting and measuring device
·There is a vertical measuring device
·Good rigidity , amount of cutting
Model | Unit | TB8016 | |
Boring diameter | mm | Φ39-Φ160 | |
Max. boring depth | mm | 320 | |
Boring head travel | Longitudinal | mm | 1000 |
Transversal | mm | 45 | |
Spindle feed | mm/s | 0.09 | |
Spindle speed | r/min | 125,185,250, 370 ( 4 steps) | |
Spindle rapid reset | mm/s | 430 , 640 | |
Pneumatic pressure | Mpa | 0.6
| |
Motor power | Kw | 0.85 / 1.1 | |
V-block fixture patented system | degree | 30°,45 ° | |
Overall dimensions | mm | 1250×1050×1970 | |
Packing dimensions | mm | 1500×1140×2070 | |
N.W./G.W. | kg | 1300/1500 | |
Standard Accessories:
Spindle Φ50-Φ72mm, Φ72-Φ150mm, Measuring device
Optional accessories:
V-type cylinder fixture
Spindle Φ38-Φ52mm
Machine photos:

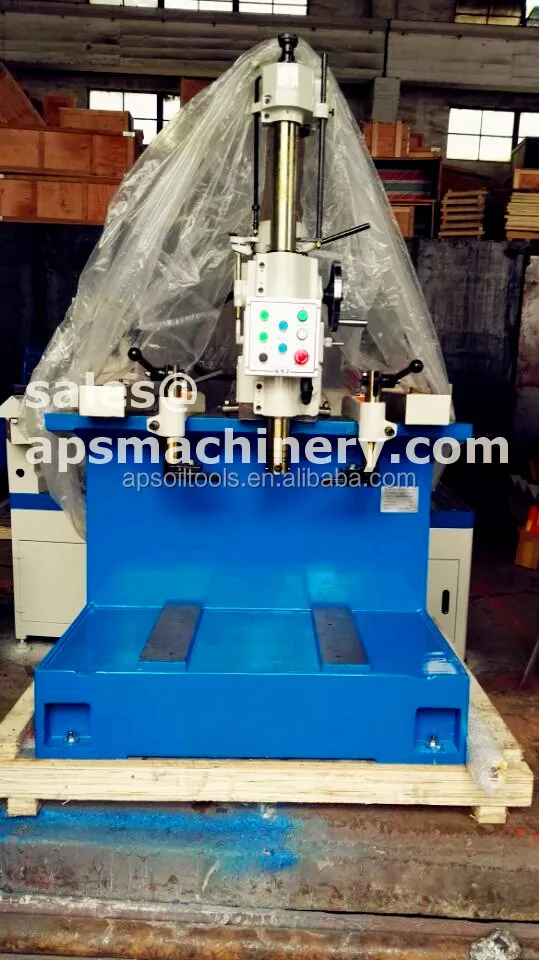

Package :
