Horizontal Line Honing Machine LH50
- 5500.00 set
| Port: | SHANGHAI,CHINA; | Certification: | ISO; |
| Power supply: | 1.5KW; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Condition: | New; | Weight: | 670kgs; |
| Brand Name: | APS; | Supply Ability: | 100 Set/Sets per Month; |
| Power(W): | 1.5KW; | Place of Origin: | Shaanxi China; |
| Diameter of honing hole: | 46-178mm; | Voltage: | 380v; |
| Dimension(L*W*H): | 3200*1480*1920(mm); | After-sales Service Provided: | Online support,Video technical support; |
| Packaging Detail: | Standard export plywood cases; | CNC or Not: | Normal; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; |

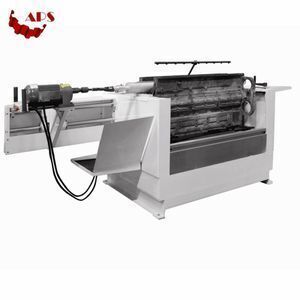

Horizontal Line Honing Machine LH50
MACHINE SPECIFICATIONS
• Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in) Special tooling required for 127 – 178 mm (5.000 to 7.000 in)
• Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm (45 in) long, 710 mm (28 in) from head deck to main bearing centerline.
FEATURES & BENEFITS
• Minimum stock removal, usually less than .003" (.076 mm) off the caps compared to as much as .010" (.254 mm) with boring
• Maximum precision, corrects distortion caused by warpage and cap stretch
• Meets or exceeds original factory accuracy for alignment, roundness and size
• Fast, easy setup
• Ease of operation, no special training required
• Profitable: Make $90-$120 in 30 minutes on a typical V-8 block
• Lifetime application service with every machine purchase
Model | LH50 |
Diameter of honing hole | 46-178mm |
Rotational speed of spindle | 150r/min |
Electric motor power of spindle | 1.5KW |
Cooling pump power | 0.12KW |
Inner working area size(L*W*H)mm | 1140*710*710(mm) |
Overall dimensions(L*W*H) mm | 3200*1480*1920(mm) |
Max travel of spindle | 660mm |
Minimum amount of Coolant | 130L |
Maximum amount of Coolant | 210L |
Weight of main machine(approx) | N.W 670kg G.W800kg |

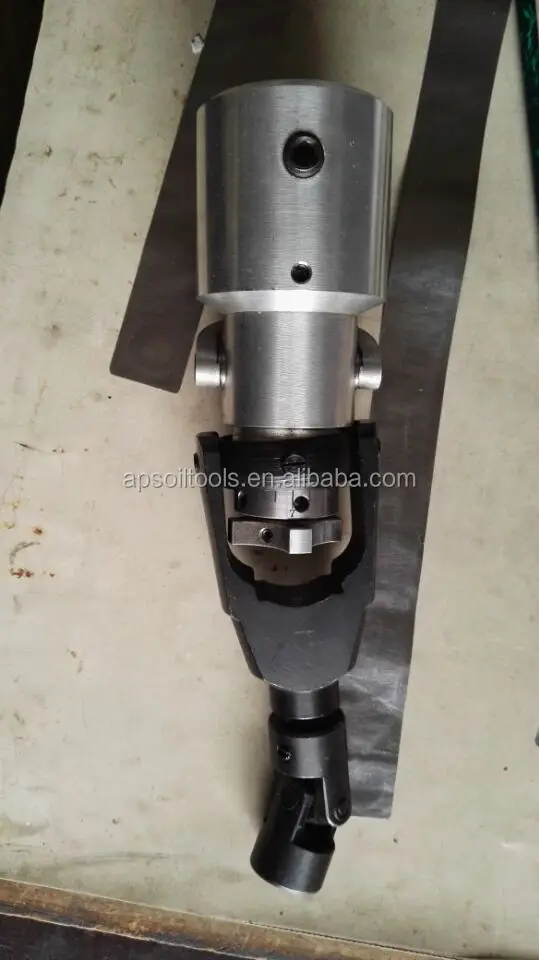

Machine photos:
