Auto Engine Repairing Cylinder Honing Machine 3MB9817

Supplier: Shaanxi APS Machinery Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms Karen yan
Price: $4260.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	APS;	Warranty:	1 Years;
Supply Ability:	50 Set/Sets per Month;	Place of Origin:	China;
Payment Terms:	L/C;	Condition:	New;

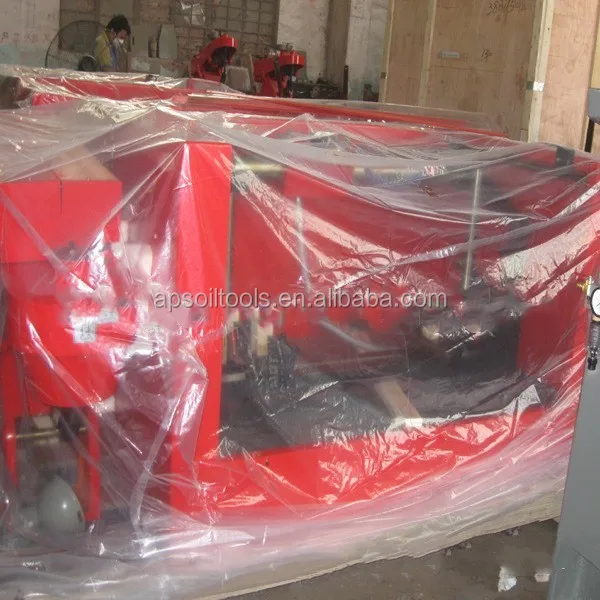

Certification:	ISO;	Packaging Detail:	PLYWOOD CASE;
After-sales Service Provided:	Online support,Video technical support;	Weight:	1200KGS;
Power(W):	1.5KW;	CNC or Not:	Normal;
Voltage:	220/380;	Warranty:	1 Year;
Port:	SHANGHAI,CHINA;

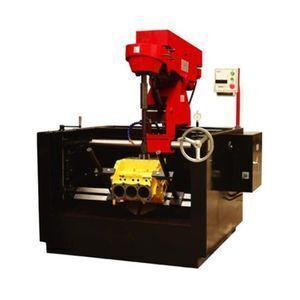

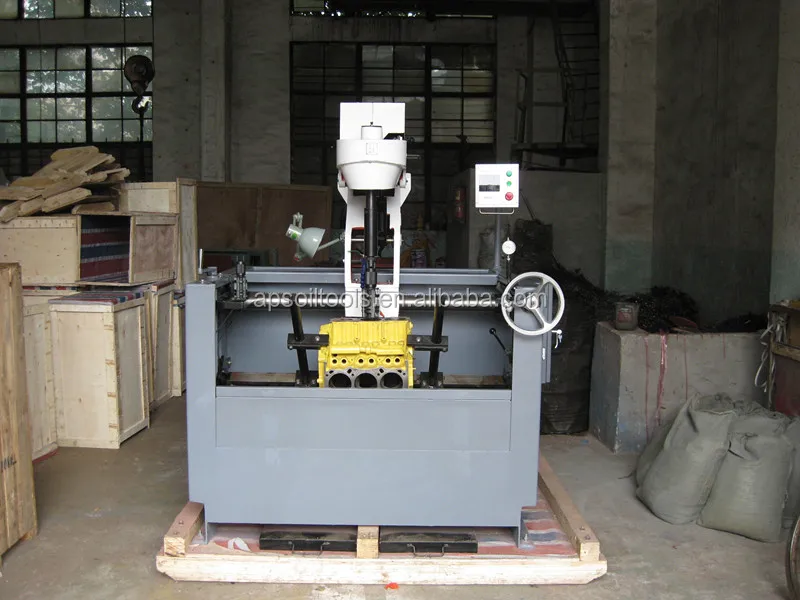

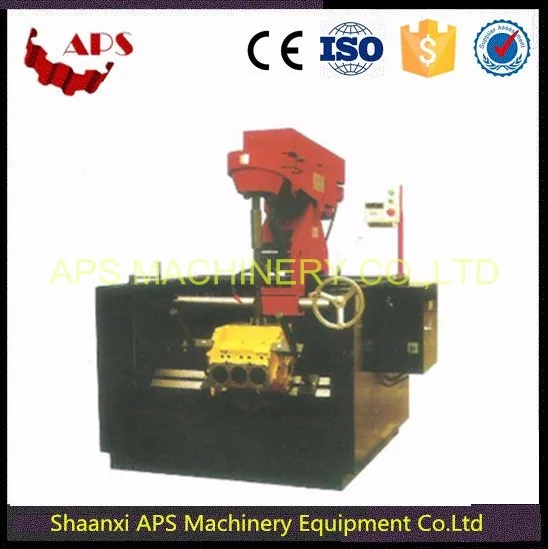

Cylinder boring machine 3MB9817

The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motorcycles and tractors and also for other machine element holes.
·The machine table can shift of the fixture change 0°, 30°and 45°.
·The machine table is easily up and down manually 0-180mm.
·Reverse precision 0-0.4mm.
·Select mesh-wire degree 0°- 90° or non-mesh-wire.
·Reciprocating speed of up and down 0-30m/min.
·The machine is reliable performance widely use honing, easy operation and high productivity.
·Good rigidity, amount of cutting. .

Model	3MB9817
Max diameter of hole honed	Φ25-Φ170 mm
Max depth of hole honed	320 mm
Spindle speed (4 steps)	120, 160, 225,290 mm
Stork (3 steps)	35, 44, 65 s/min
Power of main motor	1.5 Kw
Power of cooling pump motor	0.125 Kw
Machine working inside cavity dimensions (L×W)	1400×870 mm
Overall dimensions (L×W× H)	1640×1670×1920 mm
Packing dimensions (L×W×H)	1850×1850×2150 mm
N.W./G.W.	1000/1200 kg
