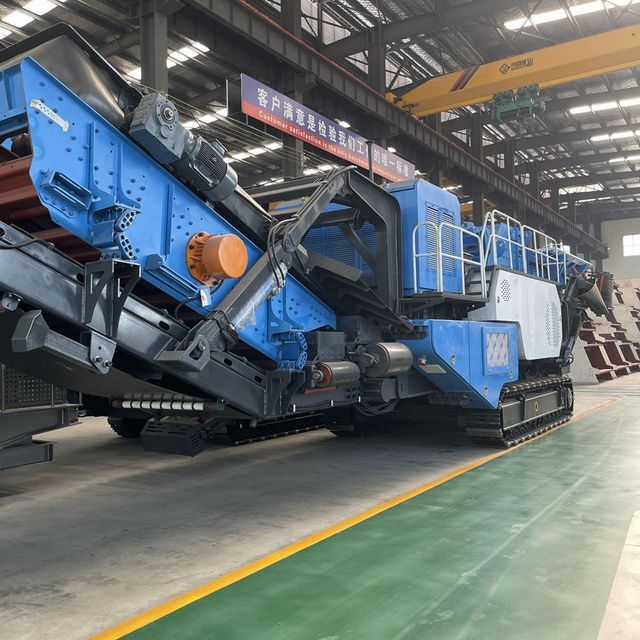

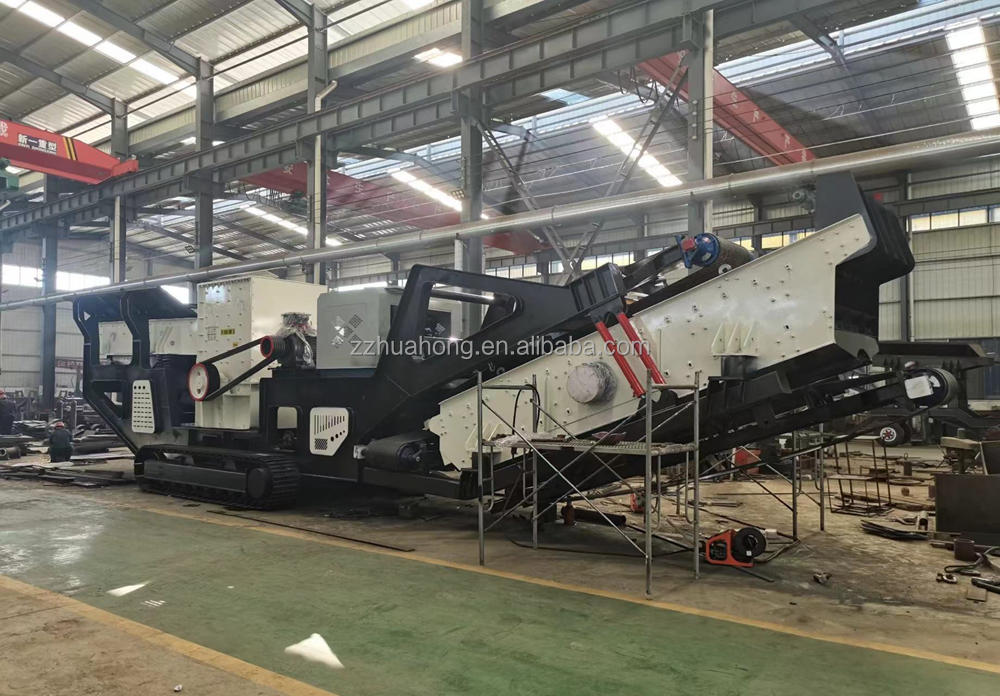

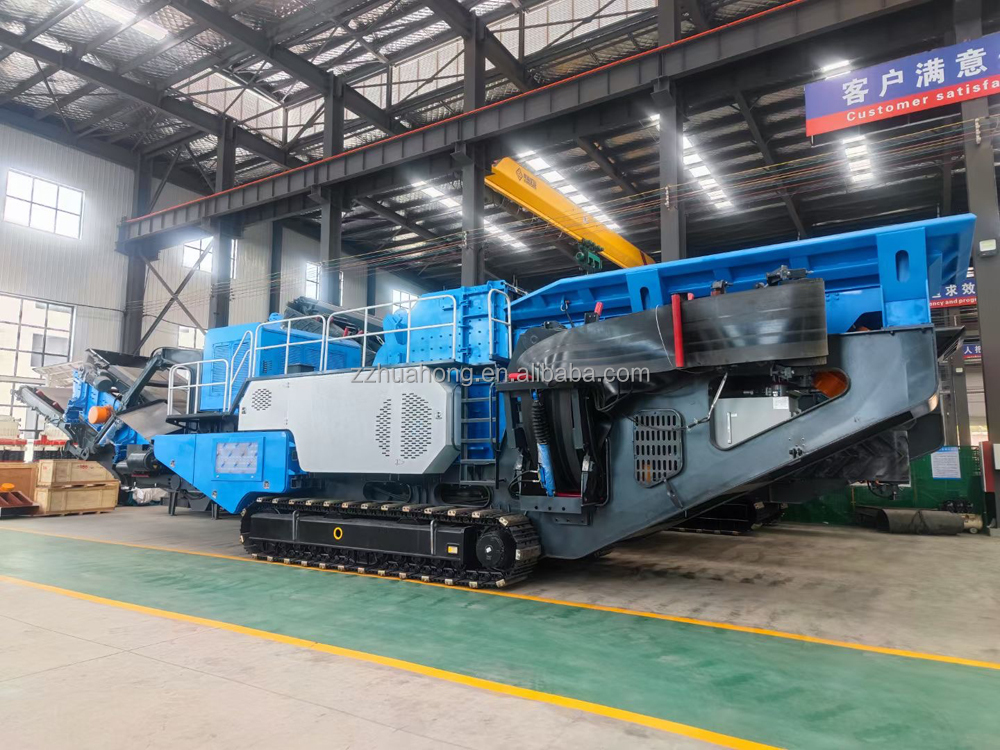

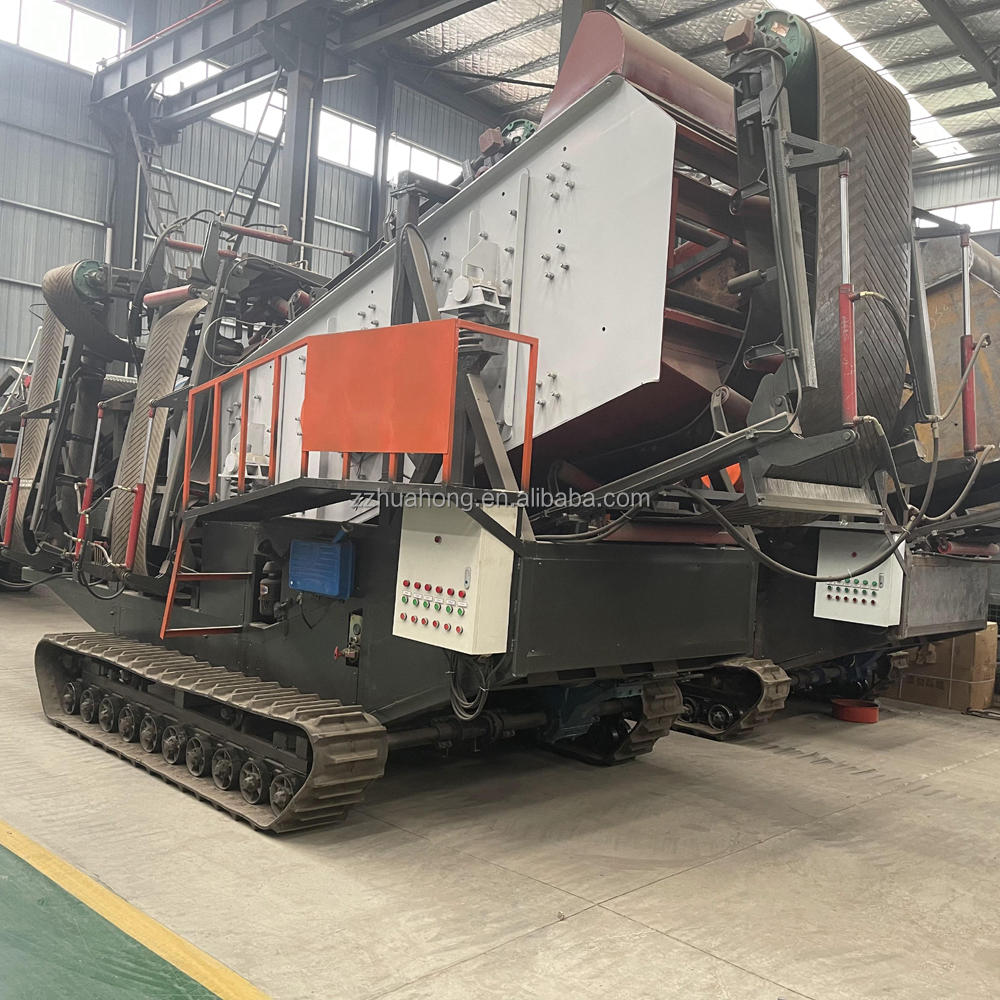

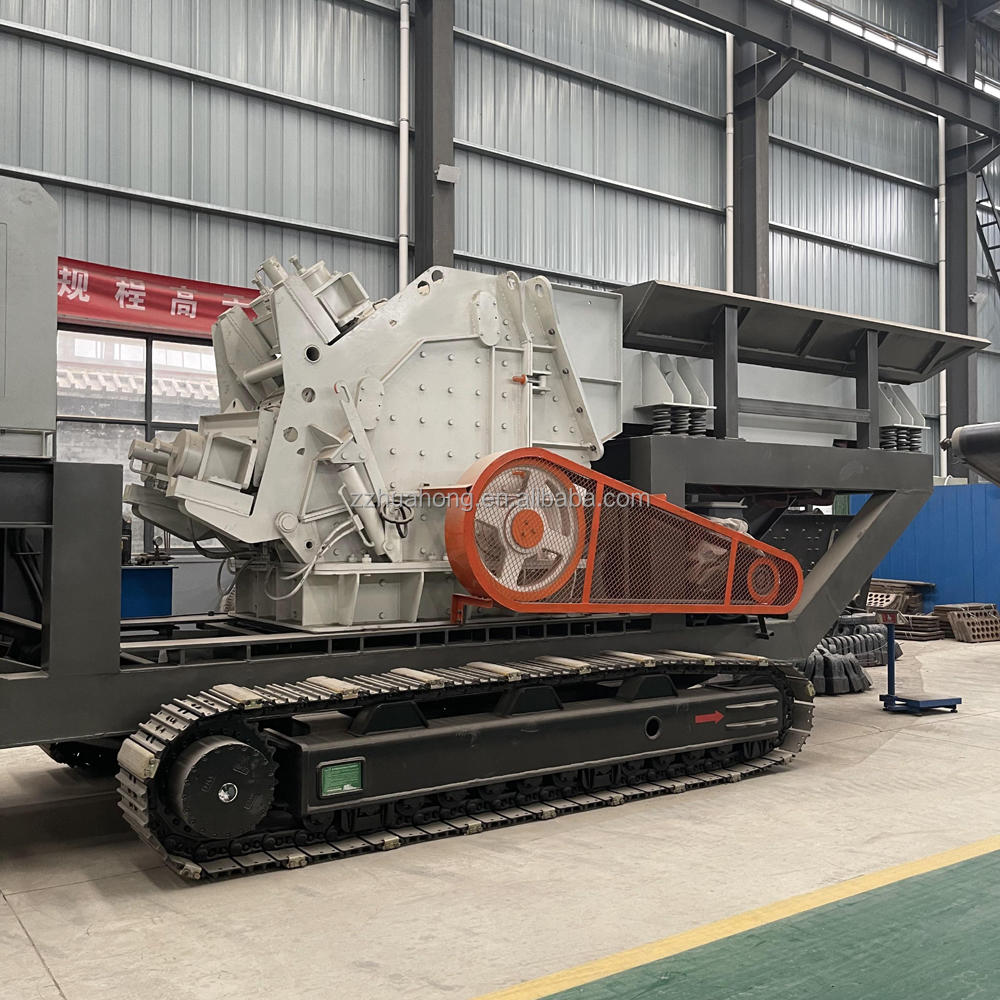

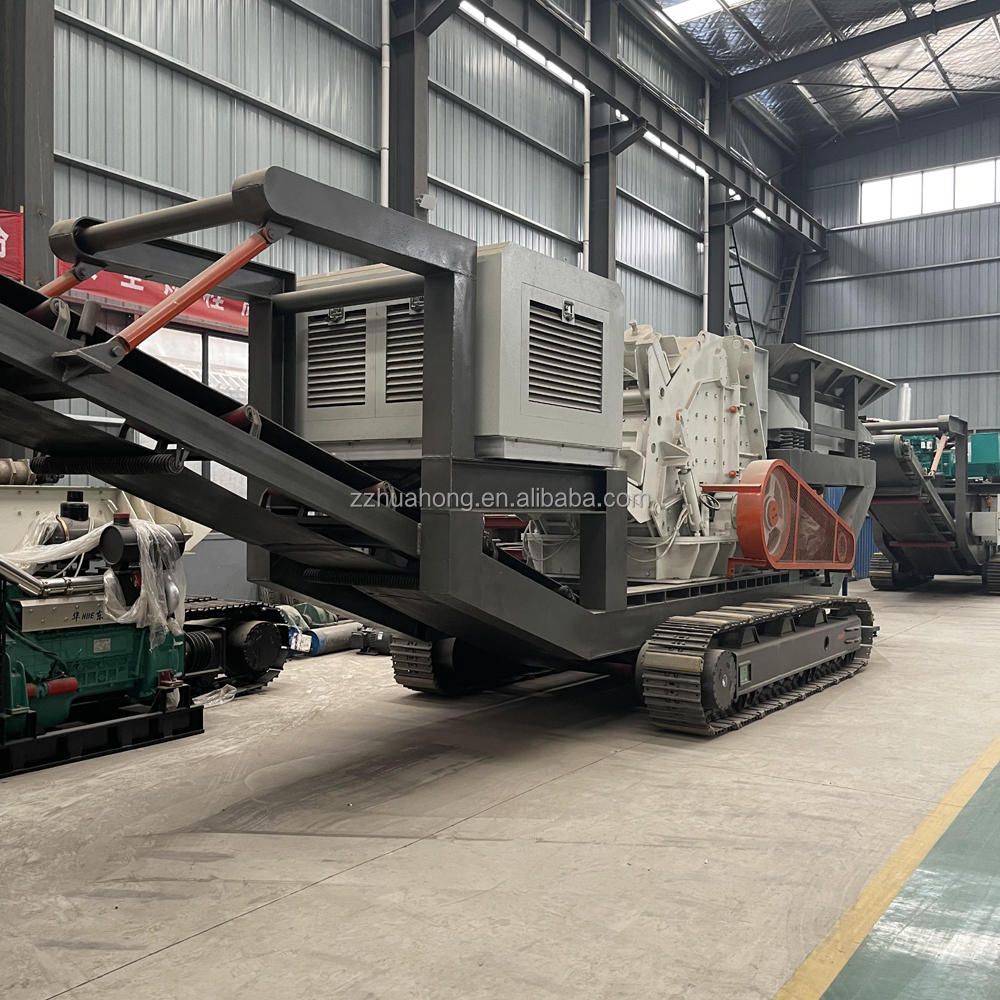

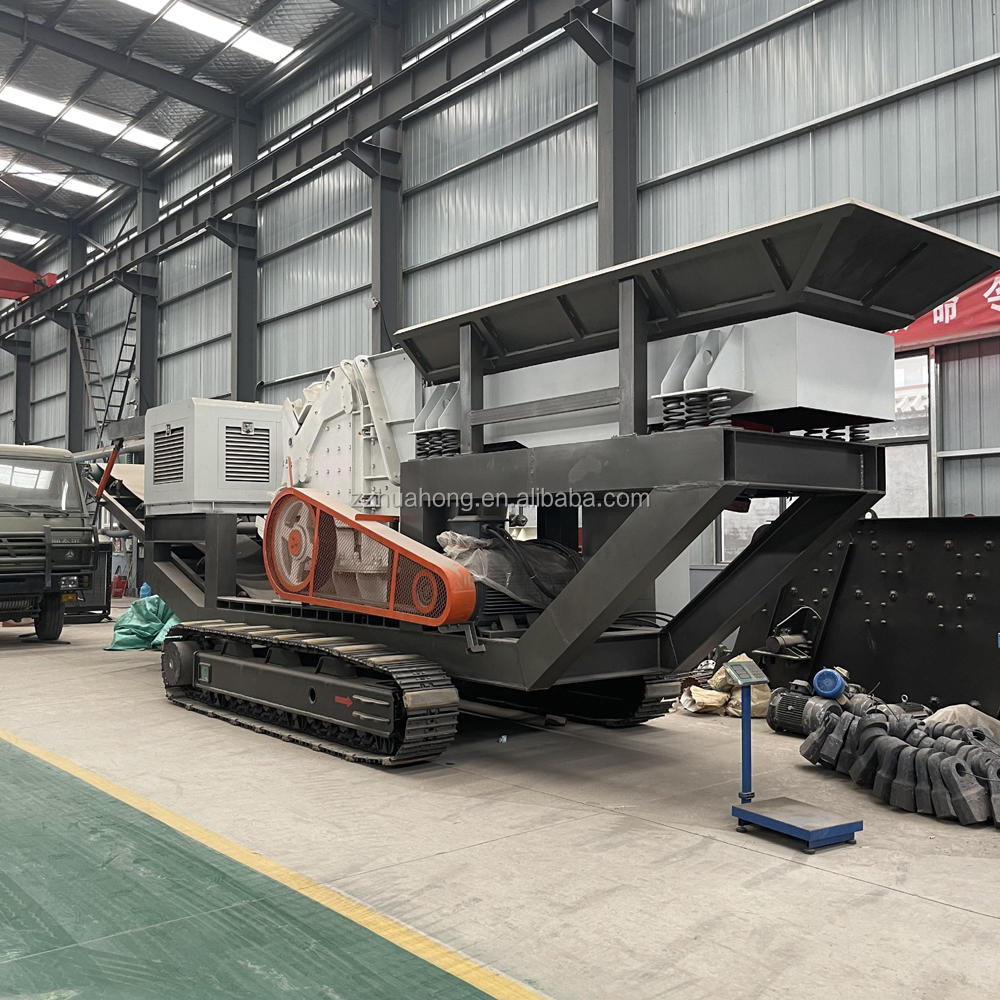

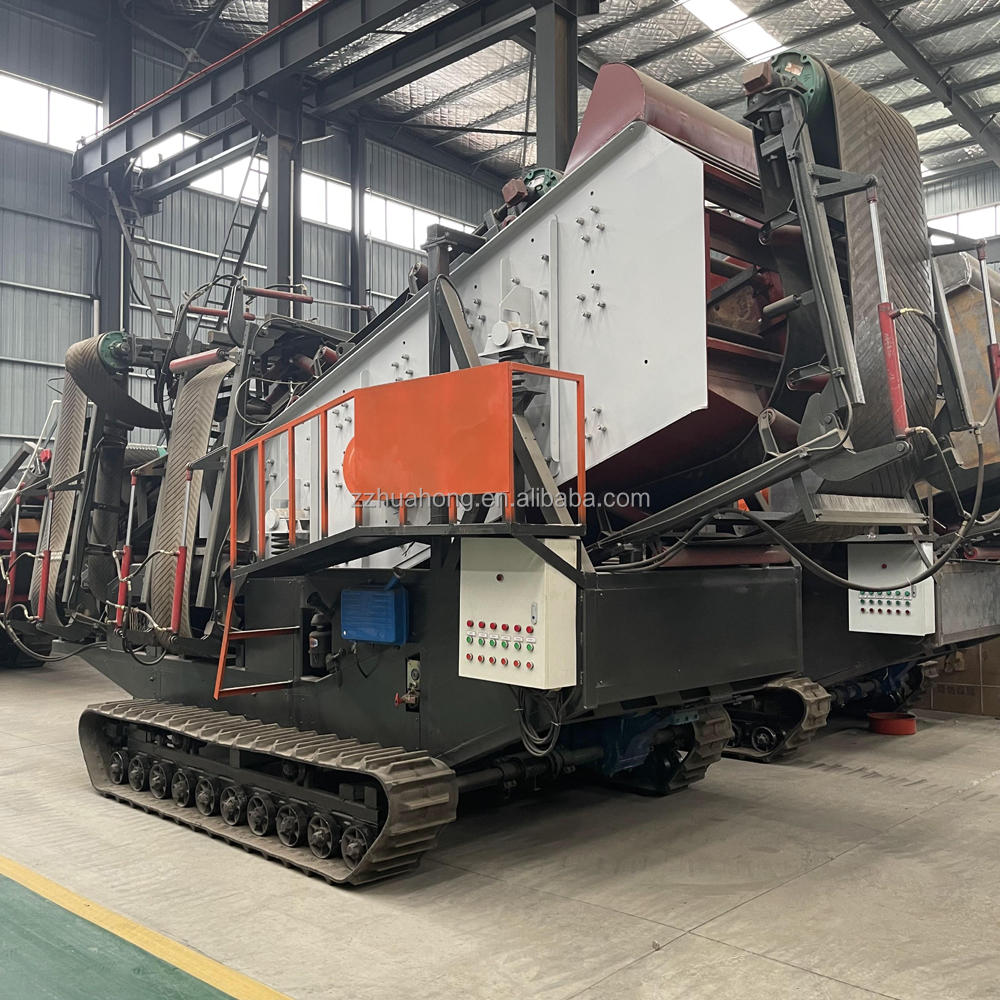

Large capacity trailer mobile impact crushing station limestone granite stone crushing stone crushing station price

Supplier: Zhengzhou Huahong Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr hong hua
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key words:	fine stone hammer crusher	Advantage:	Efficient and durable
Testing and installation:	Engineer guidance	usage:	mining crushing
color:	custom made	Dimensions (lengthwidthheight):	1800x1600x1800
Spare parts supply:	Paid	Core component warranty:	1 year
Place of origin:	Henan, China	weight:	9500kg
strength:	37-55kW	Mechanical test report:	if
Main selling points:	Good effect	brand:	Hua Hong
Core components:	engine	Machine classification:	Sand making system
type:	Crusher	Voltage:	220/280/350/380/420v
Warranty:	1 year	Packaging details:	Standard container, naked or bulk
Video outbound inspection:	if	Health status:	new
Supply capacity:	50 sets per month	product name:	Impact Crusher
Marketing type:	Hot Products of 2020	Showroom location:	not any
Applicable industries:	Building Materials Stores, Construction Engineering, Energy and Mining, Others	payment terms:	L/C, Western Union, T/T, Cash

Product Description

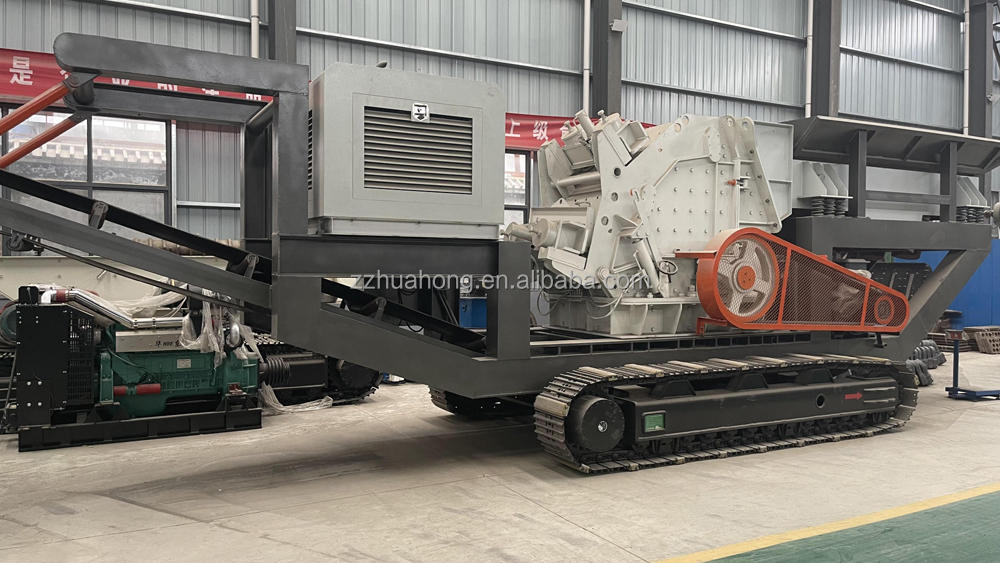

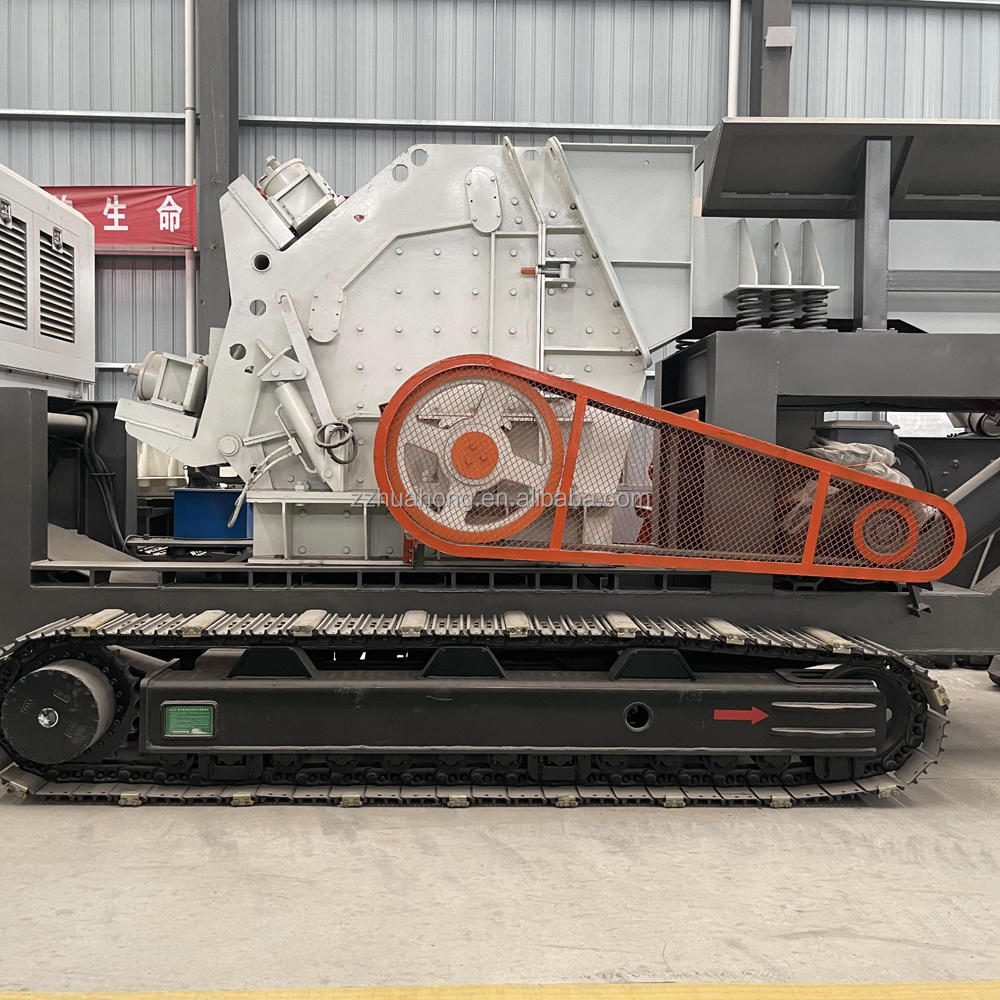

Impact Crusher It is suitable for materials with compressive strength below 350Mpa and particle size less than 500mm. The final product of the impact crusher is in the shape of a cube, so it is widely usedUsed for sand and gravel production in highways, railways, reservoirs, electric power, building materials and other industries.

PF series impact crusher adopts the latest manufacturing technology and unique structural design, which can produce cubic products with very good grain shape without tension and cracks. It can crush various coarse, medium and fine cubic materials (granite, limestone, concrete, etc.), the feed particle size is not greater than 500mm, and the crushing strength is not greater than 350MPa

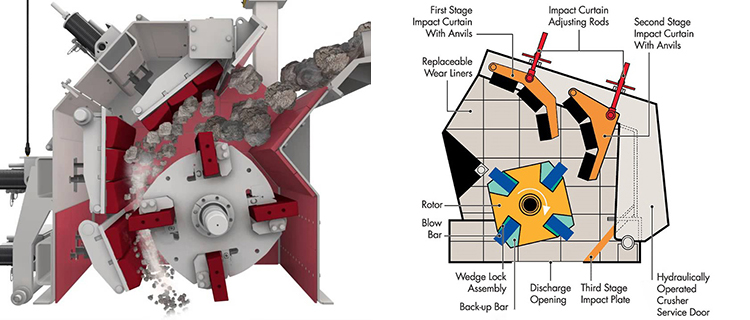

Working principle of impact crusher:When the impact crusher works, the motor drives the rotor of the impact crusher to rotate at high speed, and a plate hammer is installed on the rotor. When the material enters the plate hammer action area, the material is continuously thrown to the counterattack device above the rotor under the high-speed impact of the plate hammer. Then the material bounces from the impact liner back to the hammer action area and is crushed again. Materials from large to small are repeatedly crushed in the impact chamber. The process will not stop until the material is crushed to the required particle size and then discharged from the outlet of the impact crusher and ore impact crusher.

Impact crusher features
1. The impact crusher has a unique simple structure and keyless connection.
2. The impact crusher uses a high-chromium-plated hammer head and a special impact liner.
3. The impact crusher can crush hard rock efficiently while saving energy.
4. The final product of the impact crusher is in the shape of a cube, and the discharge particle size is adjustable, simplifying the crushing circuit.
5. Easy maintenance and reliable performance.
