Vertical Shaft Impact Crusher Mechanism Sand Machine Manufacturer Products from Henan Nestor Mechinery Co., Ltd.

Product Details

port:	Qingdao, Tianjin or Shanghai	brand:	Nestor
application:	Mining, Construction Engineering, Sand Making	Main selling points:	Finely crushed
Install:	Engineer's Guide	Video outbound inspection:	if
Dimensions (LWH):	210010001700	product name:	Vertical Shaft Impact Crusher Mechanism Sand Machine Manufacturer
Showroom location:	not any	Core component warranty:	1 year
weight:	1200 kg	Mechanical test report:	if
color:	customize	Origin:	Henan, China
Key words:	Vertical shaft sand making machine	Core components:	PLC, engine, motor
payment terms:	L/C, Western Union, T/T	strength:	37-45
Supply capacity:	1000 sets per month	Warranty:	1 year
Health status:	new	Packaging Details:	export standard
Applicable industries:	Manufacturing plants, construction, energy and mining, other	After-sales service:	engineer available
Marketing Type:	normal product

product information

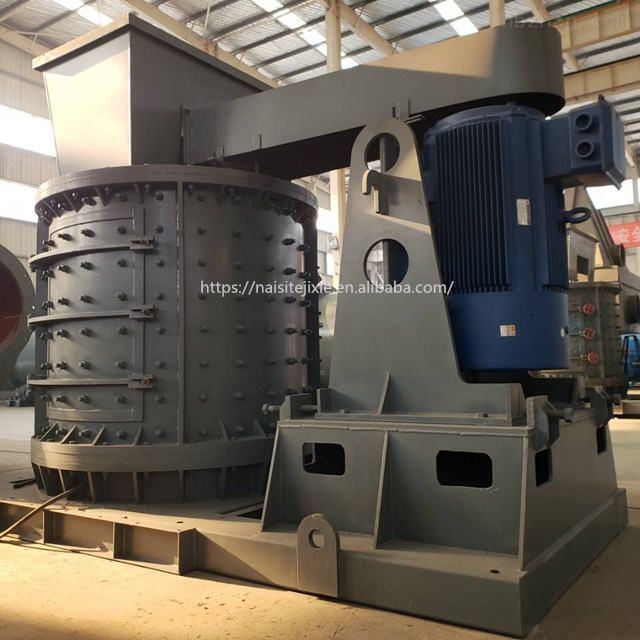

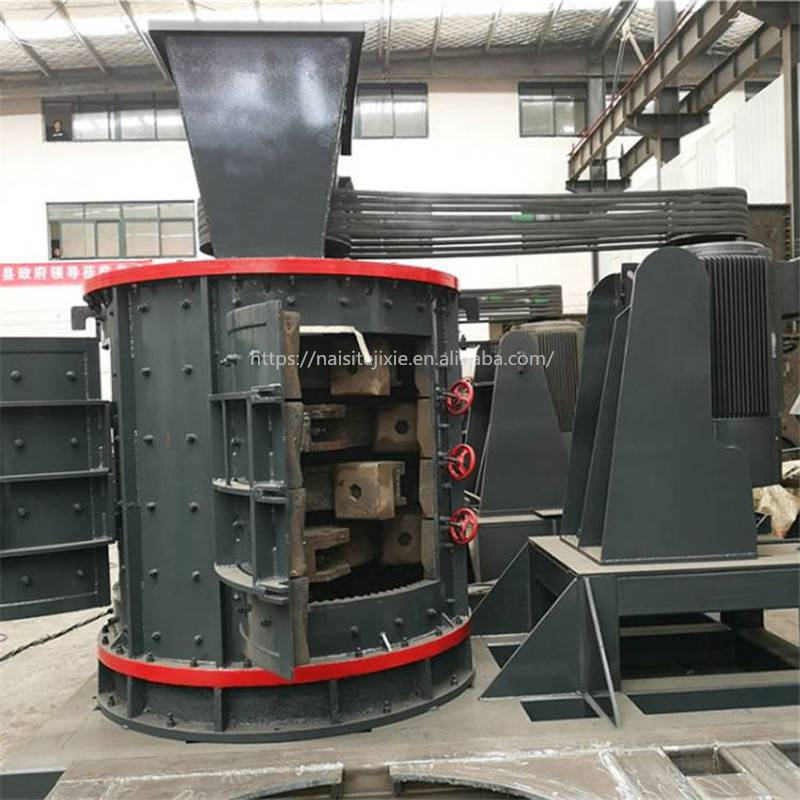

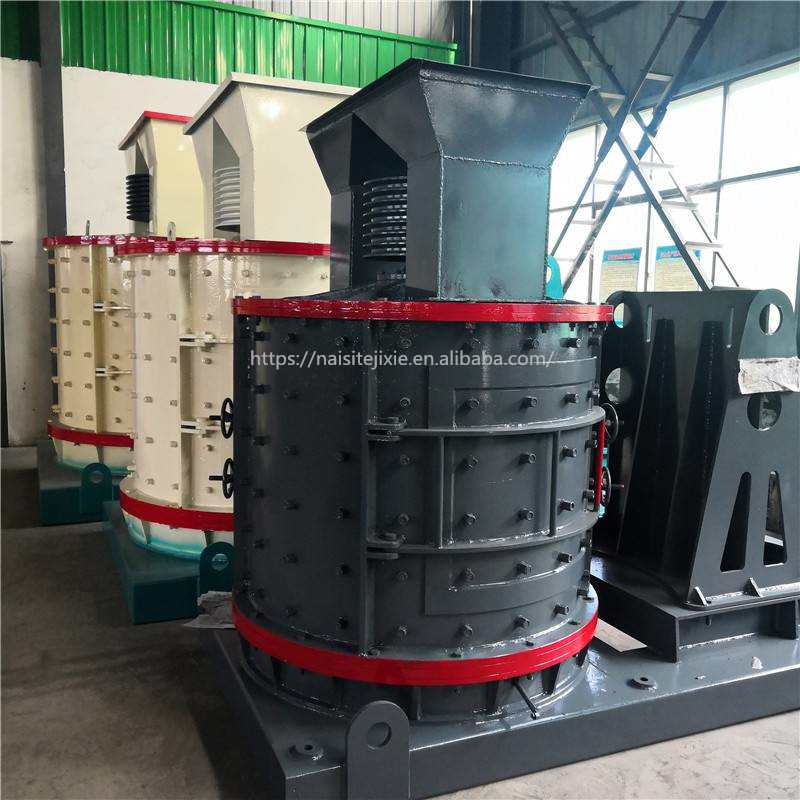

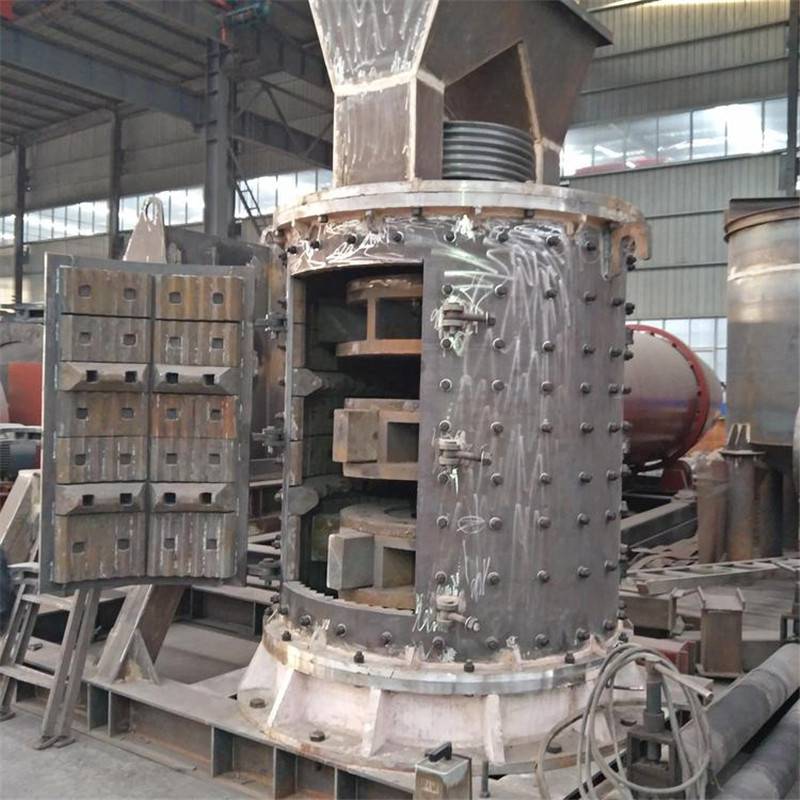

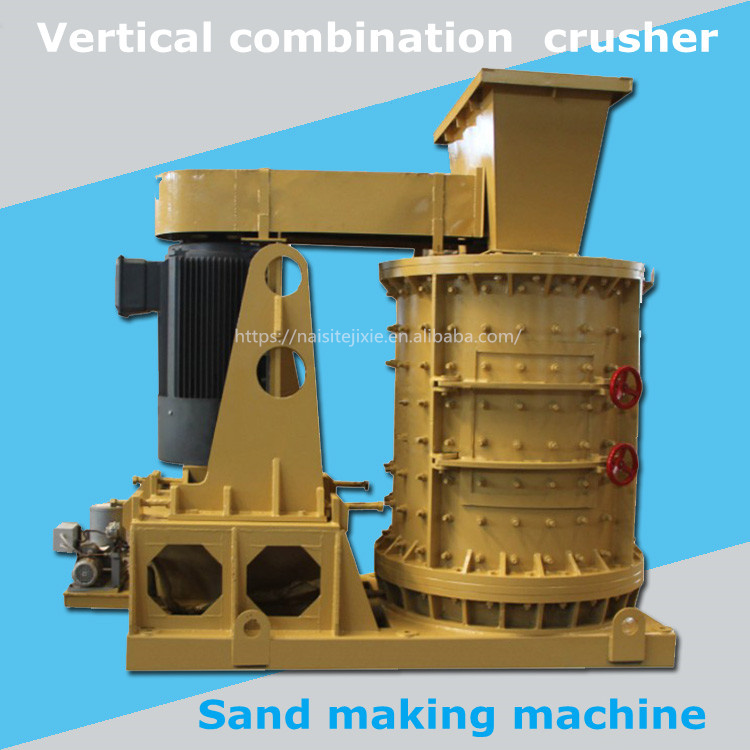

Vertical shaft sand making machine

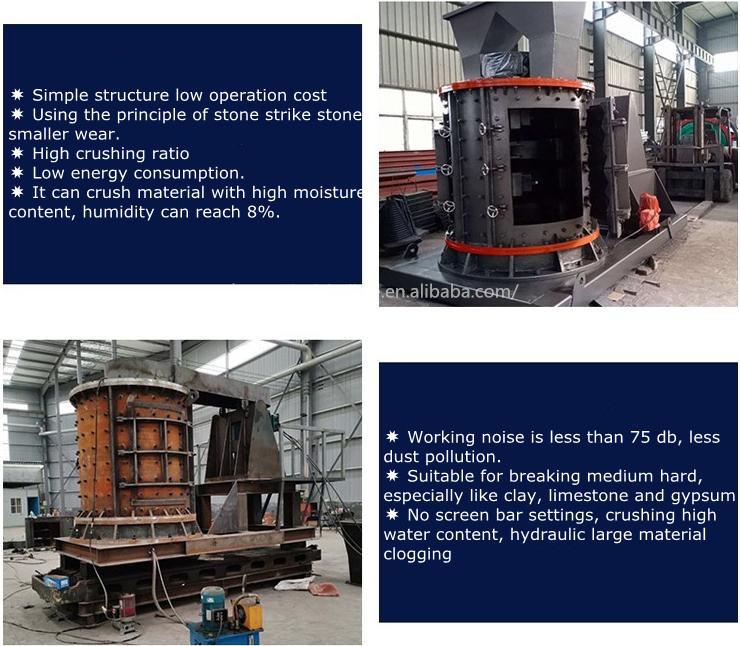

Vertical shaft sand making machine, also known as vertical combined crusher, is designed on the basis of advanced crushing technology at home and abroad, combining roller crusher, vertical impact crusher, impact crusher, cone crusher, etc. Advantages of crushing equipment, using impact, extrusion, grinding theory. This machine has the characteristics of large crushing ratio and high efficiency. It is the leading fine crushing equipment in China. It has the best effect in crushing medium-hard materials with compressive strength not exceeding 150MPa and moisture content not exceeding 8%.
This machine is especially suitable for crushing cement raw materials, cement clinker, limestone, gypsum, cement coal gangue, slag and other fragile materials in the cement industry. It can be combined with a mill for pre-grinding, and the productivity can be increased by 40%.

Working principle of vertical shaft sand making machine

The motor transmits power through the belt and pulley, and drives the swing jaw to make periodic movements around the eccentric shaft. When the movable jaw moves up, the angle between the toggle plate and the movable jaw increases, making the movable jaw close to the fixed jaw.

At the same time, the material is subjected to multiple crushing such as extrusion, kneading, and grinding. When the movable jaw is lowered, the angle between the toggle plate and the movable jaw decreases, and the movable jaw of the jaw crusher is pulled away from the fixed jaw by the rod and spring, and the crushed products are discharged from the outlet of the jaw crusher.

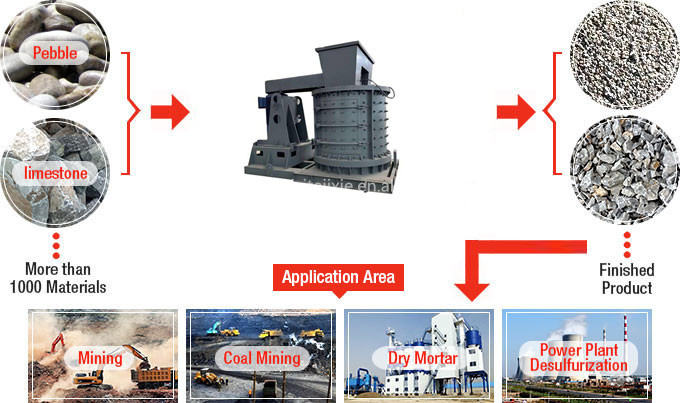

Application of vertical shaft sand making machine

product specification

Model	Feed size (mm)	output size (mm)	capacity (ton/hour)	Spindle speed (rev/min)	strength (kilowatt)	aspect (mm)
PFL-600	≤100	≤3-5 60-90%	3-10	Chapter 934	7.5	13008001200
PFL-800	≤100			10-20 days	Chapter 934	twenty two	210012001700
PFL-1000	≤120			20-40	Chapter 769	37	260014001900
PFL-1250	≤150			40-70	Chapter 530	75	280016002100
PFL-1500	≤180			70-100	Chapter 495	132	310019002200
PFL-1750	≤200			130-190	Chapter 424	160	371023602390
PFL-2000	≤220			100-160	370	180	410026602620
