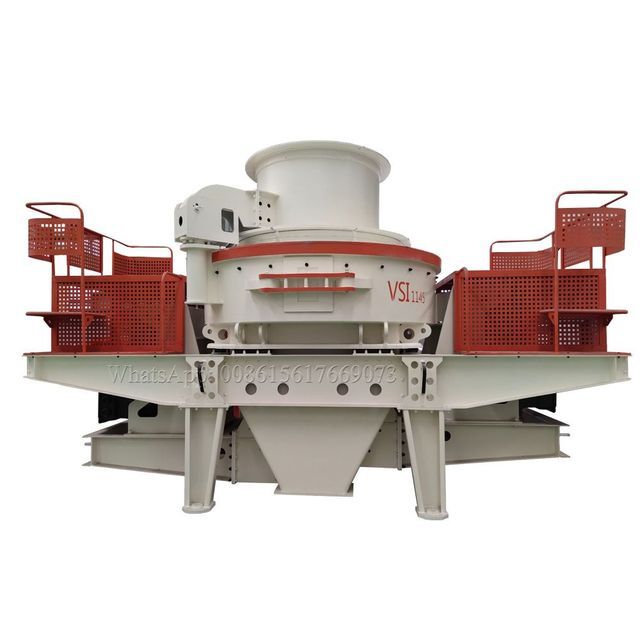

Stone sand making VSI artificial sand making machine price

Supplier: Zhengzhou Shibo Machinery Manufacturing Co., Ltd.
Region: Henan, China
Contact: Mr Shibo Machinery
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Building supplies stores, construction work, energy and mining	Video shipment inspection:	if
weight:	10000 kg	Core component warranty:	1 year
Warranty:	1 year	Packaging Details:	Standard export container packing, provide wooden case
Dimensions (LWH):	According to the machine	Voltage:	380v
Main selling points:	long lasting	port:	Qingdao
Certification:	International Organization for Standardization	Supply capacity:	200 sets per month
Origin:	Henan, China	Marketing Type:	New Products 2020
maximum. Feed size:	35mm	strength:	110-150kw
Spare parts supply:	Provided for life	Core components:	engine
capacity:	60-180 tons/hour	Factory tour:	warm welcome
payment terms:	L/C, T/T	Health status:	new
After warranty service:	Video technical support	Test and install:	Assignment of Professional Engineers
Showroom location:	South Africa, Nigeria	color:	custom made
brand:	Expo machinery	Mechanical test report:	if

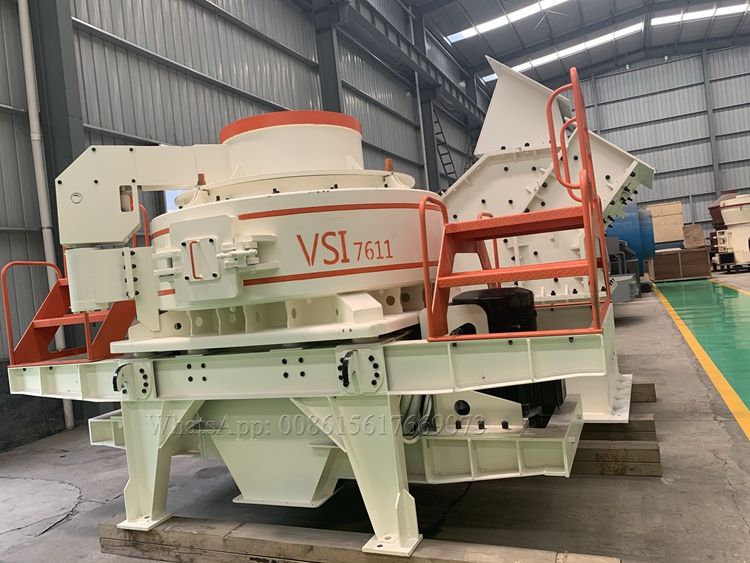

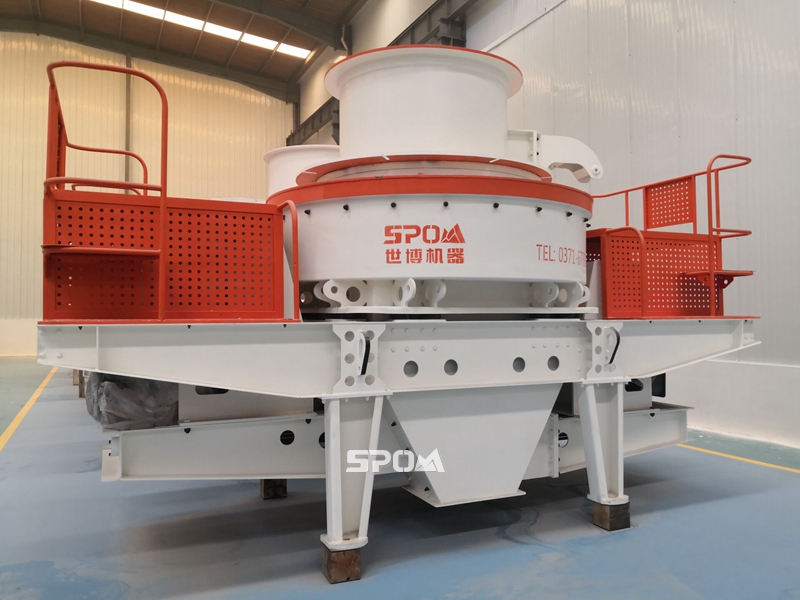

Stone sand making VSI artificial sand making machine price

Product Description

VSI crushers, or vertical shaft impact crushers for short, can be used for most crushing applications. The main uses are in quarries and gravel pits for the production of products for roads and asphalt, ballast, manufactured sand for concrete and aggregates for the construction industry.

In the aggregates, mining and quarrying industries, the Expo VSI impact crusher is used to produce high-quality manufactured sand and high-quality shaped aggregates. Other areas include Rolled Compressed Concrete (RCC) for dam construction, the recycling industry that crushes various materials such as concrete, glass, slag, etc., and industrial mineral plants that crush extremely abrasive high-value materials.

Benefits of using a VSI crusher
Why choose a VSI crusher over an impact crusher? VSI brings you several advantages:

1. Universal and efficient: The VSI crushes hard and brittle materials with ease. It is the right choice for handling rock, cement clinker, abrasive materials, concrete aggregates and refractory materials. As a crusher for construction and road construction, the VSI is very suitable.

2. Simple operation: The VSI is a solid machine. It's easy to get into position and keep up with.

3. Energy saving: It gives you a lot of output while keeping the energy consumption level low.

4. durable: During operation, stones may fall to the bottom of the VSI. It forms a protective layer that increases the durability of the machine. The main shaft of the crusher uses calibrated rolling bearings for stability and reliability. This feature also reduces your maintenance costs.

work rules

1. Center feeding: The raw material falls into the hopper of the VSI sand making machine, and then enters the impeller through the center feeding port. The material is accelerated by the high-speed impeller and thrown out at a speed of 60-60 75 m/s. When it hits the impact plate, it is crushed, and the finished product comes out from the discharge port.
2. Ring feeding: The raw material falls into the feeding hopper, and the material is divided into two parts by a special plate. Part of the material enters the impeller of the sand making machine through the center of the plate, and the other part of the material falls from the outside of the plate. The material thrown out first crushes the material from the outside, so that the material is broken and then broken.

Features of VSI sand making machine

1. Unique structure and stable operation.
2. Low energy consumption, large processing capacity and large crushing ratio.
3. Perfect cubic product size and high bulk density.
4. Fewer spare parts, long service life and easy replacement.

Product parameters

Model			VSI-7611	VSI-8518	VSI-9526	VSI-1140
Capacity (t/h)	Cascade and Center Feed	120-180	200-260	300-380	450-520
Capacity (t/h)		center feed	60-90	100-130	150-190	225-260
Feeding port size (mm)	soft material	≤35	≤40	≤45	≤50
Feeding port size (mm)		hard material	≤30	≤35	≤40	≤45
spinning speed			1700-1890	1520-1690	1360-1510	1180-1310
Double motor power(kw)			110-150	180-220	264-320	400-440
Dimensions (mm)			3700x2150x2100	4140x2280x2425	4560x2447x2778	5000X2700X3300
Weight (tons)			7.8	10.3	16	25.6
strength			380V:50Hz
vibration sensor			Detection range: 0.1-20mm/s, continuously adjustable
Thin oil lubrication station	Double oil pump power	2×0.31kw
		Safety	Oil supply; no oil flow, no oil pressure automatic shutdown; water cooling; start the heating motor in winter
		Dimensions (mm)	820×520×1270
		Fuel tank heater power (kw)	2KW

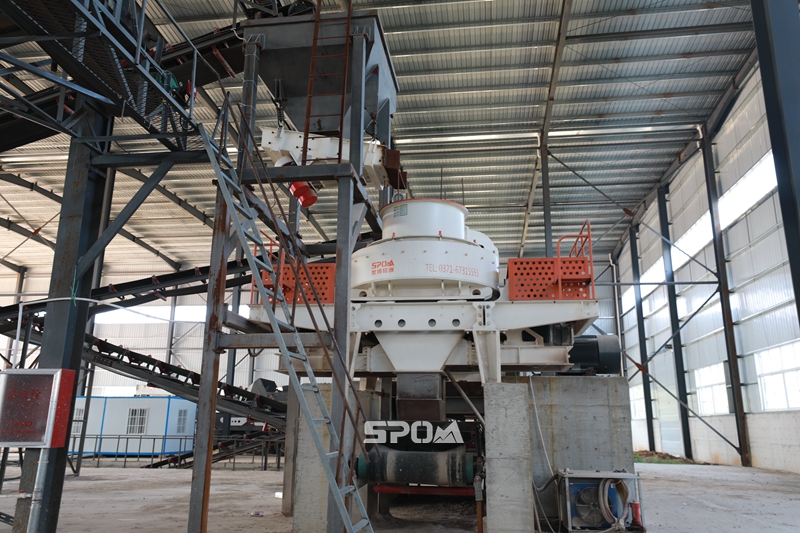

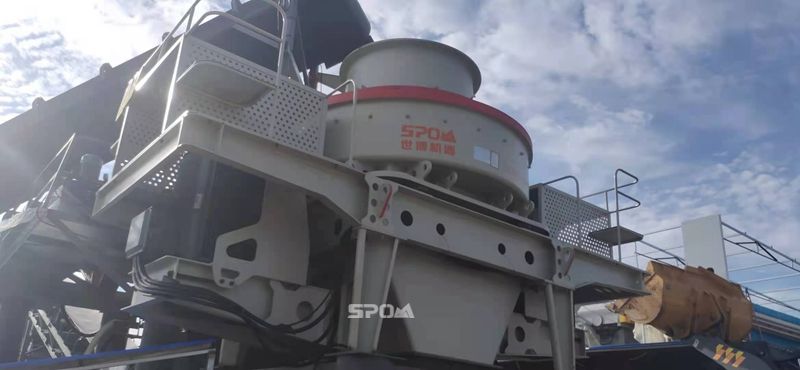

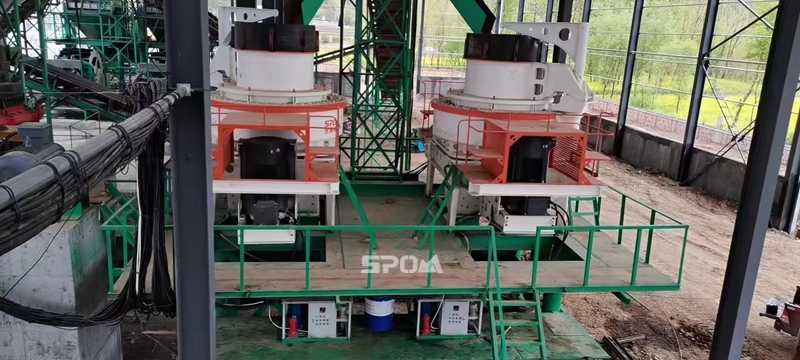

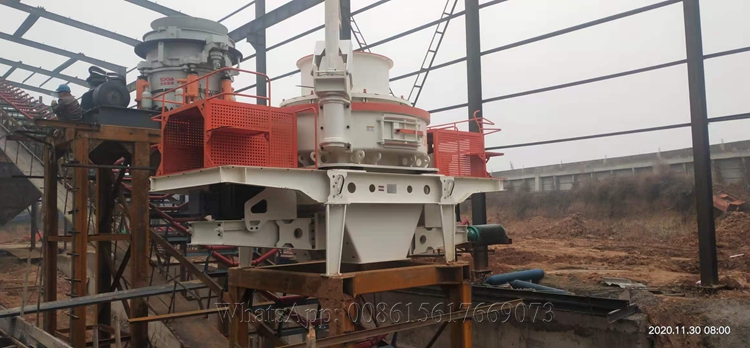

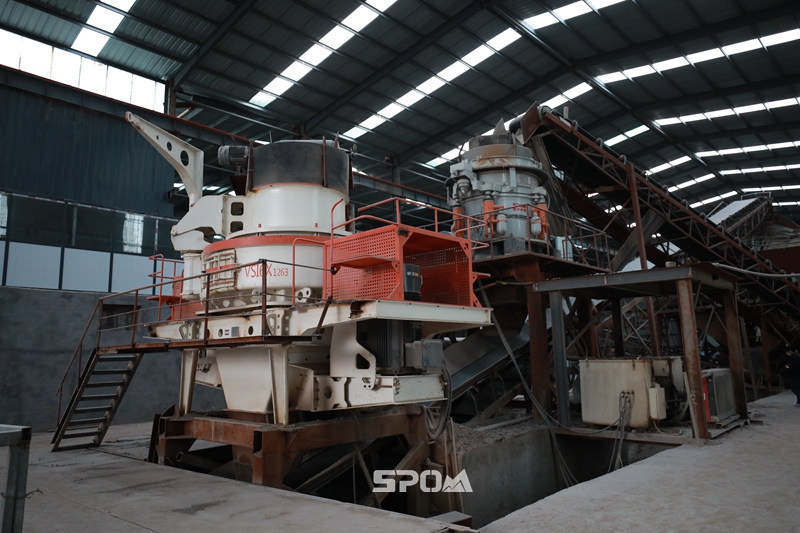

customer photo
