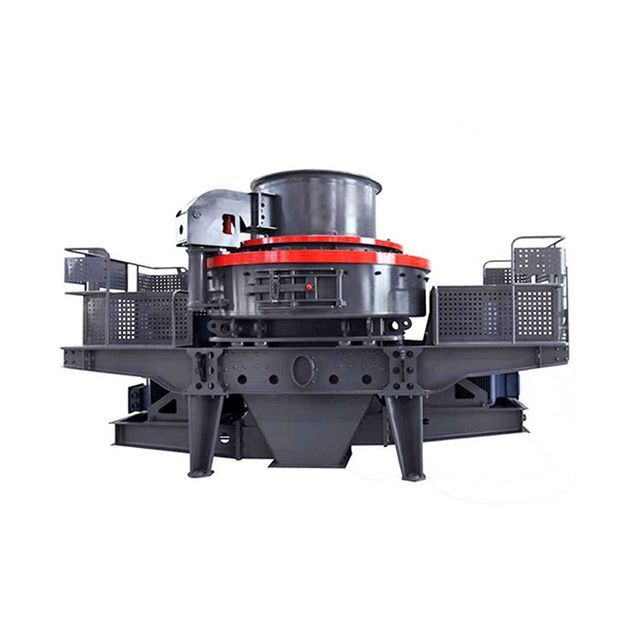

China Hot Selling Quarry Crusher Manufacturer, Aggregate Stone Crusher Vertical Shaft Crusher VSI Sand Making

Supplier: Henan Huayuan Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Felix Jing
Price: $14500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Marketing Type:	Hot Products of 2022
Machine classification:	Sand production line	strength:	264-320kw
Working Standards:	stone sand making machine	Core components:	gear
Health status:	new	Packaging Details:	Standard packing or as your request
feature:	easy to use	Supply capacity:	200 sets per day
Applicable industries:	Construction Engineering, Energy and Mining	Origin:	Henan, China
port:	Qingdao, Tianjin, Shanghai or China main port	Video shipment inspection:	if
Core component warranty:	1 year	brand:	garden
Certification:	International Organization for Standardization	Warranty:	1 year
type:	Vertical Shaft Impact Crusher	payment terms:	L/C, Western Union, T/T, MoneyGram
Install:	Under technical guidance	product name:	Sand Making Machine Small Vsi Impact Crusher
color:	customizable	Voltage:	380V
capacity:	300-360 tons/hour	Dimensions (LWH):	According to the product
weight:	6000 kg	Main selling points:	high security level
Test & install:	Assignment of Professional Engineers	Mechanical test report:	if

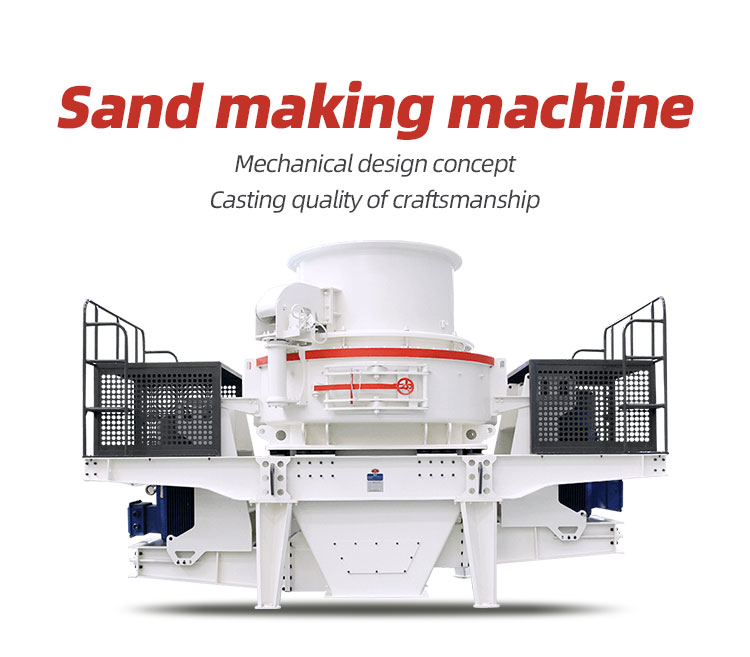

Product Description

VSI sand making machine is widely used in the fine crushing and coarse grinding of metal and non-metal ores, cement, refractory materials, abrasives, glass raw materials, building aggregates, artificial sand and various metallurgical slags. It is especially suitable for medium-hardness materials, high-hardness materials and corrosion-resistant materials, such as corundum, corundum, magnesium oxide, etc.

Working Standards:

The VSI series sand making machine uses the high-speed movement of materials to break each other and the friction between materials to break. This series of equipment not only crushes stones and makes sand, but also plays a role in shaping the finished product.

application:

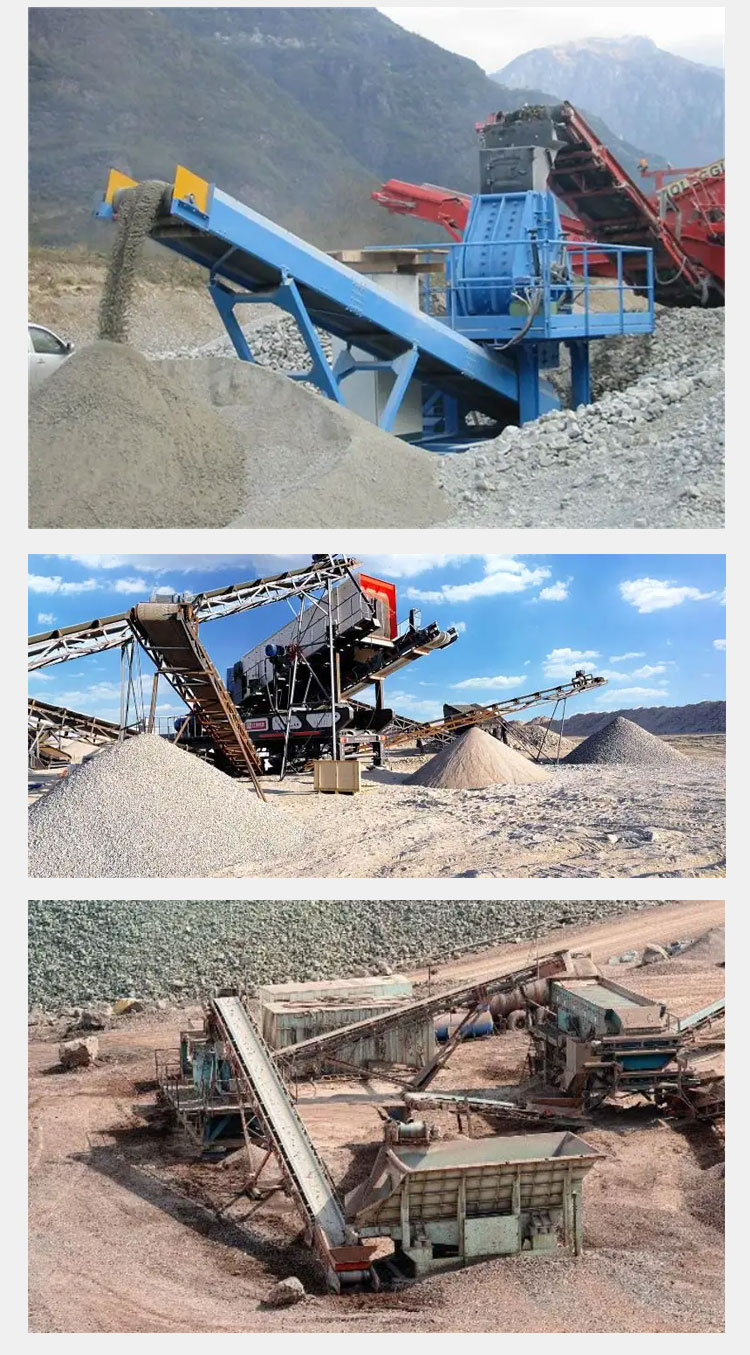

1. Used in the production of building aggregates, concrete, aggregates for pavement and subgrade, asphalt concrete and cement concrete.

2. It is also used for sand making and shaping in engineering fields such as water conservancy, hydropower, high-grade highways, high-speed railways, passenger dedicated lines, bridges, airport pavement, municipal engineering, and high-rise buildings.

3. Widely used in building materials, metallurgy, chemical industry, mining, refractory materials, cement and other industries.

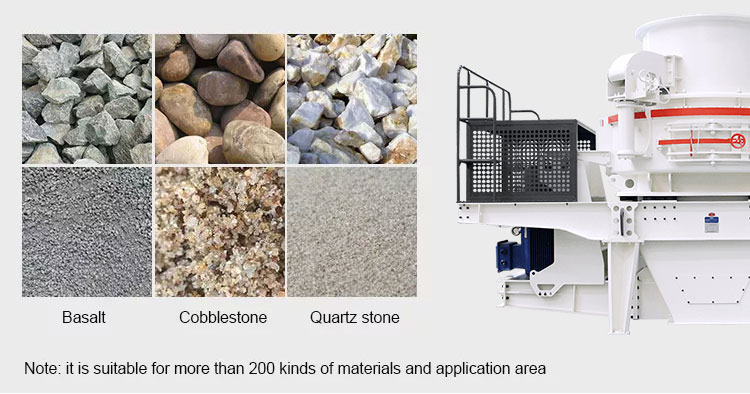

4. It is used to produce glass raw material, quartz sand and other high-purity materials. Cobblestone, limestone, granite, basalt, diabase, andesite, etc.

Specification

Model		VSI-7611	VSI-8518	VSI-9526	VSI-1140	VSI-1145
Capacity (tons/hour)	Cascade and Center Feed	120-180	200-260	300-360	450-520	490-600
Capacity (tons/hour)	center feed	60-90	100-130	150-190	225-260	250-310
Feed size (mm)	soft material	< 35	< 40	< 45	< 50	< 50
Feed size (mm)	hard material	< 30	< 35	< 40	< 45	< 45
Speed(r/min)		1700-1890	1520-1690	1360-1510	1180-1310	1180-1280
Double motor power(kw)		110-150	180-220	264-320	400-440	440-520
Dimensions LWH (mm)		370021502100	414022802425	456024472278	500027003300	510027903320
energy source		380v:50hz
vibration sensor		Detection range: 0.1-20mm/s, can be adjusted continuously.
Hydraulic lubrication station	Double oil pump power	2x0.31kw
Hydraulic lubrication station	Safety	Double oil pumps ensure oil supply; no oil flow, no oil pressure automatic shutdown; water cooling; start the heating motor in winter.
Dimensions LWH (mm)		820x520x1270
Fuel tank heater power		2 kW
