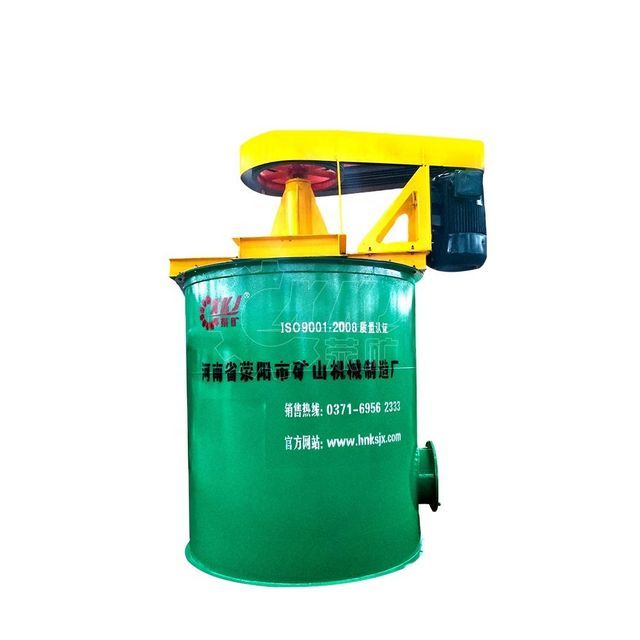

Mineral mud mixing tank Mixing tank Mineral mixing barrel

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Mr Andy Zhang
Price: $699.90 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Türkiye, Brazil, Pakistan, Argentina, Bangladesh, South Africa, Japan	Factory tour:	warm welcome
Mechanical test report:	if	Spare parts supply:	Any time
Core components:	Engine, gearbox, motor	Video outbound inspection:	if
Package preview:		color:	customizable
Place of origin:	Henan, China	Core component warranty:	1 year
Dimensions (lengthwidthheight):	1354x1310x1742	quality:	Advanced technology
Motor type:	AC motor	brand:	Xinkejie
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Applicable industries:	Building materials stores, construction engineering, energy and mining, advertising agencies
After-sales service provided:	Free spare parts, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services	price:	Negotiate
type:	Leaching tank	Online service hours:	24 hours online
diameter:	50-3550	Certification:	Silicates, CE
Health status:	new	port:	Qingdao, Shanghai, Tianjin
Marketing type:	Hot Products of 2021	Packaging details:	packaged in a wood or container
Warranty:	1 year	Supply capacity:	30 groups per week
After-sales service:	7*24 hours	delivery time:	15-30 days
Effective volume (cubic meters):	0.33-30	Local service locations:	Italy, Philippines, India, Malaysia, Kenya, Romania, Kazakhstan, Ukraine

Product Description

Mineral mixing barrel- Product Description

[introduce]:

The necessary equipment for mineral mixing barrels. The motor power triangle belt drives the impeller to rotate, fully mixing the medicine and the slurry, increasing the reaction time, and enhancing the quality of the chemical reaction. This machine is suitable for
It is used for mineral processing and can also be used as mixing ingredients in the chemical industry. It uses a density of less than 30% and a frozen composition of less than 1 mm to form a flat-bottomed barrel-shaped radiation and a circular cross collar for mechanical stirring.

Advantage

Mineral mixing barrel-Advantage

1. The diameter of the impeller is increased, and the peripheral speed of the impeller is increased, which improves the stirring ability of pulp and chemicals.

2. The impeller is designed as a cap type, which improves the mixing and circulation capabilities of pulp and chemicals. 3. Equipped with a duck, the impeller is located in the duck mouth. The improvement of the stirring capacity increases the negative pressure generated by the movement of the slurry, which is limited by the pipeline in a limited space, enhances the suction capacity of the slurry and chemicals, and further enhances the circulation effect of the slurry and chemicals. 4. When the cap impeller is running, it generates downward pressure, which increases the suction force again and enhances the circulation of slurry and chemicals. 5. There are nozzles below the air duct, which is also conducive to circulation. Full mixing and circulation of slurry and reagents make the mineral surface fully contact with reagents, which is beneficial to flotation. Only the mineral surface is 100% in contact with the reagent, ensuring high recovery rates.

Product Details

product specifications

Standard model			XB-500	XB-1000	XB-1500	XB-2000	XB-2500	XB-3000
Effective volume (m3)			0.124	0.58	2.2	5.46	11.2	19.1
impeller	Diameter (mm)	150	240	400	550	650	700
impeller		Speed (rev/min)	1000	Chapter 530	320	230	280	210
engine	Model	Y100L-4	Y132S-6	132M-6	Y160M-6	180L-6	Y225S-8
engine		Power (kW)	1.5	3	5.5	7.5	15	18.5
Internal Tank size	Diameter (mm)	Φ500	Φ1000	Φ1500	Φ2000	Φ2500	Φ3000
Internal Tank size		Height(mm)	750	1000	1500	2000	2500	3000
aspect	length (mm)	670	1130	1750	2380	3028	3610
		Width (mm)	Chapter 351	1130	Chapter 1642	2162	2640	3266
		Height(mm)	1286	Chapter 1491	2186	2846	3543	4326
Weight (tons)			0.375	0.685	1.2	1.65	3.462	4.292

Work principles

Mineral mixing barrelWork principles

The main structure of the wheel transmission device is composed of fixed roller, moving roller, transmission shaft, chassis, chassis, cover plate, long gear cover, etc. The power of the machine comes from the V-belt pulley of the electric motor and a pair of intermediate pulleys.
The reduction gear rotates the fixed roller, and then a pair of long gears on the other side of the fixed roller drives the movable roller. The two rollers move relative to each other to squeeze the material..
