Mining thickener tank price for ore, sludge, tailing

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Mr Andy Zhang
Price: $6200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Core Components:	Bearing,Motor,Pump;
using life:	more than 3 years;	Place of Origin:	Henan China;
Brand Name:	XKJ;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Retail,Energy & Mining;
Machinery Test Report:	Provided;	Packaging Detail:	seaworthy container or as per your deman;
motor brand:	China famous brand;	Showroom Location:	None;
Package Preview:	;	quality control:	go through five checks;
Local Service Location:	Canada,Philippines,Indonesia,Pakistan,Mexico,Japan,Australia,Morocco,Kenya,South Korea,Chile,Colombia,Romania,South Africa;	Application:	concentrate,tailings ,dehydration,desliming etc;
Motor Type:	AC Motor;	workflow:	design by our engineers;
Dimension(LWH):	Specification;	Payment Terms:	L/C,Western Union,T/T;
recovery rate:	high;	Video outgoing-inspection:	Provided;
Product quality:	reliable;	Warranty of core components:	1 Year;
Port:	Qingdao/Shanghai/Tianjin etc main port;	Certification:	ISO9001:2008,CE;
Delivery timely:	duly;	Manufacture standard:	accord with industrial standard;
Warranty:	One year except wearing parts;	company experience:	more than 35 years;
Type:	Mining Thickener;	Supply Ability:	35 Set/Sets per Month;
Production Capacity:	above 85%;	Marketing Type:	Ordinary Product;
spare parts:	supply by us;

Product Discription of Thickener machine:

The Thickener is suitable for dehydrating water of theconcentration and gangue in the concentrating factory, make the mash of 20-30% raise up to 40-70% about. The concentration machineis widely used for melting, chemical, coal, nonmetal concentration, environment protected etc

Thickener Machine is suitable for dehydrating water of the concentration & gangue in the concentrating factory.

Thickener machine features:

(1) Add flocculent settlement increased the size of solid particles, thus accelerating the velocity;

(2) shorten the installation tilt plate mineral particles from the settlement to increase the settlement area;

(3) play a layer of thick mud deposition flocculation, filtration, compression and to handle the volume;

(4) equipped with a complete-controlled facilities.

Product Application:

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.

Product Principle:

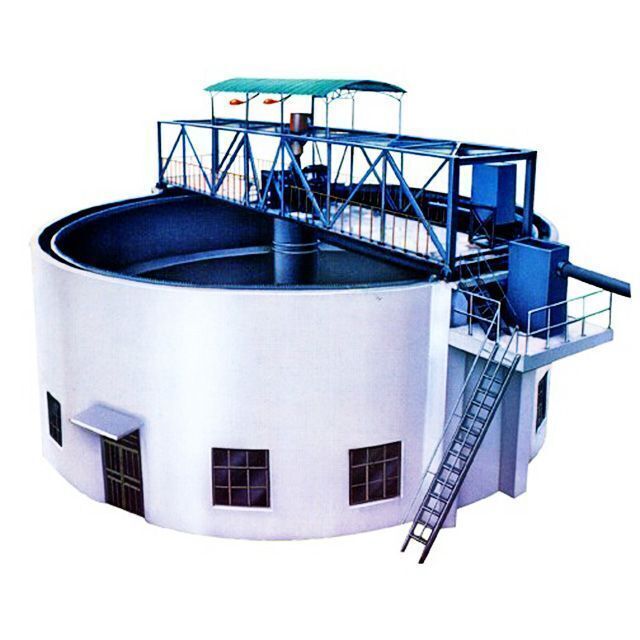

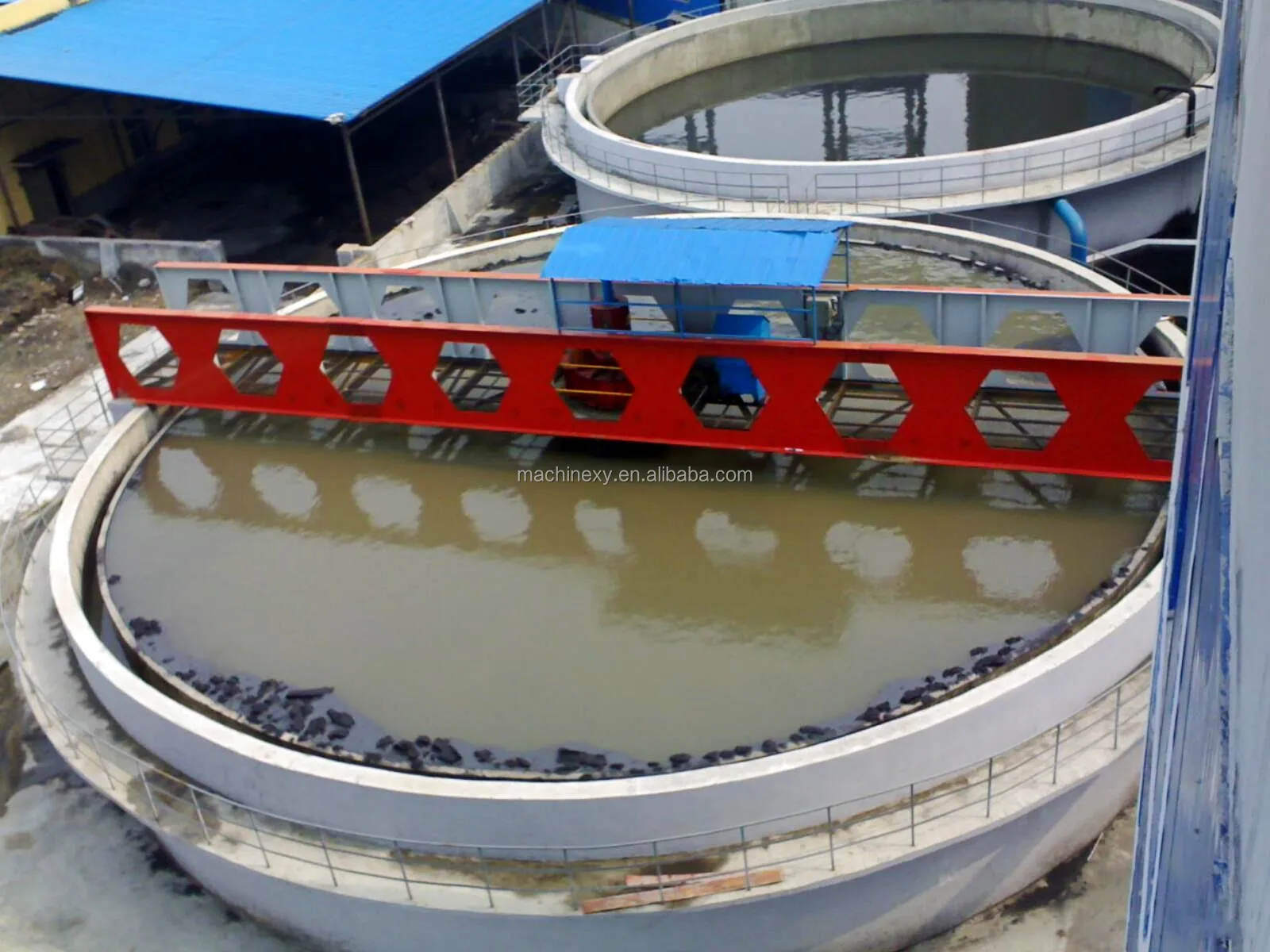

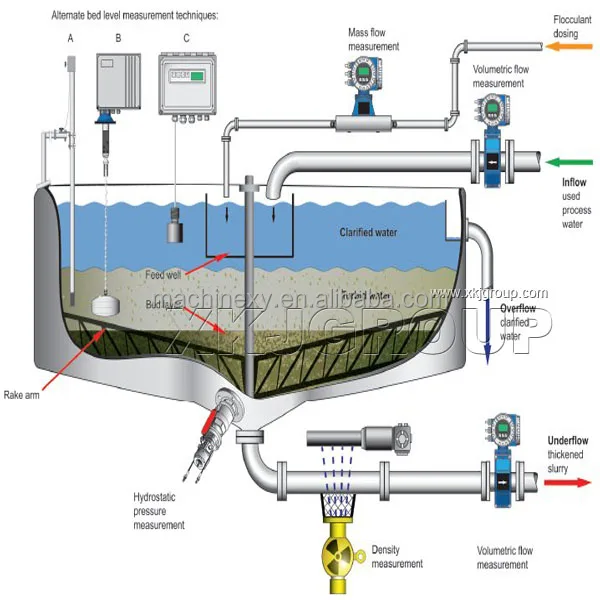

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

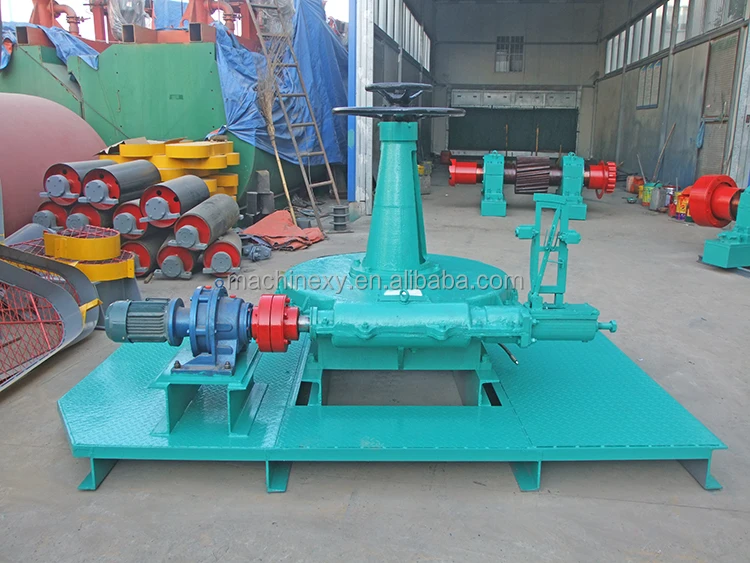

Parameter of Langchao thickener with central transmission

Model	Thickening tank diameter(mm)	Thickening tank depth (mm)	Sedimental area(m²)	Revolution of rabble frame(r.p.m)	Motor model	Motor power(kw)	Motor revolution(r.p.m)	Capacity(t/d)	W of tank(t)	W (t).
NZS1	1800	1800	2.55	0.5	Y90L-6	1.1	910	1.3∼5.6	602	1300
NZS2.5	2500	1800	4.9	0.33	Y90L-6	1.1	910	5∼10.8	1730	2355
NZS3	3600	1800	10.2	0.33	Y100L-6	1.5	940	5∼22.4	1730	2975
NZS6	6000	2956	28.3	0.3	Y90L-4	1.5	1400	14∼62	5690	8700
NZS8	8000	3318	50.2	0.27	Y132S-6	3	960	25∼120	11065	15460
NZS9	9000	3000	63.5	0.25	Y132S -6	3	960	32∼150	12188	16682
NZS12	12000	3600	113	0.19	Y132M₂-6	3	960	50∼250	24060	33131
NZS15	15000	3600	177	0.1	Y132M₂-6	5.5	960	70∼350	35296	55499
NZS18	18000	4400	268	0.1	Y132M₂-6	5.5	960	100∼560		10139
NZS20	20000	4400	314	0.1	Y132M₂-6	5.5	960	200~1440		24500
