High-quality mining barreled equipment gold leaching mixing tank

Supplier: The Nile Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lily Li
Price: $999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Standard export container	Certification:	EU standard
port:	Qingdao	application:	Mineral mixing drum
Dimensions (LWH):	130010001665mm	Chute height:	1000mm
weight:	685kg	After-sales service provided:	Online support
Factory tour:	welcome	Health status:	new
place of origin; place of origin:	Henan, China	Chute Diameter:	1000mm
Warranty:	1 year	Effective volume:	0.58 cubic meters
Motor Type:	AC motor	Diameter of impeller:	240mm
type:	leaching tank	Impeller speed:	530 rpm
payment terms:	letter of credit, wire transfer	brand:	Nile
Supply capacity:	400 sets per month	Motor Power:	1.5kW
Production capacity:	98%	motor model:	Y100L-6

Discount News

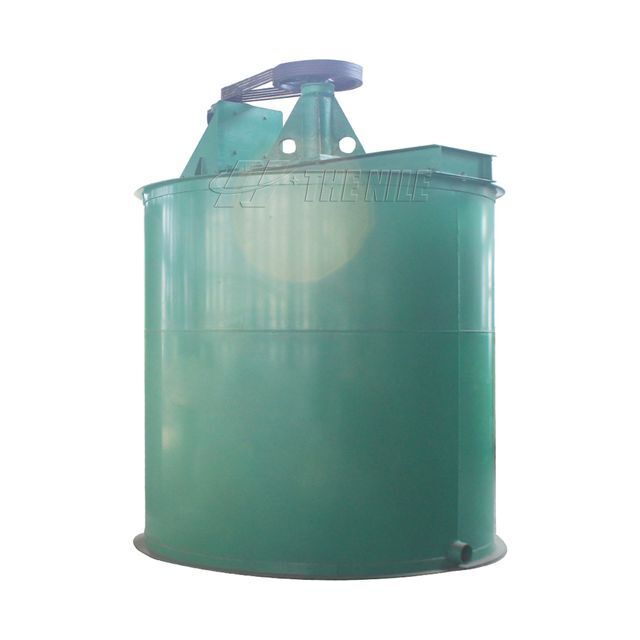

High-quality mining barreled equipment gold leaching mixing tank

Product Description

The mixing barrel of the Nile has a compact structure and good sealing performance, and the feeding port is provided with a gray gray plate to prevent the water mist from collapsing. Stir evenly, the stirring blade is fan-shaped, and the contact area with the medium is large during stirring. The nozzles are arranged in multiple rows, and the water output can be adjusted evenly. Advanced performance, stable quality of finished products, uniform mixing, and rapid discharge.

The mineral mixing tank is driven by the motor to rotate the impeller, and the upper and lower circulation stirring is carried out in the tank, so that the agent and the slurry are fully mixed and evenly mixed, which is a necessary reaction equipment for increasing the mineral slurry. Improve drug response time. Mainly used for better beneficiation before flotation.

Application range: widely used in the mixing of various metal ores and non-metallic ores, the concentration does not exceed 30% (by weight) of the pulp below 1mm. It can also be used for mud mixing in chemical and building materials industries, as well as in industrial sectors such as cyanide plants and sewage treatment plants.

model.	Chute size (mm)		Effective volume (cubic meter)	impeller diameter (mm)	impeller speed (rev/min)	motor Model	motor strength (kilowatt)	Dimensions (mm)
model.	diameter	high	Effective volume (cubic meter)	impeller diameter (mm)	impeller speed (rev/min)	motor Model	motor strength (kilowatt)	high	length
NLH1000	1000	1000	0.58	240	530	Y100L-6	1.5	1300	685
NLH1500	1500	1500	2.2	400	320	Y132S-6	3	1690	861
NLH2000	2000	2000	5.6	550	230	Y132M2-6	5.5	2381	1240
NLH2500	2500	2500	11.2	630	230	Y160L-6	11	2881	3462
NLH3000	3000	3000	19.1	700	210	Y225S-8	18.5	3266	4296
