XB-1000 gold stirring leaching tank

Product details
Health status:newbrand:Jinshibao
Production capacity:98%model:XB
Motor type:AC motorDimensions (L*W*H):1130*1130*1491 mm
application:ore miningSupply capacity:200 sets of gold ore stirring and leaching tanks per month
Applicable industries:Energy and Miningtype:Leaching tank, beneficiation machinery
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramcolor:blue gray green red
Hybrid type:scraper mixPackaging Details:Gold stirred leach tanks upon request
Additional features:HomogenizerCertification:EU CE, ISO9001
Warranty:one yearusage:Shampoo Soap, Body Wash Making Machine
Export market:globalport:Stirring and leaching tank for Xiamen Gold Mine
heating method:Steam & ElectricityAfter-sales service provided:Online support, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services
Voltage:custom madeOrigin:Jiangxi, China
Warranty:One year, not including spare parts

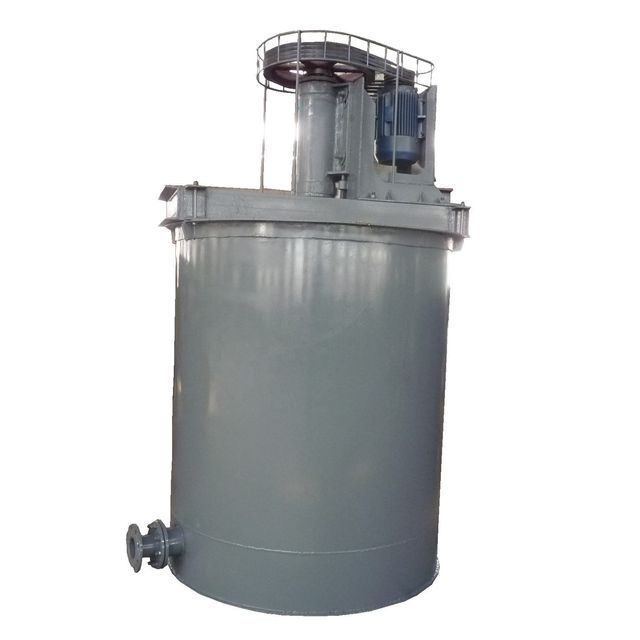

XB-1000 gold stirring leaching tank


XB series gold ore stirring and leaching tanks are suitable for mixing various ore slurries. It is mainly suitable for the flotation of metal minerals or the mixing of re-selection minerals in the beneficiation process to achieve the uniform mixing of chemicals and minerals, and it is also suitable for the stirring of non-metallic minerals.




All equipment involved is available at the factory. Hopefully we can talk then.


Structure and working principleGold stirred leaching tank

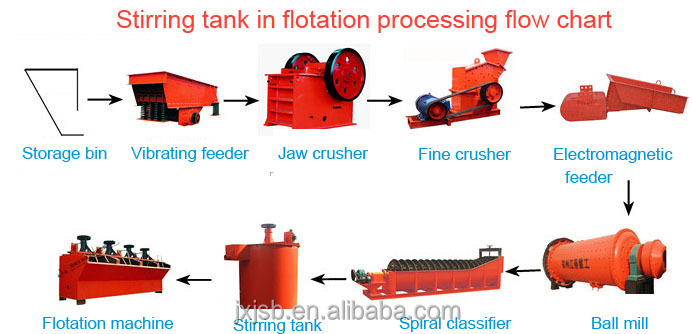

The rotation of the impeller is driven by the V-belt of the motor. The drug is then mixed well with the slurry. It is an essential equipment to prolong the drug effect time and enhance the quality of drugs. It is suitable for mineral processing, industry and various chemical industries. For various metal ores, this machine is mainly used for mixing before the flotation circuit, so that the chemicals and the pulp are fully mixed. It can also be used to mix other non-metallic minerals. It is suitable for slurry with a density not greater than 30% (weight), and the fixed component size of slurry particles is less than 1mm. Cylindrical radial circulation mechanical agitation form with helical impeller, flat bottom.




Features of gold ore stirring leaching tank


Simple structure and easy adjustment

High efficiency and low power consumption

Reliable operation and easy maintenance

Mix evenly and disperse better

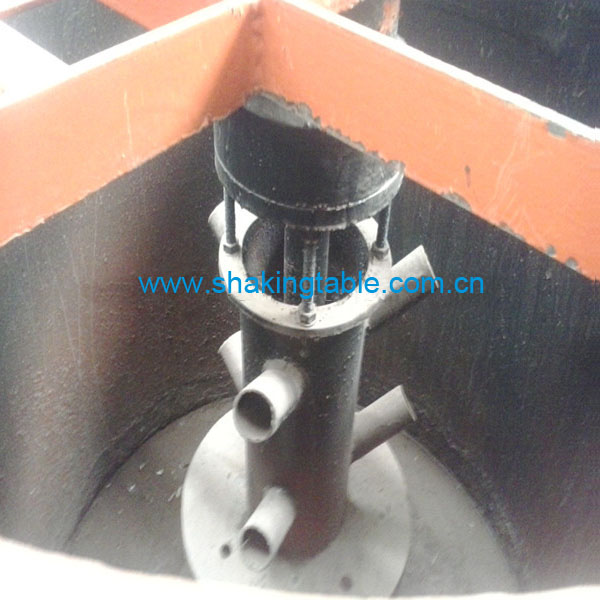

The impeller is designed as mushroom cap type, which improves the stirring and circulation ability of pulp and chemicals.

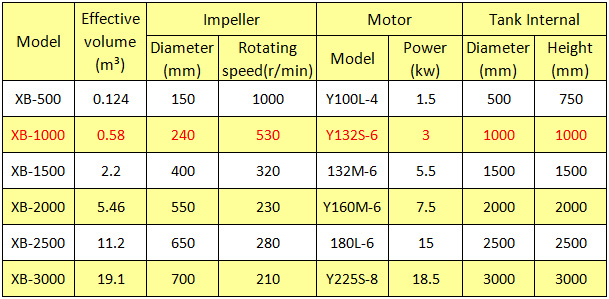

Gold stirring leaching tank technical parameters

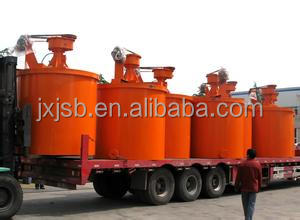

Packaging and Shipping



payment terms
