Jinshibao Mining Company New Product Sludge Thickener

Product details
Applicable Industries:Energy & Mining;Supply Ability:100 Set/Sets per Year provide the drawing to customer to make by site;
Spare parts:Supply;Application:de-watering ,and desliming;
Installment oversea:Supply;Dimension:as client's required;
Packaging Detail:sludge thickener:Shipping by FCL or LCL way .;Motor Type:non-power;
Port:XIAMEN/SHANGHAI/GUANGZHOU/SHENZHEN/QINGDAO/CIF PORT;Warranty:1 YEAR;
Water recycling:more than 60-80%;Power:No Power and environmental protection;
Brand Name:Jinshibao;Capacity(24h):300-800/500-1500 t/d;
Certificate:ISO9001:2008,CE,SGS,TUV;Sample ore testing:Supply;
Type:Mining Thickener,Mining Thickener;Place of Origin:Jiangxi China;
Dimension(L*W*H):customized;Production Capacity:60-80%;
Color:Customized;Condition:New;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,pay cash in the factory;After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Certification:CE,ISO ,SGS,;

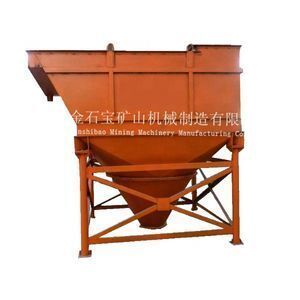

Jinshibao Sludge Thickener







Product Description



1.The brief introduction of  sludge thickener



Sludge thickener  fits for dehydration of the concentrate and gangue inbeneficiation production line; it is widely used in metallurgy, chemical industry, coal,nonmetal beneficiation and environmental protection.



2.The application of sludge thickener

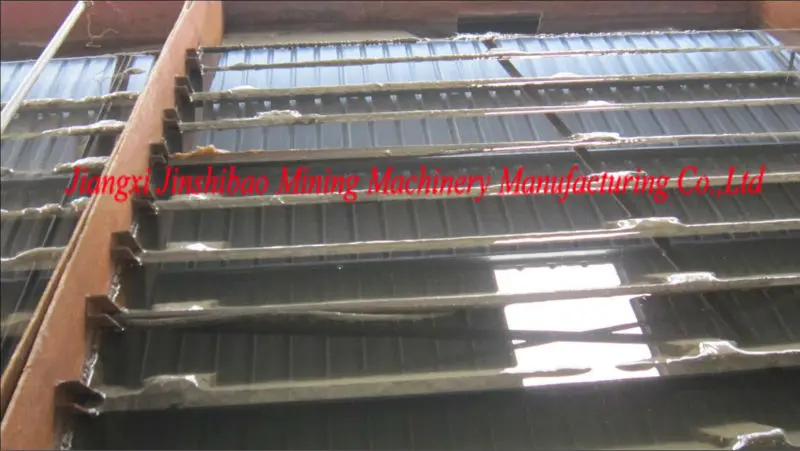

Energy efficient inclined tube type thickener is a new type of equipment of high efficiency, high energy saving and classification. The equipment is mainly composed of classifying hopper, inclined tube feeding area, the overflow mouth, sorting, etc.



3.The working principle of  sludge thickener



MY series thickener high efficiency dense machine: using the difference between mineral particle size and specific gravity (density), Which do not match on the settling velocity of the flow to achieve classification, dewatering, desliming.

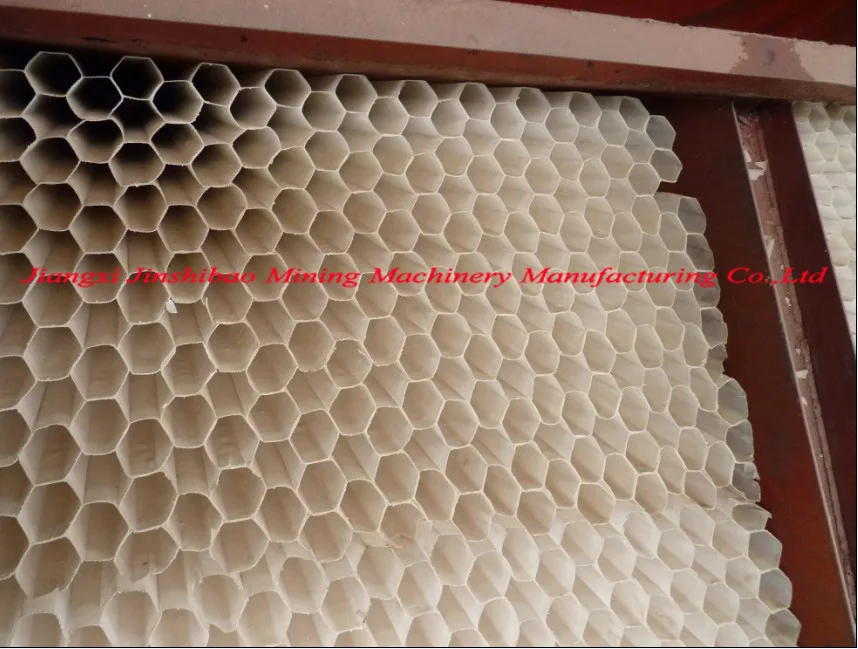

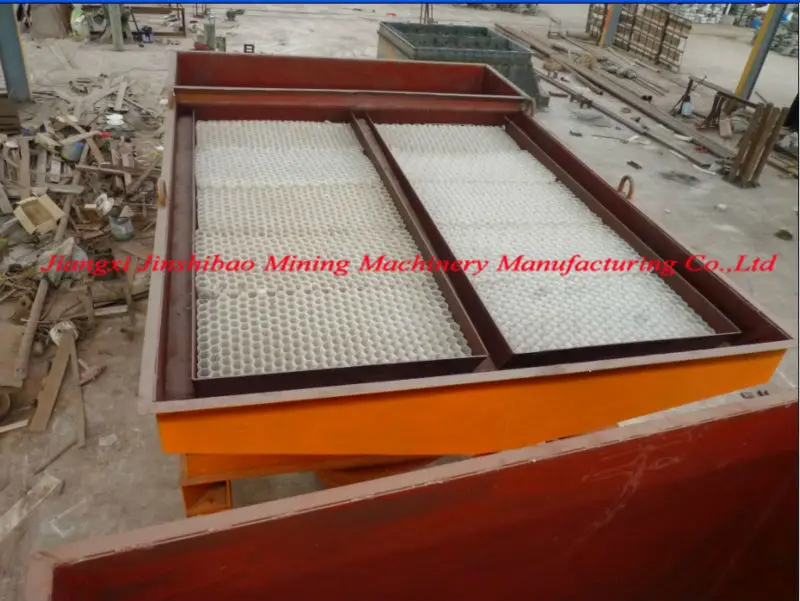

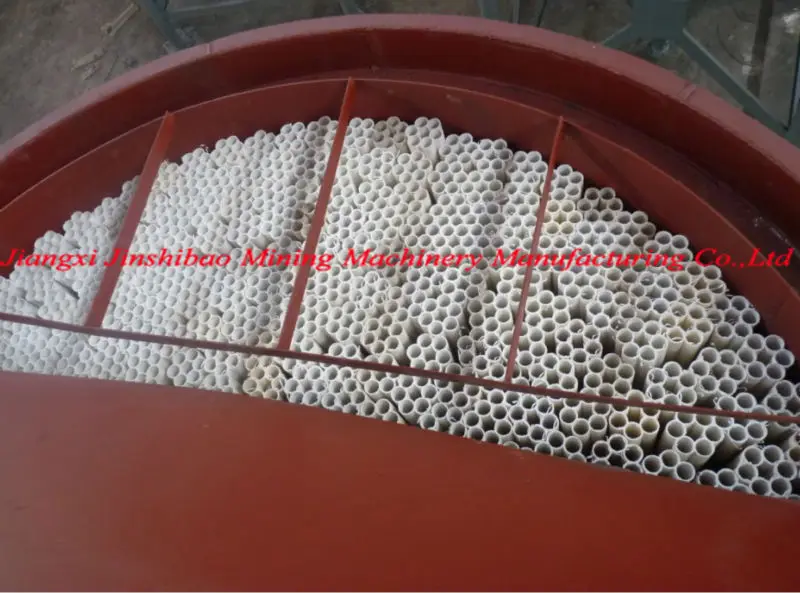

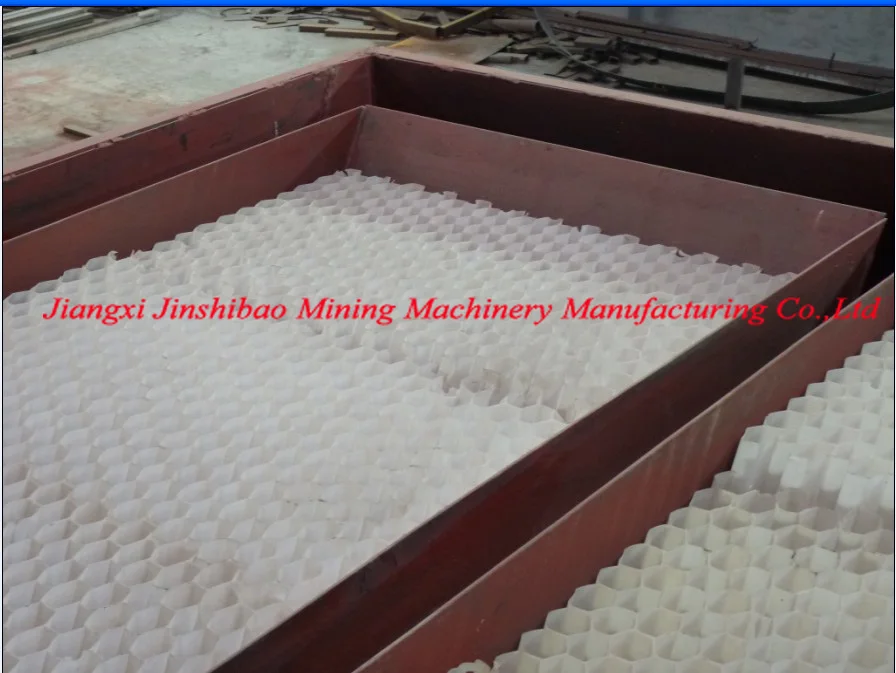

ore pulp goes into the pulp through a pipe or a pump thickener into the feeding mouth, the thick machine feeding speed turns sharply from low to high,under the action of making pulp is not in the other power to form a downward force.After entering concentration area, pulp can be in the form the relatively dynamic balanced suspension process, slurry particle size in the larger particles, due to its larger settling velocity , in overcoming current pulse power, after settling concentration and then through the filter screen layer, thus the rapid precipitation goes to the bottom, and then through the bottom of the discharging mouth eduction.according to certain Angle,the oblique district populate the hexagonal thin porous inclined tube.



4.The features of sludge thickener



1.The equipment with simple structure,easy operation , well maintain,convenient installation ,smaller space and large capacity

2.It works with stable , without power,lower people to do

3.Lowest investment, without any quick wear parts

4.Higher recovery for classifier and dehydration ,overflow of water is not muddy

5.This machine is new style environmental protection equipment.

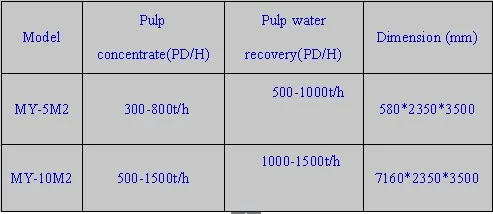

5.The specifications of sludge thickener







 Above the model ,just two common models , the mining thickener can make by customized , we can provide the drawing to customers .

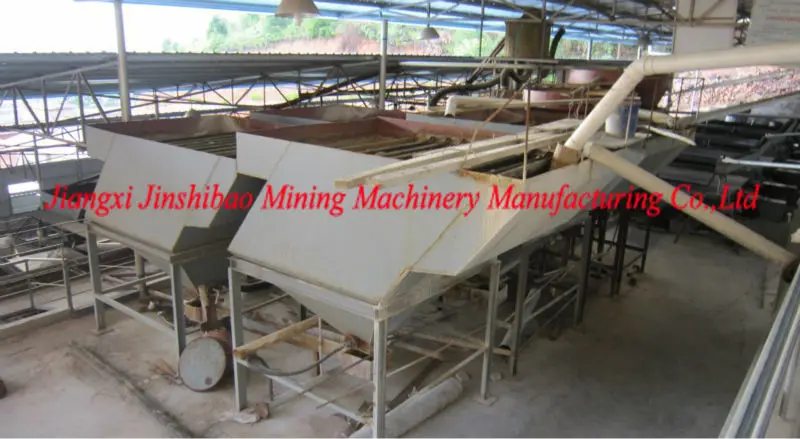

6.The mining pictures of sludge thickener

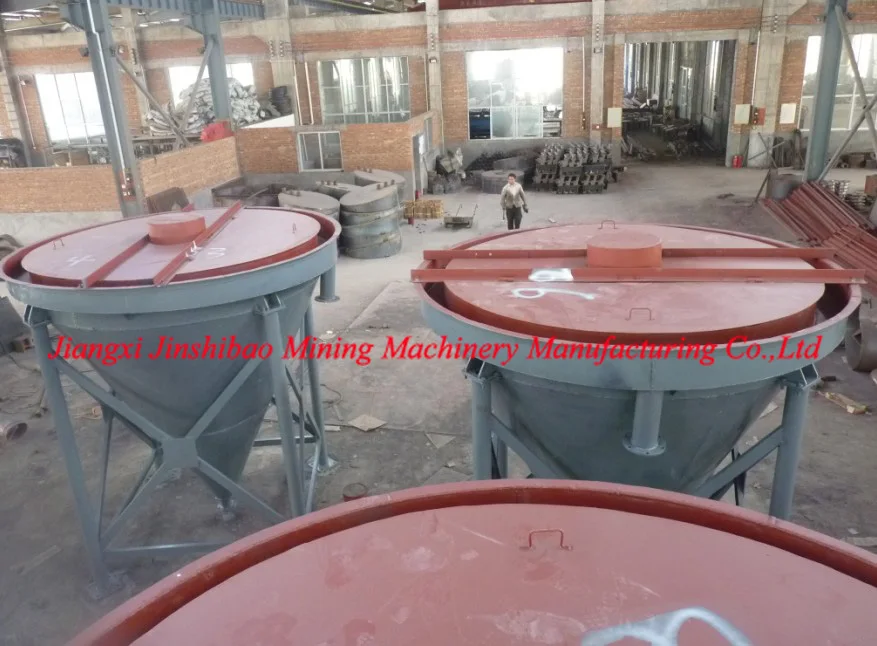

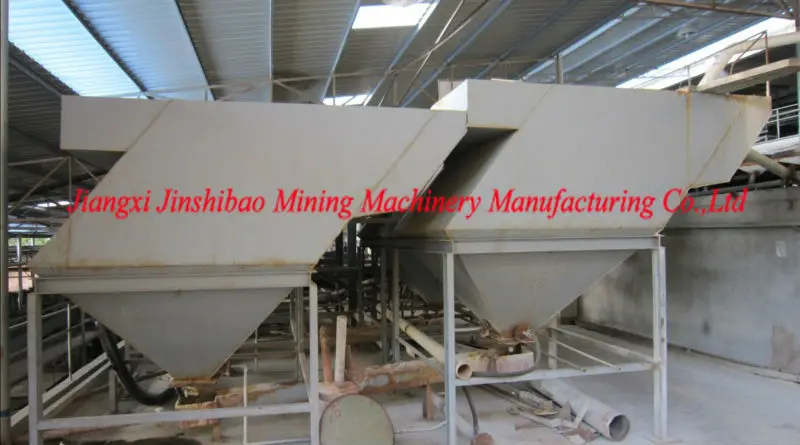

Another sludge thickener always used in China

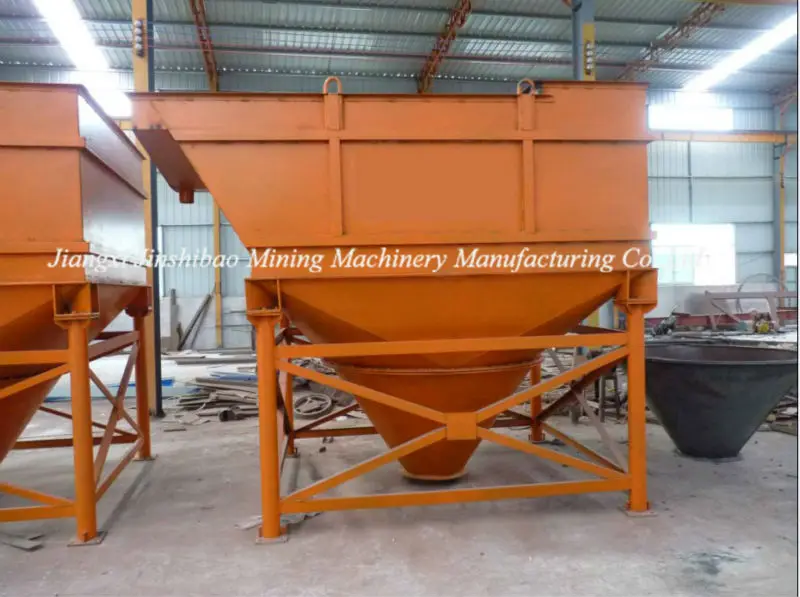

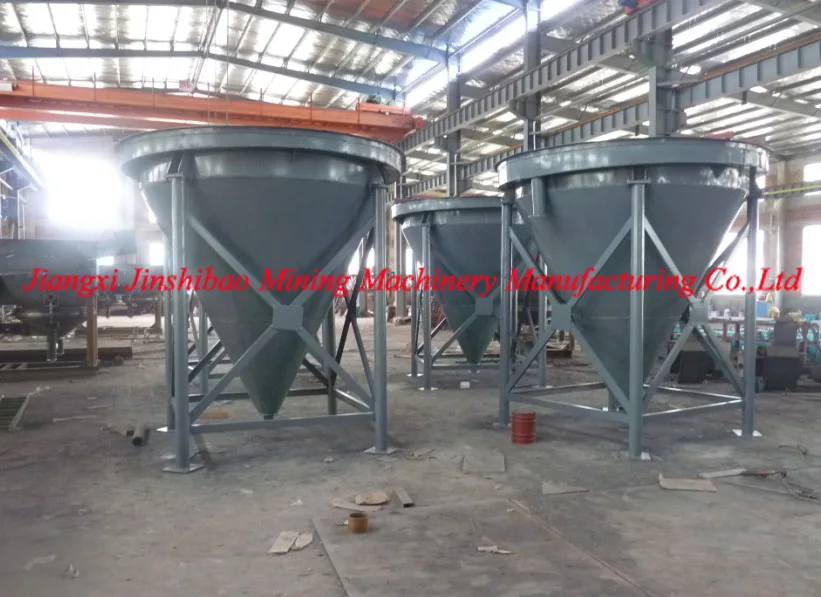

Small thickener in Jinshibao Company
