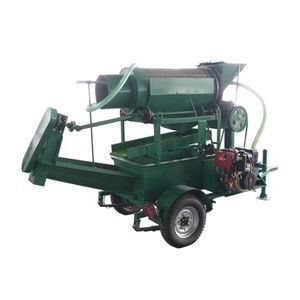

Mining Washing Machine Small Gold Trommel Screen For Sale

Supplier: Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd.
Region: Jiangxi, China
Contact: Mr Eric Huang
Price: $4680.00 /set
Min. Order: 1 set

Click here to contact

Product details

Trommel length:	1200 mm;	Packaging Detail:	Small gold trommel screen packed in container.;
Production Capacity:	1-5 t/h;	Applicable Industries:	Energy & Mining;
Certification:	CE,ISO9001:2008;	Max.Screen size:	10 mm;
Material:	Carbon steel, stainless steel;	Power source:	Diesel engine (or gasoline/electric motor);
Warranty:	1 YEAR;	Condition:	New;
Supply Ability:	10 Set/Sets per Month;	Screen aperture size:	8 mm;
Weight:	770 kgs;	Local Service Location:	None;
Voltage:	Customized;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Port:	xiamen ,China;	Brand Name:	Jinshibao;
Trommel diameter:	500 mm;	Type:	Mineral separator;
Payment Terms:	L/C,D/P,T/T,Western Union;	Place of Origin:	Jiangxi China;
Drive mode:	Chain and sprocket drive;	Application:	Gold sand screening and washing;
Dimension(LWH):	380015501960 mm;	Showroom Location:	None;

Product Description

Mining Washing Machine Small Gold Trommel Screen For Sale

1.Description of Small gold trommel screen

Model	YGT0512
Trommel diameter	500 mm
Trommel length	1200 mm
Processing capacity	1-5 t/h
Power source	Diesel engine (or gasoline/electic motor)
Power	8 HP
Drive mode	Chain and sprocket drive
Screen aperture size	8 mm (customized)
General dimension	380015501960 mm
General weight	770 kgs

2.Description of Small gold trommel screen

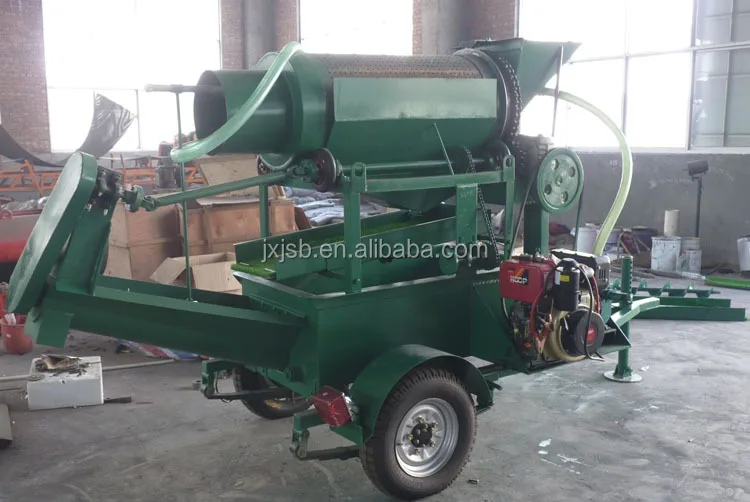

This mobile gold trommel plant with 1-5t/h capacity, it is ideal for testing gold values or for small production operations.

Mobile Trommel Screen - powered by a 8 HP, motor with gear reducer, motor powers the barrel and water pump.

The sluice box which you can have a good chance of getting all the nuggets and flakes that go through it.

Quite and easy to manage and maintain v-belt system long life trommel wheels easy to maintain and change out.

Steel spray bar system upgrade discharge sluice box design easy and fast change from right to left side helps to get the slop away from the work area.

3.Processing line of Small gold trommel screen

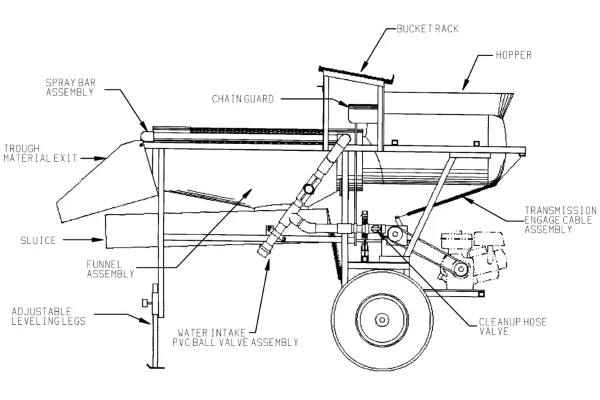

4.Diagram of Small gold trommel screen

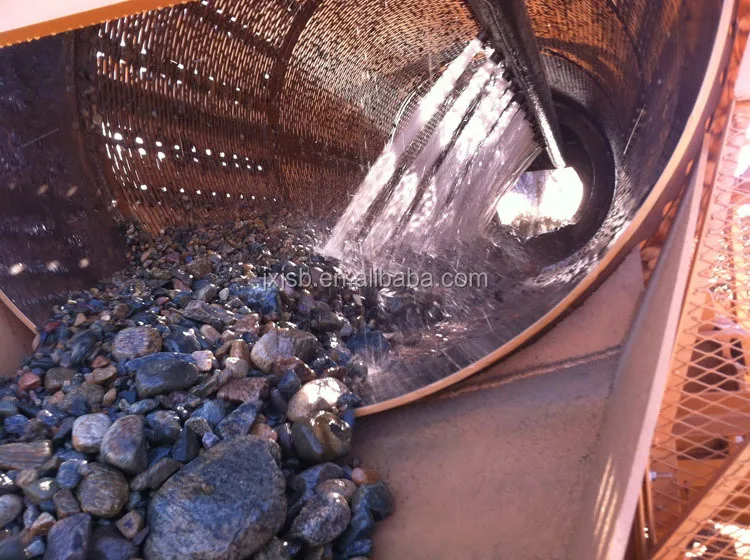

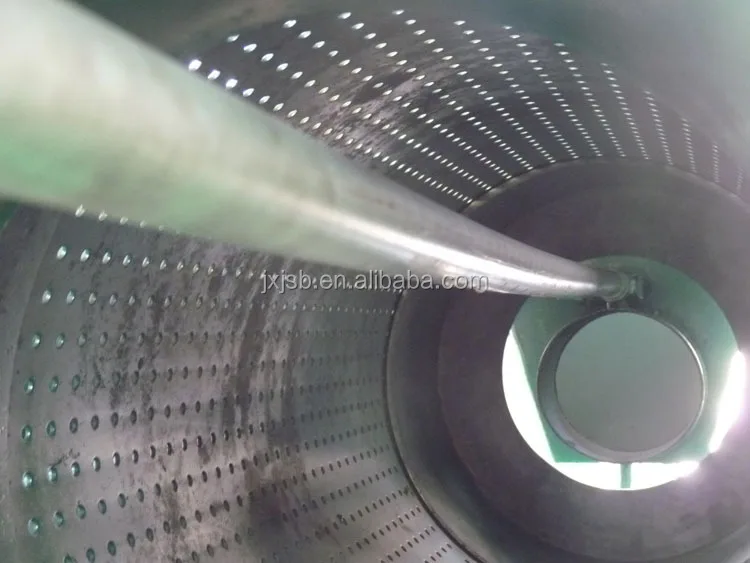

5.Inside of Small gold trommel screen

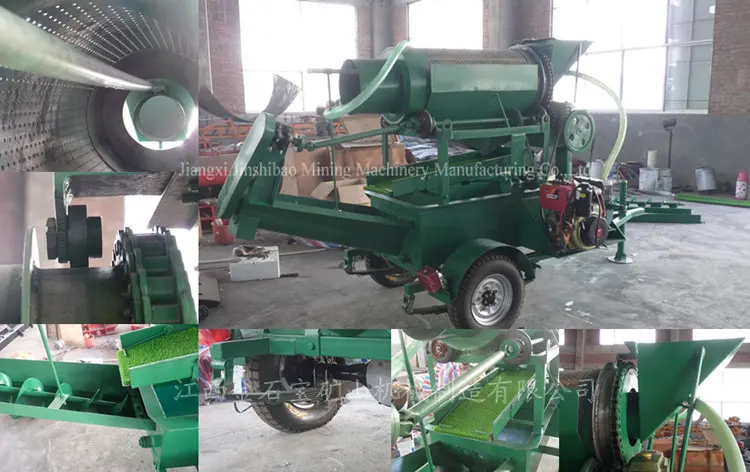

6.Configuration of Small gold trommel screen

Trommel screen: the aperture size of the trommel screen could be customized as per your requirements.
Mobile device
Water pump
Water storage tank:This gold trommel plant recirculates approximately 0.378m³of water.

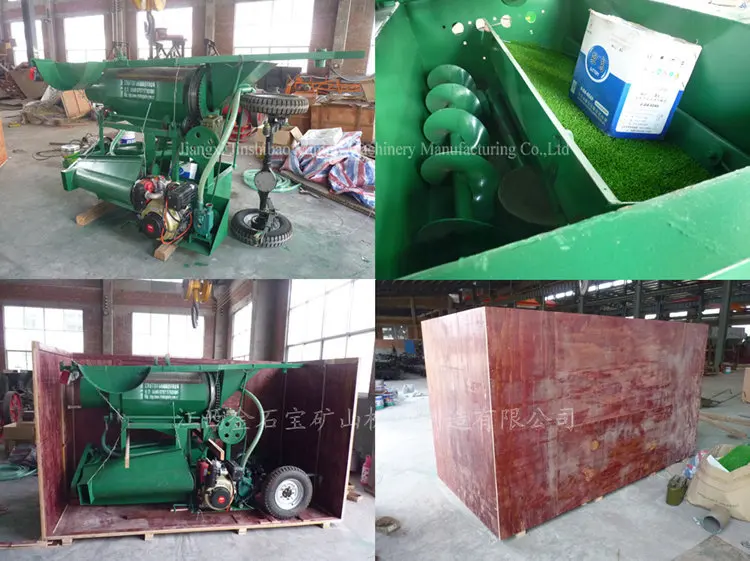

De-watering screw:Using the de-watering screw is the most efficient way to remove solids from water and recirculate it.
Oscillating sluice
Diesel engine
Lifting lugs
Lighting
