Mobile Gold Mining Equipment Gold Separator For Sale

Supplier: Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd.
Region: Jiangxi, China
Contact: Ms Bella Chen
Price: $12000.00 / 1 - 999 sets
$11500.00 / >=1000 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Energy and Mining	Showroom location:	not any
type:	Gravity Separator	Warranty:	1 year
engine:	motor	Dimensions (LWH):	depends on the plant
Name:	mineral separator	Production capacity:	98%
color:	black or as your request	brand:	Hengchang Gold Selector
After-sales service provided:	On-site installation, commissioning and training	Marketing Type:	New Products 2020
port:	Xiamen Port	Core components:	motor, engine
weight:	Kilogram	Core Components Warranty:	1 year
Health status:	new	Feed Density:	10-30%

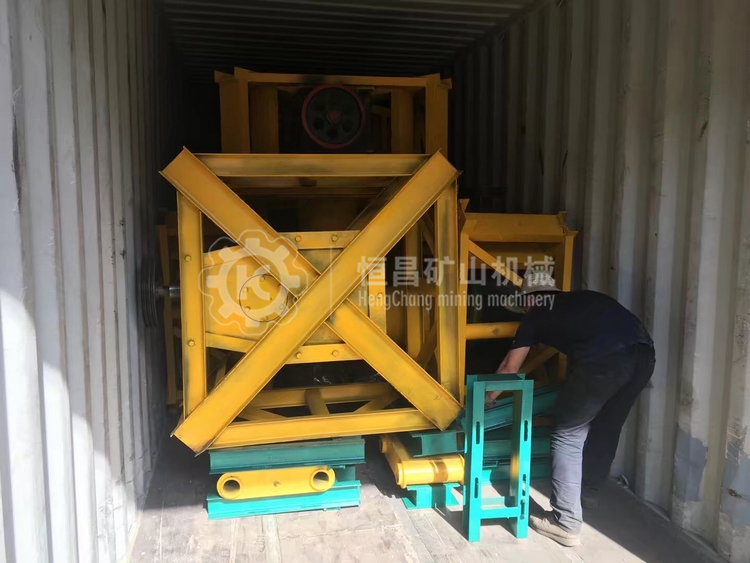

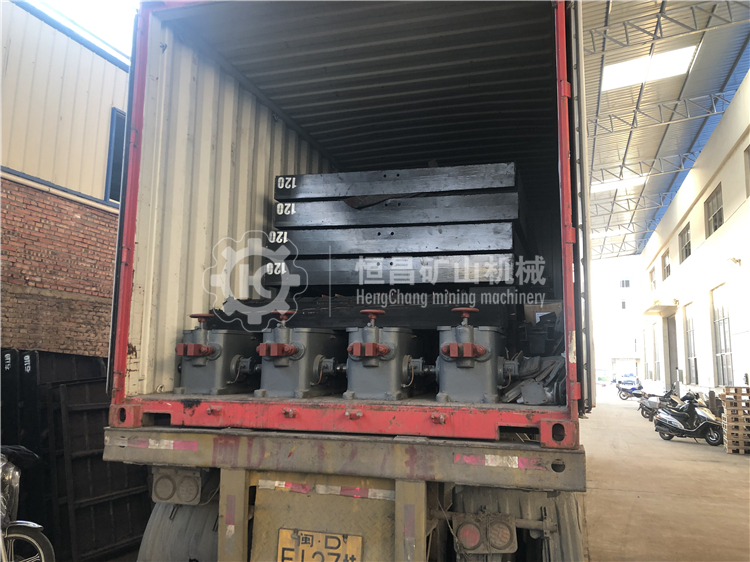

Packaging Details:	For gold separators, conventional packaging, LCL or FCL packaging with containers.	Main selling point:	low maintenance cost
Material:	Manganese steel, glass fiber	Video external inspection:	if
Supply capacity:	We have 100 sets of gold separators in stock every month.	Voltage:	220V/380V/415V/450V
Mechanical test report:	if	place of origin; place of origin:	Jiangxi, China
payment terms:	L/C,Western Union,D/P,T/T,MoneyGram

Mobile Gold Mining Equipment Gold Separator For Sale

Hengchang MachineryGold Separator It can be used for grinding of various minerals, such as gold, copper, iron, zinc ore, etc. When you find us, you find the best mining machinery manufacturer.

Gold Separatorintroduce:

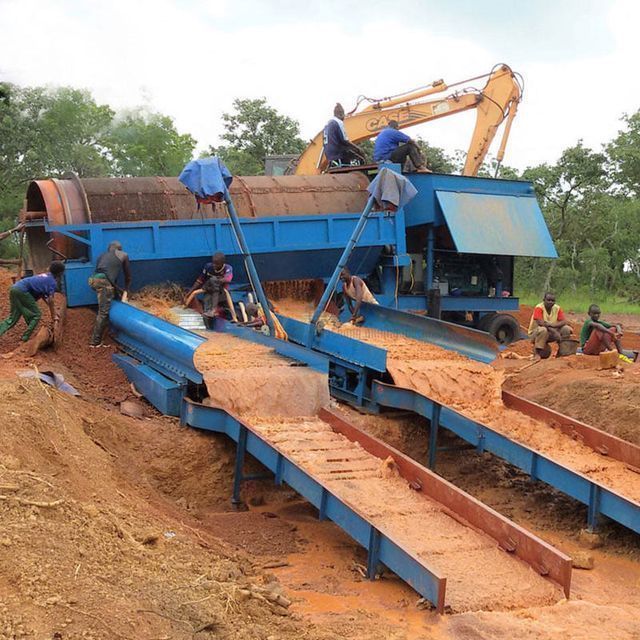

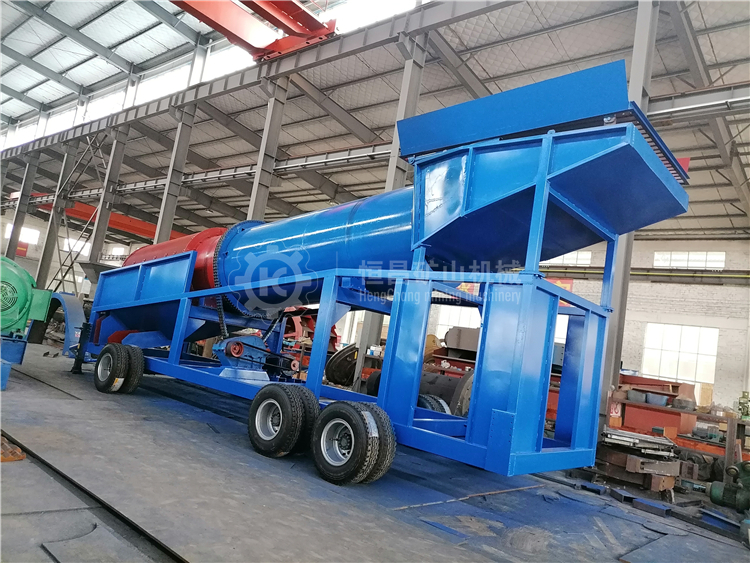

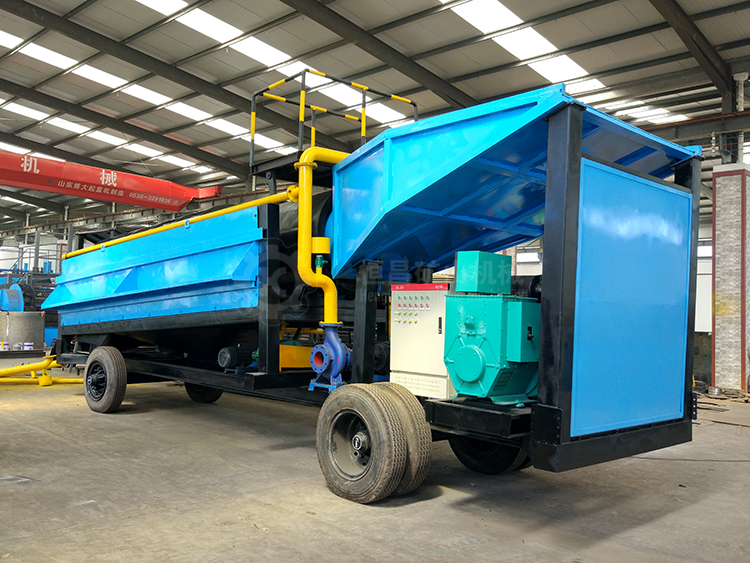

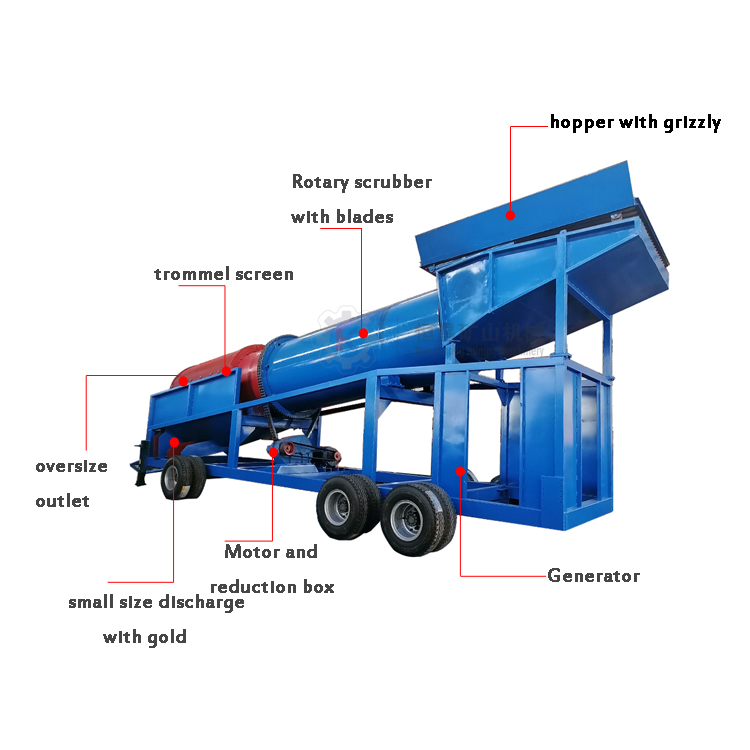

ThisGold Separatoris an automatic rotating drum scrubber that uses pebbles and rocks in the feed source to break up and break up clays, agglomerates and soft oxides. The washer spins slowly, similar to a giant washing machine. It mixes fine and oversized particles with water, vigorously breaking down the soil matrix and liberating targeted minerals from tough clays, schists and rocks. The crushed material is uniformly slurried within the drum, while the autogenous load is held within the drum by reverse threads located at the discharge end of the drum. Slurry and washed oversize overflow from the tumbler discharge throat to the concentric outlet trommel.

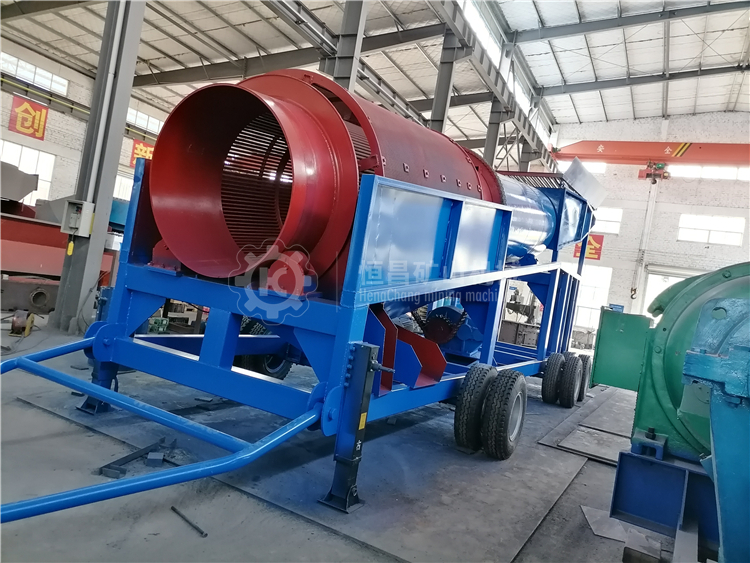

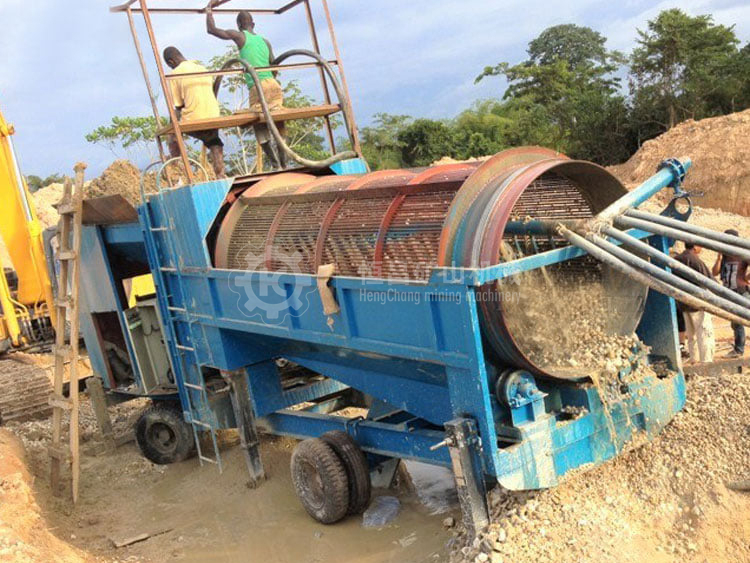

After fine (earth) separation, the material is moved into the screen. A rotary screen separates oversized material from fines (often called or classified as smaller than 6mm). Most freely (gravity) recoverable gold and/or other recoverable minerals are contained in - 6mm fines.

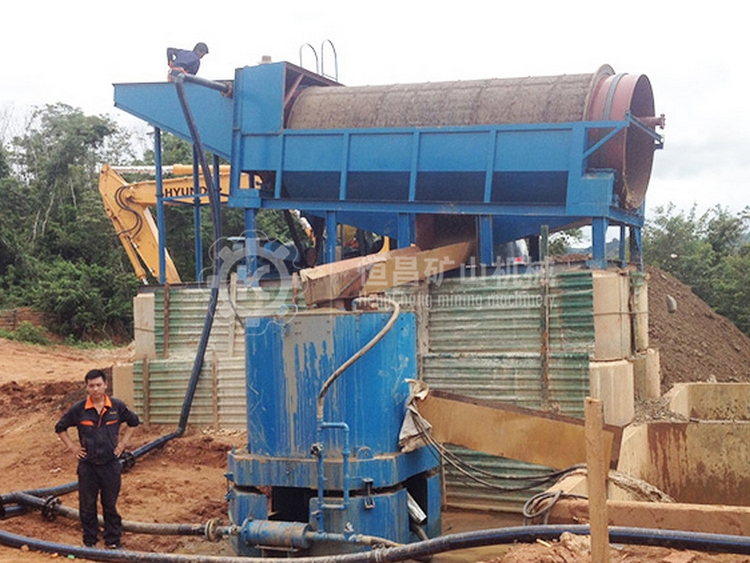

This material is then passed to downstream process equipment, which can take various forms, such as centrifugal concentrators, spirals, clamps, and the like.

The advantagesGold Separator
1. Designed to crush alluvial gravel, clay and sand
2. Large capacity and high power washing
3. The long drum of the washer retains material for longer and more intense washes for complete separation
4. Thickened steel plate for rollers
5. Heavy duty bearings, gears and rollers
6. Wearable screen at the outlet of the drum for screening
7. A high-output motor-driven gear system provides high-efficiency torque
8. High pressure water flushes the inner wall of the drum
9. Can accept material up to 230mm
10. The housing design is lighter than traditional roller support units - reducing crane installation requirements

Model	Feed size (mm)	Water pressure (Mpa)	Capacity (tons/hour)	Speed (r/min)	Power (kW)	Weight (tons)
RXT1030	≤100	0.4~0.5	30~50	25~28	15	4800
RXT1230	≤100	0.4~0.5	50~70	23~25	18.5	5800
RXT1545	≤150	0.4~0.5	70~120	18~22	30	6900
RXT1560	≤150	0.4~0.5	80~130	18~22	37	8300
RXT1845	≤170	0.4~0.5	90~130	20~21	45	11800
RXT1860	≤170	0.4~0.5	100~140	20~21	45	12800
RXT2060	≤210	0.4~0.5	120~160	19~20	55	14800
RXT2265	≤230	0.4~0.5	160~180	19~20	55	16500
