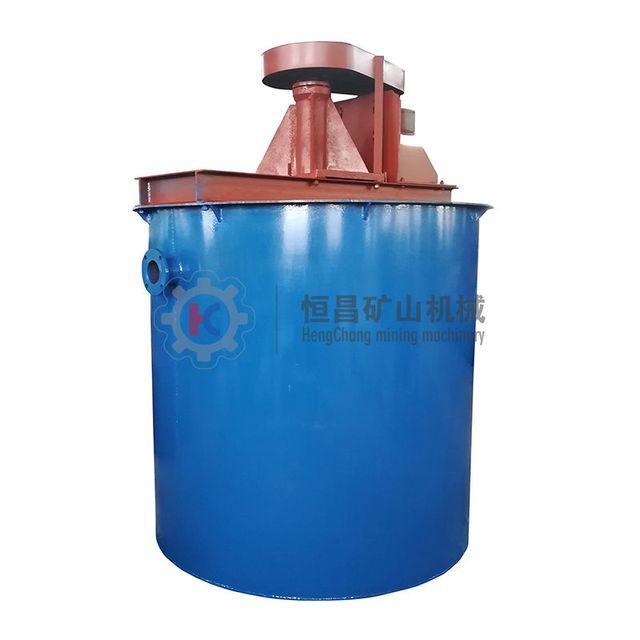

Gold Mining Leaching Tank/CIL Small Gold Processing Plant Mixing Tank

Supplier: Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd.
Region: Jiangxi, China
Contact: Ms Bella Chen
Price: $4950.00 / 1 - 4 sets
$4554.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Gross weight of single piece:	5500.000kg	Certification:	International Organization for Standardization
Warranty:	1 year	Key words:	Stirring leaching tank
Applicable industries:	Energy and Mining	Place of origin:	China
Single piece packaging size:	120X120X25cm	type:	Leaching tank
Local service locations:	not any	Core component warranty:	1 year
Core components:	engine	application:	mineral leaching process
Health status:	new	Mechanical test report:	if
Sales unit:	Single product	color:	custom made
Video outbound inspection:	if	After-sales service provided:	Video technical support
Name:	Mechanical double impeller stirring leaching tank	Dimensions (lengthwidthheight):	different models
Package preview:		brand:	Hengchang
Effective volume:	2.2-31 cubic meters	After-sales service:	1 year
Showroom location:	not any	Marketing type:	normal product
Packaging details:	For wet mills shipped via FCL or LCL	Production capacity:	99%
Motor type:	AC motor

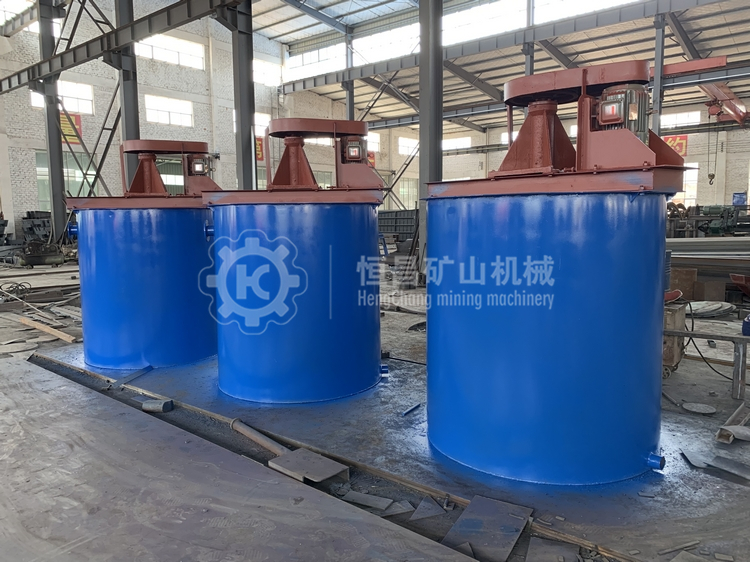

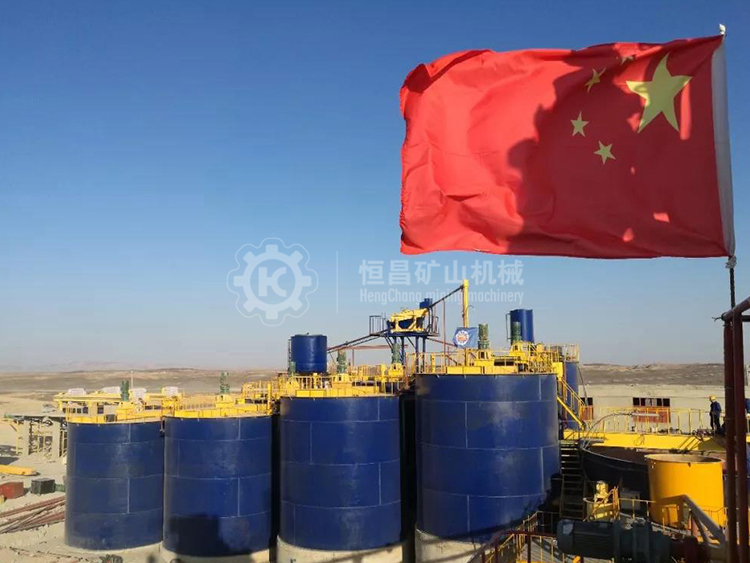

CIL Small Scale Gold Mine Concentrator Plant Leaching Tank

Hengchang mechanical leaching tank can be used to separate a variety of minerals, such as gold ore, copper ore, tantalum ore, lead-zinc ore, etc. When you find us, you find the best mining machinery manufacturer.

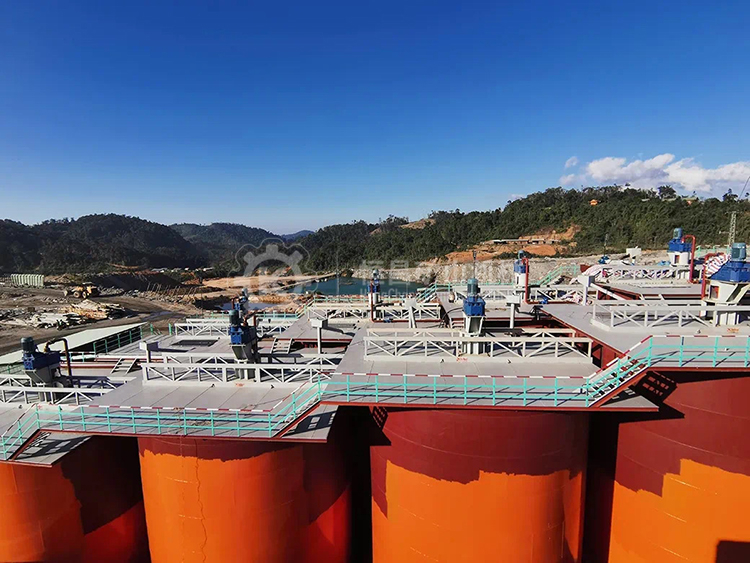

Introduction to the leaching tank of CIL small gold ore concentrator plant: The gold CIL process (carbon leaching) is an efficient method of extracting and recovering gold from ore. The CIL process reduces gold mining operating costs and increases gold recovery to 99% by simultaneously cyaniding and carbon leaching the crushed gold slurry. It is the first choice equipment for modern gold mining and gold processing plants.

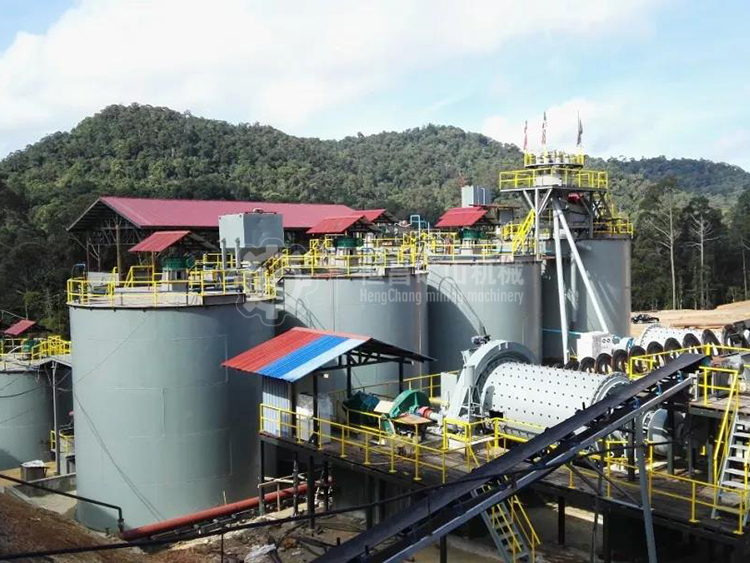

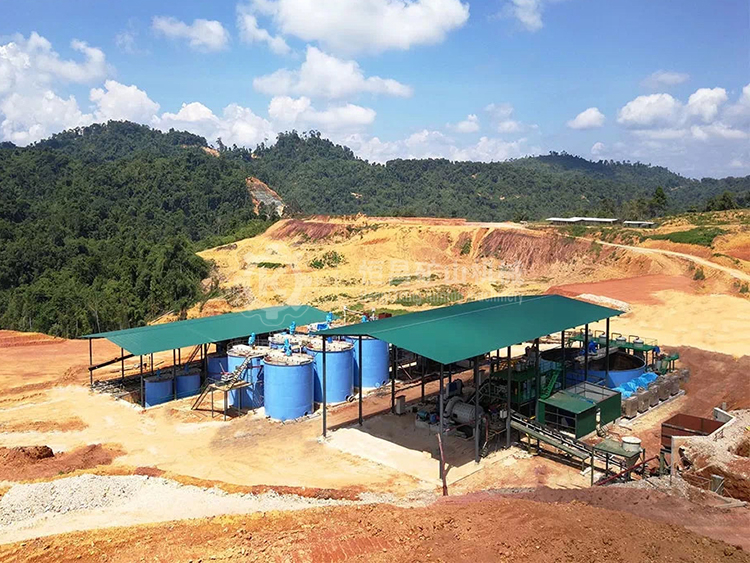

Gold CIL Plant Leaching- -Flow Description:1. After the crushing and grinding stage, a 9-stage high-efficiency cyanide leaching tank is added to the slurry. Gold slurry cyanidation is carried out in the first two leaching tanks, and the last six or seven leaching tanks carry out countercurrent adsorption operation. Compared with the gold CIP process and other traditional gold extraction processes, the gold CIL process greatly shortens the cyanidation time and reduces the capital backlog in the gold retention stage. Taking a gold cyanide plant with a processing capacity of 100,000 tons and a gold grade of 7.5 g/ton as an example, the gold CIL process can save US$486,000 in investment costs compared with the CIP process, reduce the capital backlog by US$201,700, and save and recover US$675,100 in advance funds. Does not include activated carbon cost. 2. In the step of adding activated carbon, the coconut shell activated carbon (small pores, high activity, wear-resistant, renewable) specially selected by Hengchang Mineral Processing Design Institute is added to the slurry, which can dissolve and adsorb gold and silver ions, and then according to the gold and silver The characteristics of adsorption form gold-loaded carbon. 3. Vibrating screens and dewatering screens are key equipment for the reverse movement of pulp and carbon. The filter press and high-frequency dehydration screen developed by Hengchang can effectively reduce the carbon wear on the surface of the vibrating screen and the process of continuous pumping of slurry, and reduce costs and facilitate maintenance and operation. 4. Hengchang desorption electrolysis system uses a mixture of sodium cyanide and sodium hydroxide to perform high-temperature desorption and electrolysis of gold in gold-loaded carbon. After the cleaning machine removes wood chips and other debris, Xinhai high temperature and high pressure desorption method (150 degrees, 0.5Mpa) is used to desorb gold, which can decompose 99% of the gold within 2-6 hours.Leaching tank uses: CIL is mainly suitable for processing gold ore with a grade above 1g/t and gold ore with a large mineral content: silver, platinum, copper, etc. CIL showed better performance in extracting these minerals simultaneously.

Model	Tank specifications (mm)	Effective volume (cubic meter)	Impeller revolution (rev/min)	Motor Power (kilowatt)	weight (Kilogram)
SJ2.0X2.5	2000X2500	7.07	52	2.2	2144
SJ2.5X2.5	2500X2500	10.8	43	4	2729
SJ2.5X3.15	2500X3150	13.92	52	2.2	3095
SJ3.0X3.0	3000X3000	19	43	4	4583
SJ3X3.15	3000X3150	20	43	4	4160.6
SJ3X3.5	3000X3500	22.97	43	4	4334.6
SJ3.15X3.55	3150X3550	25.73	43	4	4322.8
SJ3.5X3.5	3500X3500	31.3	52	5.5	5025
SJ3.5X4	3500X4000	35.6	52	5.5	5429
SJ3.55X4.0	3550X4000	36.8	43	4	5025
SJ3.7X4.2	3700X4200	42	42	4	6153
SJ4.0X4.5	4000×4500	52.78	35	7.5	7569
SJ4.0X6	4000×6000	71	33	11	9200
SJ4.5X5.0	4500×5000	74.75	35	7.5	10864
SJ5.0X5.6	5000X5600	104.5	31	11	14291
SJ5.5X6.0	5500X6000	135.42	31	11	18745
SJ6.5X7.0	6500X7000	215	twenty one	number 22	25978
SJ7.0X7.5	7000×7500	269	twenty one	number 22	29030
SJ7.5X8.0	7500X8000	Chapter 331	twenty three	number 22	32796
SJ8.0X8.5	8000X8500	Chapter 402	18.5	30	42467.3
SJ8.5X9.0	8500X9000	Chapter 480	18.5	30	46623
