2018 Gravel Washing Machine Log Washer
-
Supplier: Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd. -
Region: Jiangxi, China -
Contact: Mr Eric Huang -
Price: $4800.00 /set -
Min. Order: 1 set
| Water consumption: | 60-80t/h (water can be recycled after sedimentation); | Capacity(t/h): | 50t/h; |
| Brand Name: | Jinshibao brand; | Spiral diameter & length: | customized is available; |
| Packaging Detail: | FCL: Gravel Washing Machine is fixed in the container directly, the spare parts will be packed in wooden box LCL: Gravel Washing Machine is packed in steel frame inside, outside is plywood box.; | Condition: | New; |
| Application: | Fit for washing manganese, iron, limestone, tungsten, tin, silica etc; | Feeding size: | Less than 70mm for Gravel Washing Machine; |
| Motor Type: | AC Motor; | Name: | Gravel Washing Machine; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Guarantee: | one year guarantee excluding spare parts; |
| Port: | Xiamen/Guangzhou/Shenzhen/Shanghai; | Services: | 24 hours' online services available; |
| Supply Ability: | 500 Set/Sets per Year Jinshibao manufactures Gravel Washing Machin more than 20 years.; | Certification: | CE;SGS;TUV; |
| Warranty: | 1 Year; | After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| Place of Origin: | Jiangxi China; | Color: | Customized for Gravel Washing Machine; |
| Ore sample testing: | Available; | Weight: | 17.5 tons; |
| Dimension(L*W*H): | 750*7600mm; | Applicable Industries: | Energy & Mining; |
Hot Sale With Good Quality Gravel Washing Machine
1

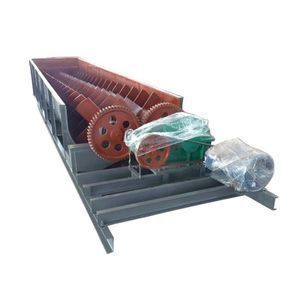

I. Description of Gravel Washing Machine
The Gravel Washing Machine are ideal for scrubbing difficult material. Tough insoluble clays, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean properly in normal screw machines. The log washer thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water and downtime.
1
II. Advantages of Gravel Washing Machine
- Log Washers ideal for scrubbing difficult materials such as tough insoluble clays, conglomerates, soft stone and cemented aggregate
- High capacity
- Heavy duty conveying paddles
- Fabricated with heavy duty tubs
- Oversize bearings and gears
- Thick-walled shafts
- Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox
- The compound drive divides the operating load over an optimal combination of oversized helical and spur gears
- Continuous grinding and abrading log washer paddles
- Adjustable water discharge gates on both sides of lower end of the tub
III. Application of Gravel Washing Machine
- Minerals such as manganese ore, iron ore, tungsten ore, tin ore, limestone, silica sand, and so on.
- Gravels
- Crushed rocks
- Recycled materials
- Most kinds of bulk materials that need to be washed

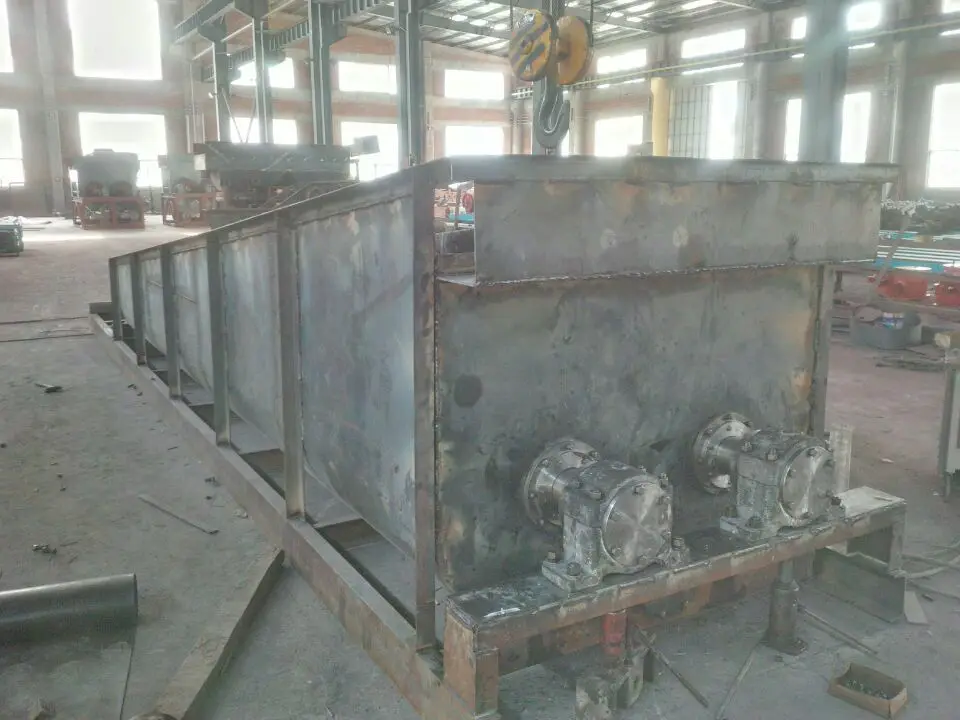

Those are unpaited Gravel Washing Machine
IV. Specifications of Gravel Washing Machine
1
Model | Spiral Dia. (mm) | Feeding size (mm) | Tank slope (o) | Output (t/h) | Power (kw) | Weight (t) |
2RXL320 | Φ320×3200 | ≤30 | ≤12 | 10 | 4 | 0.9 |
2RXL400 | Φ400×4600 | ≤30 | ≤12 | 20 | 5.5 | 1.9 |
2RXL540 | Φ540×4600 | ≤30 | ≤12 | 25 | 7.5 | 3.9 |
2RXL750 | Φ750×7600 | ≤70 | ≤12 | 50 | 40 | 17.2 |
2RXL800 | Φ800×7600 | ≤70 | ≤12 | 70 | 45 | 18.9 |
2RXL914 | Φ914×7600 | ≤70 | ≤12 | 100 | 55 | 23 |

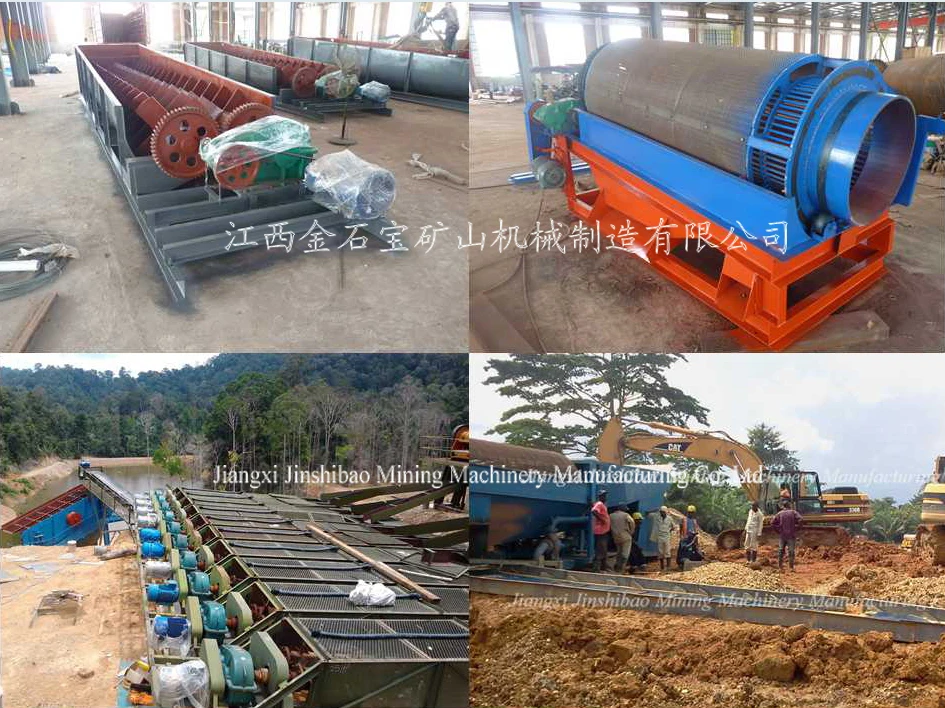

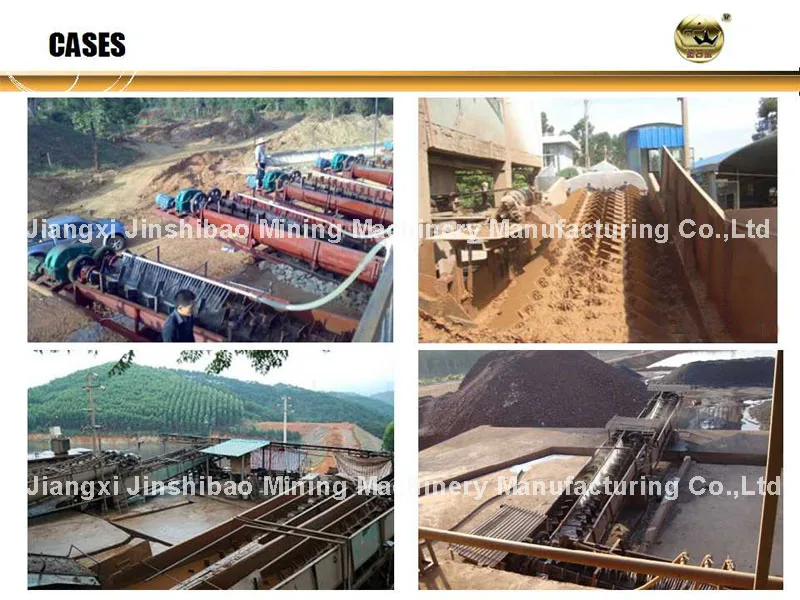

V. Engineer Cases of Gravel Washing Machine
1
Our Gravel Washing Machine is widely applied in kinds of mining site of domestic and overseas. We have several customers from Malaysia who apply the log washer for iron ore washing.
Packing of Gravel Washing Machine:
FCL: Gravel Washing Machine is fixed in the container directly, the spare parts will be packed in wooden box.
LCL: Gravel Washing Machine is packed in steel frame inside, outside is plywood box.
1
Shipping of Gravel Washing Machine:
Sea freight: MSK/MSC/APL/EMC/WANHAI/KLINE
-
