Large capacity professional new sand washing machine

Product details
color:custom madestock available:Yes
Warranty:1 yearScreen material:Polyurethane screen
brand:LZZGApplicable industries:Manufacturing, Construction, Energy & Mining
Spare parts supply:YesSupply capacity:5 sets per week
place of origin; place of origin:Henan, Chinaweight:1.5kg
Health status:newPackaging Details:standard packaging
Showroom location:not anyName:washing machine manufacturer
Dimensions (L*W*H):to seepayment terms:L/C,Western Union,T/T
Capacity (tons/hour):10-400 tons/hourMaterial:≤10mm
usage:washing, dehydration, recyclingapplication:Quarry/Mining/Construction etc.
screen size:1800*4500mmCyclone size:350mm*2
Core Components Warranty:1 yearMotor Type:AC motor
Mechanical test report:Not availableVideo external inspection:if
Marketing Type:normal productCore components:motor
port:Shanghai, Qingdao
Product Description

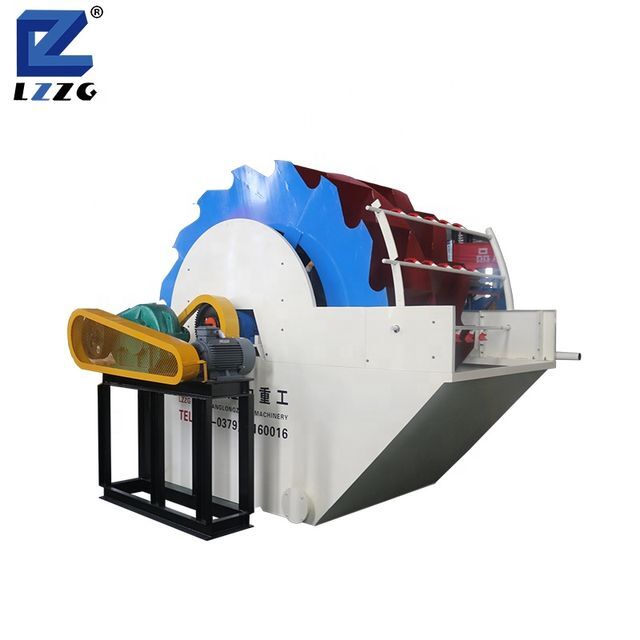

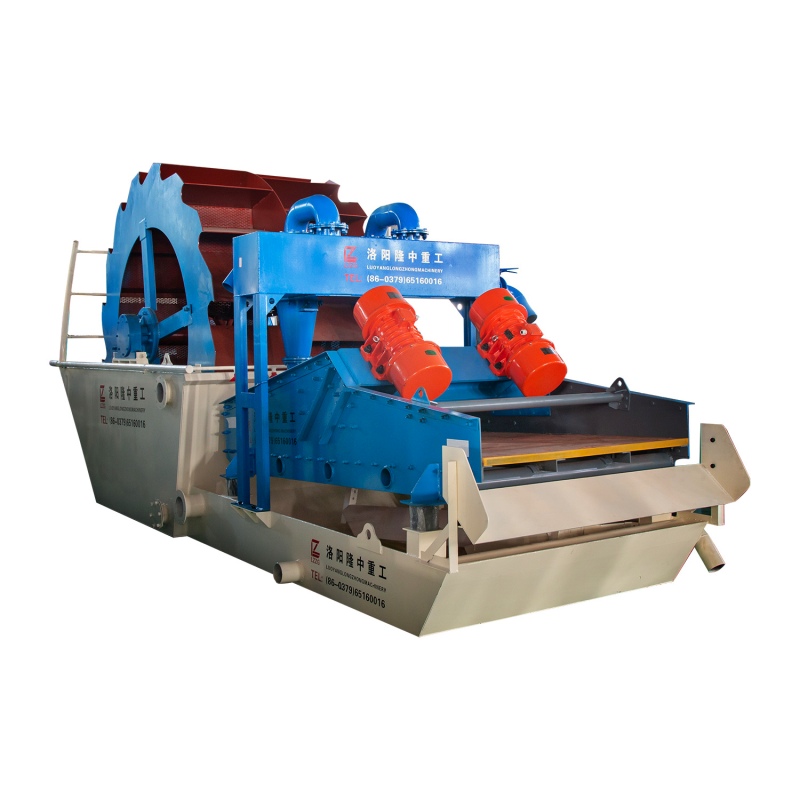

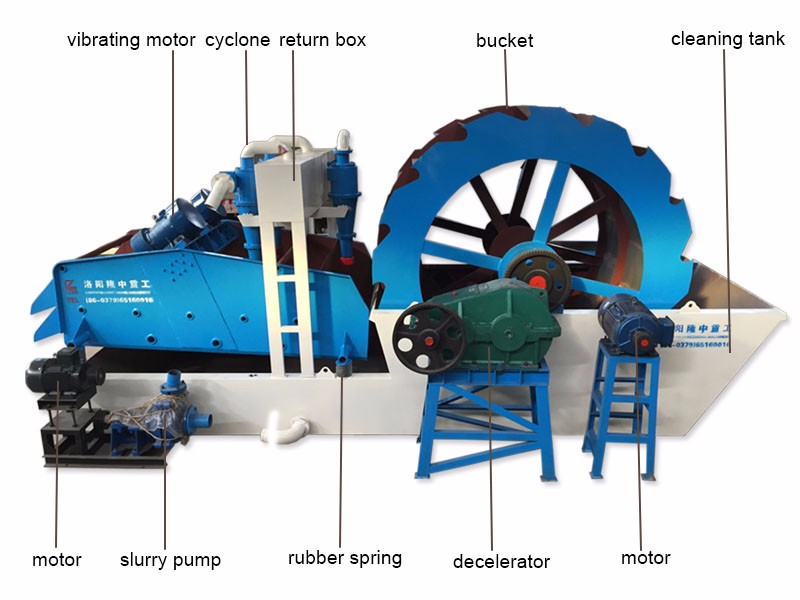

Large capacity professional ore washing and sand washing machine

Applications

Sand washing machine is based on the main technology of sand washing machine and sand recovery system, we make it a compact multifunctional sand washing machine. Widely used for washing, screening, recycling and dehydration of crushed sand, river sand, lake sand or sea sand.


working principle

Step 1: Wash
The motor runs slowly with the impeller after being decelerated by the belt, reducer and gear. The sand and gravel flow into the washing tank from the feeding tank, roll with the impeller, and grind each other. The impurities covering the sand are being washed away. Add more water at the same time, the strong water flow will take away the garbage and some lightweight garbage in the laundry tank. Through the above process, the washing function is completed. Clean sand is lifted by leaves. As it slowly rises, water starts dripping from the mesh and back into the laundry tub.

Step 2: Dehydration
Qualified sand is directly shoveled onto the dewatering screen. The dewatering screen is made of PU polyurethane material, which is non-clogging, high temperature resistance, high corrosion resistance and longer service life. From this step, the moisture of wet sand can be greatly reduced.

Step3: Fine powder recovery
The waste sand water is pumped into the high-pressure sedimentation separator by the mud pump, and the 0.16-3mm fine sand is sprayed onto the polyurethane screen for dehydration, and the waste water is returned to the return tank to flow out.

main feature

1. Recycling0.074-3mmfine sand;

2. High productivity and95%The fine particles in the material can be recycled;

3. Solve the problem of sedimentation tank cleaning and improve economic benefits at the same time.


Contact supplier for more details and latest prices

Product parameters
Model
Cyclone Specifications (mm)
Feed size (mm)
sand
Output (tons/hour)
strength
(kilowatt)
weight
(Kilogram)
Dimensions (mm)
LZ26-35-1224
FX350
≤10
50-80
28.4
4935
5800*5200*2750
LZ30-55-1530
FX250*2
≤10
80-100
39
7328
6700*5560*3100
LZ30-65-1530J
FX300*2
≤10
80-120
47
7500
6700*5560*3600
LZ30-75-1836
FX350*2
≤10
100-140
63
9761
7331*5560*3370
LZ30-120-1842
FX300*4
≤10
100-140
82
10565
7950*5560*3370
LZ30-75-1836D
FX350*2
≤10
100-140
59
9669
7420*5560*3670
LZ36-100-1842D
FX250*4
≤10
100-140
70
14040
8590*5560*4100
LZ36-100-1836J
FX250*4
≤10
120-160
74
13634
8120*5560*4100
LZ36-120-2448J
FX300*4
≤10
150-200
97
15480
9280*6450*4100
detailed image




Mechanical Parts

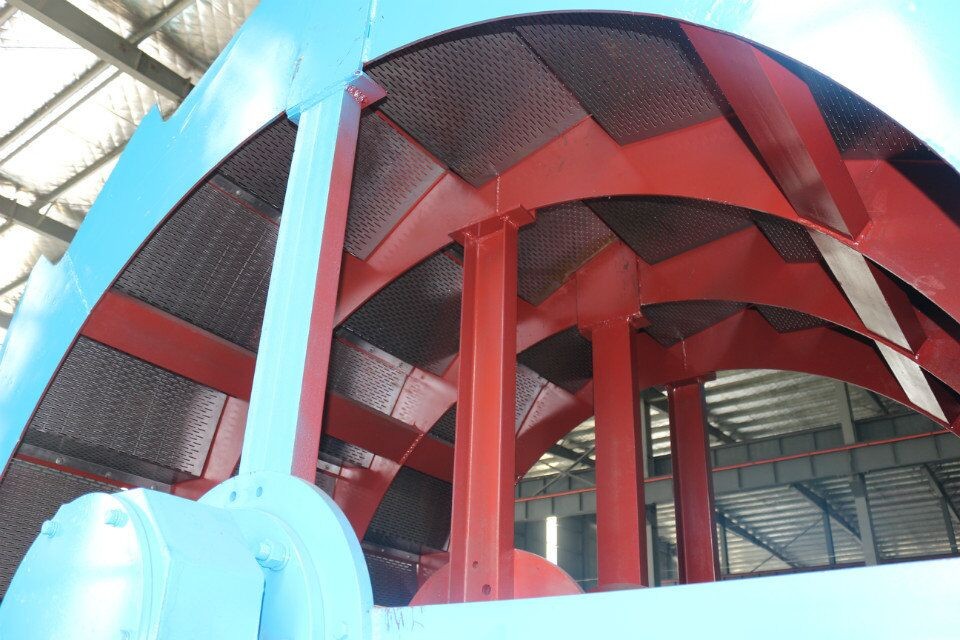

bucket wheel

The screen is made of thick steel plate andThe mesh is perforated.





Mechanical Parts

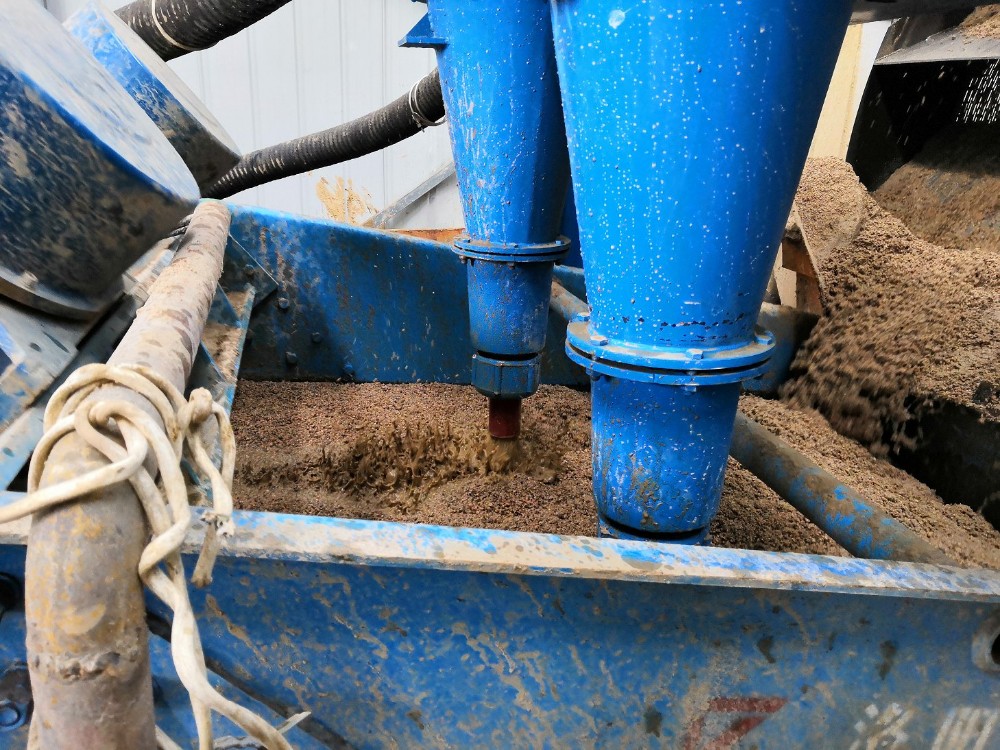

cyclone

Polyurethane lining for recycling of fines from 0.074-3 mm.





Mechanical Parts

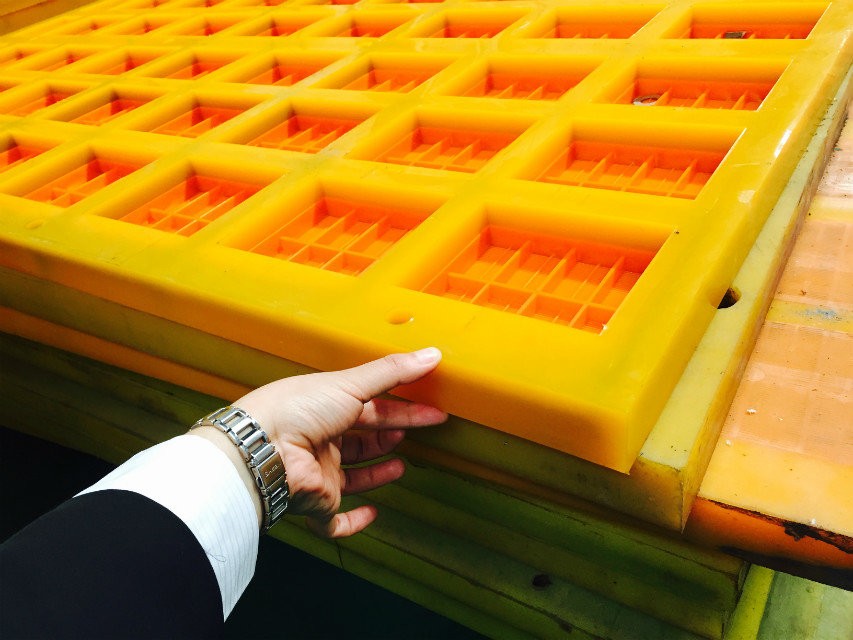

Polyurethane screen

Thickness 40mm, fixed with boltsWork more than 18 months.





Mechanical Parts

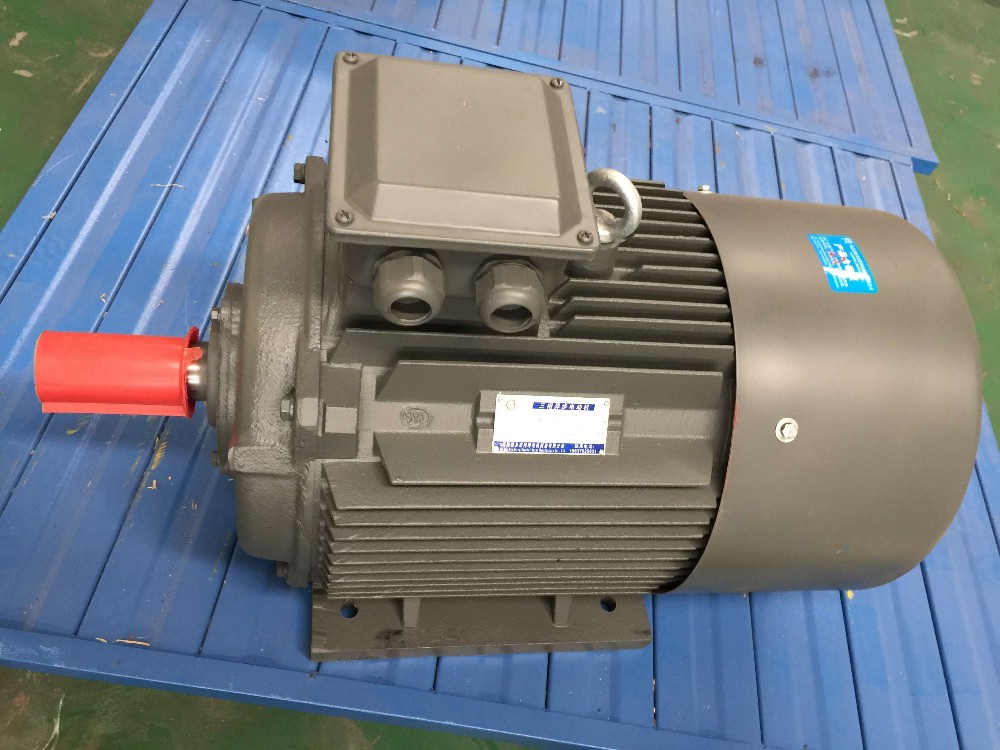

motor

Three-phase asynchronous motor

With the advantages of overload capacity and high mechanical strength, it is suitable for short-term or intermittent cycle work, frequent starting, braking and obvious vibration and shock.





Mechanical Parts

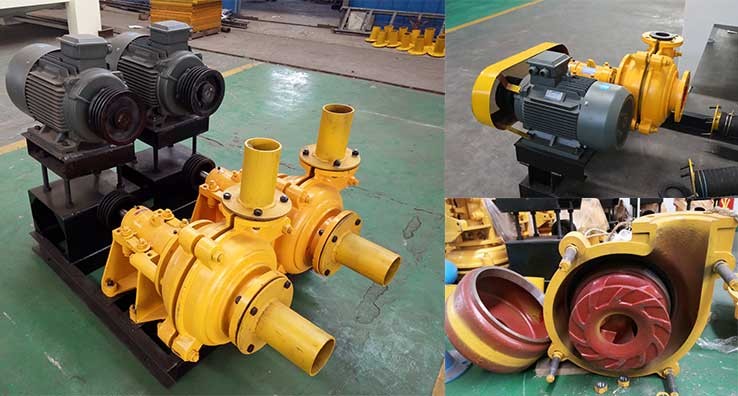

mud pump
Wear-resistant metal linings, impellers, jackets, plates and other overcurrent components.

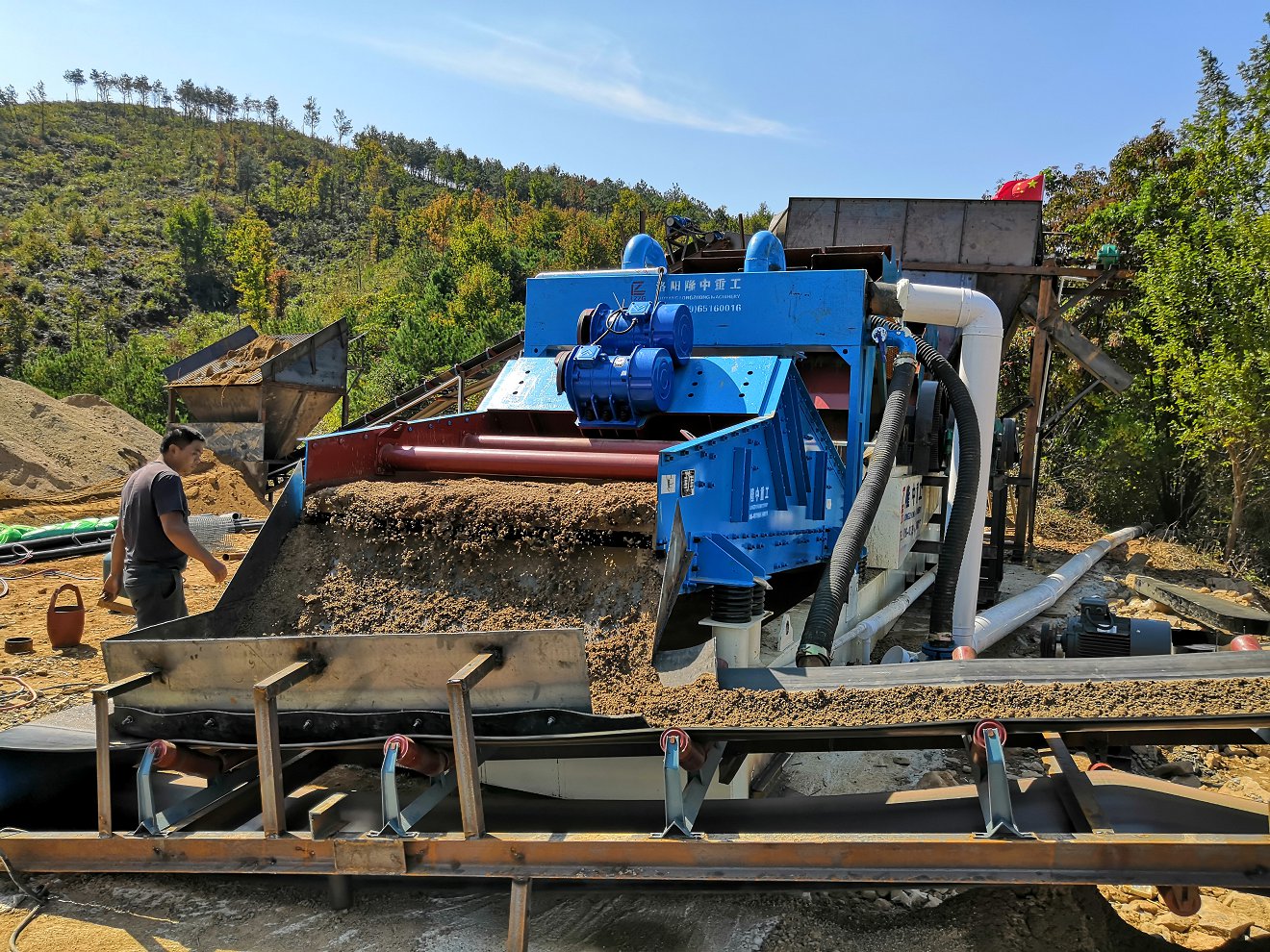

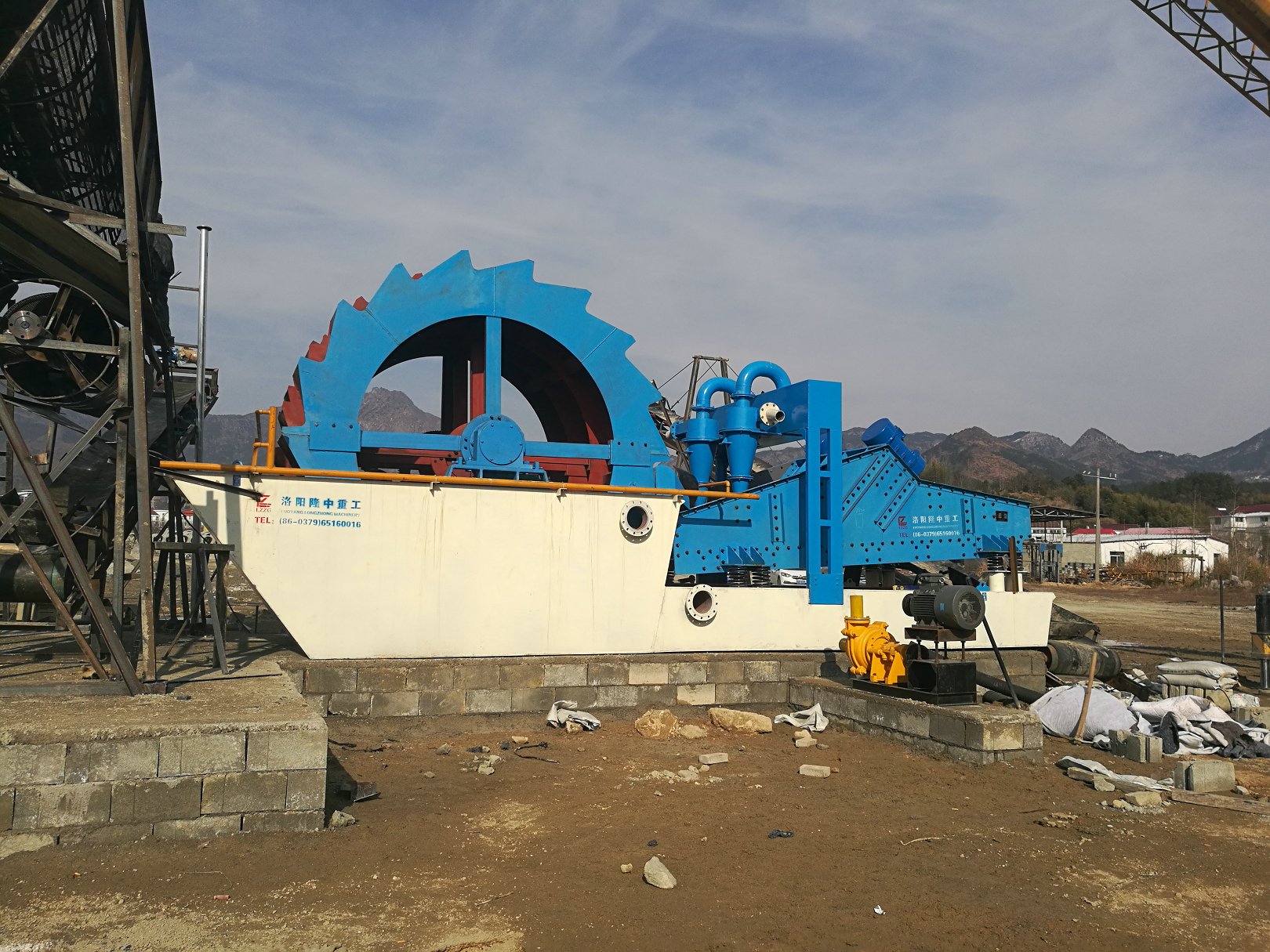

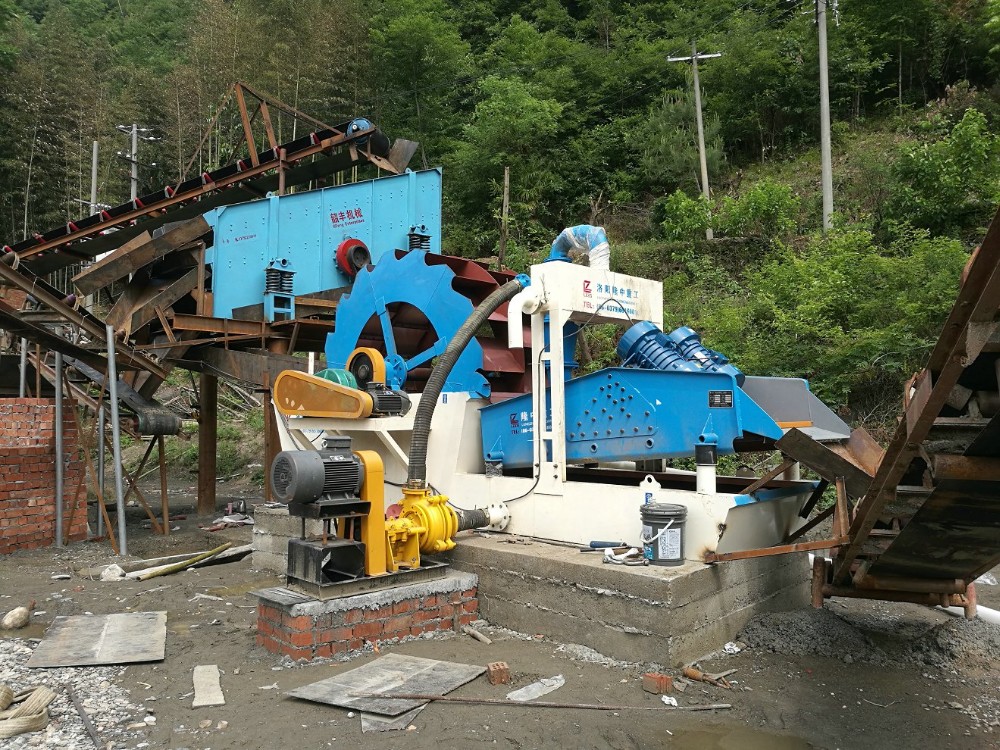

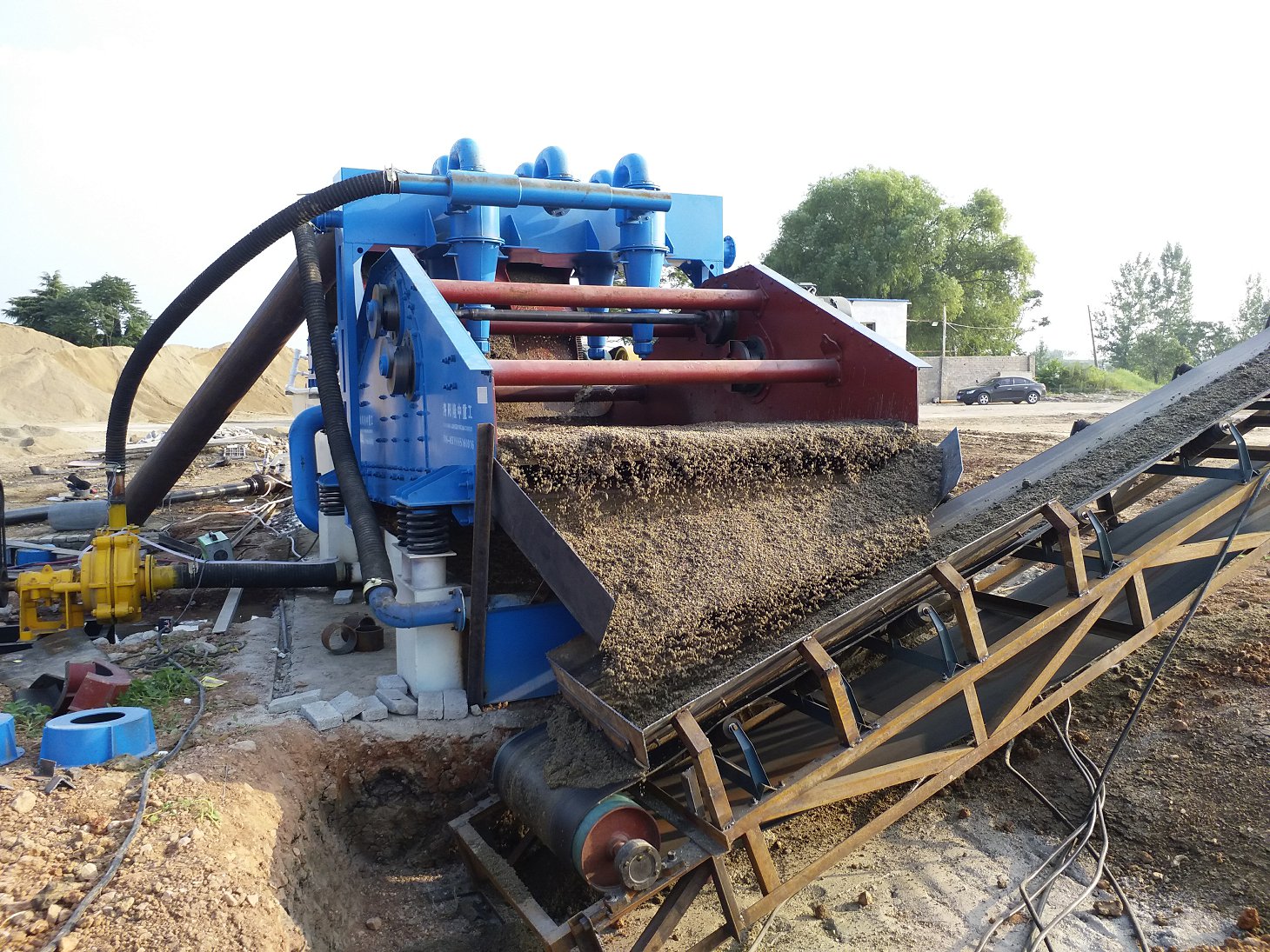

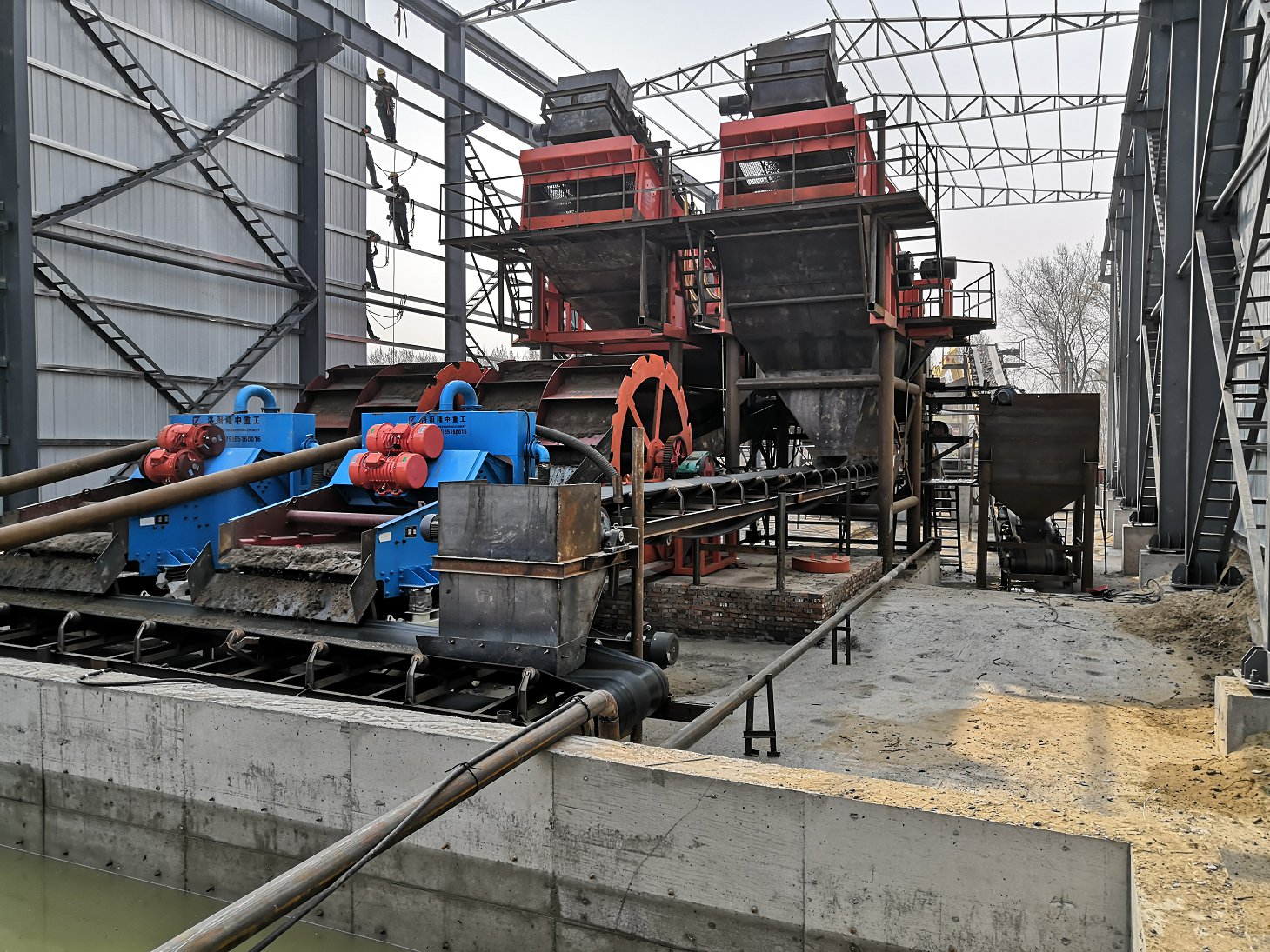

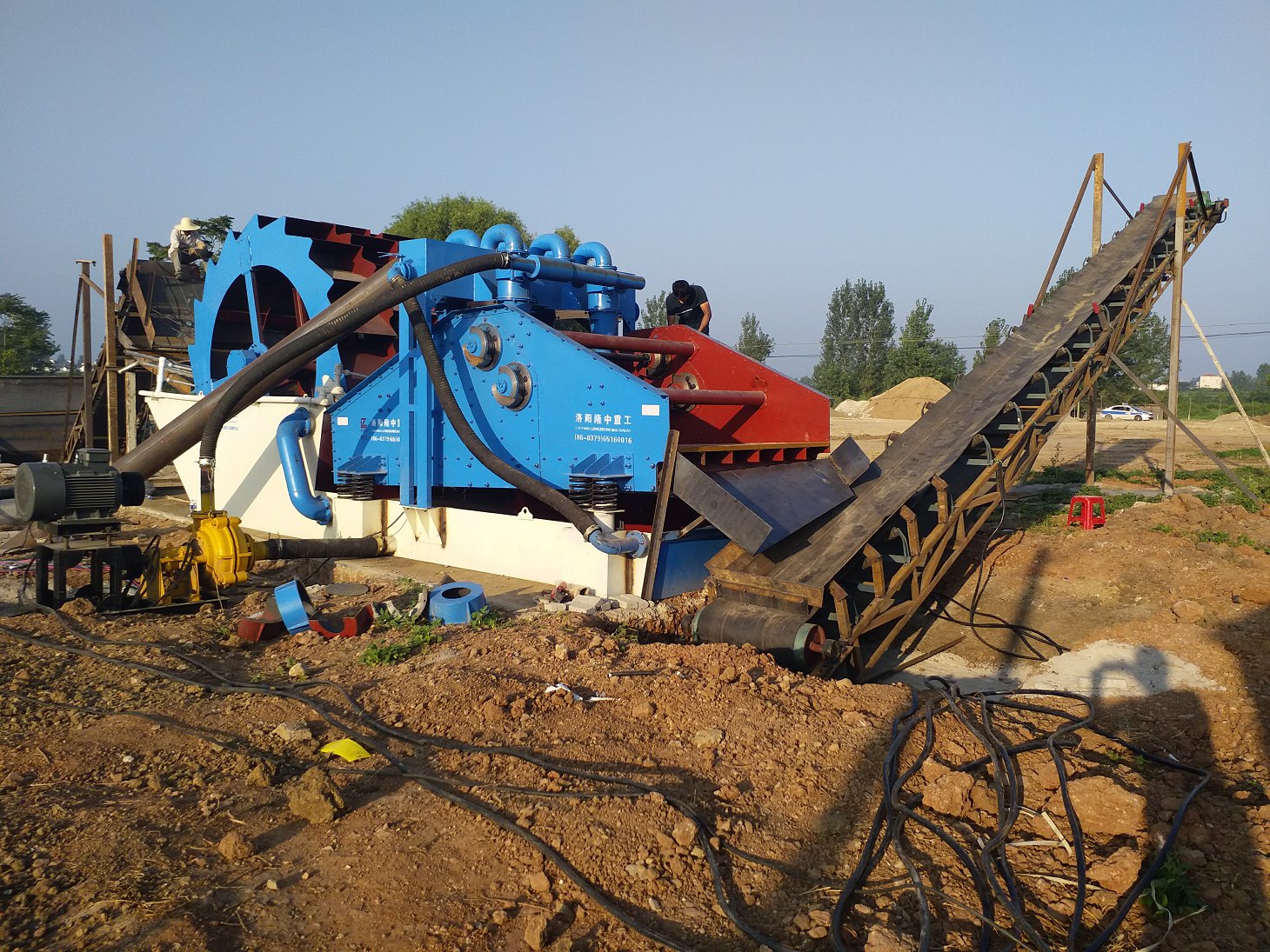

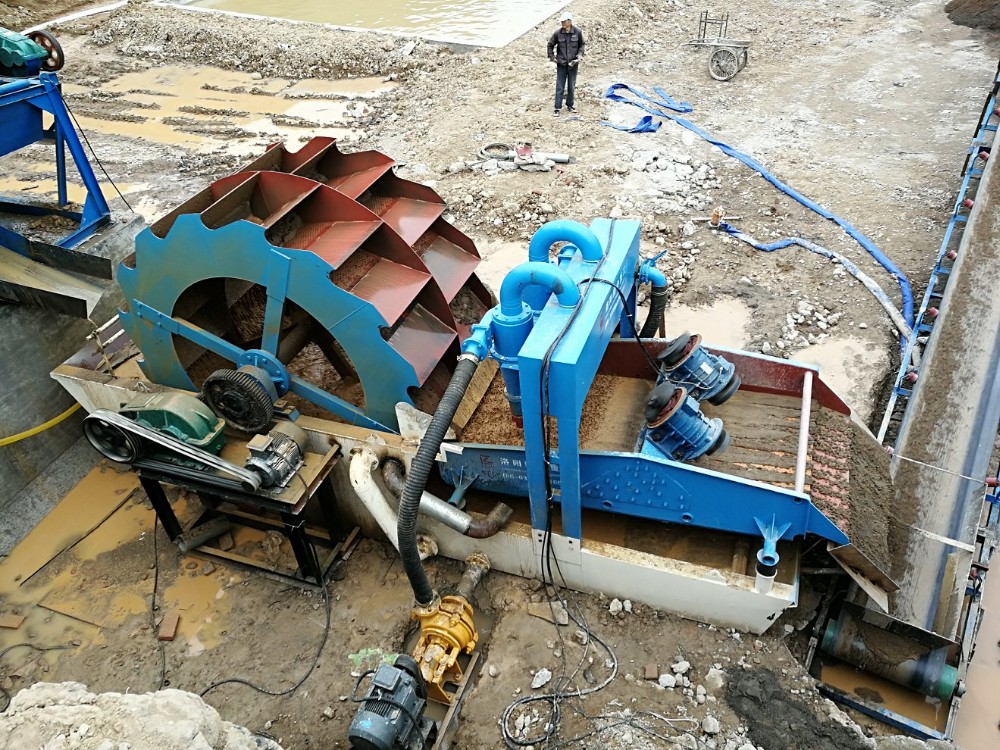

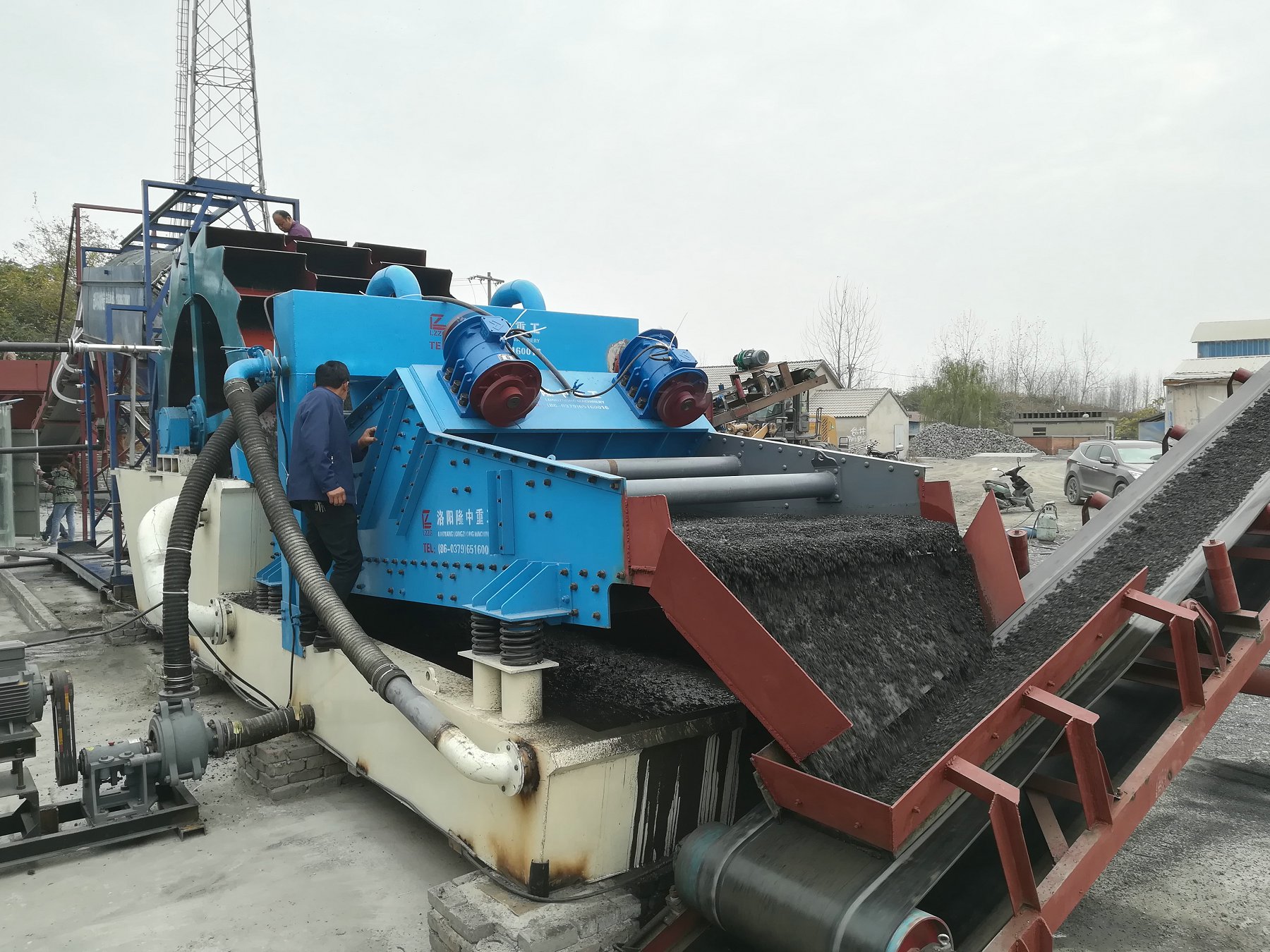

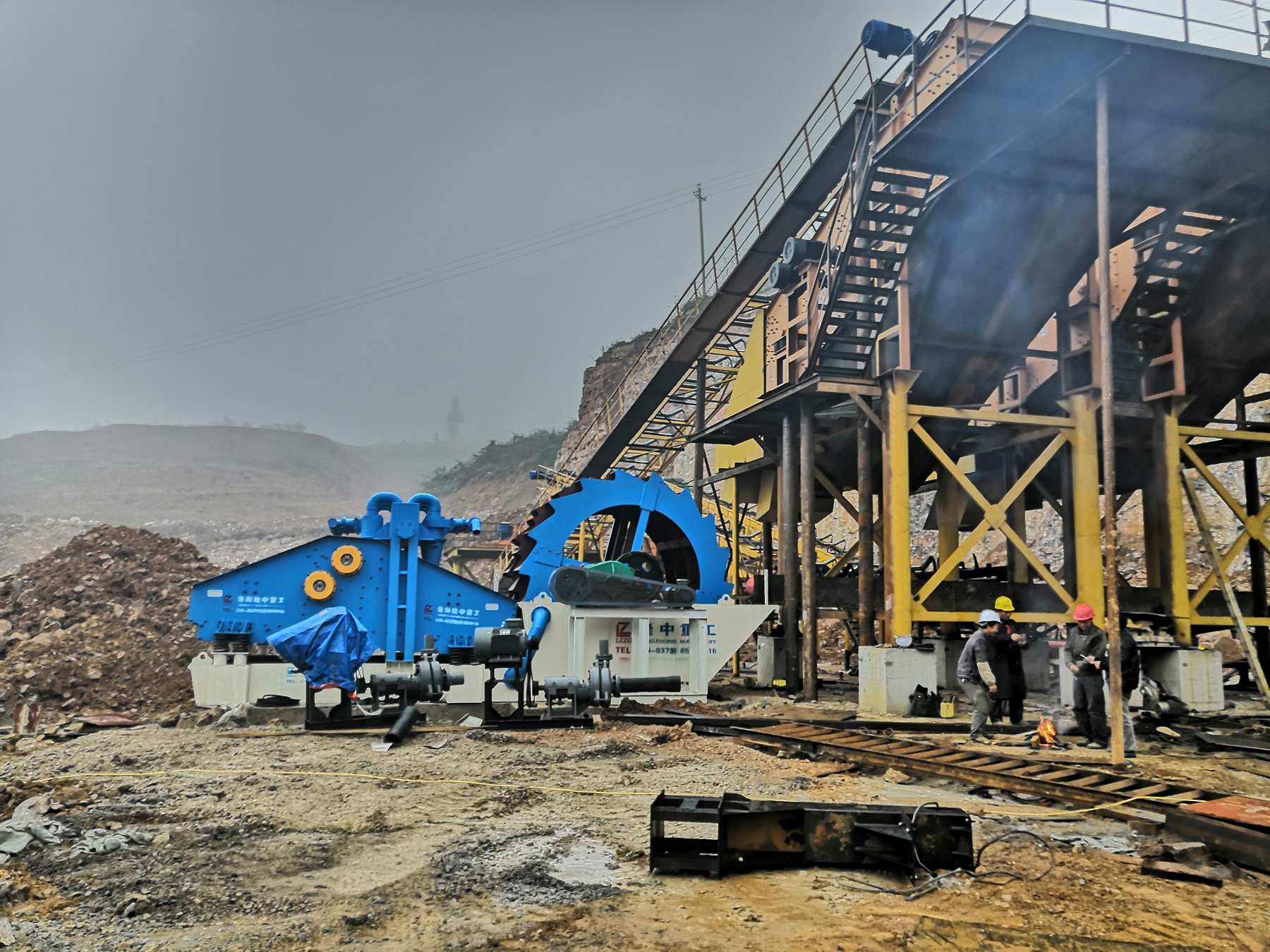

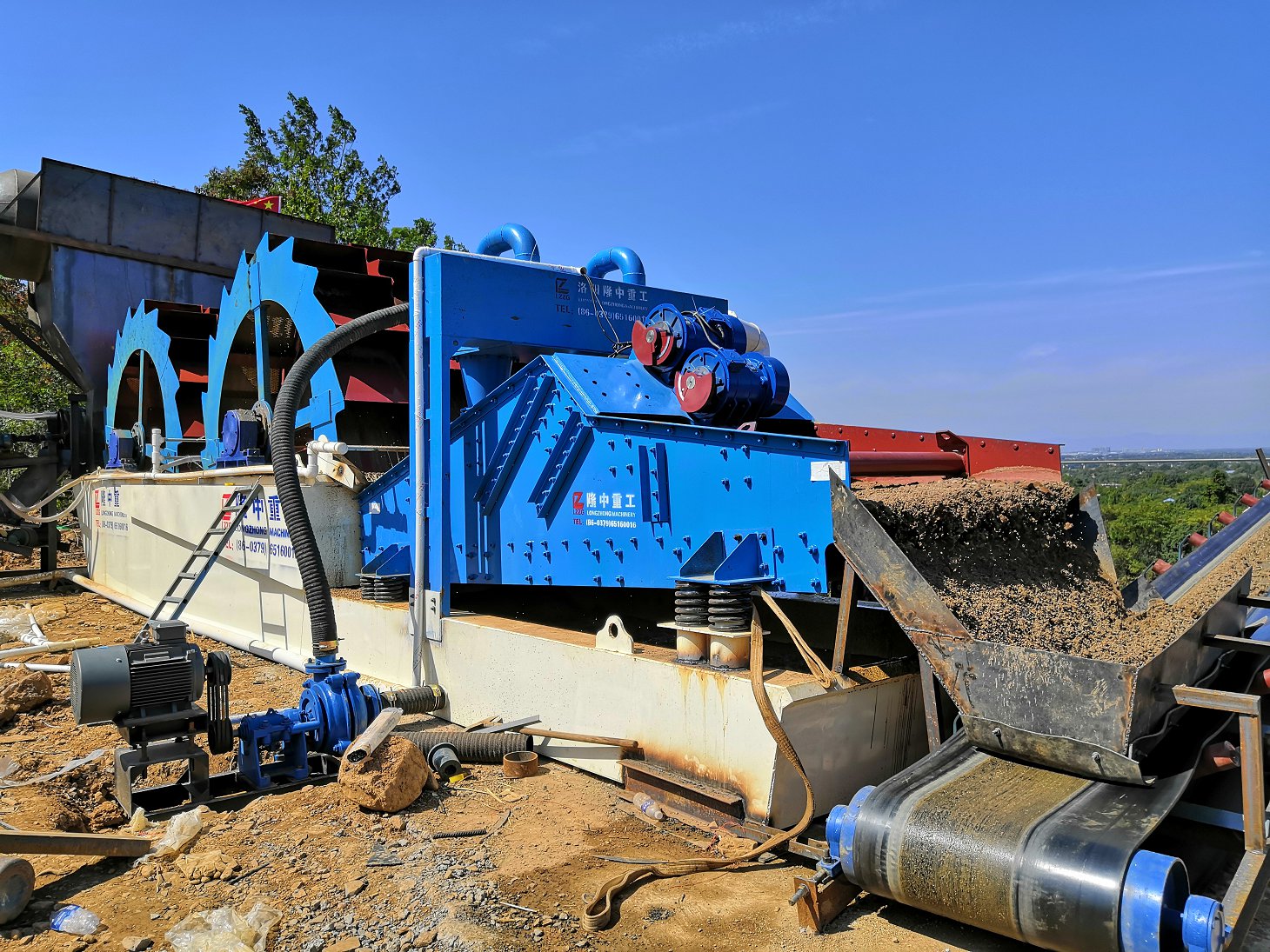

work site

Contact supplier for more details and latest prices


Final product
