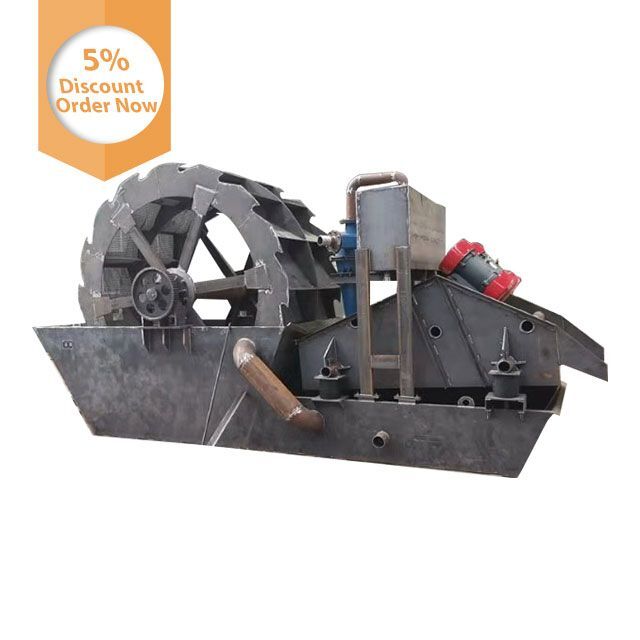

Fine sand collection equipment sand recovery machine with wheeled sand washing machine
- 12000.00 1 - 9 sets
- 7500.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Health status: | new | Marketing Type: | New Products 2020 |
| Showroom location: | not any | Advantage: | High cleaning rate |
| Machine classification: | Mine washing machinery | Core components: | motor |
| Dimensions (L*W*H): | rely | Warranty: | 1 year |
| Spare parts supply: | if | Spare parts supply: | Lifetime offer |
| Install: | under technical guidance | brand: | Commodity Futures Trading Commission |
| Capacity (tons/hour): | 20-50 tons/hour | weight: | 8000kg |
| Core Components Warranty: | 1 year | Video external inspection: | if |
| Maximum feed size: | 10 mm | application: | put up |
| Packaging Details: | Standard packaging for fine sand recycling machine. | Supply capacity: | Monthly output of 200 fine sand recycling machines |
| Motor Type: | AC motor | Mechanical test report: | if |
| color: | As required | Applicable industries: | Construction Engineering, Energy and Mining |
| Model: | SWR26-35 | port: | Qingdao Port, Shanghai Port, Guangzhou Port, Urumqi, Dali |
| place of origin; place of origin: | Henan, China | payment terms: | letter of credit, wire transfer |
| product name: | Fine sand recycling machine |
Product Description

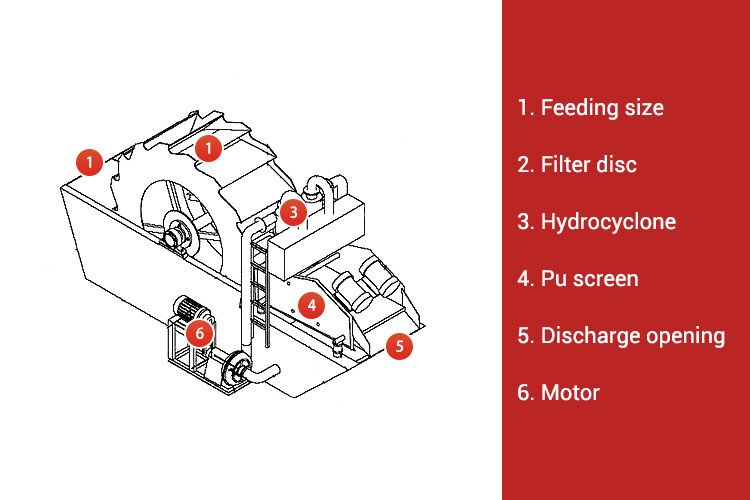

Sand washing and recycling machineIt is based on the design of sand washing machine and sand recovery system, and adopts foreign advanced technology. The main components of the machine include: XSD wheel sand washing machine, high-frequency dewatering screen, high-pressure cyclone, cleaning tank, return box, high-pressure wear-resistant slurry pump, motor, etc. The machine has simple structure and complete functions, and is widely used for washing, screening, recycling and dehydration of crushed sand, river sand, lake sand or sea sand.

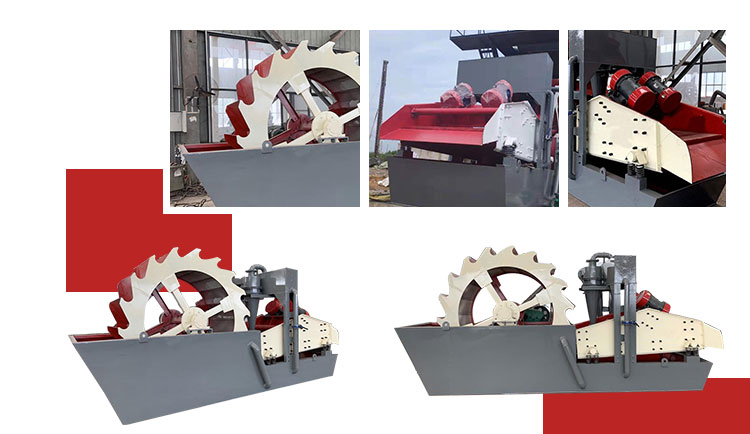

detailed picture
Specification
Model | Cyclone(mm) | Feed size (mm) | sand making (tons/hour) | strength (kilowatt) | water (m3/hour) | weight (t) | Dimensions (mm) |
SWR26-35 | 350 | ≤10 | 20-50 | 28.4 | 80-130 | 4.5 | 5800x1900x2750 |
SWR26-50 | 500 | ≤10 | 30-60 | 31.9 | 90-140 | 5 | 5800x1900x2750 |
SWR30-50 | 500 | ≤10 | 50-120 | 39 | 90-140 | 7.9 | 6700x2500x3100 |
SWR30-60 | 600 | ≤10 | 120-150 | 47 | 100-170 | 8 | 6700x2500x3100 |
SWR36-70 | 700 | ≤10 | 120-150 | 60 | 160-260 | 12.5 | 8900x2830x3700 |
SWR36-120 | 1200 | ≤10 | 120-150 | 86 | 200-340 | 13.5 | 6700x2500x3100 |
NOTE: Capacity may vary with different materials and feed sizes.
