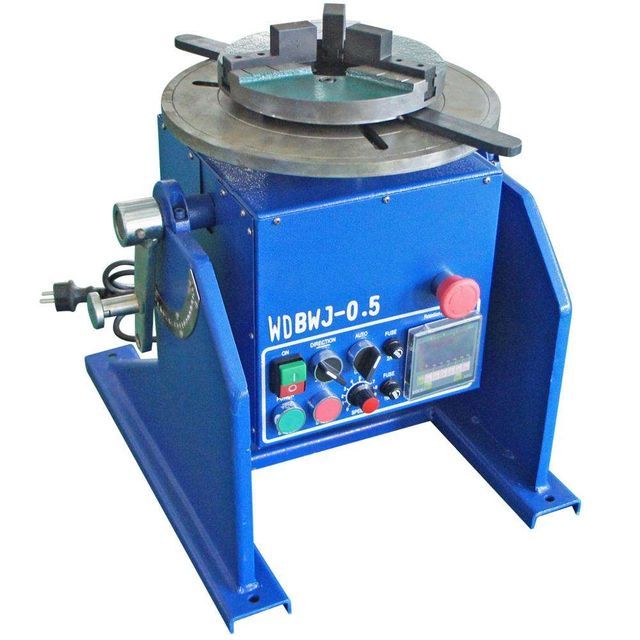

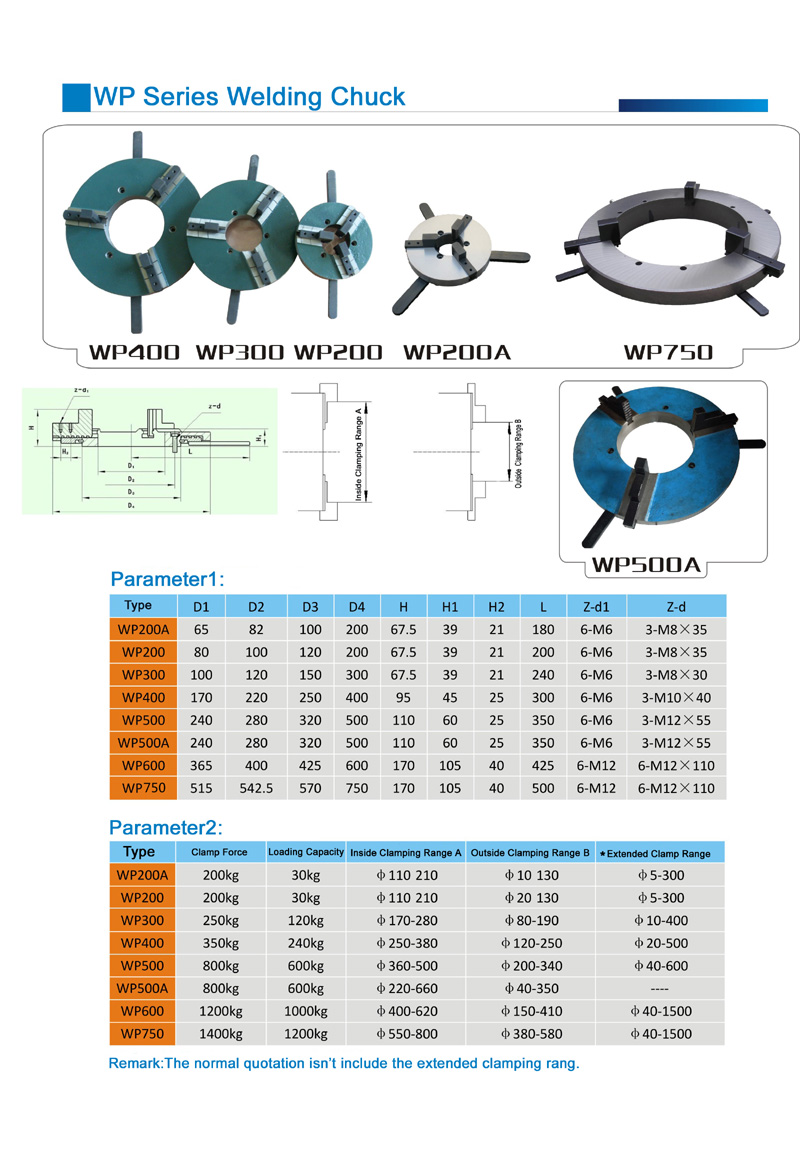

Small welding positioner/electric rotary table for MIG/50KG welding table with WP200 manual chuck/rotator wdbwj-0.5

Supplier: Fujian Yuhui Machinery Co., Ltd.
Region: Fujian, China
Contact: Ms Jenny Ouyang
Price: $628.00 /set
Min. Order: 1 set

Click here to contact

Product details

aspect:	490x440x460mm	port:	Xiamen
Video outbound inspection:	if	Origin:	Fujian Province, China
Warranty:	1 year	type:	Welding positioner
After Warranty Service:	Video technical support	Applicable industries:	hotel
Marketing Type:	normal product	Core component warranty:	1 year
Core components:	A printed circuit board	Health status:	new
usage:	Welding with TIG/MIG/MAG	Mechanical test report:	if
Supply capacity:	100 sets per month	Showroom location:	not any
payment terms:	Western Union, T/T	Main selling points:	easy to operate
Package preview:		Packaging Details:	wooden box
Weight (kg):	43 kg

Welding positioner (welding turntable) machine is a kind of automatic positioner. It is suitable for MIG/MAG, CO2 and TIG welding sources, constituting a set of dedicated circular seam automatic welding system. The system is suitable for girth welding fittings
Automobiles, motorcycles, also suitable for the manufacture of required metal parts
Lots of circumferential welding.

♣Main ability features:
1. The spindle box can be rotated 90°, and the spindle can be rotated in any direction
to accommodate different angles.
2. DC motor drive, good performance, wide range of speed regulation, wide application range
artifacts.
3. Equipped with foot switch, easy to operate.
4. One-button operation, just press the welding button after debugging
It will be welded automatically.
5. With emergency stop function, emergency stop in case of special circumstances
in the welding process.
6. With welding speed display function, it can display the current running speed.

♣WDBWJ-0.5 technical data:

Model	WDBWJ-0.5
Input voltage	AC 220V
frequency	50/60 Hz
Turntable diameter(mm)	Φ300
Rotating speed	1.0-12 rpm
Horizontal carrying capacity	50 kg
vertical load capacity	25 kg
Dimensions (mm) (length × width × height)	490×440×560
net weight	43 kg
gross weight	63 kg
