rotary welding table 10 kg rotary welding positioner with 65 mm chuck and foot pedal

Supplier: Jinan Handa Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Hedi guo
Price: $186.00 / 4 - 8 pieces
$170.00 / >=9 pieces
Min. Order: 4 pieces

Click here to contact

Product details

Mechanical test report:	if	Origin:	Shandong Province, China
Weight (kg):	10 kg	Core component warranty:	1 year
type:	Welding positioner	Input voltage:	1PH 220 50~60Hz
Core components:	engine	aspect:	320270230(mm)
Main selling points:	easy to operate	product name:	Welding positioner
usage:	welding equipment	Supply capacity:	10000 pieces per week
Health status:	new	model:	HD-10
Video outbound inspection:	if	port:	Tianjin/Qingdao/Shanghai
Marketing Type:	Hot Products of 2021	Vertical load:	5 kg
payment terms:	letter of credit	Showroom location:	not any
Tilt (degrees):	0°-90°/Manual	Warranty:	1 year
Working height:	232mm	Applicable industries:	Clothing store, building material store, machinery repair shop, manufacturing plant, farm, retail
Table diameter:	180mm	Motor Power:	20 watts
spinning speed:	2-16 rpm	Horizontal load:	10 kg
brand:	Handa

Welding turntable 10kg rotary welding positioner with chuck 65mm and foot pedal

product description

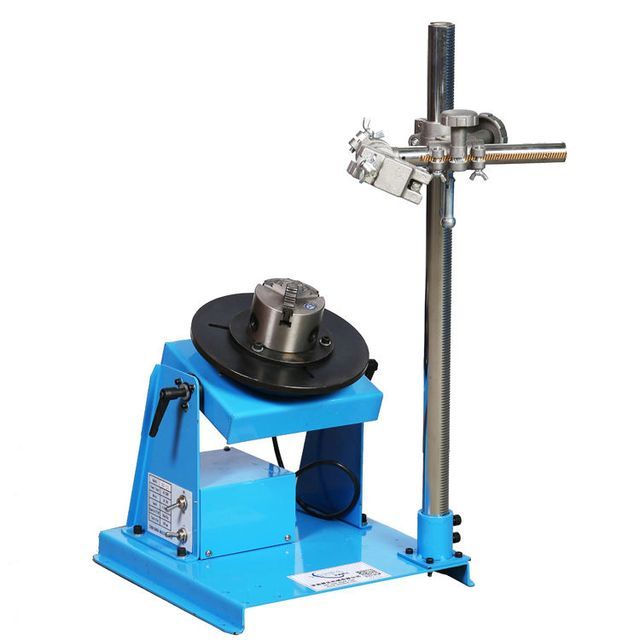

HD-10 welding positioner

The welding positioner is a professional equipment for welding. Mainly used to rotate the workpiece and keep it in a horizontal or boat position for further welding. It is possible to place a chuck on its workbench or install a clamping tool on this positioner for manual welding work. The welding positioner can also be connected with an automatic welding machine to ensure the automation of the welding process.

For circular welding, girth welding, cutting, polishing and workpiece assembly operations;
It can be equipped with a welding chuck and a welding torch adjustment mechanism to fix the position of the welding torch, and can be equipped with a pneumatic tail top;
Adopt DC stepless speed regulation;

Product parameters

Model	HD-10
horizontal load	10 kg
vertical load	5 kg
spinning speed	2-16 rpm
Tilt (degrees)	0°-90°/Manual
table diameter	180mm
working height	232mm
Motor Power	20 watts
weight	10 kg
adapter chuck	KC-65/KC-80
Input voltage	1PH 220 50~60Hz

detailed picture

Our advantage

1. Factory direct supply

A professional manufacturer with more than ten years of design and manufacturing experience, the product quality is reliable.
2. Advanced technology
CAD/CAM aided design and manufacture, reliable mechanical design and diversified electrical control.
3. Fast delivery
Large inventory, complete equipment and sufficient accessories can meet urgent bulk purchases.
4. Expert after-sales service
Provide 7x24 hours of professional after-sales service, and professional technicians will reply to ensure the stable operation of the equipment.
