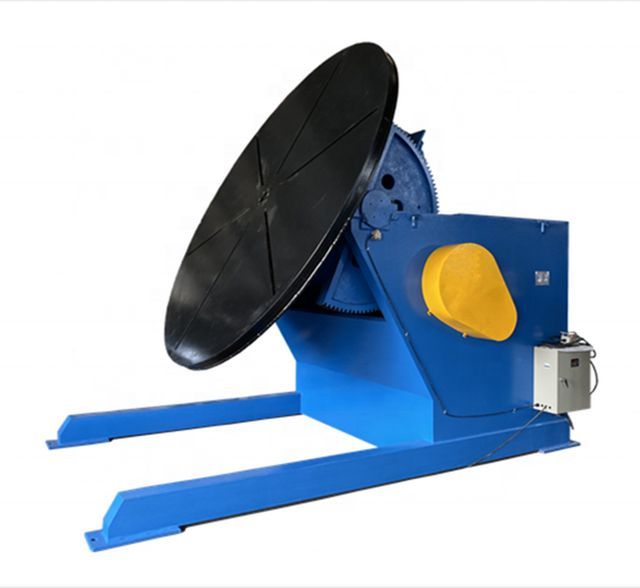

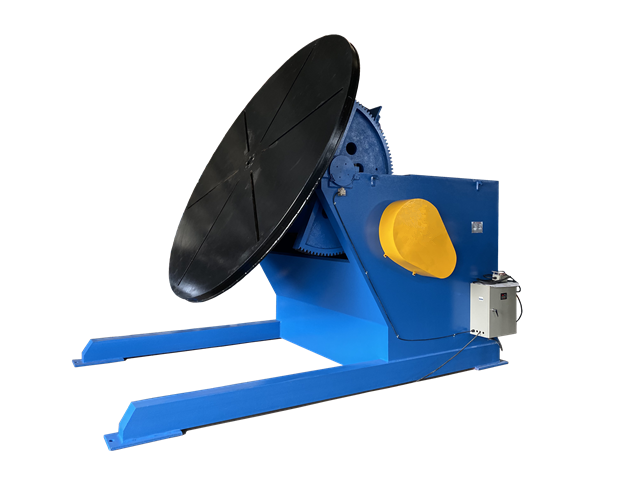

China Wuxi YC Automatic Welding Positioner with Automatic Rotary Welding Table

  • Supplier: YC Industry Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Ms Sherry Min
  • Price: $5000.00 / 1 - 1 sets
    $10000.00 / >=2 sets
  • Min. Order: 1 set
Click here to contact
Product details
Sales unit:single productproduct name:YC automatic welding positioner with workbench
Applicable industries:Clothing store, building material store, manufacturing plant, home furnishing, construction engineering, advertising companyLocal service locations:Egypt, Turkey, United Kingdom, Vietnam, Brazil, Mexico, South Korea, South Africa
Gross weight per piece:68.000 kgVideo outbound inspection:if
brand:YCtype:Welding positioner
Showroom location:not anySingle pack size:68X50X68 cm
Health status:newCertification:International Organization for Standardization
Origin:Jiangsu, ChinaWeight (kg):1000 kg
Main selling points:automaticWarranty:1 year
After-sales service provided:Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online supportaspect:custom made
Packaging Details:HS code: 84688000. A set of China Wuxi YC automatic welding positioner with high speed adjustment precision of the workbench, packed in non-log wooden boxes, cartons and soft plastic films.Marketing Type:2020 New Products
Core component warranty:1 yearPackage preview:
Mechanical test report:ifAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
usage:Auxiliary weldingCore components:engine
Product Description
The positioner is a special welding auxiliary equipment, which is suitable for the welding positioner with rotary work to obtain the ideal processing position and welding speed. It can be used in conjunction with manipulators and welding machines to form an automatic welding center, and it can also be used for workpiece displacement during manual operation. The rotation of the worktable adopts the stepless speed regulation of the frequency converter, and the speed regulation precision is high. The remote control box can realize the remote operation of the workbench, and can also be connected with the workbench control system. The operator and the welding machine realize linkage operation.

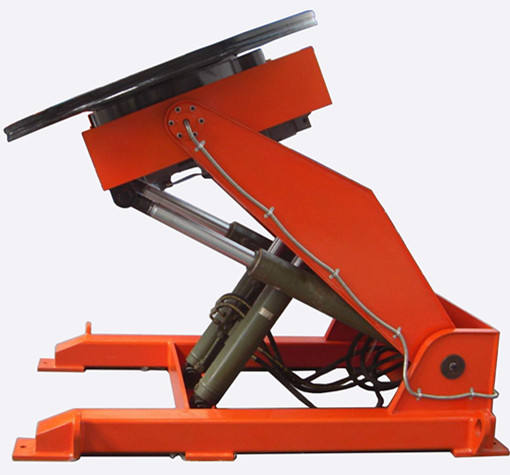

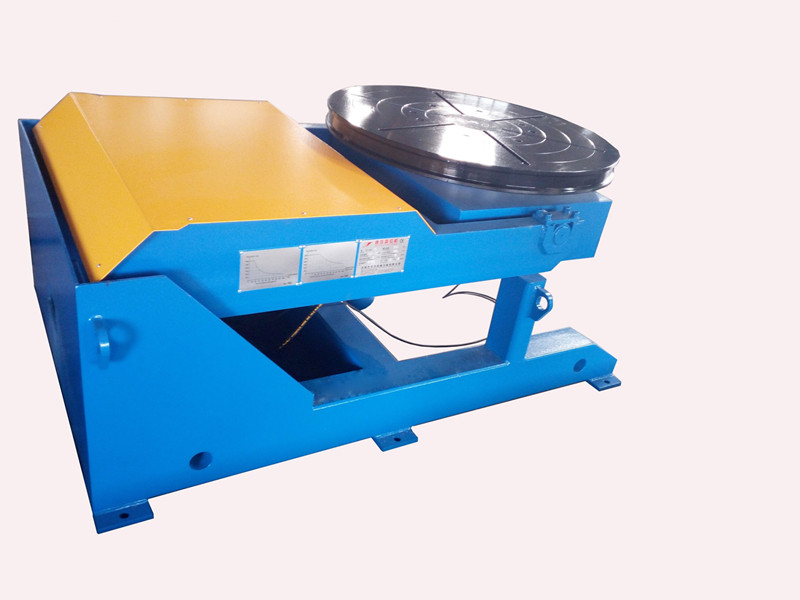

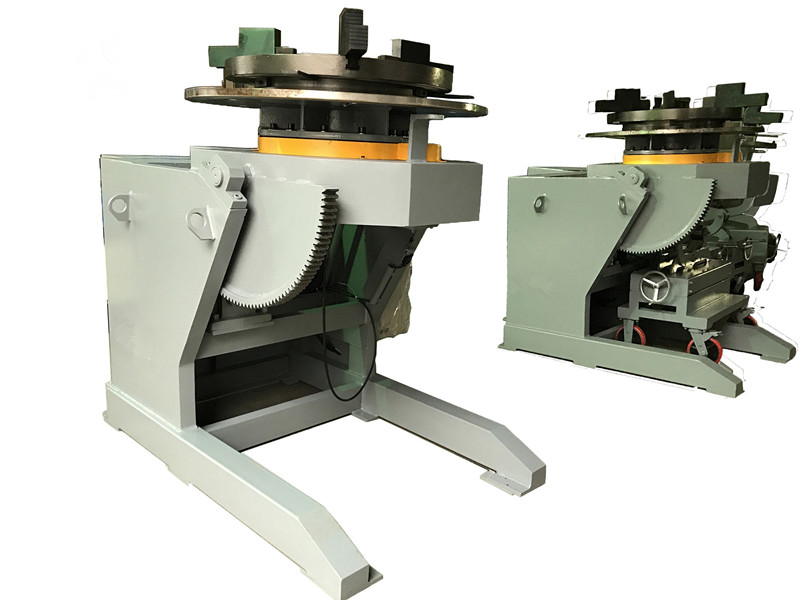

The welding positioner, also known as the turntable, is widely used to adjust the position of the workpiece to achieve the desired welding or assembly angle. Standard welding positioners do not meet all requirements. We can provide custom layouts based on your workpiece dimensions.
Specification
Model
specified load
(Kilogram)
spinning speed
(rev/min)

reverse speed
(rev/min)

reverse speed
(°)

working desk size
(mm)
turn around
(kilowatt)
to turn
(kilowatt)
Speed ​​mode
maximum rotation
the diameter is
vertical plane
ZHB-01
100
0.1-1
manual
0-120
￠400
0.18
/


Frequency conversion stepless speed regulation
￠600
ZHB-06
600
0.09-0.9
1.1
0-90
￠1000
0.75
0.75
￠1500
ZHB-30
3000
0.05-0.5
0.23
0-120
￠1400
1.5
1.5
￠2100
ZHB-100
10000
0.05-0.5
0.14
0-120
￠2000
3
5.5
￠3240
