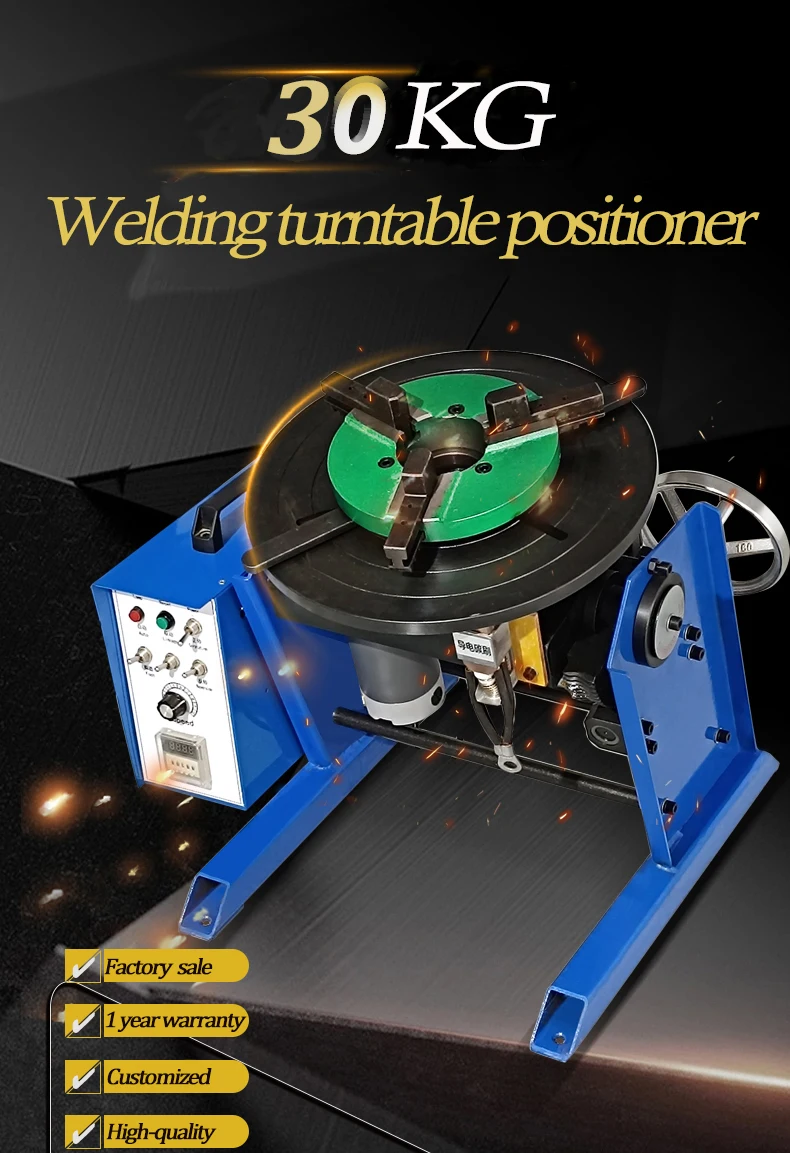

Pipe work piece rotating machine turntable 30kg mini welding positioner for sale
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
Product Description
application Welding positioner turntable,
This welding positioner is specially designed for circumferential welding, ring welding, cutting, polishing, assembly, etc. It is especially suitable for seam welding of flanges and steel pipes below 30KG. 30kg welding positioner for sale
Features of welding positioner:Easy to control
*Time and speed are controllable, time and speed are adjusted by the knob on the machine
*1-15r/min, driven by DC motor, can achieve stepless speed regulation.
*Use the foot pedal to control the table rotation.

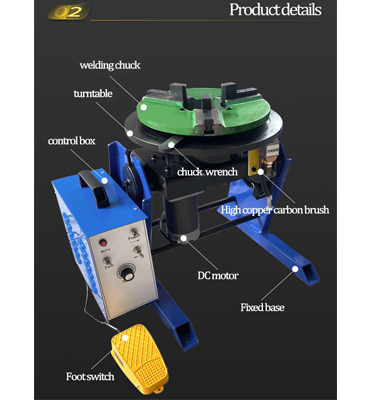

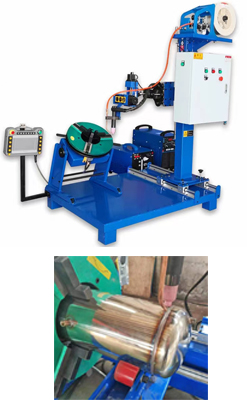

detailed image
size information
Three-jaw lathe chuck and welding workbench
*Chuck diameter: 200mm/300mm,
*Workbench diameter: 310mm,

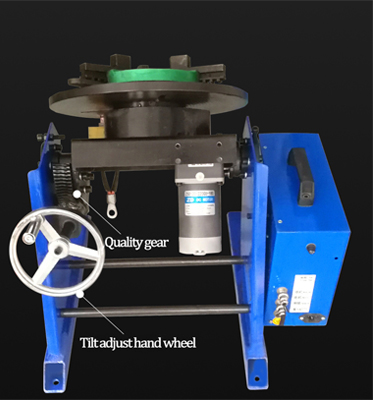

*Inclination angle: 0 degrees - 90 degrees, the worm gear rotating structure has a self-locking function.

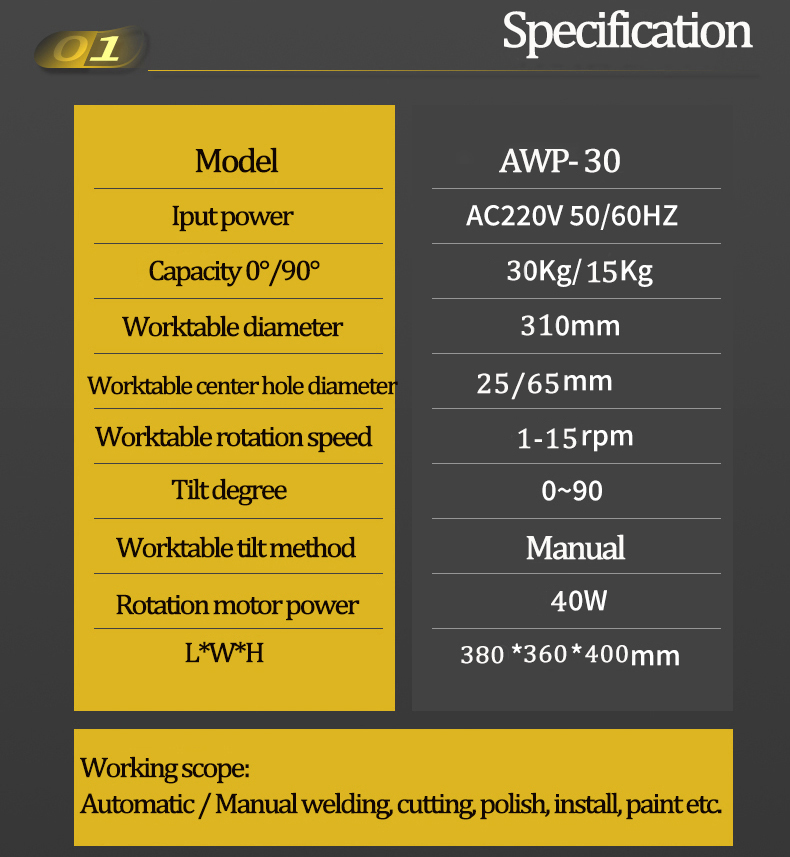

Model | loading horizontal/vertical | Speed (rev/min) | Motor power | Workbench through hole | size (centimeter) | weight |
AWP-30KG | 30kg/15kg | 1-15 | 40W | 25/65mm | 38*36*40 | 30kg |
AWP-50KG | 50kg/25kg | 1-15 | 120W | No | 38*36*40 | 35kg |
AWP-100KG | 100kg/50kg | 0.5-5 | 120W | 65MM | 50*41*45 | 75kg |
AWP-200KG | 200kg/100kg | 0.5-5 | 125W | 140/170MM | 53*49*50 | 80kg |
AWP-300KG | 300kg/150kg | 0.2-2.5 | 200W | 140/170MM | 65*56*60 | 120kg |
AWP-600KG | 600kg/300kg | 0.5-3 | 550W | 80/240/365MM | 83*58*69 | 260kg |
Manufacturing specifications
If you are interested, please contact us to inquire about the goods.
Dalian Across Machinery Co., Ltd.Ms.Belinda _ Manager E-MAIL: Belinda @ acrrosmachine.com MOB: +86-159-4081-4820 WHATSAPP:+86-159-4081-4820 WECHAT:+86-159-4081-4820
*Welding gas: The welding positioner supports CO2 welding, MIG, MAG, TIG welding, etc. The special anti-electromagnetic design reduces the high-frequency interference of TIG welding and effectively improves the welding quality.

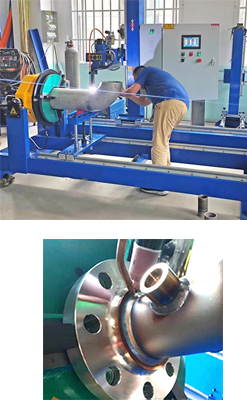

* Application This welding positioner is suitable for circular welding, ring welding, cutting, polishing, assembly, etc.
Especially suitable for seam welding of flanges, steel pipes, etc.
Especially suitable for seam welding of flanges, steel pipes, etc.
