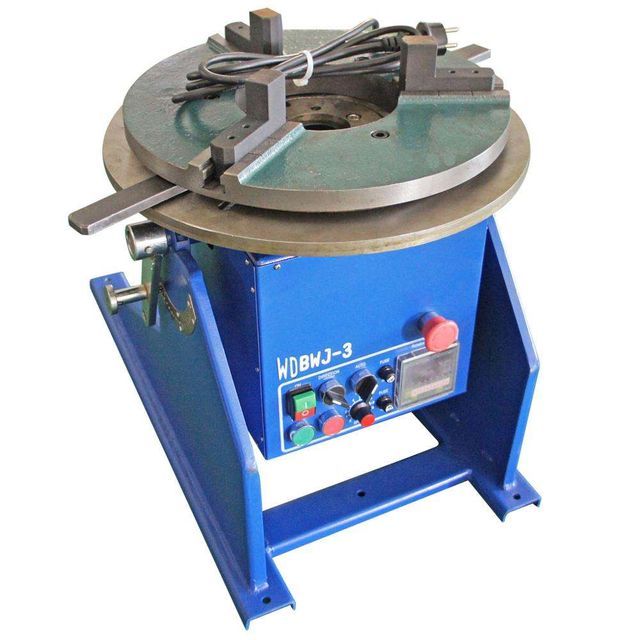

Welding turntable/rotary table/welding positioner can stop by itself Load capacity 300KG with 400mm welding chuck

  • 1048.00 set
Min. Order: 1 set FOB PRICE
Contact Supplier View Company
Registered Supplier Direct Contact Inquiry via Message
Product Details
type:Welding positionerMarketing Type:normal product
Weight (kg):84 kgMechanical test report:if
usage:Use MIG/MAG, TIG welding sources.Origin:Fujian Province, China
port:XiamenShowroom location:not any
Core component warranty:1 yearSupply capacity:100 sets per month
Warranty:1 yearaspect:720x480x530mm
Health status:newpayment terms:Western Union, T/T
Main selling points:easy to operateAfter Warranty Service:Video Technical Support
Applicable industries:hotel, weldingVideo outbound inspection:if
Package preview:Core components:A printed circuit board

1. Passed CE certification.
2. The horizontal weight is 300KG.
3. Soldering station manufacturer.

The welding table is a kind of automatic positioner. It is suitable for MIG/MAG, CO2 and TIG welding sources, constituting a set of dedicated circular seam automatic welding system. This system is suitable for the girth welding accessories of automobiles and motorcycles, as well as the manufacture of metal parts that require a large number of girth welding.



♣Technical data:



Model

 WDBWJ-3

Input voltage

AC 220V

frequency

50/60 Hz

Turntable diameter(mm)

Φ450

Rotating speed

0.2-2 rev/min

Horizontal carrying capacity

300 kg

vertical load capacity

150 kg

Dimensions(mm)(L×W×H)

720×480×530

net weight

84 kg

gross weight

113 kg



Color, brand, appearance or other parameters can be designed according to customer requirements according to customer order quantity.









Accessories:
