Welding Rotary Table/Welding Rotary Table/100KG WDBWJ-1 Welding Rotator with K11-200 Three-jaw Chuck Can Clamp 4-200mm Pipe

Product details
port:XiamenWarranty:1 year
Core component warranty:1 yearVideo shipment inspection:if
Showroom location:not anySupply capacity:100 sets per month
Weight (kg):75 kgAfter warranty service:online support
payment terms:Western Union, T/THealth status:new
Core components:Motor, gear, PCBtype:Welding positioner
usage:Works in MIG/MAG, CO2 and TIG welding sources,aspect:590x490x720mm
Origin:Fujian ChinaMarketing Type:normal product
Applicable industries:Hotels, building materials stores, machinery repair shops, construction projects, advertising agencies, weldingMechanical test report:if
Package preview:Main selling points:easy to operate

WDBWJ series welding wheel frame is an automatic positioner. It is suitable for MIG/MAG,
CO2 and TIG welding source, making a set of special circular automatic welding
system. This system is suitable for the girth welding of automobile and motorcycle parts, and also suitable for the production of metal parts that require a large number of girth welding.



♣ Main Features:

1. The headstock can be rotated 90°. Spindle can be rotated freely
to accommodate different angles.

2. DC motor drive, good performance, wide range of speed regulation, wide application range
artifacts.

3. Equipped with foot switch, easy to operate.

4. One-button operation, after debugging, just press the welding button, you can
It will be welded automatically.

5. With emergency stop function, emergency stop in special circumstances
in the welding process.

6. With welding speed display function, it can display the current running speed.



♣WDBWJ-1 technical data:



Model

WDBWJ-1 with K11-200 chuck

Input voltage

AC220V

frequency

50/60 Hz

Turntable diameter(mm)

Φ350

Rotating speed

0.2-2rpm

Horizontal carrying capacity

85 kg

vertical load capacity

42.5 kg

Clamping range

4-200mm

Dimensions (mm) (length × width × height)

540×440×575

net weight

61 kg

gross weight

80 kg

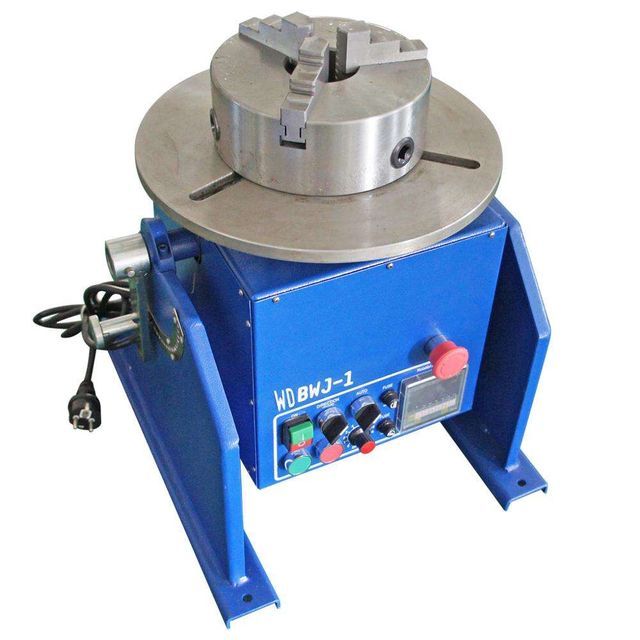

Product display:















Some OEM order photos:



Accessories:

CE certification:



 Our catalog of welding positioners:
