welding positioner 50KG/CE certified Welding rotary table/welding plate WDBWJ-0.5

Supplier: Fujian Yuhui Machinery Co., Ltd.
Region: Fujian, China
Contact: Ms Jenny Ouyang
Price: $520.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	Welding positioner	Weight (kg):	38 kg
After warranty service:	online support	Packaging Details:	wooden box
place of origin; place of origin:	Fujian China	Core component warranty:	1 year
Mechanical test report:	if	Core components:	circuit board
Video shipment inspection:	if	Showroom location:	not any
Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, household, ring flanges	Warranty:	1 year
Health status:	new	aspect:	490x440x460mm
usage:	Welding with TIG/MIG	Marketing Type:	normal product
Package preview:		payment terms:	Western Union, T/T
port:	Xiamen	Main selling points:	easy to operate

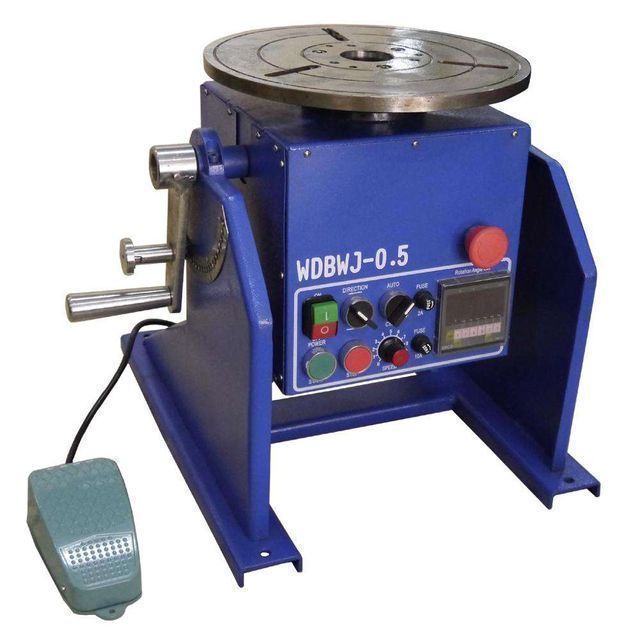

Welding positioner (welding turntable) machine is a kind of automatic positioner. It is suitable for MIG/MAG, CO2 and TIG welding sources, forming a dedicated circular automatic welding system. The system is suitable for girth welding attachments
Automobiles and motorcycles, also suitable for the manufacture of required metal parts
Extensive circumferential welding.

♣Main ability features:

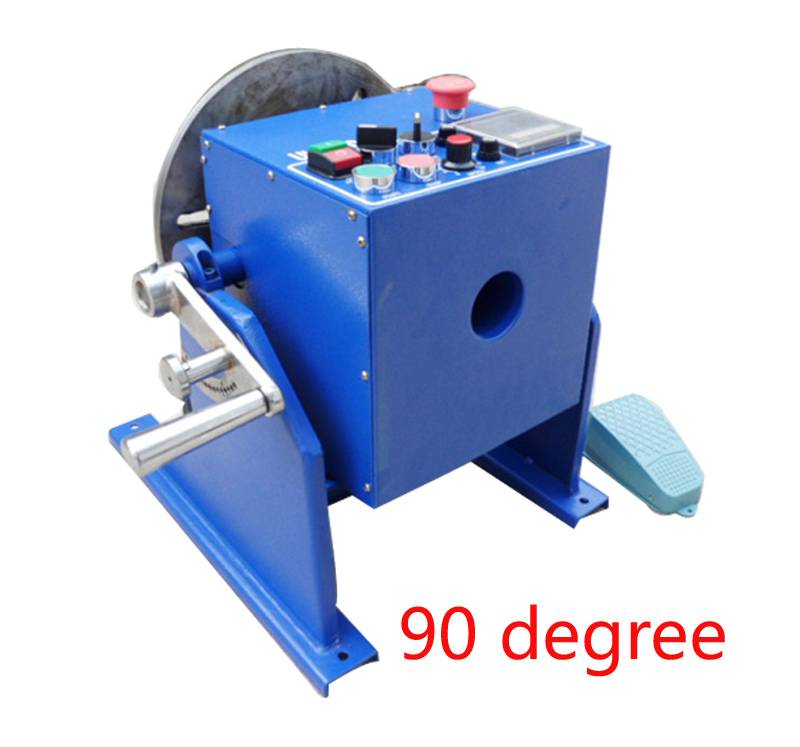

1. The spindle box can rotate 90 degrees, and the spindle can turn freely
to accommodate different angles.
2. DC motor drive, good performance, wide range of speed regulation, wide application range
artifacts.
3. Equipped with foot switch, easy to operate.
4. One-button operation, after debugging, just press the welding button, you can
It will be welded automatically.
5. With emergency stop function, emergency stop in special circumstances
in the welding process.
6. With welding speed display function, it can display the current running speed.

♣WDBWJ-0.5 technical data:

Model	WDBWJ-0.5
Input voltage	AC220V
frequency	50/60 Hz
Turntable diameter(mm)	Φ300
Rotating speed	1.0-12rpm
Horizontal carrying capacity	50 kg
vertical load capacity	25 kg
Dimensions (mm) (length × width × height)	490×440×460
net weight	38 kg
gross weight	55 kg
