The automatic welding positioner adopts special anti-electromagnetic design

Supplier: Jinan North Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Maggie Ning
Price: $176.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	Engines, gearboxes, motors, gears	type:	Welding positioner
Serve:	OEM production	Health status:	new
payment terms:	L/C, Western Union, T/T	Warranty:	1 year
After warranty service:	online support	Supply capacity:	500 sets per quarter 400 sets per month
Main selling points:	automatic	Origin:	Shandong China
Weight (kg):	50 kg	Mechanical test report:	if
Marketing Type:	2019 Hot Products	usage:	Soldering Flux
brand:	Nath	Showroom location:	not any
warranty period:	one year	Rated Capacity:	50/100/200kg
aspect:	Unusual	Certification:	CE certification
current:	10A	Local service location:	not any
Configuration:	Power cord, foot pedal, BY-50/100 controller	Applicable industries:	other
After-sales service provided:	Overseas service not provided, free spare parts, online support	Voltage:	220V
Core component warranty:	1 year	Nominal Duty Cycle:	90%
Video shipment inspection:	if	color:	blue, yellow, green

The automatic welding positioner/turntable is equipped with adjustable welding torch and cutting torch brackets on the basis of the structure of the welding positioner.

The welding torch and cutting torch bracket are positioned synchronously with the operating platform, and can be flexibly adjusted up and down, left and right, and front and rear directions, and the angle adjustment is accurate to the seam, which is suitable for different welding and cutting processes.

Features of automatic welding positioner:

1. The solid-state DC stepless variable speed table rotates.

2. Heavy-duty fully enclosed worm gear rotation drive.

3. On/off electric foot control.

4. 110/220 VAC 50/60 Hz input power supply.

5. TiG welding high frequency protection.

6. Dynamic braking makes the table rotation stop quickly.

7. Durable enamel paint surface.

8. Stepless variable table tilt with degree scale.

9. Clockwise and counterclockwise table rotation.

10. Highest quality design and construction available.

The technical parameters of the automatic welding positioner adopt the special design of anti-electromagnetic

BY-50/100 welding positioner

No.	Model	unit	BY-50	BY-100
1	power input	/	1 phase, AC 110 / 220V, 50/60Hz
2	Horizontal carrying capacity	Kilogram	50	100
3	vertical load capacity	Kilogram	25	50
4	Table diameter (D)	mm	315	345
5	Work surface height	mm	370	420
6	Table tilt angle	/	0-90°	0-90°
7	Table speed	rpm	1.5-15 0.7-7.5	1.5-15 0.7-7.5
8	rotating electrical machine	W	60	100
9	full length (A)	mm	450	500
10	Overall width (B)	mm	430	450
11	Overall height (C)	mm	370	420
12	Tilt center to ground (G)	mm	270	306
13	cable terminal	/	30-50mm²	30-50mm²
14	net weight	Kilogram	31	40
15	Applicable Chuck	/	C-125/160/200	C-125/160/200

BY-300 /600 welding positioner

Model	BY-300A	BY-600A
input power	AC220V 50/60Hz	AC380V 50/60Hz
0° / 90° capacity (horizontal/vertical)	300Kg / 150Kg	600Kg / 300Kg
table dimensions	450mm	650mm
table height	510mm	675mm
spinning speed	0.2~3.0 rpm	0.15~1.8 turn
slope	0~90°	0~90°
Tilt way	manual drive	motor driven
Tilt speed	//	0.4rpm
rotating electrical machine	AC0.12KW	AC0.37KW
tilt motor	//	AC0.55KW
Rated eccentricity	150mm	150mm
Rated center of gravity	150mm	150mm
control method	Inverter + foot switch	Frequency conversion + manual + foot switch
Hyperdimensional	500×500×510mm	650×800×675mm
weight	80Kg	200Kg

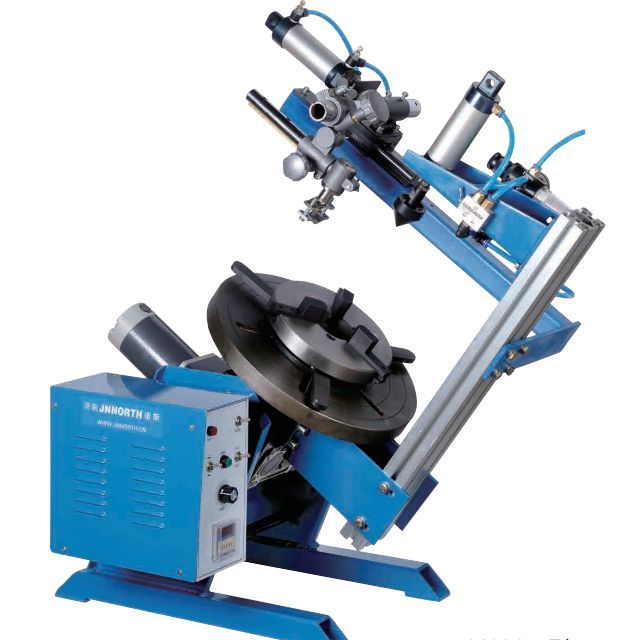

The picture of automatic welding positioner adopts special anti-electromagnetic design
