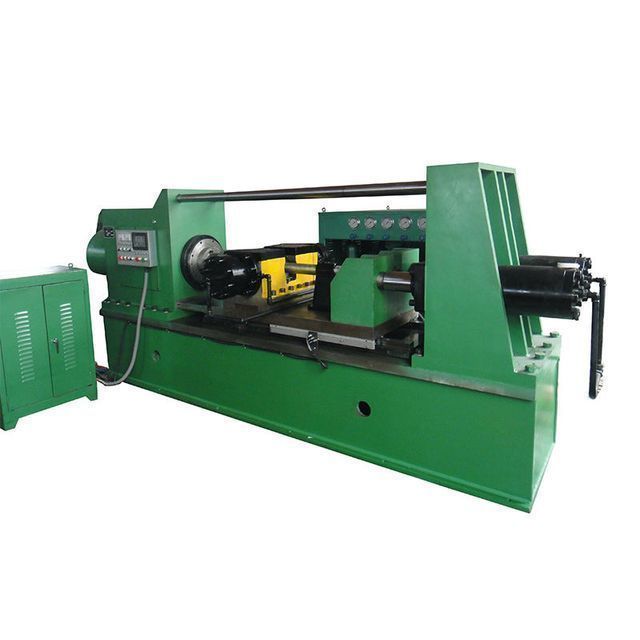

KIDEA factory direct sale friction tube stir welding machine drill pipe

Supplier: Jiangsu Kidea Industry Co., Ltd.
Region: Jiangsu, China
Contact: Mr Kevin ZHU
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

brand:	inspire	Packaging Details:	- Export standard packing: wooden box packing film - also can be according to your request
usage:	metal welding	place of origin; place of origin:	Jiangsu, China
Rotating speed:	to see	Main selling points:	low maintenance cost
Maximum Thickening Force:	25-1200 kN	Warranty:	1 year
Local service location:	not any	Voltage:	380
State of health:	new	Core components:	PLC, engine, motor, pressure vessel, gear, water pump
port:	Shanghai	Package preview:
Movement fixture clamping length:	80-450mm or unlimited	Weight (kg):	3000 kg
Core component warranty:	1 year	Types of:	friction welding machine
servo motor:	custom made	Oil pump motor:	custom made
Applicable industries:	Building materials stores, machinery repair shops, manufacturing plants, construction, energy and mining	Marketing Type:	normal product
product name:	Rotary Friction Welding Machine	Video shipment inspection:	if
Main motor:	custom made	Showroom location:	not any
aspect:	custom made	Weld diameter:	3-150 mm
Rotary fixture clamping length:	20-300 mm	After warranty service:	Video technical support, online support, on-site maintenance and repair services
Rated Capacity:	100%	Maximum working stroke:	300 mm
After-sales service provided:	On-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support	payment terms:	L/C, T/T
Mechanical test report:	Not available

Product parameters

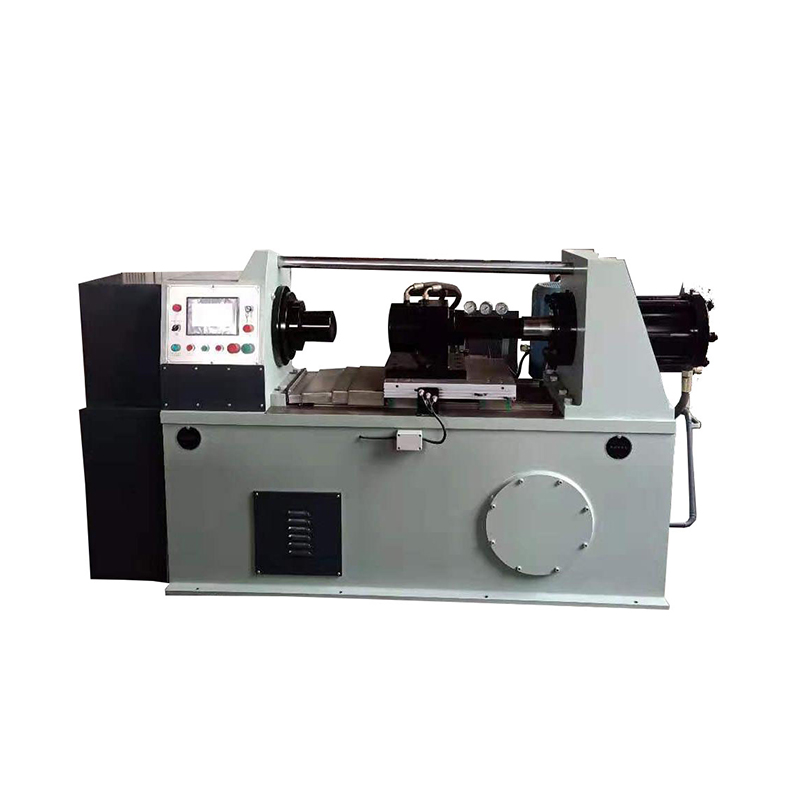

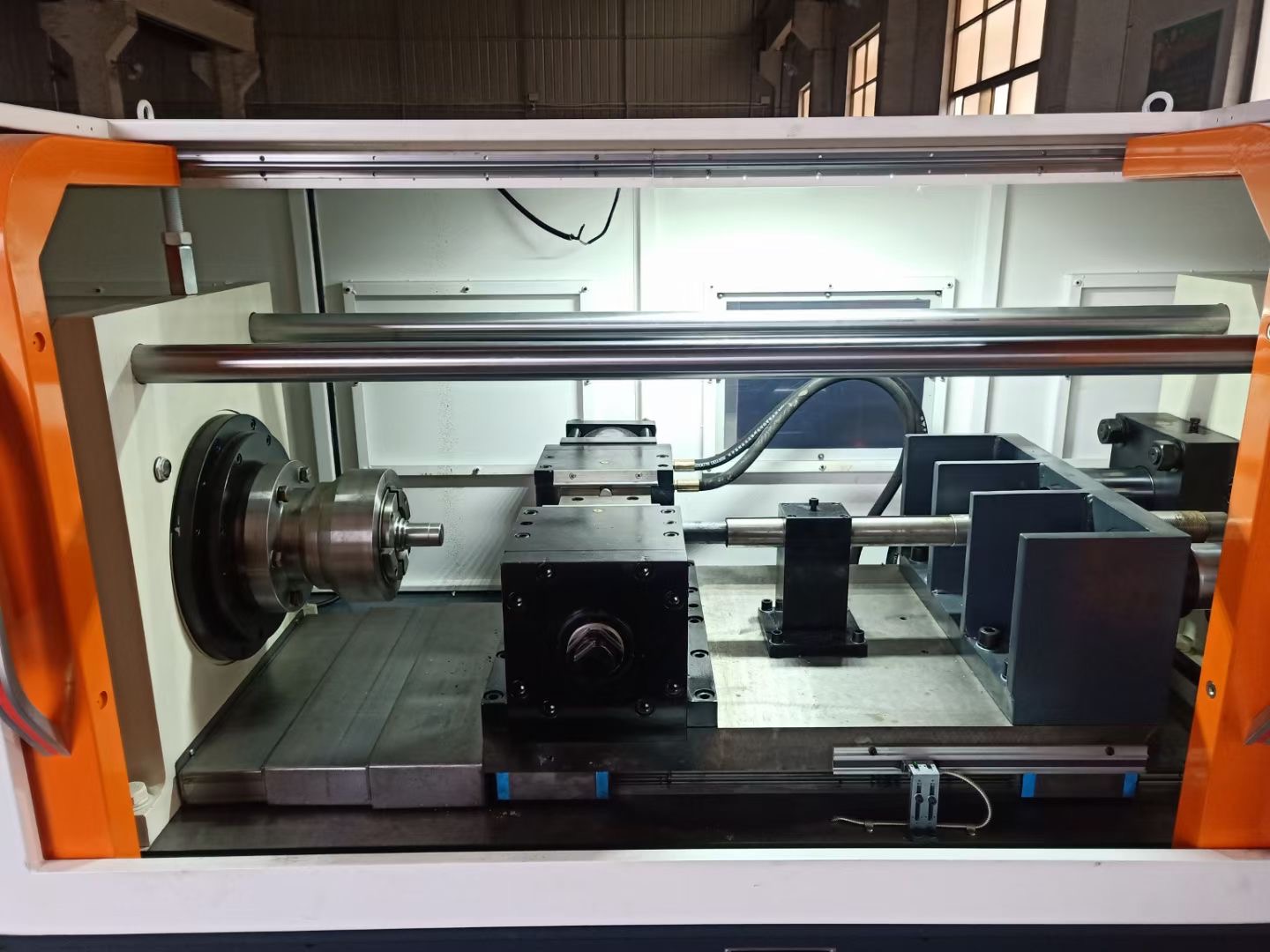

product name	KIDEA friction welding machine
Maximum top pressure	25-1200 kN
welding diameter	3-120mm
Rotary fixture clamping length	50-300mm
Moving fixture clamping length	80-450mm or unlimited
Maximum working stroke	300 mm
Rotating speed	500-1800 r/min depends on

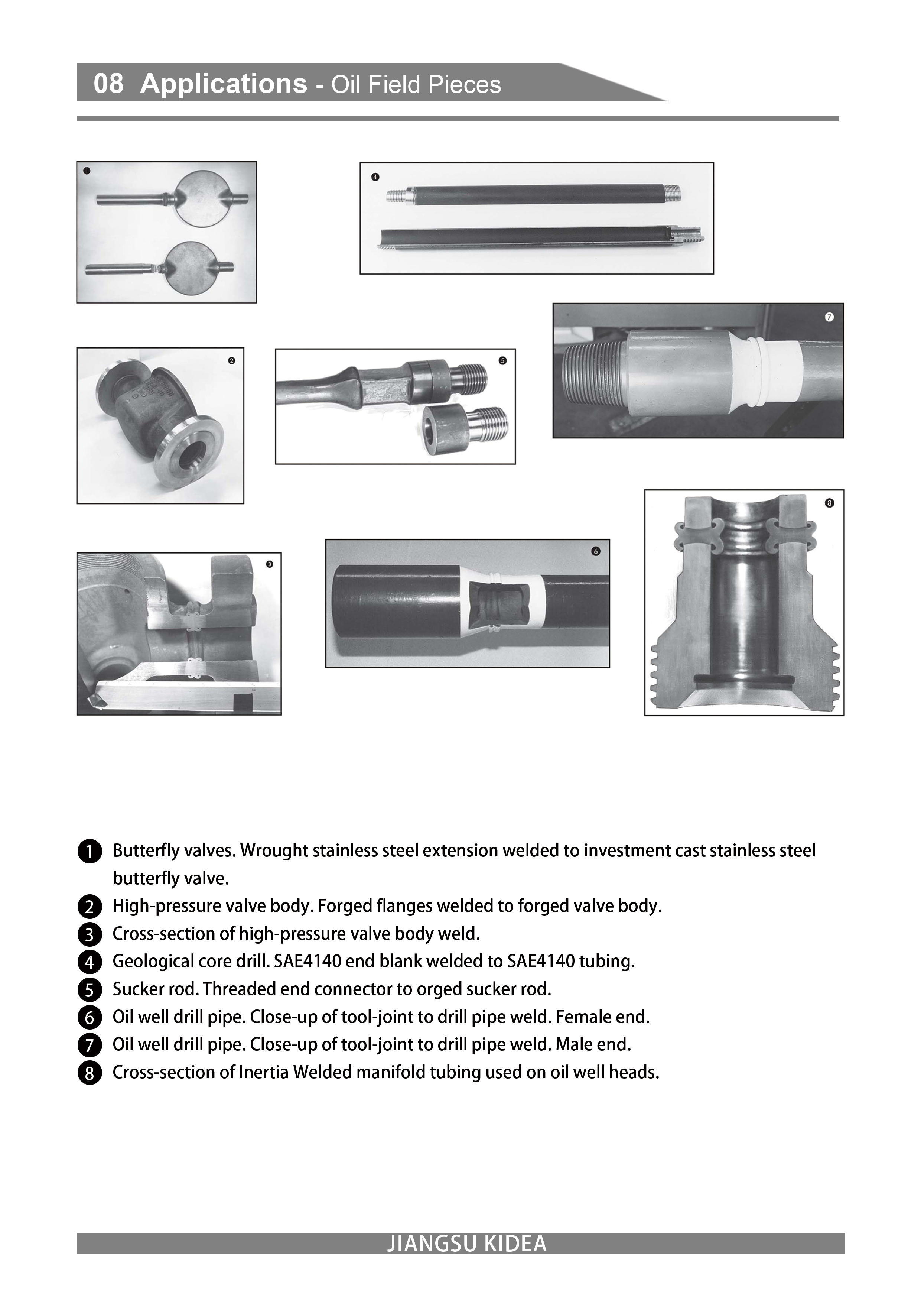

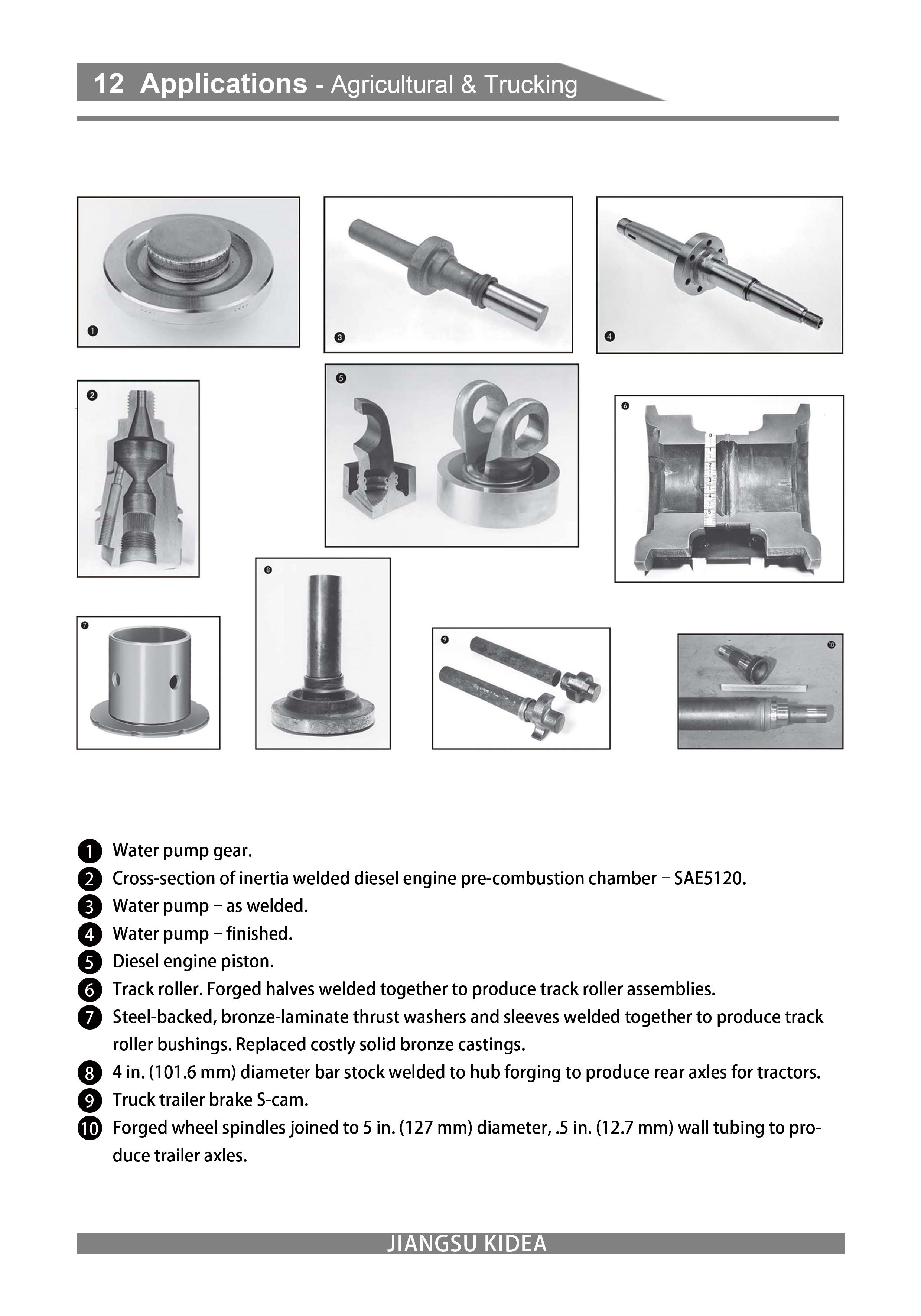

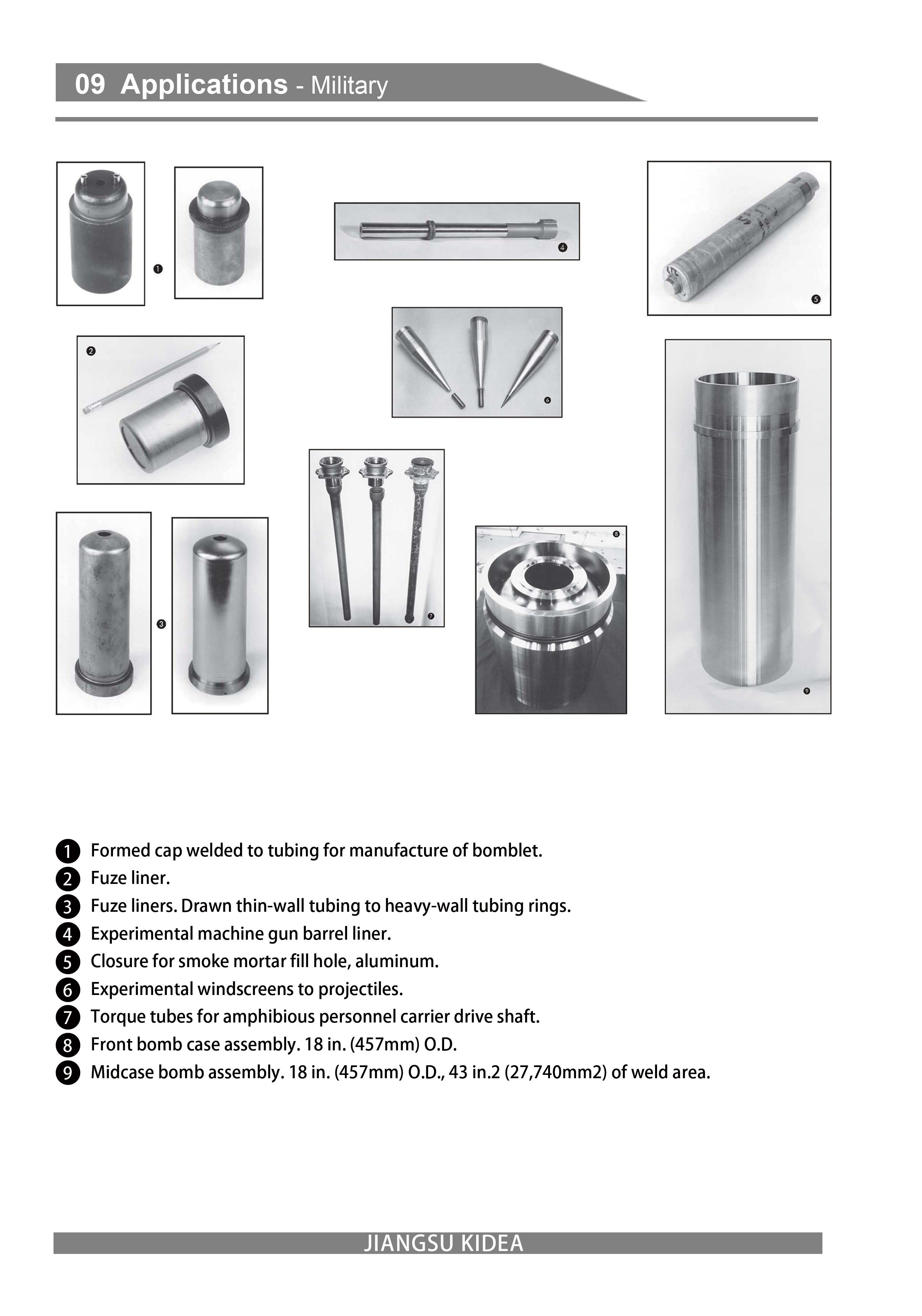

Application field	Aerospace, Oilfield Parts, Military, Bearings, Automotive, Agriculture and Trucks, Motorcycles, Metal Cutting Tools, Kadia textile machinery, petroleum geological drilling, construction and other high-tech and traditional industries, etc.

*The above figures are for reference only

We can produce according to your requirements! ! !

Product Description

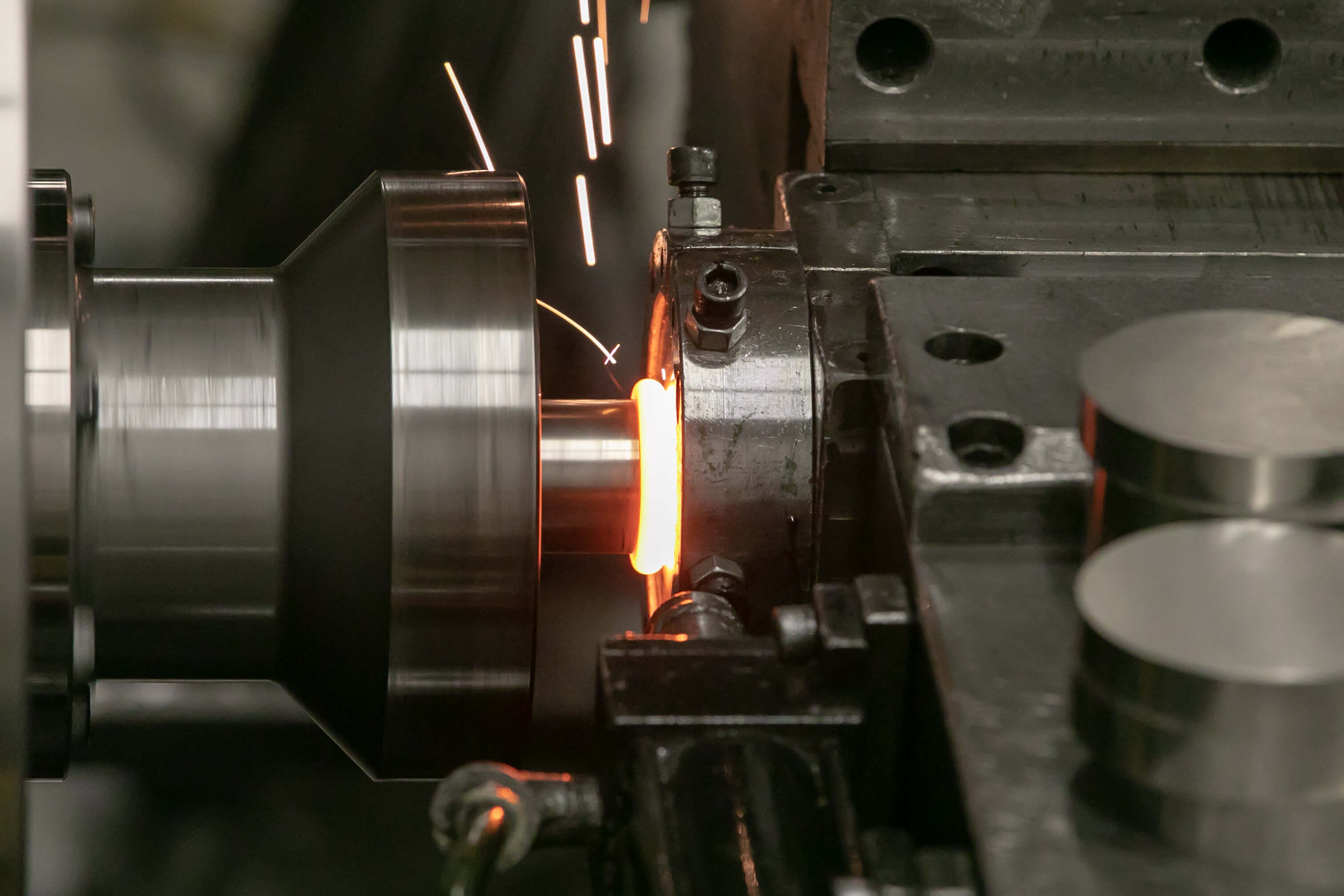

What is friction welding

KIDEA Friction Welding is a solid-state joining process that uses the heat generated between surfaces to create coalescence in materials through a combination of mechanically induced frictional motion and an applied load. With the KIDEA friction welding machine, the resulting joints are of forged quality. Under normal conditions, the mating surfaces will not melt. The process does not require filler metal, flux and shielding gas.

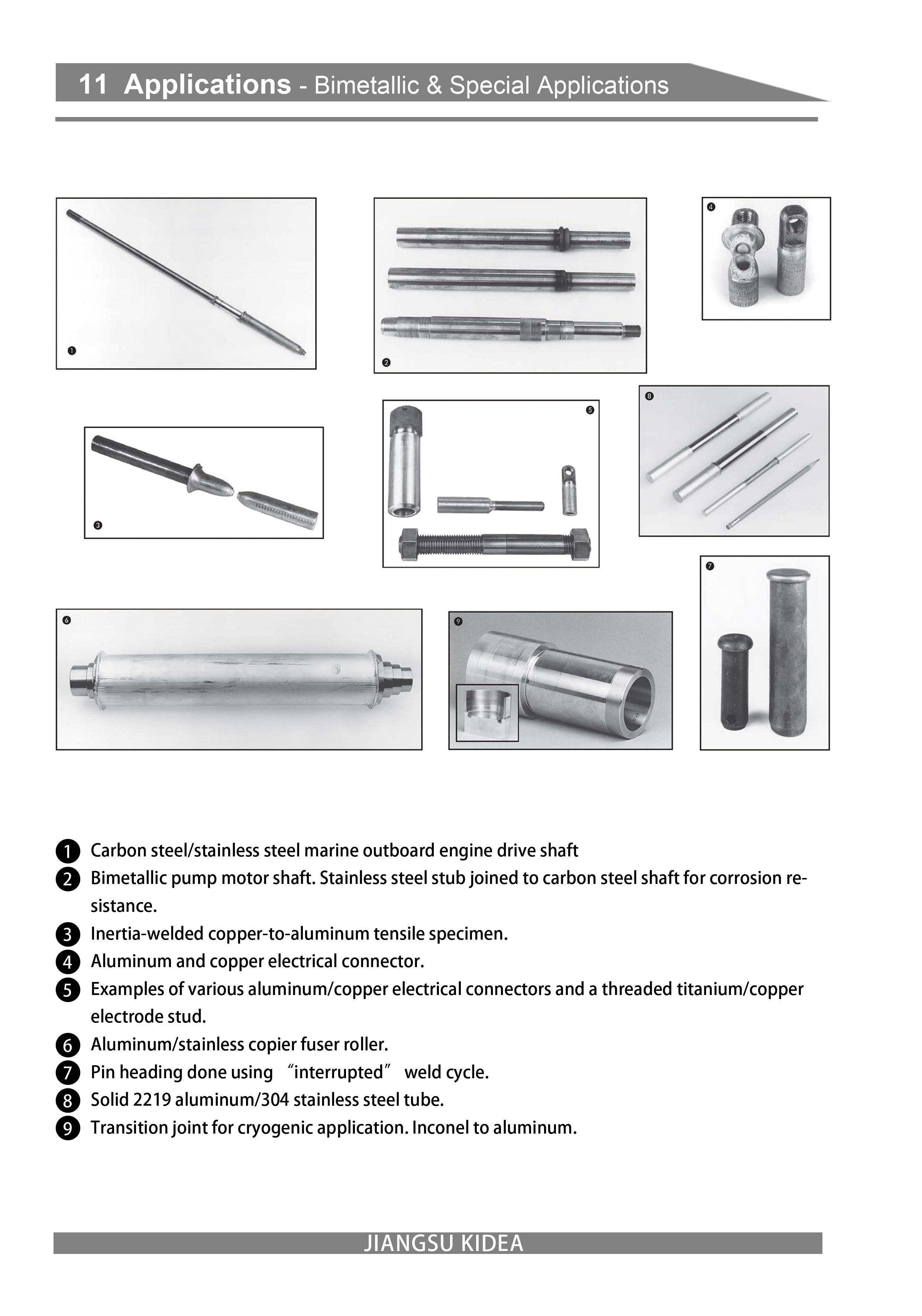

Dissimilar material

Even metal combinations that are generally considered incompatible can be joined by friction welding, such as aluminum to steel, copper to aluminum, titanium to copper, and nickel alloys to steel. In general, all wrought metal engineering materials can be friction welded with a KIDEA friction welding machine, including automotive valve alloys, maraging steels, tool steels, alloy steels, and tantalum. Additionally, many castings, powdered metals, and metal matrix composites are weldable.

benefit

Savings - cost, time, material

Since dissimilar materials can be joined, significant cost savings can be achieved as engineers can design bimetal parts that use expensive materials only when needed. Expensive forgings and castings can be replaced with less expensive forgings welded to bars, tubes, plates, etc.

Since the process is much faster than more traditional welding methods, this saves a lot of time.

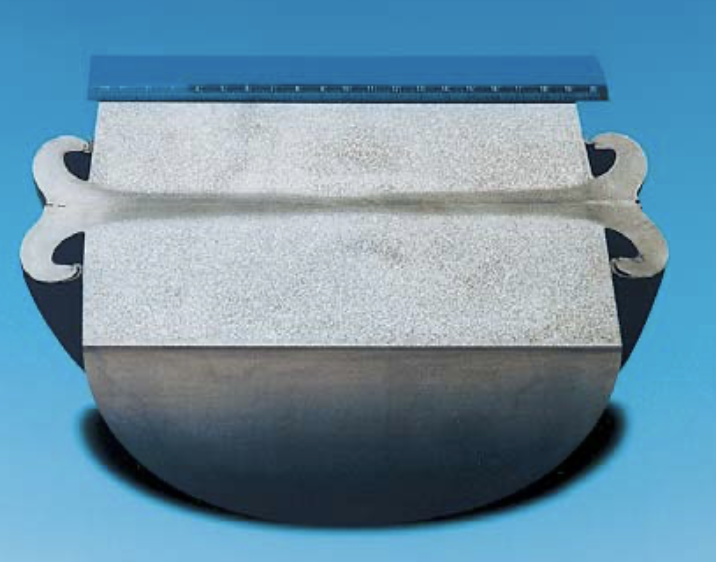

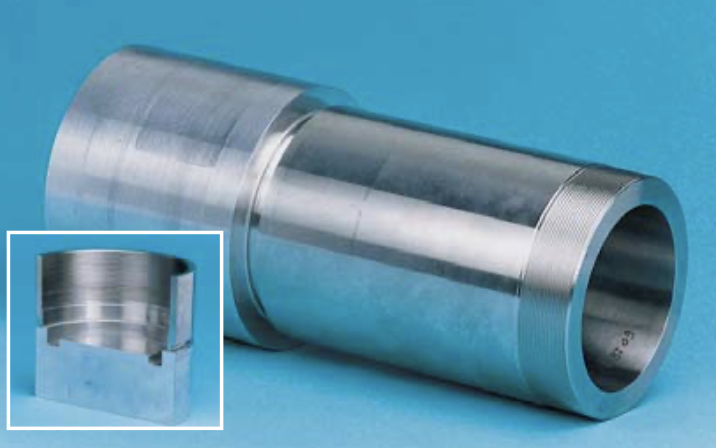

KIDEA friction welding produces forged quality joints with 100% butt welds through the contact area. This solid cross-section shows the narrow heat-affected weld zone and the resulting displaced material (flash/burr).

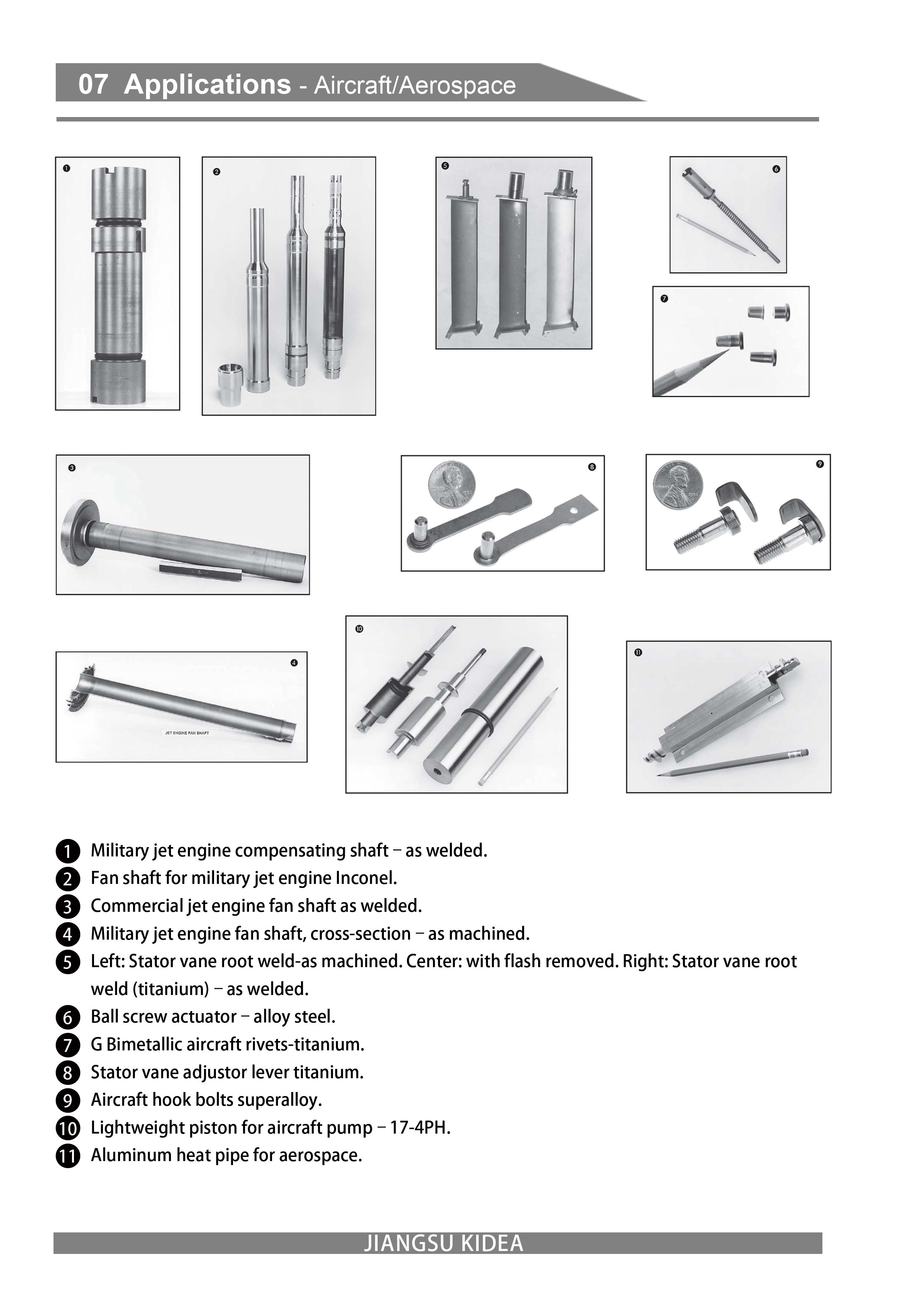

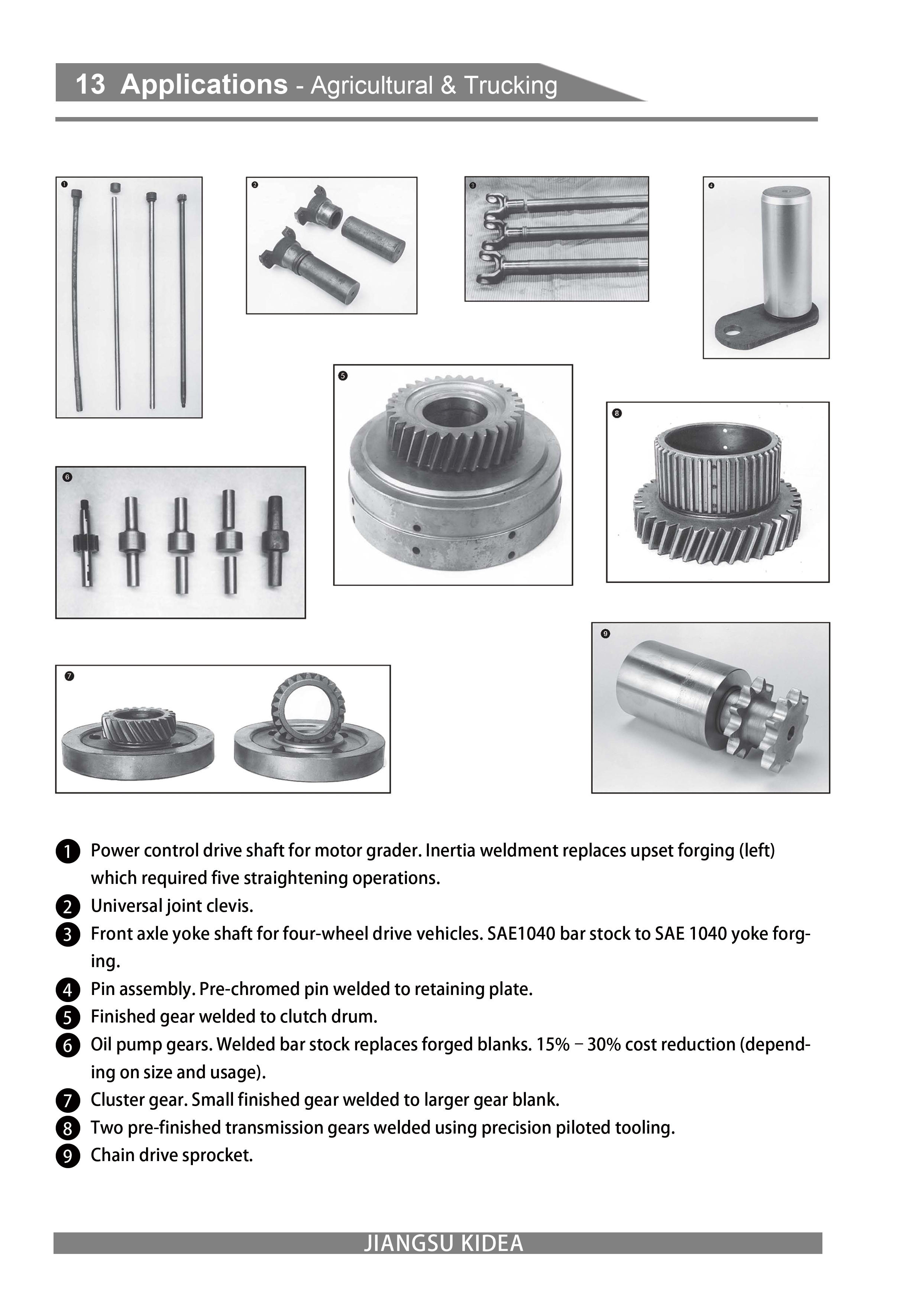

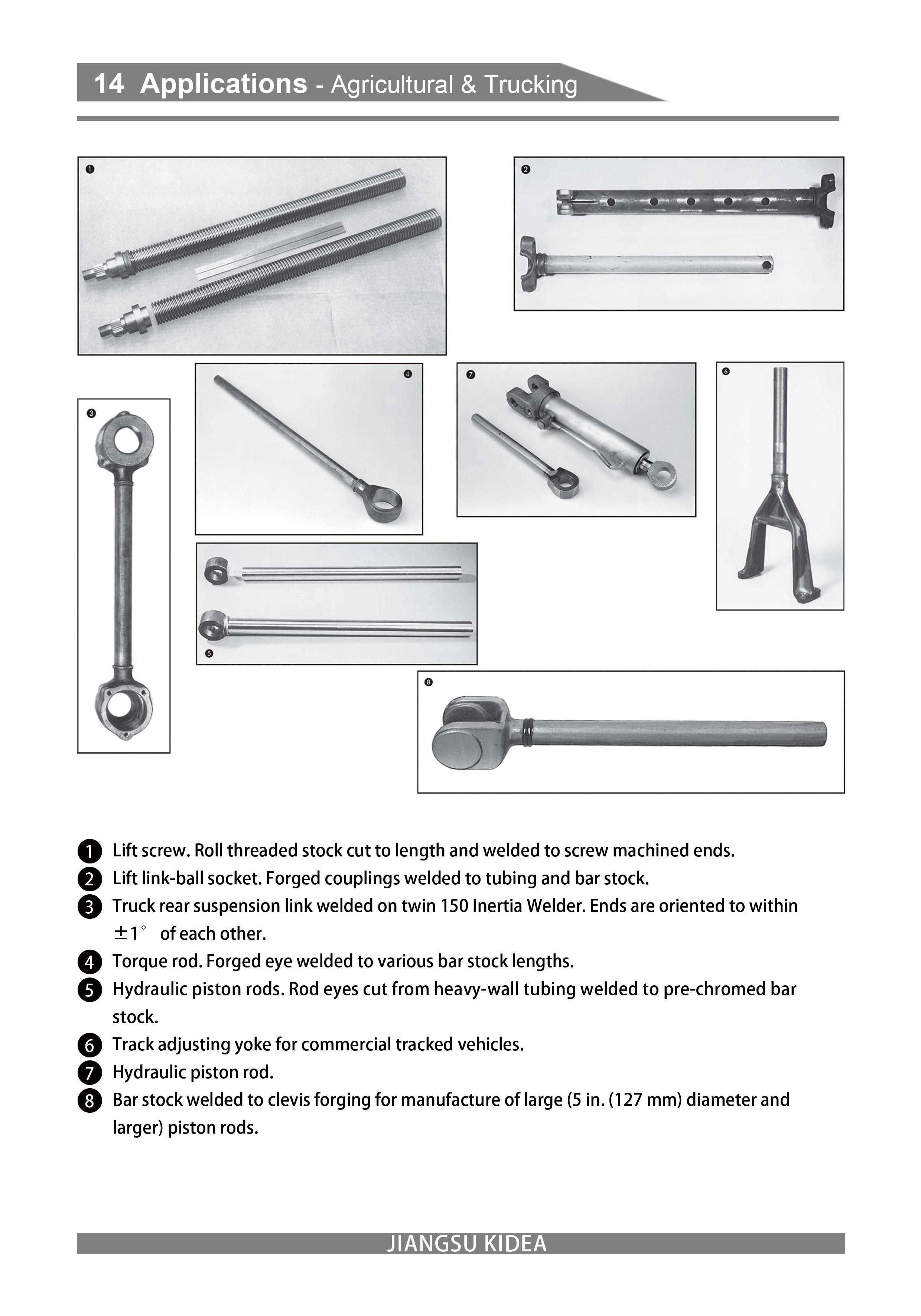

Models and Applications

Models and Capabilities
Model	maximum. Uneasy (kN)	welding diameter (mm)	Moving Fixture Workpiece Length (mm)	Rotary Fixture Workpiece Length (mm)	Speed (maximum) Changing (rev/min)
C-2.5	25	6-18	50-500 or unlimited	15-300	2500
C-4	40	6-18	50-450 or unlimited	15-300	2500
C-20	200	12-35	80-750 or unlimited	50-300	2000
C-20B	200	14-35	80-750 or unlimited	50-300	1800
C-25	250	14-40	80-750 or unlimited	50-300	1800
C-32	320	18-50 years old	80-750 or unlimited	50-300	1500
C-40	400	20-60	80-750 or unlimited	50-300	1500
C-50	500	18-70 years old	80-750 or unlimited	50-300	1350
C-80	800	45-80	80-750 or unlimited	50-300	1350
SFC-10	100	12-26	80-750 or unlimited	50-300	0-1500 adjustable
SFC-30	300	12-50	80-750 or unlimited	50-300	0-1800 adjustable
SFC-40	400	30-60	80-750 or unlimited	50-300	0-1200 adjustable

We customize friction welding machines according to customers' requirements.

Product packaging

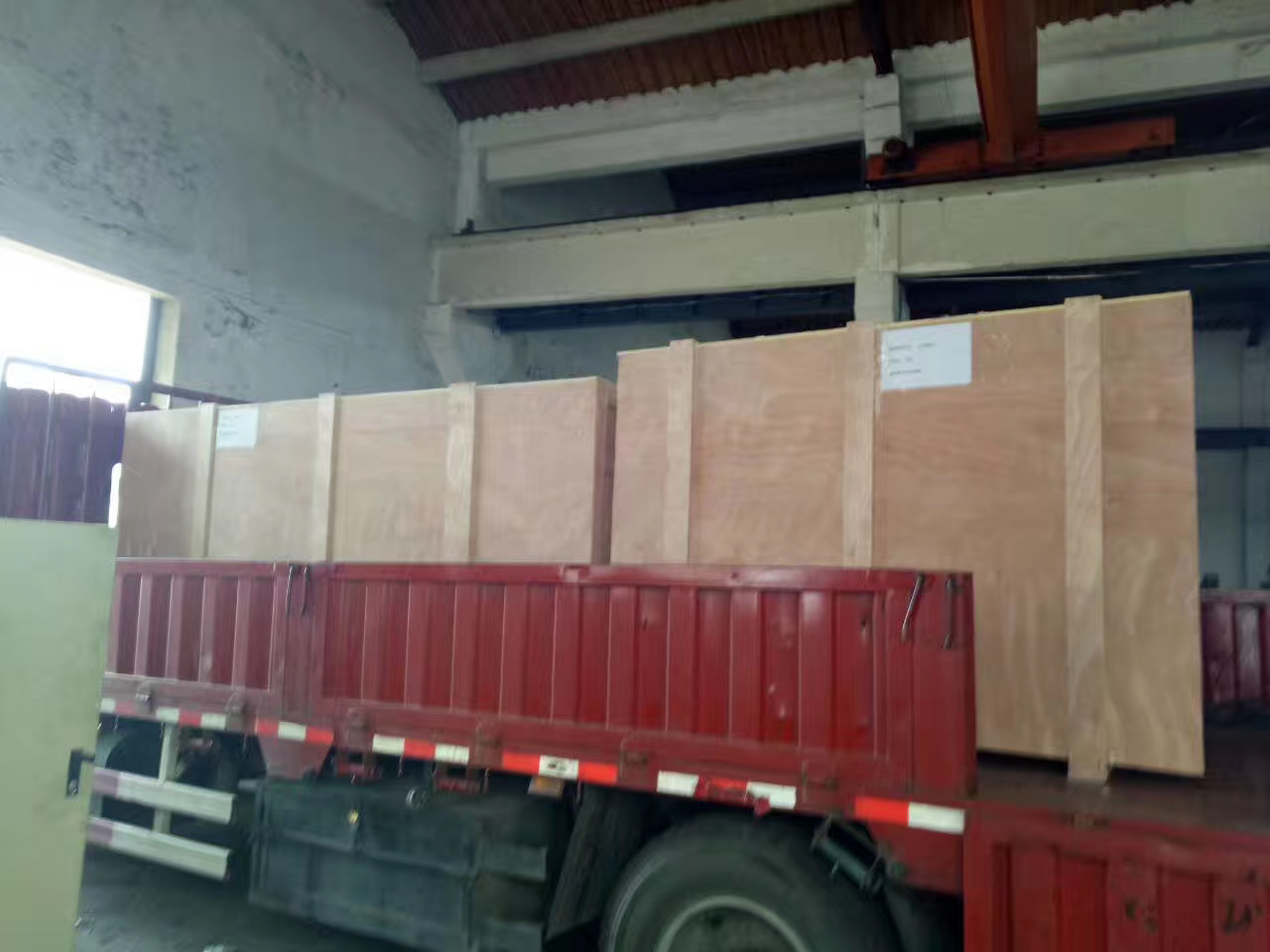

Export standard packaging - wooden box stretch film

Why choose KIDEA tool

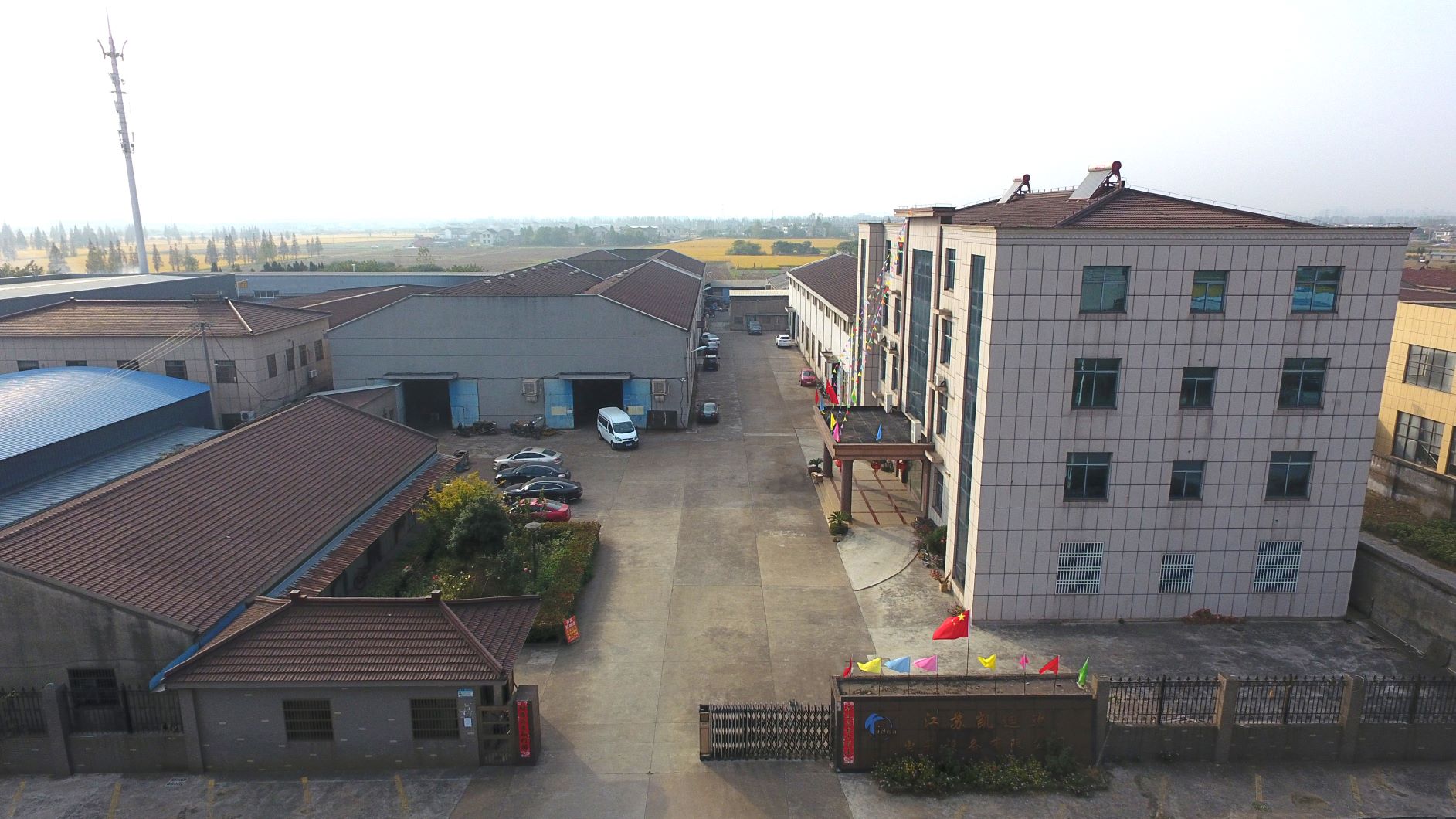

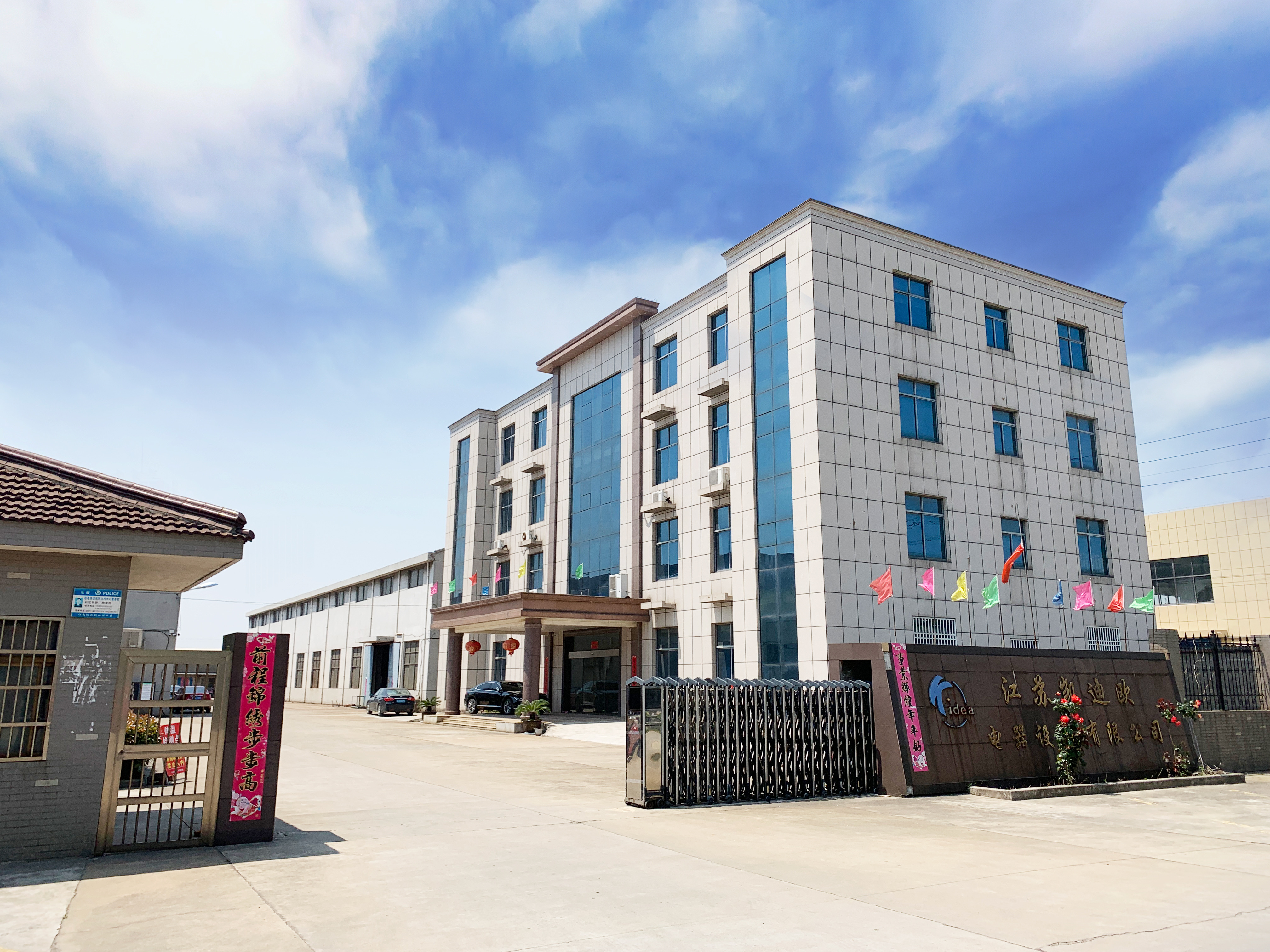

Jiangsu Qidi Industrial Co., Ltd. is a professional friction welding machine manufacturer integrating development, research and production, with strong design, development and manufacturing capabilities. Over the years, our company has been adhering to the "people-oriented, first-class" business policy, providing a series of products with advanced technology, stable quality and reliable performance for domestic and foreign customers. Widely used in aerospace, electric power, bearings, automobiles and motorcycles, metal cutting tools, textile machinery, petroleum geological drilling, construction and other industries.

1. High quality with competitive price2. More than 20 years of professional experience
3. More than 5 years export experience
4. Strong development and design team
5. Strict quality assurance system
6. Provide customized services
7. 24 hours online problem solving service (WeChat, Email, FB, WhatsApp)
