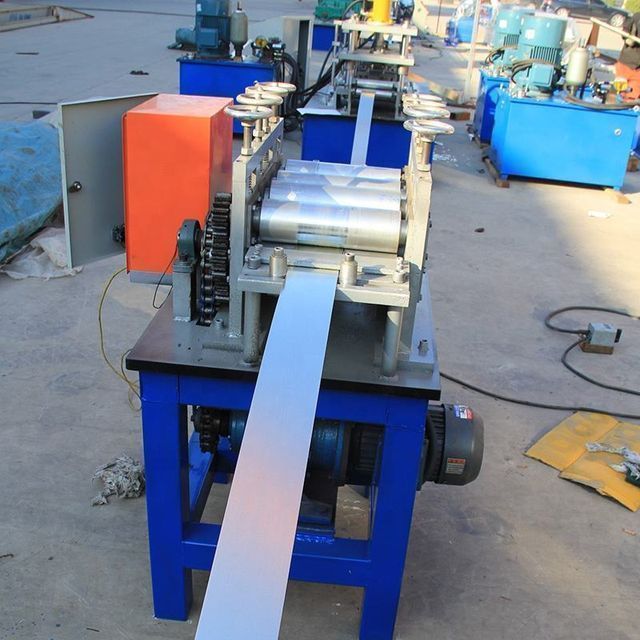

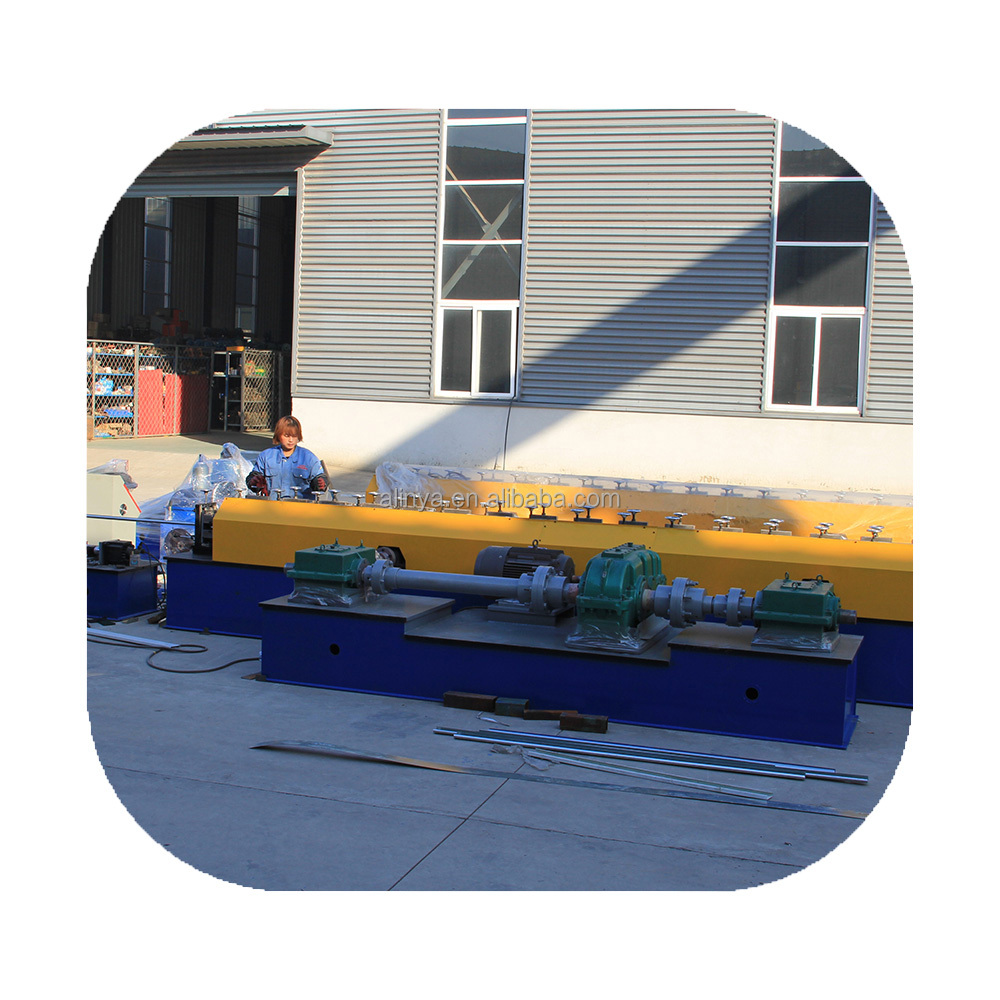

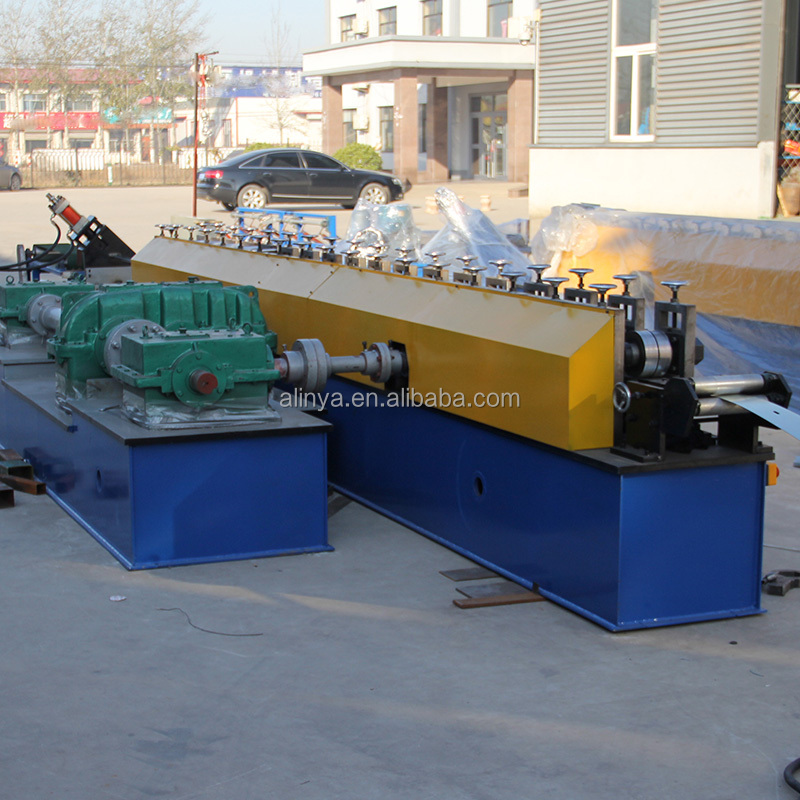

metal frame for making drywall drywall, stud rolls, cu shaped light keel forming machine

  • Supplier: Haixing (tianjin) Imp. & Exp. Co., Ltd.
  • Region: Tianjin, China
  • Contact: Ms Alin Zhao
  • Price: $9800.00 / 1 - 2 sets
    $8000.00 / 3 - 9 sets
    $7000.00 / 10 - 19 sets
    $5500.00 / >=20 sets
  • Min. Order: 1 set
Click here to contact
Product details
Motor brand:SiemensRaw materials:PPGI PPGL GI GL
strength:4kWproduct name:cu type light keel forming machine
Health status:newMaterial thickness:0.3mm-0.8mm
Main Frame:400H steelweight:3300 kg
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, pumpVoltage:380V/50HZ three-phase
payment terms:L/C,Western Union,D/A,T/T,MoneyGram,paypalMarketing Type:New Products 2022
Shaft Material:45# steel outer diameter: 70mmCore Components Warranty:2 years
color:custom madeplace of origin; place of origin:Hebei china
Packaging Preview:Supply capacity:200 sets per month
Showroom location:Egypt, United States, Germany, Philippines, Brazil, Mexico, Morocco, Kenya, Argentina, South Korea, Chile, Sri Lanka, South Africa, Nigeria, Malaysia, AustraliaRoller Material:Cr12
Mechanical test report:ifVideo external inspection:if
Production capacity:10-20m/minmain motor power:4kW
type:Steel frame purlin machineApplicable industries:Building material stores, mechanical repair shops, manufacturing plants, construction works
Working pressure:16-20paCut Type:Hydraulic guide post cutting
Packaging Details:a. The main body of the machine is made of waterproof plastic, and then fixed on the container with steel wire and angle iron with a diameter of 8mm. b. The rollers and shafts are coated with anti-rust oil. c.PLC control system and motor pump are packaged with waterproof paper and plastic film. d. Spare parts in the carton. e. Manual uncoiler is bare packaging. f. The output table is put into the carton. g. If the machine is too long, we divide it into two parts and pack it into one package with steel wire. h. Suitable for shipping.brand:Huaxin
Warranty:2 yearsMain selling point:easy to operate
Dimensions (L*W*H):5.8*0.8*1.2mport:Tianjin Qingdao Shanghai Yiwu
Light Steel Frame Machine Specifications
*Light steel frame machine is a steel frame cold rolling mill, which can realize continuous automatic production. The light steel frame forming line includes hydraulic expansion uncoiler, leveling equipment, forming system, punching equipment, cutting equipment, hydraulic station, electric purlin control system and bracket. The light steel frame roll forming line adopts PLC control and AC frequency conversion speed regulation technology to realize automatic continuous production.

*Steel frame cold rolling mill is an energy-saving and high-efficiency steel structure production equipment.
Machine parameters
product name
Drywall Metal Stud Machine
suitable for processing
Color steel plate
Control System
PLC color touch screen
roller
10 booths
Shaft diameter
60mm
plate thickness
0.3-1.2mm
hydraulic
10-12MPa
Roller Standard
45# steel chrome plating heat treatment
Chrome size
0.05mm
Tool standard
Cr12
strength
5.5Kw
Voltage
380V 50Hz three-phase
total measurement
3.8 tons
work process:
Forming process: uncoiler→Roll forming→form a ladder effect→Cut to length.
Name: Manual uncoiler

Manual uncoiler coil inner diameter 450-550 (mm) coil outer diameter 1500 (mm) maximum 700kgs

Advanced automatic control PLC system
Brand: Delta PLC
System: Chinese/English/Russian/Spanish

PLC: PLC control system introduces computer technology, automatic control and other technologies on the basis of traditional controller.
Name: cutting head
Blade material: Cr12MOV, heat treatment forged.

The cutting head adopts high-quality electro-hydraulic cutting system and automatic positioning function
Due to the stable cutting method, the section of the metal plate is neat.

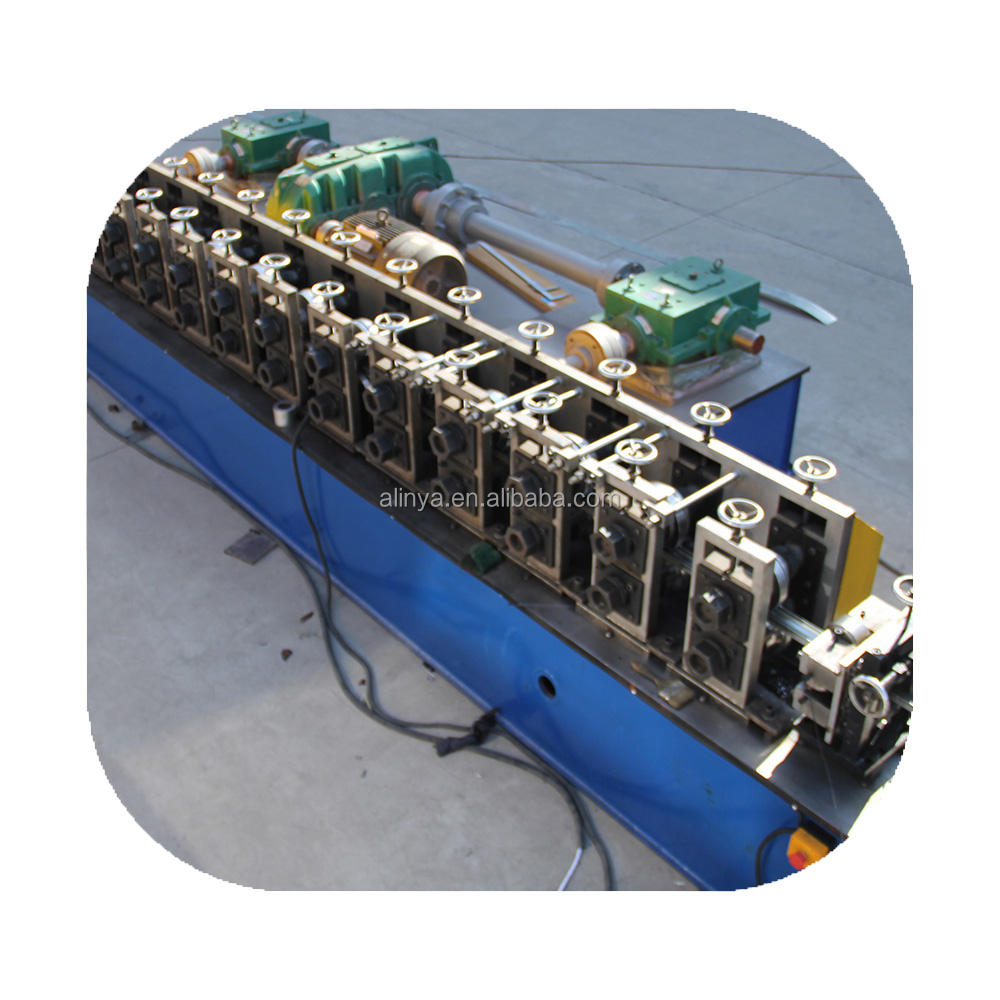

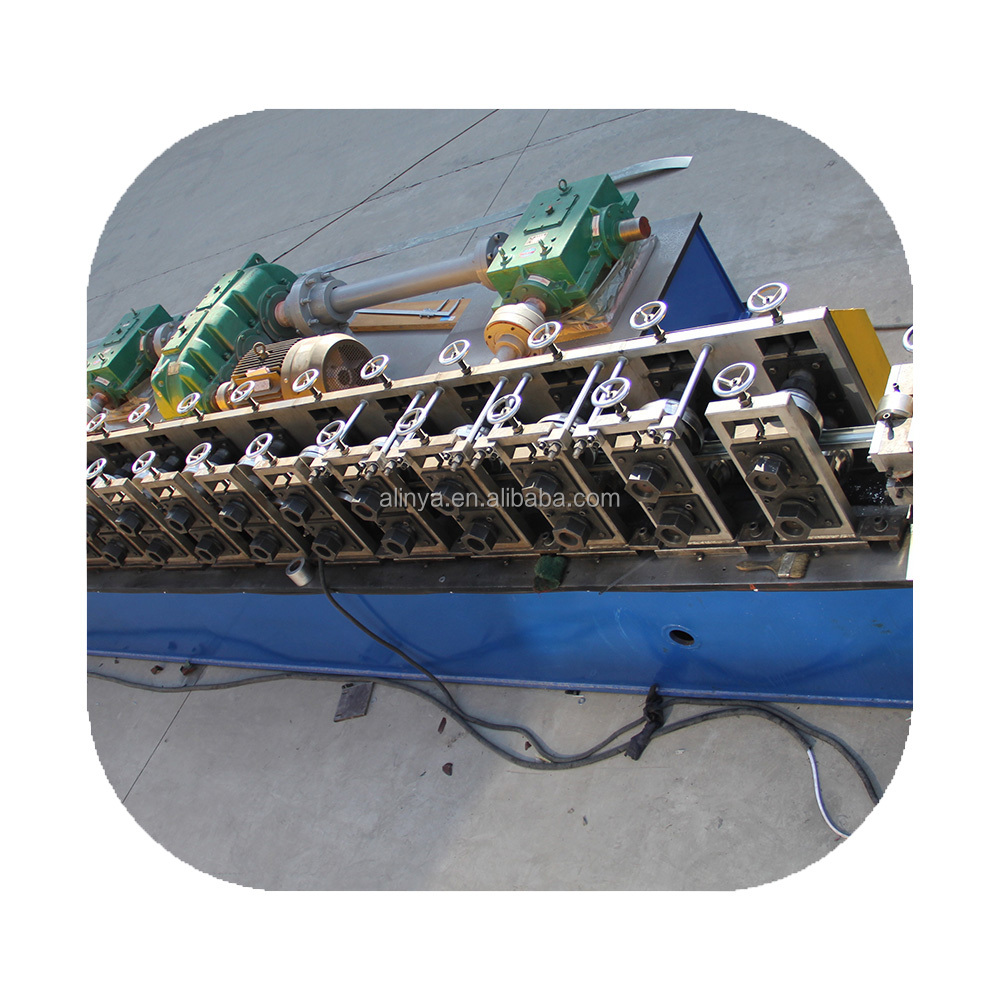

Name: main roller
Roller material: Cr12, quenched, hardness HRC56-82º Number of rollers: 16 rows Number of axes: 32 Transmission: gear transmission Positioning, flexible cutting at both ends: hydraulic cutting Die material: SKD11 hardness quenching treatment 56-58º


International brand accessories
When the machine has parts aging due to long-term use, there is no need to worry. We use all international brand accessories, you can quickly buy the same accessories locally! ! !
Frame Metal Stud and Track Roll Forming Machine Advantages:

***Fully automatic control system with PLC.
***Simple operation: enter length and quantity on the control panel.
***Two years free warranty, if any part is damaged for more than two years, please let us know and pay us, we will deliver any parts you need. And provide lifetime technical support for the machine.
about us
Tianjin Haixing is a professional cold forming machine manufacturer, we have been focusing on this field for 22 years. Our equipment includes roof forming machine, floor deck forming machine, automatic uncoiler, rolling door forming machine, light keel forming machine, purlin machine, leveling machinend slitter, andOther related construction equipment. Haixing has a team of engineers with more than 20 years of experience. at the same time, Our machines use branded electrical components, raw materials from branded steel mills, strict process control, two-year warranty, installation and training services. We have served customers in 85 countries and provide solutions based on your local hot-selling models, such as Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other 65 countries in different regions. We have extensive experience with different country requirements such as profiles, thickness ranges, usage, installation, etc. Company tenet: technological innovation, customer-centric, win-win situation. Thank you for your trust and choice, we will provide you with the best service support to help you achieve greater success. Looking forward to more cooperation with old and new friends from all over the world.
Packaging and Delivery
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with professional production team and service awareness, only for exporting all kinds of cold forming machines.

Q: Can one machine produce only one style of panel profiles?
Answer: Incomplete. Suitable for wider double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to build this machine?
A: Generally, the machine can be finished within 20 to 45 working days. But if you need a machine urgently, we can save you time.

Q: Is there quality control in the production line?
A: Yes, we have a team responsible for quality control, including laying of raw materials, machining of rolls and other parts, machining of roll surfaces and shafts, assembly, testing and packaging.

Q: What should I do if the machine is broken?
A: Our machines are guaranteed for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you need to pay the courier fee yourself. If the warranty period is exceeded, we can negotiate a solution and provide technical support for the entire life cycle of the equipment.

Q: What are your advantages compared to other suppliers?
A: We will provide you with the best service. We will give you good advice beyond your requirements. These lines are easy to install and require low maintenance.

Q: Can we be your overseas agent?
A: Of course, if you have a business in a roll forming line, we would very much welcome your cooperation.
Engineering case
1. Ridge tiles are rich in color, classic and elegant, used for glazed tiles, adding the finishing touch to the modern
architecture.
2. Light weight, high strength, good waterproof and easy installation. special material or sheet thickness,
Machines can be customized according to customer requirements. Can be widely used in villa roofs, urban slopes, tourist attractions
field, etc.
