XHH C89-5S Lgsf Lgs House Price Keel Weight Lsf Roll Light Gauge Form Steel Frame Machine For House Construction

  • Supplier: Xiamen Xinhonghua Machinery Co., Ltd.
  • Region: Fujian, China
  • Contact: Ms Sunny Zhang
  • Price: $68000.00 / 1 - 2 sets
    $63900.00 / 3 - 4 sets
    $58900.00 / 5 - 9 sets
    $50000.00 / >=10 sets
  • Min. Order: 1 set
Product details
Warranty:1 yearCore components:motor
type:Steel frame purlin machineMechanical test report:if
Video external inspection:ifShowroom location:not any
Packaging Details:1. The machine is fixed in the container with steel wire rope to prevent the machine from colliding 2. The naked body in the container or as your requestApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company
Roller Material:SKD-11Supply capacity:20 sets per month
Main selling point:Backlash system and servo motor controlweight:null null
Voltage:380V/50HZ/3 phase (according to customer requirements)Health status:new
Blade material:SKD-11Working pressure:550MPa-300MPa
Production capacity:5-8 tons/8 hoursDimensions (L*W*H):3700*800*1100mm
Uncoiler:Electric uncoilerusage:Light steel building components
Marketing Type:normal productForming steps:9 steps
place of origin; place of origin:Fujian ChinaCut Type:hydraulic cutting
Control System:Industrial PCbrand:XHH
thickness:0.6-1.2mmAfter-sales service provided:Engineers can repair machinery overseas
strength:7.5kWport:Xiamen Port
Hydraulic motor power:5.5KWCore Components Warranty:1 year
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Product Description

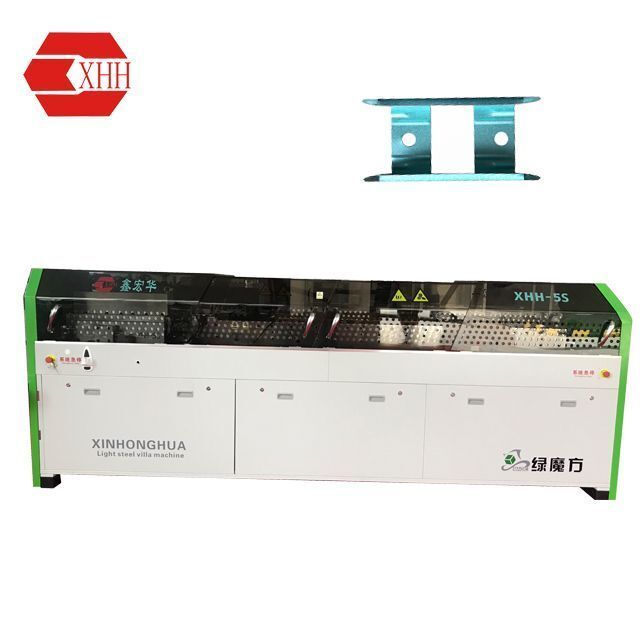

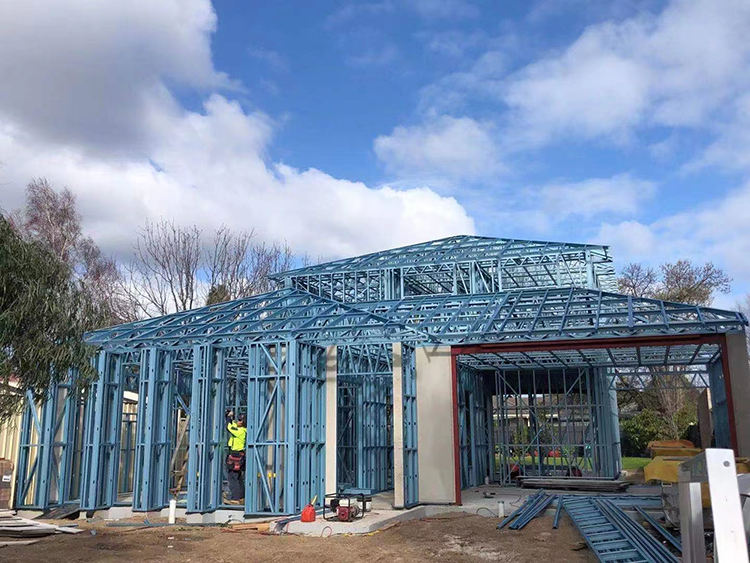

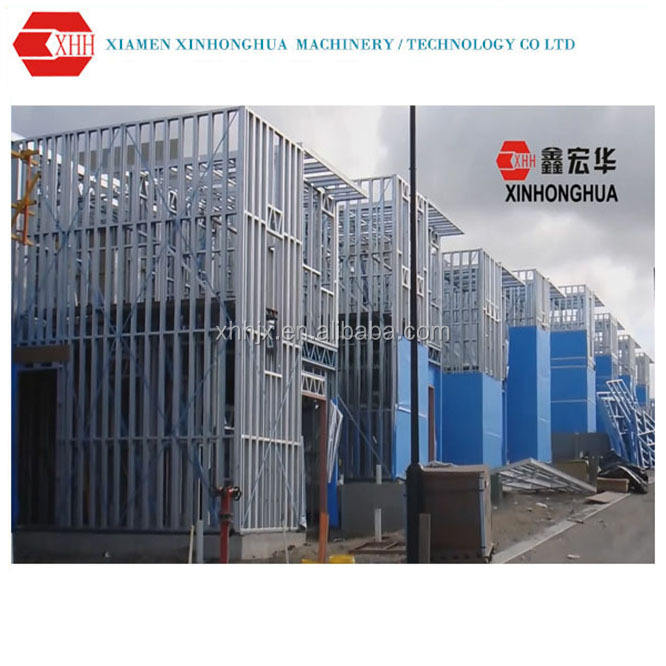

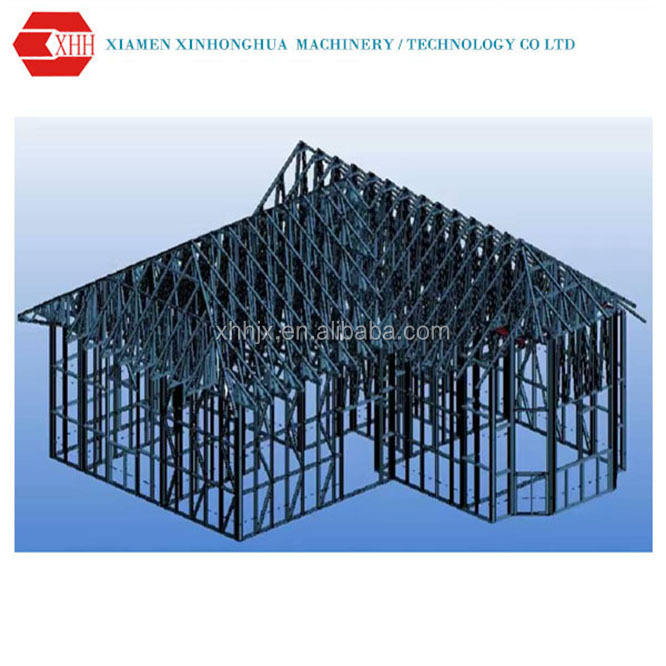

XHH C89-5S Lgsf Lgs House Price Keel Weight Lsf Roll Light Gauge Form Steel Frame Machine For House Construction



Main technical data

size

C89

aspect

4200*800*1100mm

Main servo motor power

7.5KW

hydraulic motor

7.5kW

molding step

9 steps

Forming speed

4-5 tons/8 hours

Voltage

380V/50HZ/3PH

effective width

89mm

Material width

174mm

flange height

38mm

lip

9mm

Material thickness

0.6-1.2mm

Cutting and Punching Tolerances

±0.5mm

Forming tolerance

±0.75mm

Control System

Industrial computer computer control system

design software

Apex Software

Material of all rollers

Heat treated SKD-11 steel, hard chrome plated on roll surface

shaft material

SKD-11

Punch material

SKD-11

Tool material

SKD-11



features

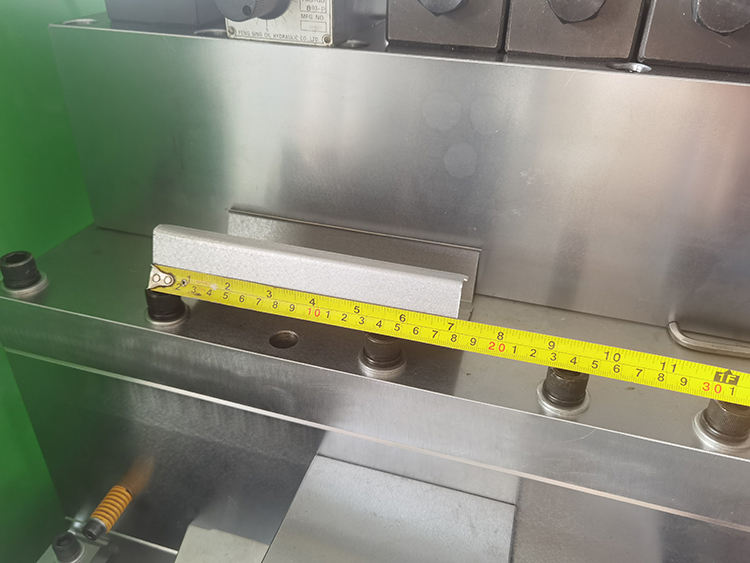

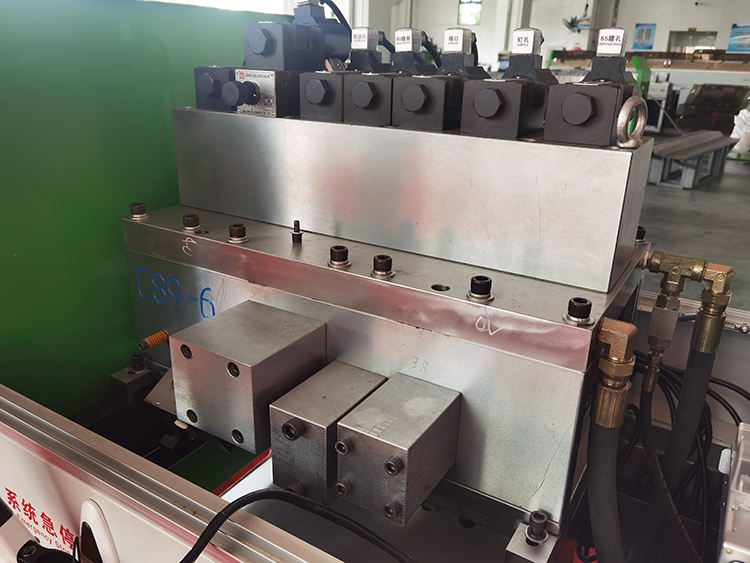

l Back punching die

XHH LGS machines all adopt back punching and back cutting, with higher position and dimensional accuracy



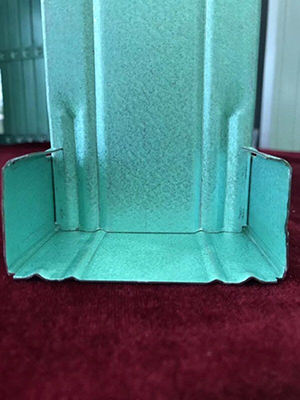

l Seamless end-cut connection

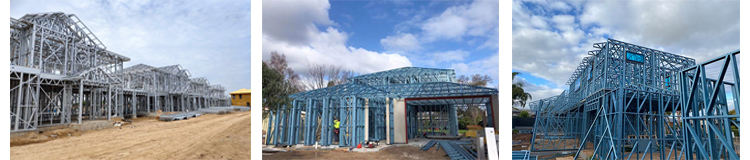

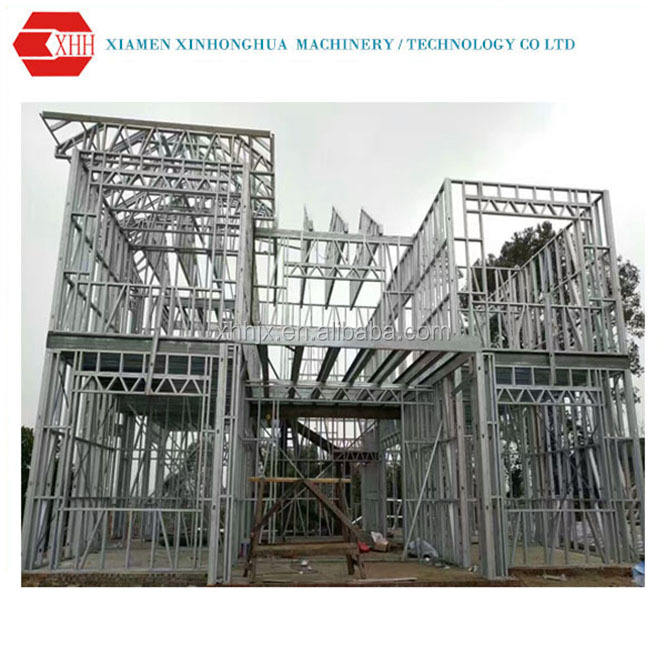

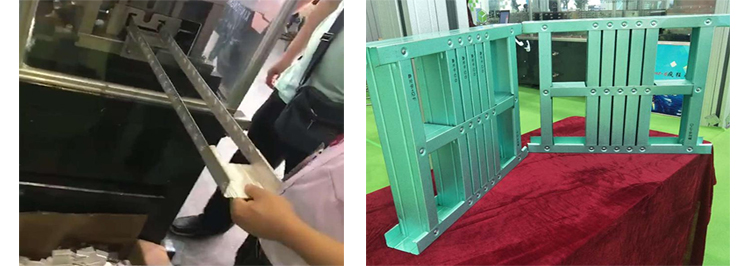

The seamless end cut connection is a patented design of XHH LGS ROLL FORMER. Both ends of the vertical frame can be seamlessly connected to the webs of the bottom and top horizontal frames. So the weight of the house can be directly transferred by the vertical frame load-bearing, making the house safer.



l Continuous web notch punching, no need to squeeze material

When making a continuous web and lip notch, the strength of the raw material is greatly reduced, so the material in the pre-punching machine can easily be squeezed out during the forming process, causing the machine to block. The XHH LGS machine has a back punching system, we can make more continuous web notches even at a thin thickness of 0.55mm without extruding the material.



l Reduce material waste

The distance between punching dies is short, and the length of the starting scrap can be limited to 0.2m, and the length of the ending scrap can be limited to less than 1 meter.



l Cost saving

The belt width of the XHH machine is: 170-174mm width, which is 10mm less than most other machines on the market. For a house of 200 square meters, the total frame is about 7000m, which can save 439.6-659.4kg of materials

Material thickness

0.8mm

1.0mm

1.2mm

Materials saved per house

439.6 kg

549.5 kg

659.4 kg

XHH back punching machine has about 1M scrap length per startup; most of the machines on the market are front punching and back cutting (other suppliers) and they have about 8m scrap per startup

Start/replace coils

8.11-12.13 kg

5 coils/day

40.55-60.65 kg

material savings/year

12.17-18.2 tons



Main accessories

1) Main molding machine

2) 3 ton electric uncoiler

3) Servo motor system

4)IPC computer control system (Lenovo notebook)

5)Production software (1 set)

6)Design Software - Vertex, Perpetual Use License

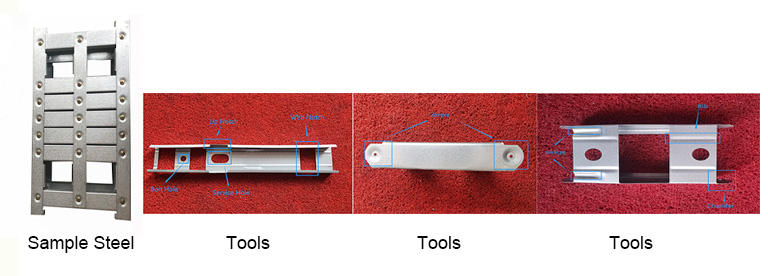

7)Hydraulic automatic punching device

(Net/lip, swaging, service holes, chamfers, pockets, bolt holes)

8)Hydraulic back cutting device (material: SKD-11)

9)automatic printing device

10) Jumping platform (4m)

11) Operation Manual
