Light steel keel equipment keel rolling forming frame dividing machine
- 12480.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Name: | Light steel keel equipment keel rolling forming frame dividing machine | Video shipment inspection: | if |
| Marketing Type: | Hot Products of 2022 | Shaft diameter: | 50mm with keyway |
| Packaging Details: | The light steel keel roll forming frame machine will be packed in standard export wooden boxes. | Showroom location: | not any |
| Production capacity: | 30--40m/min | Supply capacity: | With a monthly output of 800 sets of light steel frame equipment keel rolling forming framing machine |
| Applicable industries: | Building material stores, manufacturing plants, buildings | Mechanical test report: | if |
| Main selling points: | easy to operate | Rolling Thickness: | 0.3-0.8mm |
| Core components: | Engines, motors, gears | Health status: | new |
| Origin: | Henan, China | brand: | share |
| weight: | 3200 kg | Core component warranty: | 1 year |
| Key words: | Light Steel Frame Roll Forming Machine | Roller material: | Cr12mov , heating and quenching |
| Package preview: | Warranty: | 1.5 years | |
| Feed width: | 1200mm | strength: | 5.5 kW |
| product name: | Light steel keel equipment keel rolling forming frame dividing machine | port: | Shanghai/Guangzhou/Qingdao or seaport according to your request.light gauge steel frame equipment keel roll forming framing machine |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance | type: | Steel frame and purlin machine |
| Key words: | Light keel roof panel steel plate roll forming machine | kilowatt: | Light steel frame equipment cad |
| Key words: | Light and thin steel plate forming machine | Dimensions (L*W*H): | 5400mm*850mm*1150mm |
| Voltage: | 380V 50Hz three phase |
Product Description

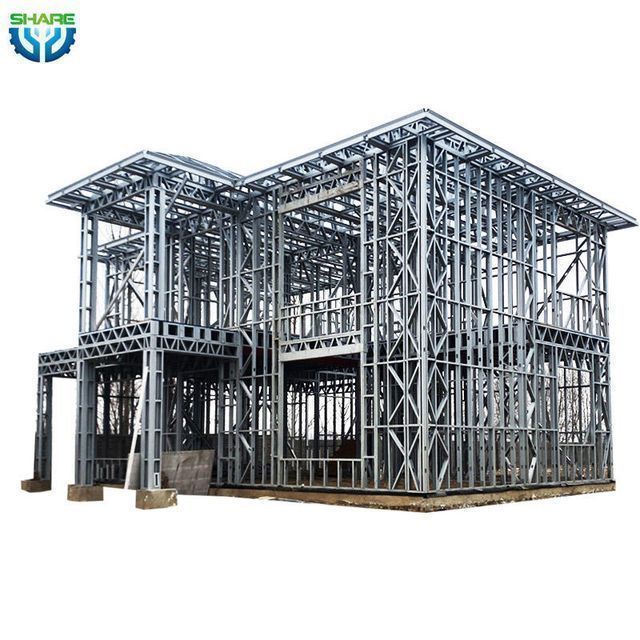

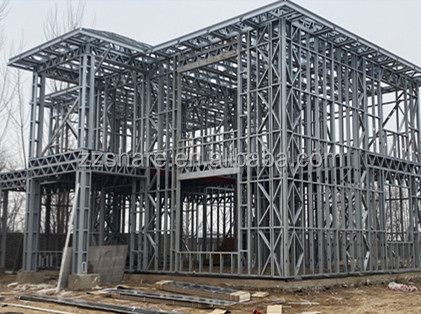

The light steel keel roof produced by our light steel keel forming machine has good bending and compression resistance, good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, and quick and convenient installation.

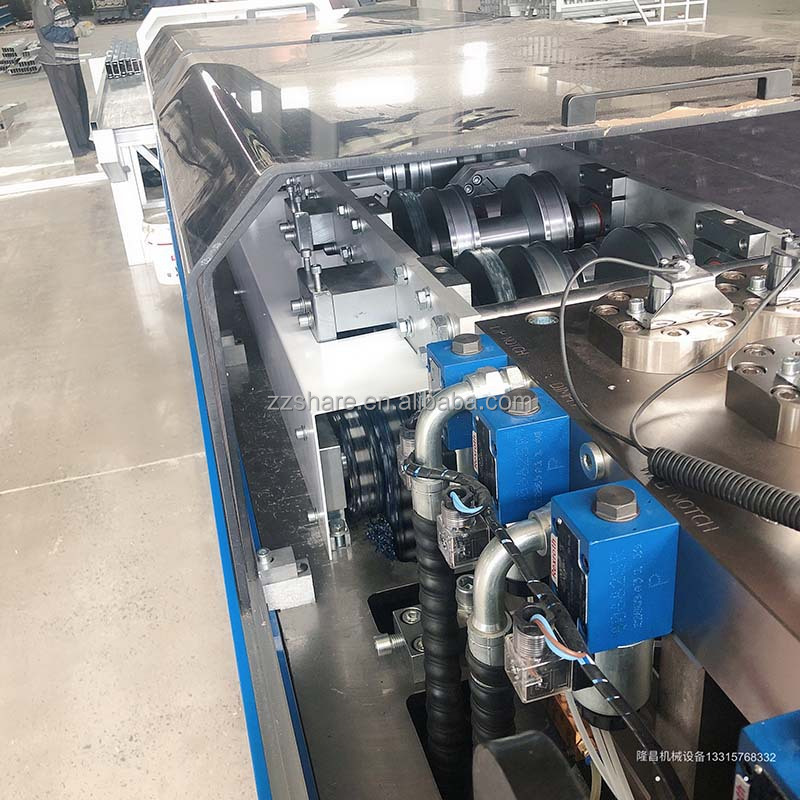

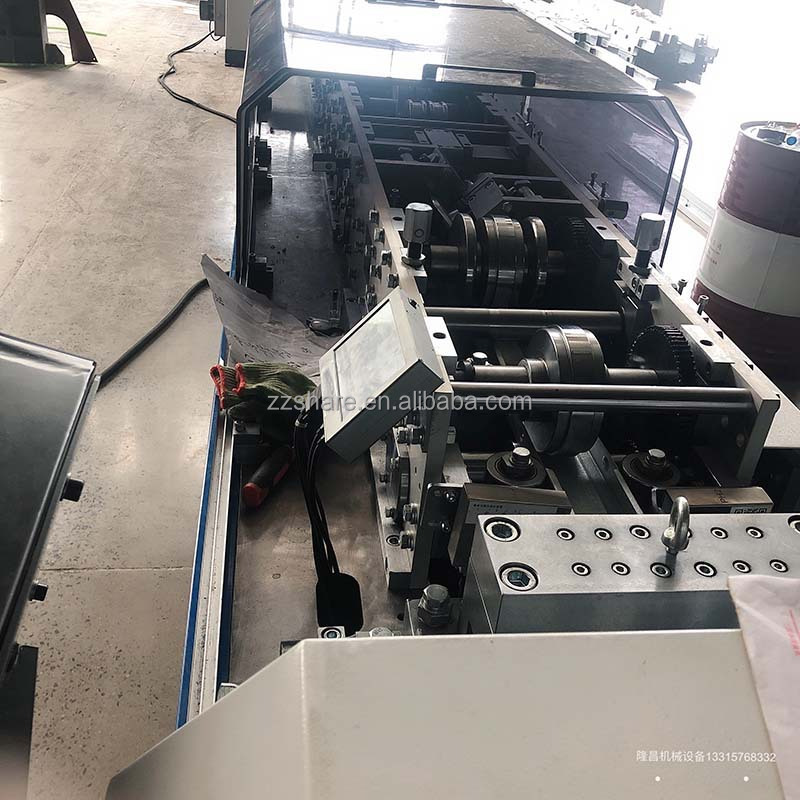

detailed drawing
Light steel keel forming machine | stud | track | Omega |
Roller Station | 12 | 10 | 12 |
thickness | 0.4-0.6mm | 0.4-0.6mm | 0.4-0.6mm |
cutting type | hydraulic mold | hydraulic mold | hydraulic mold |
shaft type | hard | hard | hard |
Roll processing | Quenching, chrome plating | Quenching, chrome plating | Quenching, chrome plating |
Programmable Controllers | delta | delta | delta |
display screen | touch screen | touch screen | touch screen |
main motor | 4KW | 4KW | 4KW |
hydraulic motor | 3KW | 3KW | 3KW |
plate thickness | 25mm | 25mm | 25mm |
spread | gear | gear | gear |
Shaft diameter | 40mm | 40mm | 40mm |

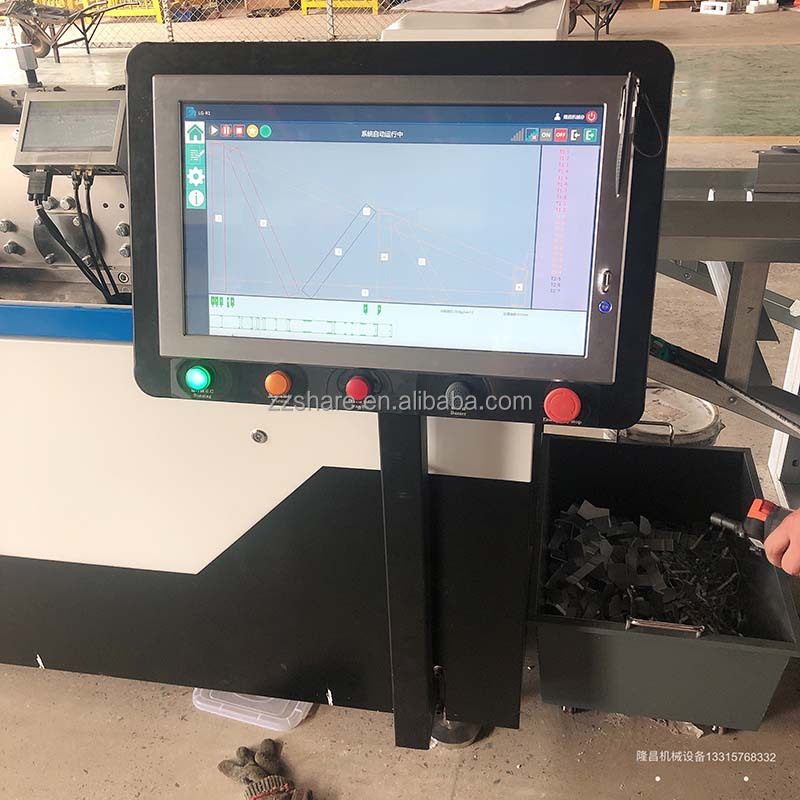

Touch screen control device, easy to use
The surface finish of the production profile is good. The galvanized sheet does not damage the zinc, the color coating does not peel off the paint, and the shape can be highly matched with the design drawing 1:1.
This equipment is used to produce door frames, window rail brackets, storage racks, drawer sliders, light steel keels, pipes, highway guardrails, etc.

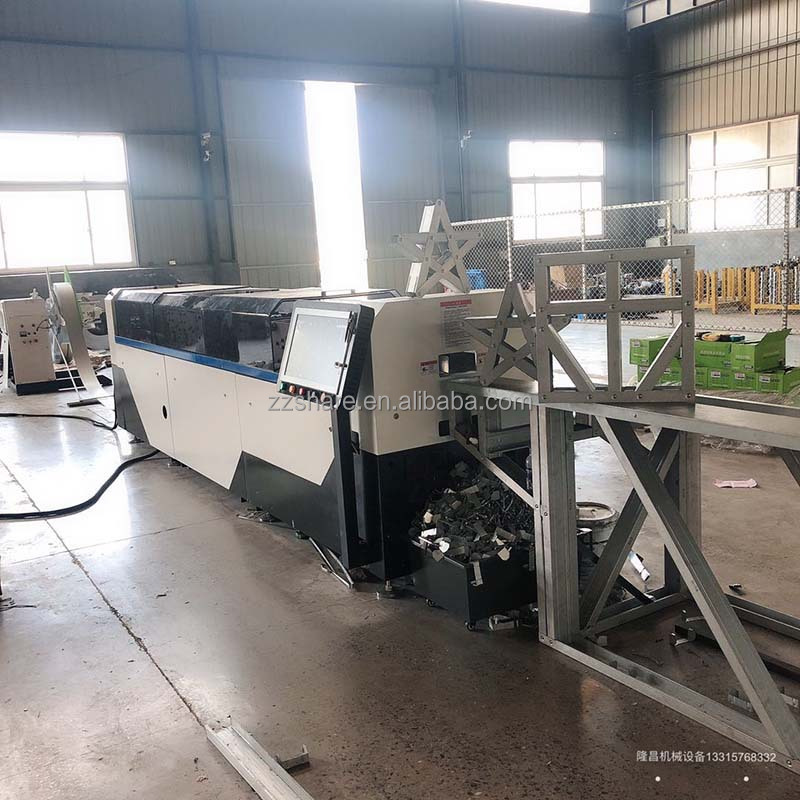

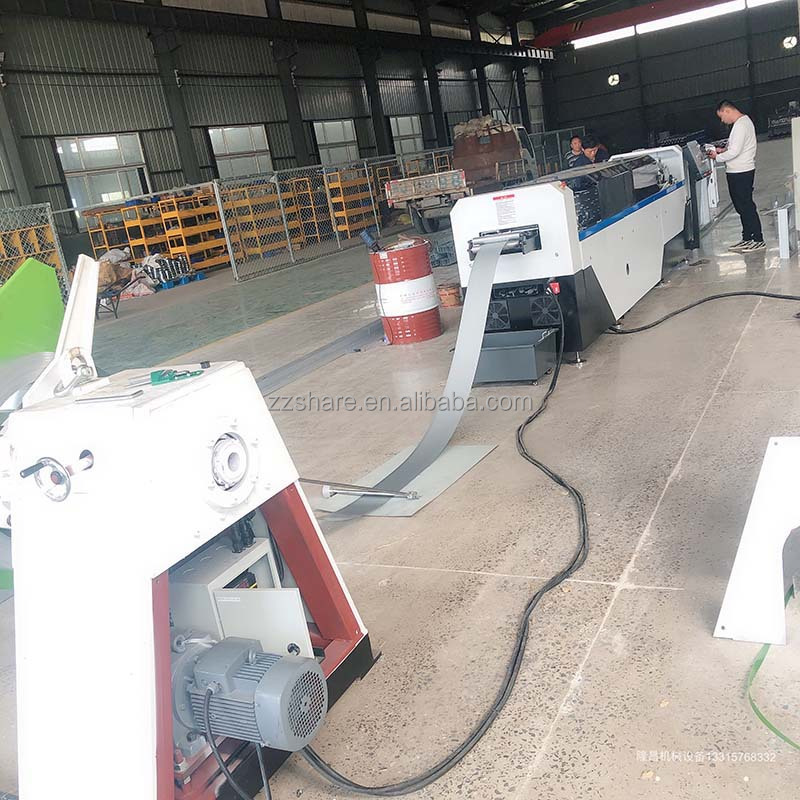

The whole production line is composed of unwinding rack, forming machine and hydraulic fixed-length punching machine. It cuts without waste, does not generate shear waste, saves material costs, and has high production efficiency.

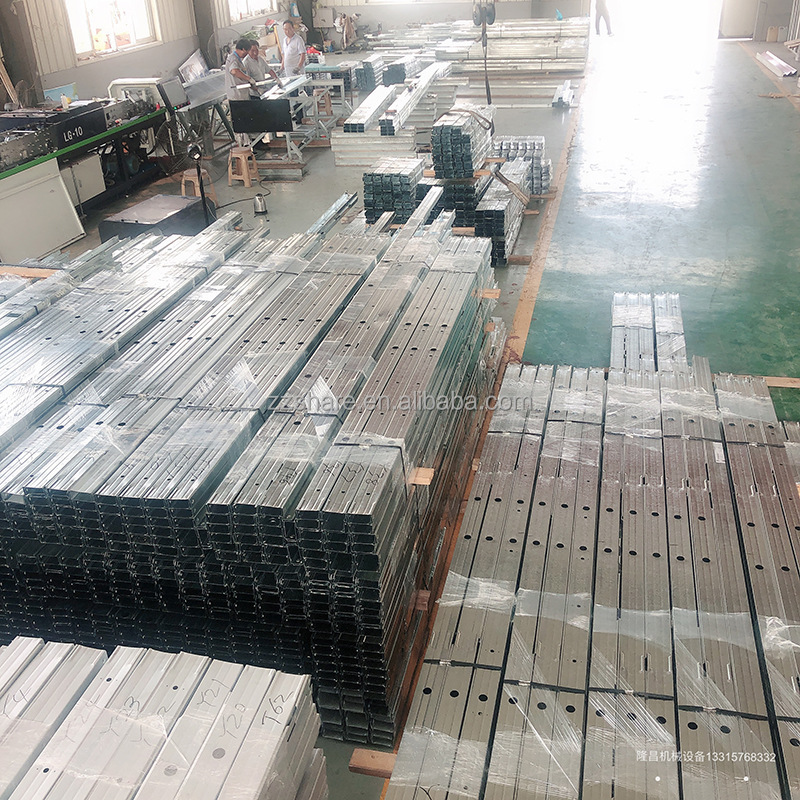

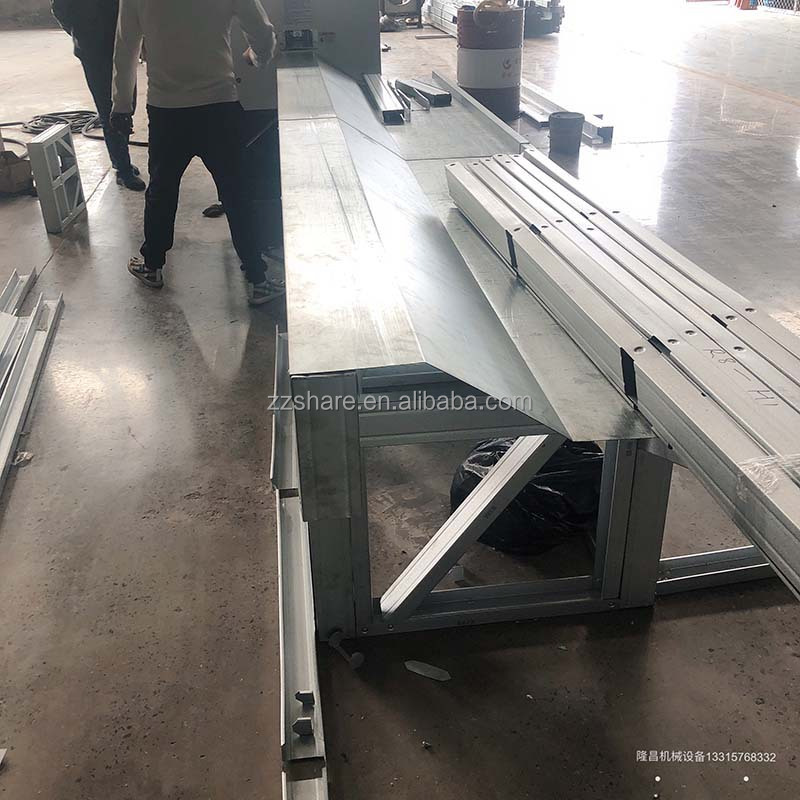

Final product
Wooden frame packing machine
