Automatic metal Ibr shingle trapezoidal shingle roller press machine for sale in South Africa

  • Supplier: Haixing (tianjin) Imp. & Exp. Co., Ltd.
  • Region: Tianjin, China
  • Contact: Ms Alin Zhao
  • Price: $9000.00 / 1 - 2 sets
    $8000.00 / 3 - 9 sets
    $7000.00 / 10 - 19 sets
    $6000.00 / >=20 sets
  • Min. Order: 1 set
Product details
Packaging Details:a. The main body of the machine is made of waterproof plastic, and then fixed on the container with a steel wire with a diameter of 8mm and an angle iron. b. Rollers and shafts are coated with anti-rust oil. c. PLC control system and motor pump are packed with waterproof paper and plastic film. d. Spare parts in carton. e. The manual uncoiler is bare packaged. f. The output table is put into a carton. g. If the machine is too long, we will divide it into two parts and pack them together with steel wire. h. Suitable for shipping by sea.Core component warranty:2 years
Material Thickness:0.3mm-0.8mmplace of origin; place of origin:Tianjing, China
Main selling points:easy to operateRoller material:Cr12
Shaft material:45# steel outer diameter: 70mmDimensions (L*W*H):6050*1500*1600
use:roofMain frame:350H steel
weight:4500 kgAfter-sales service provided:Video technical support
product name:Trapezoid roof rolls for sale in South AfricaState of health:new
Package preview:Mechanical test report:if
payment terms:L/C, Western Union, D/A, T/T, MoneyGram, paypalbrand:China
raw material:PPGI PPGL GI GLVideo shipment inspection:if
main motor power:5.5kwSupply capacity:200 sets per month
port:Tianjin Qingdao Shanghai YiwuFeed width:1220mm
Warranty:2 yearsProduction capacity:10m/min-15m/min
Marketing Type:New Products 2022Motor brand:Lichao
Types of:tile forming machineVoltage:220V/380V/440V
Applicable industries:Building materials stores, manufacturing plants, machinery repair shops, construction, energy and miningRolling Thickness:0.3-0.8mm
Showroom location:Vietnam, Philippines, Peru, Indonesia, Pakistan, India, Mexico, Kenya, Argentina, South Korea, Chile, Sri LankaCutting type:Hydraulic guide post cutting
Core components:Pressure vessels, motors, bearings, gears, pumps, gearboxes, engines, PLCs, countersTiles Type:Color steel
Product Description

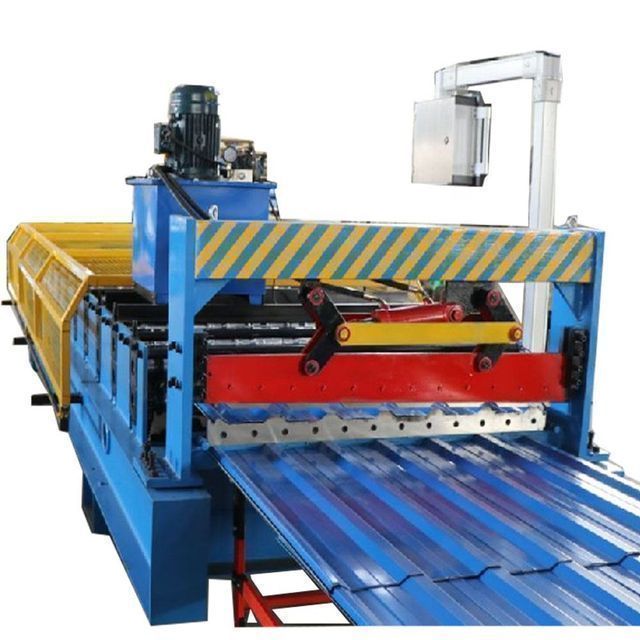

   Automatic metal Ibr shingle trapezoidal shingle roller press machine for sale in South Africa





Detailed technical parameters

product name

Automatic metal Ibr shingle trapezoidal shingle roller press machine for sale in South Africa

brand

China

Types of

#1127 Automatic Metal Ibr Roof Sheets Trapezoidal Roof Sheet Roller Machine for sale in South Africa

Model and raw material

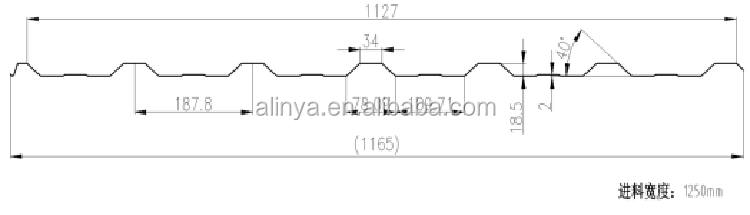

model diagram



















Substrate

Gastrointestinal. gl. PPGI. PPGL. aluminum

thickness

0.3mm-0.8mm

effective width

1127mm

Roll Forming Machine Component Details



size 6050*1500*1600mm

weight

4 tons

frame material

350H steel (customized)

Machine side panel

16mm (customized)

color



All colors (standard international colors) or (customized)

roller



11 rollers

Roller material

45# steel Cr12 Mov HRC 58-62



Shaft diameter

Φ70mm

driving mode

Sprocket and endless chain length: 1"
productivity

10-15m/min



Roll Forming MachineElectrical components

Voltage

380V 50Hz 3phases (can be customized according to local voltage)

Motor Power



5.5KW conventional brand: LI CHAO (customized)

Cutting & Hydraulics





Hydraulic pump station: 4KW Conventional brand: LI CHAO (customized)

Type: Double guide post hydraulic cutting

Blade: Cr12 Mov HRC 58-62

Control System

Conventional brand of PLC electric control cabinet: DELTA (customized)

Screen Regular brand of multilingual button control system: Sanjing(Ccustom made)
frequency converter



Conventional brand: Sanjing (customized)
feature Famous brand, one machine with multiple functions, simple operation, fully automatic computer control, long service life




Advantages of Automatic Metal Ibr Roof Sheet Trapezoidal Roof Sheet Roller Machine for sale in South Africa:



1. Brand-name products with guaranteed quality.

2.itcan produceTrapezoidalProfile can meet the needs of customers who spend less money and use one machine for multiple purposes.

3. Fully automatic computer control, easy to operate.

4. Machine Rollers and shafts are produced to precise requirements and controls. The processing method of the roller material is CR12 MOV heat treatment at 58°C-62°C. The product quality is durable and has a long service life.



Workflow and Main Parts of Automatic Metal Ibr Roof Sheet Trapezoidal Roof Sheet Roller Machine for sale in South Africa:



Name: Manual Uncoiler



Brand: HX



Uses: Used to support steel coils and uncoil them in a rotatable manner.

Steel coils are uncoiled by hand.



Load capacity: 5T



Inner diameter: 507mm-510mm

Feeding table:



Feeding table cut by hand.



During the operation of the machine, the raw material can be cut off in advance at the feeding position to avoid waste of raw material.



The sheet metal is manually placed on the infeed table.

Sheet metal can be smoothed and leveled

Roller and Shaft:



Drum material: 45# steel



Roller material processing method:

1. Rough machining

2. Fine polishing

3. Heat treatment at 58°C-62°C

4.Cr12 hard chrome plating



Shaft diameter: 70mm



Rollers and axles won't scratch boards. It has a long service life and is durable.





Main motor:



Brand: Lichao


Main motor specification: 5.5Kw





Hydraulic pump:



Water pump power: 4KW



Brand: Lichao



Fuel tank pump capacity motor: 45L



Hydraulic pump station provides cutting power

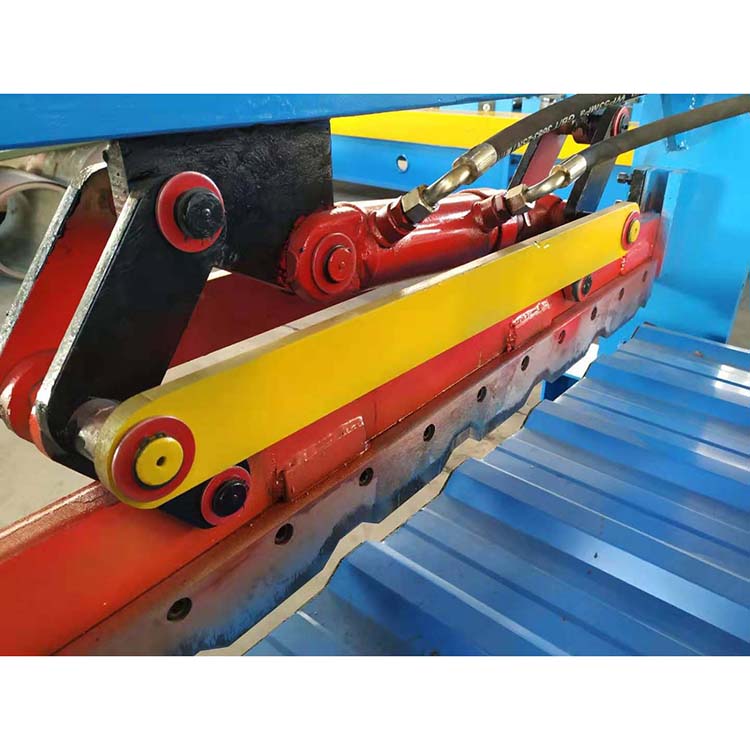

Hydraulic cutting:



Blade material: Cr12, heat treatment 58°C-62°C





When the cutting starts to work, the excitation guide column of the hydraulic pump station works to drive the blade to cut.



Due to the stable cutting method, the section of the metal plate is neat.



PLC electric control system

Brand: Delta



touch screen electronic panel

Brand: Delta



Multilingual function button design



Used to set the cutting size, easy to operate

Applications

Our products are used in the production of roof and wall construction. It can be used in factories, residences, schools, hotels, shops and other construction sites.

Packaging and Shipping



Shipping:

1. Packed in a 20/40ft container.

2. We have professional technicians for loading to make sure the machine is not damaged.

3. Please provide us with the nearest port name, we will ask the shipping cost and arrange the shipping for you.

our service

service advantage:

1. Provide engineering drawing design services

2. Provide machine customization service

3. Remote video service

4. On-site installation service by engineers

5. Help customers book transportation services

6. Help customers purchase raw materials services



After-sales service:

1. Payment term: 30% T/T is paid as deposit, and the remaining 70% is paid after buyer's inspection in seller's factory before delivery.

2. Delivery time: We guarantee that the equipment will be ready to ship within 30 working days after receiving the deposit.

3. After-sales service: If you need, we can send technicians to your country to install the machine. Buyers need to pay all expenses, including: visa, round-trip air ticket, accommodation, daily salary of 100~120 USD.

4. Warranty: 2 years

company information



FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service awareness, specializing in exporting various types of cold roll forming machines.

Q: Can one machine only produce one style of panel profiles?
Answer: Not complete. Suitable for wider and double deck manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: Generally, machines can be finished within 20 to 45 working days. But if you need the machine urgently, we can save your time.

Q: Is there any quality control when producing the production line?
A: Yes, we have a team responsible for quality control, including laying of raw materials, processing of rolls and other parts, processing of roll faces and shafts, assembly, testing and packaging.

Q: What can you do if the machine is broken?
A: Our machine warranty is 24 months. If the damaged parts cannot be repaired, we can send new parts to replace the damaged parts, but you need to pay the express fee by yourself. If the warranty period is exceeded, we can negotiate to solve the problem, and we provide technical support for the entire life cycle of the equipment.

Q: What is your advantage compared with other suppliers?
A: We will give you the best service. We will give you good advice beyond your requirements. These lines are easy to install and require low maintenance.

Q: Can we be your agent abroad?
A: Of course, if you have roll forming line business, we welcome a lot of cooperation.
