Sheet metal building materials manufacturing machinery parts

  • Supplier: Haixing (tianjin) Imp. & Exp. Co., Ltd.
  • Region: Tianjin, China
  • Contact: Ms Alin Zhao
  • Price: $9850.00 / 1 - 2 sets
    $9000.00 / 3 - 9 sets
    $8000.00 / 10 - 19 sets
    $6500.00 / >=20 sets
  • Min. Order: 1 set
Product details
Warranty:2 yearsMain frame:350H steel
Core component warranty:2 yearsShaft material:45# steel outer diameter: 70mm
Voltage:220V/380V/440VPackage preview:
use:roofmain motor power:5.5 kW
Mechanical test report:ifVideo outbound inspection:if
Core components:Pressure vessels, motors, bearings, gears, pumps, gearboxes, engines, PLCs, countersRoller material:Cr12
Production capacity:10m/min-15m/minpayment terms:L/C, Western Union, D/A, T/T, MoneyGram, PayPal
Feeding width:925port:Tianjin Qingdao Shanghai Yiwu
Packaging Details:a. The main body of the machine is made of waterproof plastic, and then fixed on the container with a steel wire with a diameter of 8mm and an angle iron. b. Rollers and shafts are coated with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d. Spare parts in the carton. e. Manual uncoiler bare package. f. Put the output table into the carton. g. If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h. Suitable for shipping by sea.Cutting type:Hydraulic guide post cutting
Dimensions (L*W*H):5050*1500*1600Material Thickness:0.3mm-0.8mm
type:tile forming machineraw material:PPGI PPGL GI GL
Tiles Type:Color steelMain selling points:easy to operate
product name:Sheet metal building materials manufacturing machinery partsAfter Warranty Service:spare parts
brand:ChinaSupply capacity:200 sets per month
Showroom location:Brazil, Peru, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, Sri Lanka, Romania, Bangladesh, South AfricaRolling Thickness:0.3-0.8mm
weight:4500 kgApplicable industries:Building materials stores, manufacturing plants, machinery repair shops, farms, construction, energy and mining
Health status:newOrigin:Tianjing, China
After-sales service provided:Video Technical SupportMarketing Type:2020 New Products
Product Description

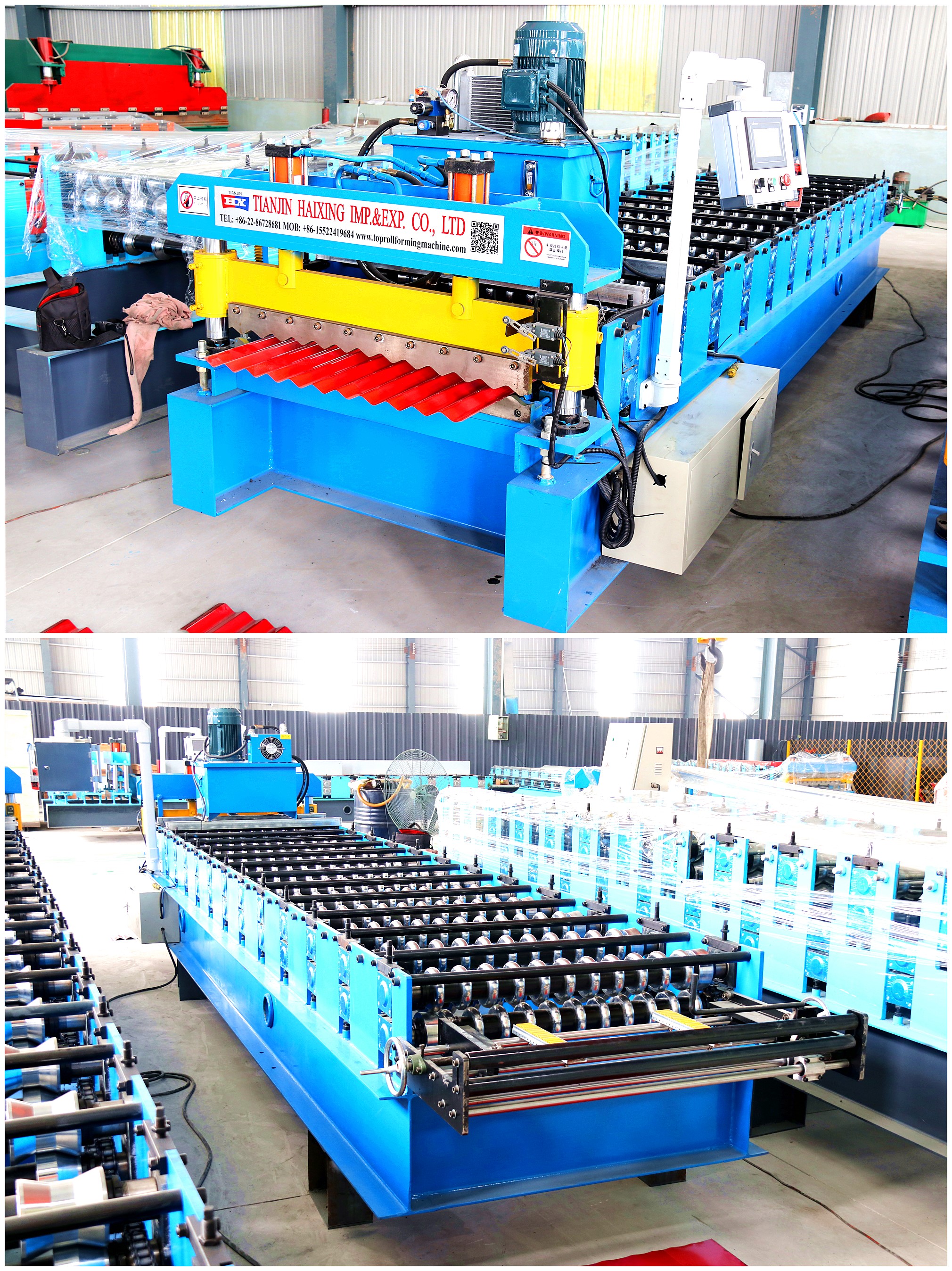

Sheet metal building materials manufacturing machinery parts


Detailed technical parameters

product name

Sheet metal building materials manufacturing machinery parts




#HX 762 Sheet metal building materials manufacturing machinery parts

Model and raw material


geographical indication. gl. PPGI. PPGL. aluminum



effective width

762 mm

Roll Forming Machine Component Details


size 5050*1500*1600mm


4 tons

frame material

350H steel

Machine side panel




All colors (standard international colors) or (customized)



13 rolls

Roller material

45# steel Cr12 Mov HRC 58-62


shaft diameter


drive mode

Sprocket and Bike Chain Length: 1"



Roll Forming MachineElectrical components


380V 50Hz 3-phase (can be customized according to local voltage)

Motor Power


5.5KW conventional brand: LI CHAO

Cutting & Hydraulics



Hydraulic pump station: 4KW Conventional brand: LI CHAO

Type: Double guide post hydraulic cutting

Blade: Cr12 Mov HRC 58-62

Control System

Conventional brand of PLC electric control cabinet: DELTA

Screen Common brand of multilingual button control system: Delta
frequency converter


Regular brand: Delta
feature Famous brand, multi-purpose, easy to operate, fully automatic computer control, long service life


Advantages of sheet metal building materials manufacturing machinery parts:


1. Well-known brands with guaranteed quality.

2.itcan generate waves Profiles can meet the needs of customers for low cost and multi-purpose.

3. Fully automatic computer control, easy to operate.

4. Machine Rollers and shafts are produced according to precise requirements and controls. The processing method of the roller material is CR12 MOV heat treatment at 58°C-62°C. The product quality is sturdy and durable, and has a long service life.

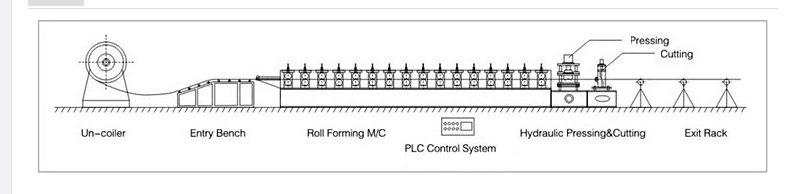

Workflow and main components of sheet metal building materials manufacturing machinery accessories:

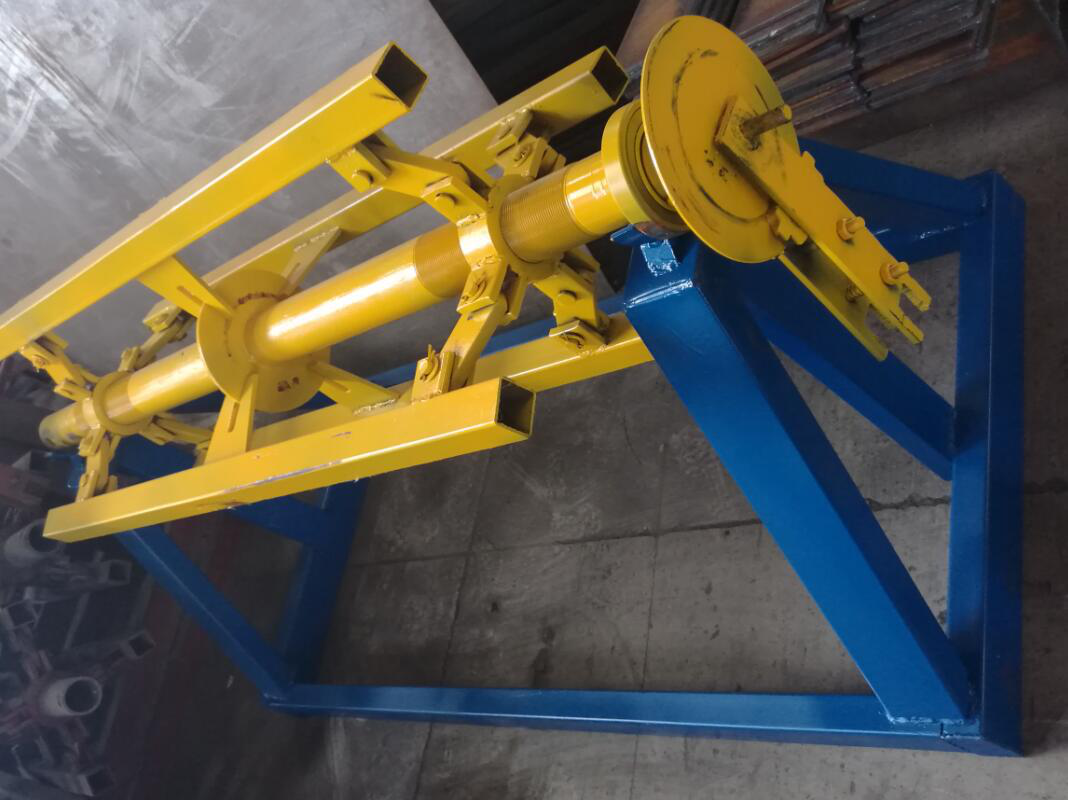

Name: Manual Uncoiler


Brand: HX


Uses: Used to support steel coils and rotatably uncoil them.

Steel coils are uncoiled by hand.


Carrying capacity: 5T


Inner diameter: 507mm-510mm

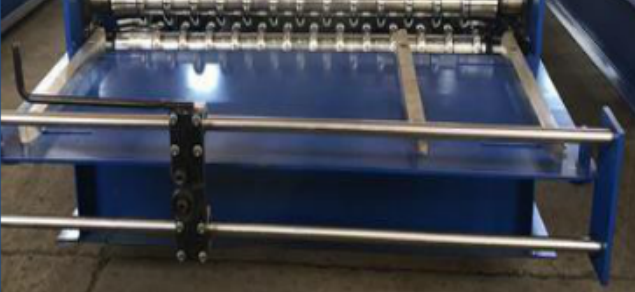

Feeding station:


The feeding table adopts manual cutting.


During the operation of the machine, the raw material can be cut off in advance at the feeding position to avoid waste of raw material.


The sheet metal is manually placed on the feed table.

Sheet metal can be smoothed and leveled

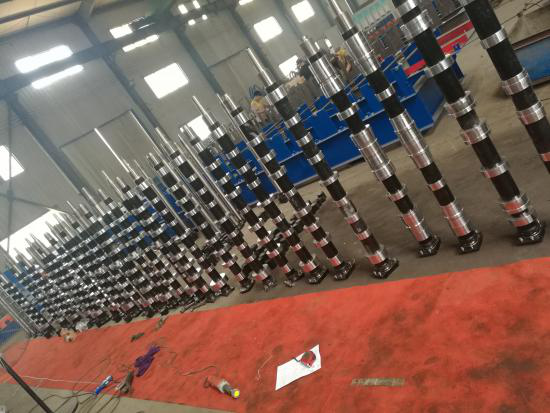

Rollers and shafts:


Drum material: 45# steel


Drum material processing method:

1. Rough machining

2. Fine polishing

3. Heat treatment at 58°C-62°C

4.Cr12 hard chrome plating


Shaft diameter: 70mm


Rollers and shafts will not scratch the sheet. Long service life and durable.

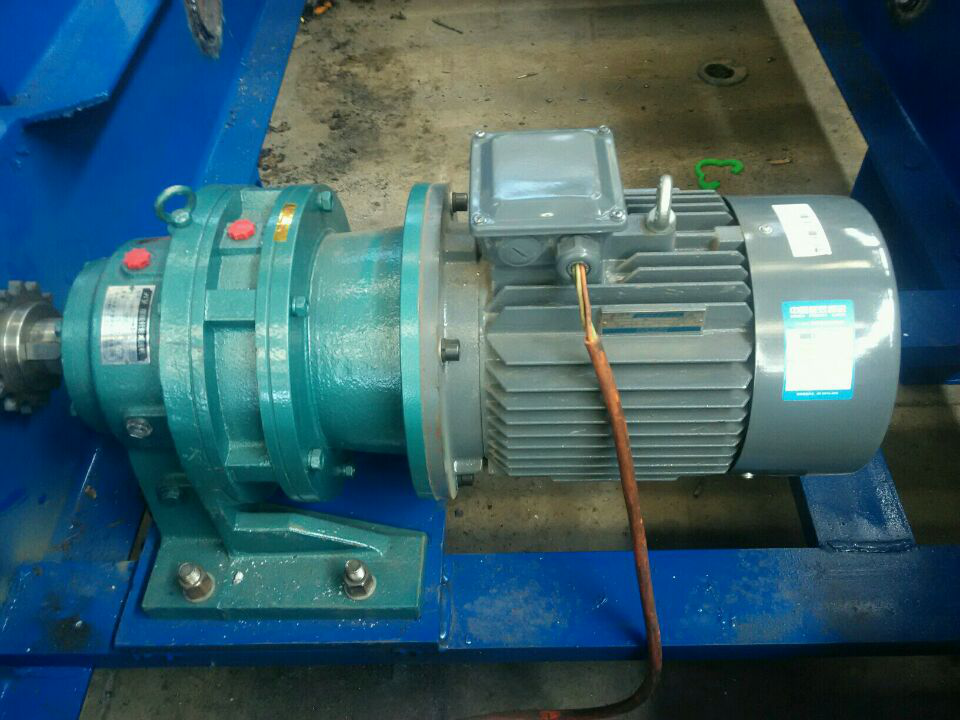

Main motor:


Brand: Lichao

Main motor power: 5.5Kw



Hydraulic pump:


Water pump power: 4KW


Brand: Lichao


Motor with pump capacity: 45L


Hydraulic pump station provides cutting power

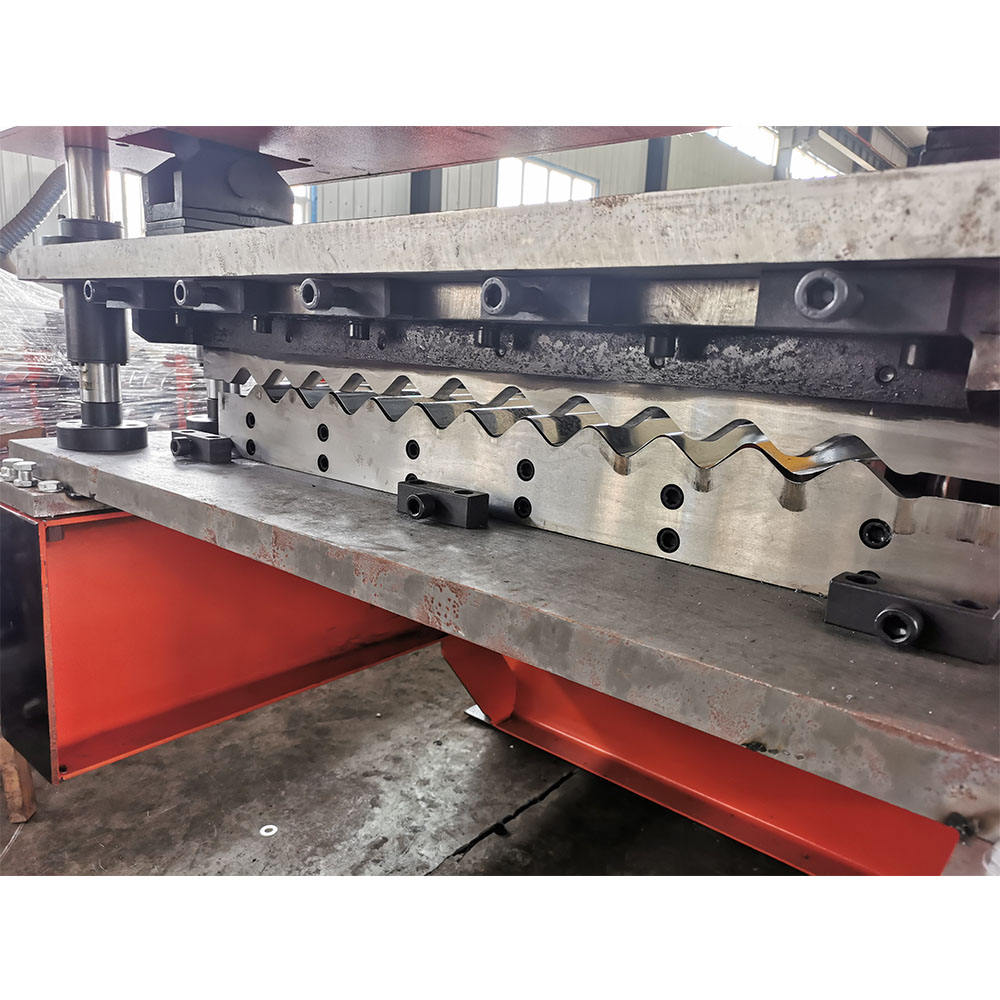

Hydraulic cutting:


Blade material: Cr12, heat treatment 58°C-62°C



When the cutting starts to work, the excitation guide column of the hydraulic pump station works to drive the blade to cut.


Due to the stable cutting method, the sheet metal cross-section is neat.

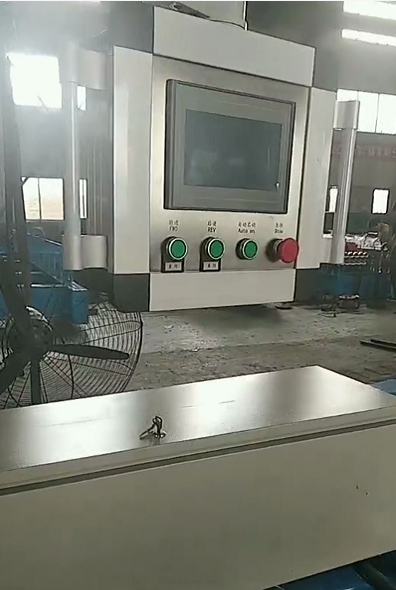

PLC electric control system

Brand: Delta


touch screen electronic panel

Brand: Delta


Button design with multilingual capabilities


Used to set the cutting size, easy to operate

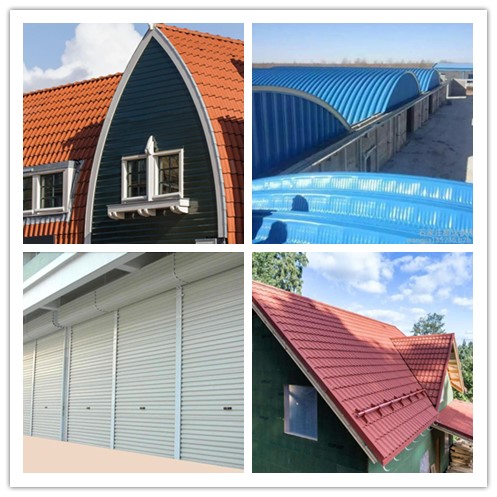

Our products are used in the production of roof and wall construction. It can be used in construction sites such as factories, residences, schools, hotels, shops, etc.

Packaging and Shipping



1. Loaded in a 20/40ft container.

2. We have professional technicians for loading to ensure that the machine is not damaged.

3. Please provide us the name of the nearest port, we will ask the freight and arrange the transportation for you.

our service

service advantage:

1. Provide engineering drawing design services

2. Provide machine customization service

3. Remote video service

4. Engineer on-site installation service

5. Help customers book transportation services

6. Help customers purchase raw materials services


After-sales service:

1. Payment method: 30% by T/T as a deposit, and the remaining 70% is paid by the buyer after inspection in the seller's factory before delivery.

2. Delivery time: We guarantee that the equipment will be ready for shipment within 30 working days after receiving the deposit.

3. After-sales service: If you need, we can send technicians to your country to install the machine. Buyers need to pay all expenses, including: visas, round-trip air tickets, accommodation, wages of 100~120 USD per day.

4. Warranty period: 2 years

company information



Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service awareness, specializing in exporting various types of cold roll forming machines.

Q: Can one machine only produce one style of panel profile?
Answer: Not complete. Suitable for wider double deck manufacturing machines. More than 3 panels can be produced.

Q: How long does it take to manufacture the machine?
A: Generally, machines can be finished within 20 to 45 working days. But if you need the machine urgently, we can save your time.

Q: Is there any quality control when the production line is produced?
A: Yes, we have a team responsible for quality control, including laying of raw materials, processing of parts such as rolls, processing of roll faces and shafts, assembly, testing and packaging.

Q: What can you do if the machine is broken?
A: Our machine warranty is 24 months. If the damaged parts cannot be repaired, we can send new parts to replace the damaged parts, but you need to pay the express fee by yourself. If the warranty period is exceeded, we can negotiate a solution and provide technical support for the entire life cycle of the equipment.

Q: What is your advantage compared with other suppliers?
A: We will provide you with the best service. We will give you good advice beyond your requirements. These lines are easy to install and require low maintenance.

Q: Can we be your agent abroad?
A: Of course, if you have the business of roll forming line, we will welcome a lot of cooperation.
