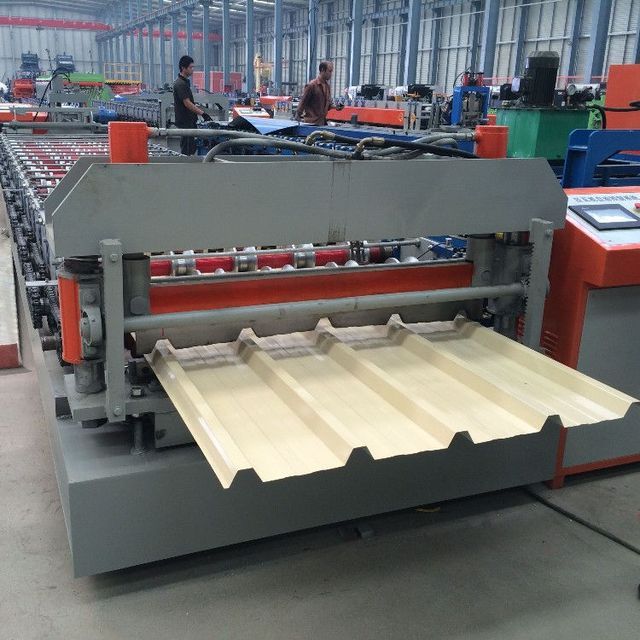

Wall and color steel tile type polyurethane sandwich roof panel manufacturing machine
- 5000.00 set
| Certification: | CE/ISO9001 | Dimensions (L*W*H): | 5m*1.3m*1.3m-15m*1.3m*1.4m, 6500*1500*1500mm |
| After-sales service provided: | Online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, engineers can provide overseas service machinery | Warranty: | 1 year |
| Origin: | Hebei china | weight: | 4 tons |
| Supply capacity: | 200 sets per year | type: | Tile Forming Machine, Roof Sheet Roll Forming Machine |
| payment terms: | L/C, T/T, MoneyGram | Production capacity: | 15-20m/min, 15-20m |
| use: | roof | Health status: | new |
| Voltage: | 380V 50Hz 3 phase, 380 volts, 3 phase and 50 Hz or as per buyer's requirement | brand: | YY |
| Packaging Details: | Bare packing with waterproof, one machine needs one 20ft container. | Tiles Type: | Color steel, color enamelled steel |
| port: | Tianjin | Power (watts): | 4+4kw |
| thickness: | 0.4-1.2mm | Applicable industries: | construction project |
Specification:
Our company is a roll forming machine manufacturer. At present, our products have been exported to more than 70 countries and regions around the world, and we maintain good cooperative relations with customers
show | parameter |
|
Applicable material | PPGI or galvanized coil | |
Applicable material | Raw material width: 1000 and 1250mm Thickness 0.3-0.8mm | |
productivity | 12-15m/min | |
Roll Forming Steps | 17 steps | |
Roller material | 45# Chromium added after heat treatment | |
Spacers, balance bars, screws | All done in chrome to ensure good looks | |
Drive shaft diameter | Φ70mm | |
host structure | 350H | |
siding | 16mm | |
strength | 3KW main motor, cycloid reducer works smoothly and without noise | |
to cut | Hydraulic shears, blade material CR12 | |
spread | 1'' gear chain | |
Control System | Delta PLC computer control system is equipped with Chrizi inverter to ensure precision; Winwin color touch screen. The program is written in English, working mode: automatic and manual | |
Hydraulic system | 3kw hydraulic motor | |
Voltage | AC380V/50HZ/3 phase orair conditionertwenty two0-240V/60HZ/3 phaseorair conditionertwenty two0-240V/60HZ/single phase | |
Upgrade Manual Uncoiler | Maximum load capacity: 5000kgs, inner diameter: 508-610mm, maximum coil width: 1250mm | |
foil table | One, 6 stepping rollers, each length 3000mm | |
Dimensions (L*W*H) | 9000*1500*2500MM | |
weight | 7500 kg | |

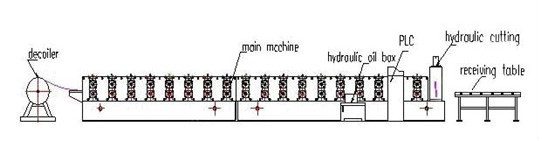

Element | Upgraded manual uncoiler-guide feeding-forming department-scissor device-hydraulic system-PLC computer control cabinet-discharging table | |
PS: The above is just for reference; we design the machine according to your needs.
picture:
Processing:

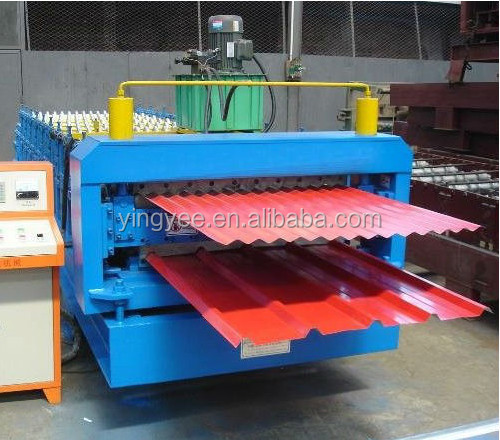

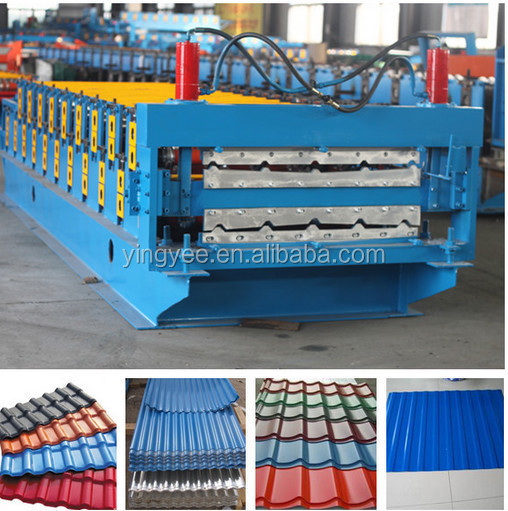

Three-layer molding machine
