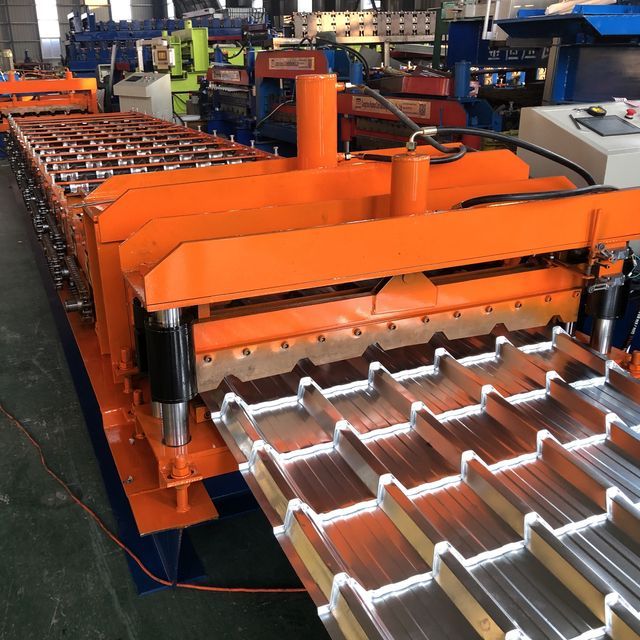

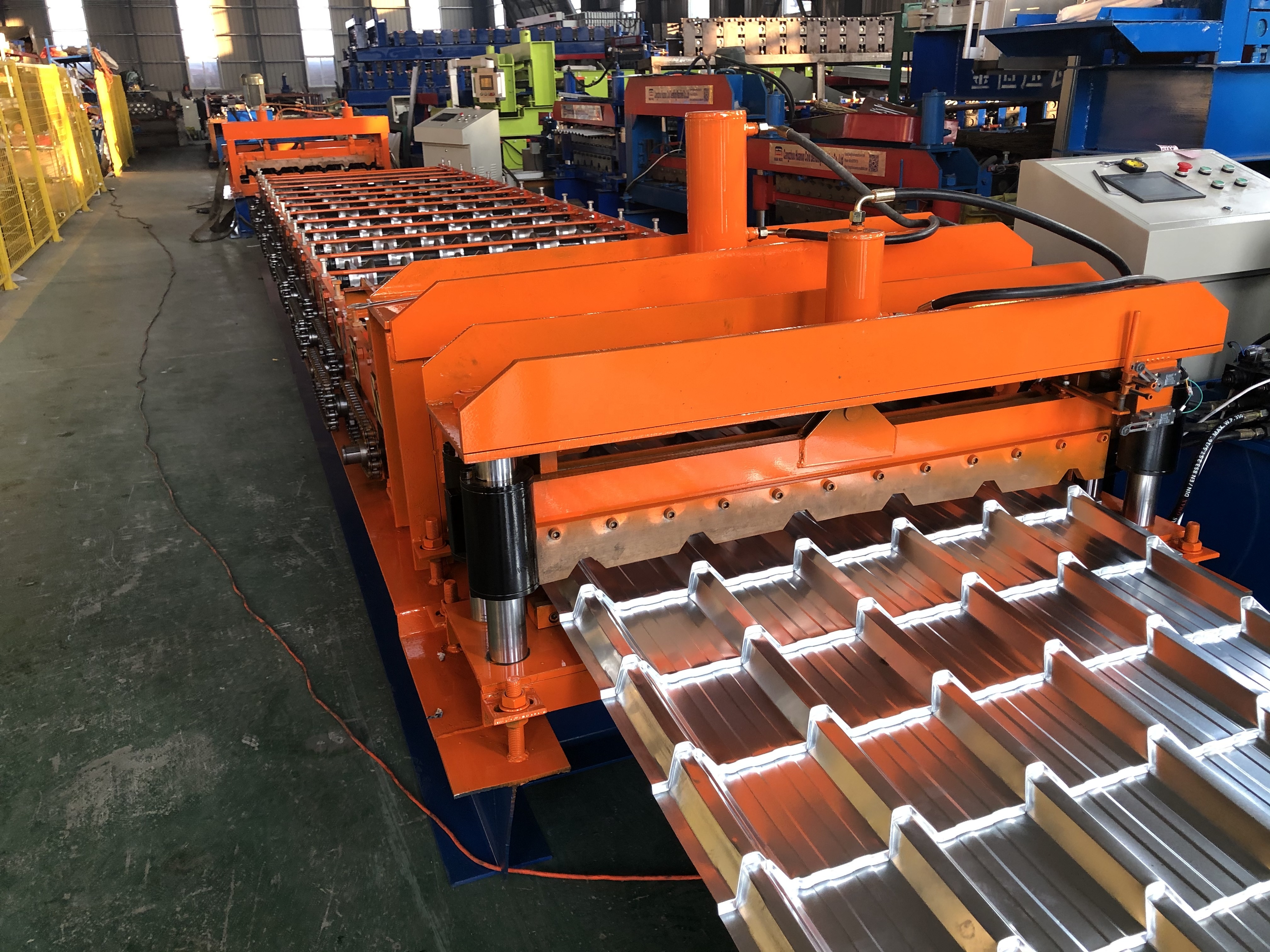

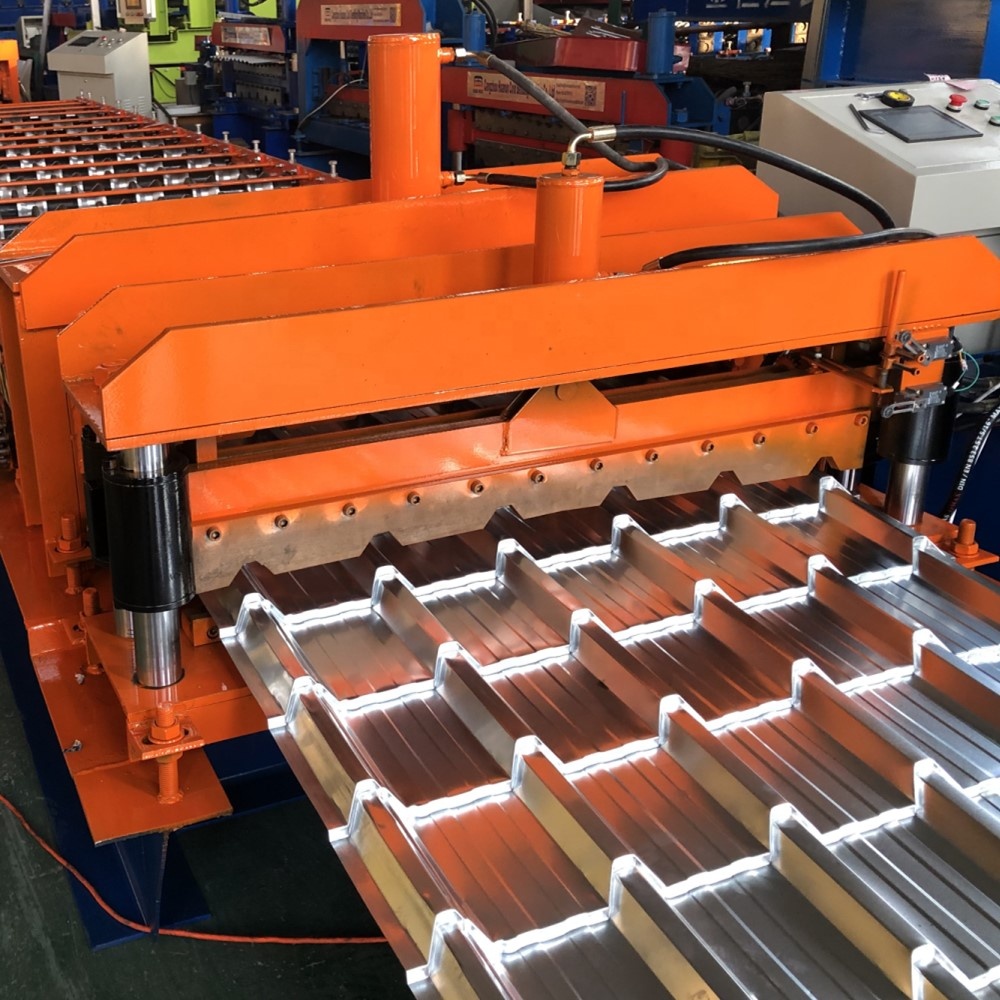

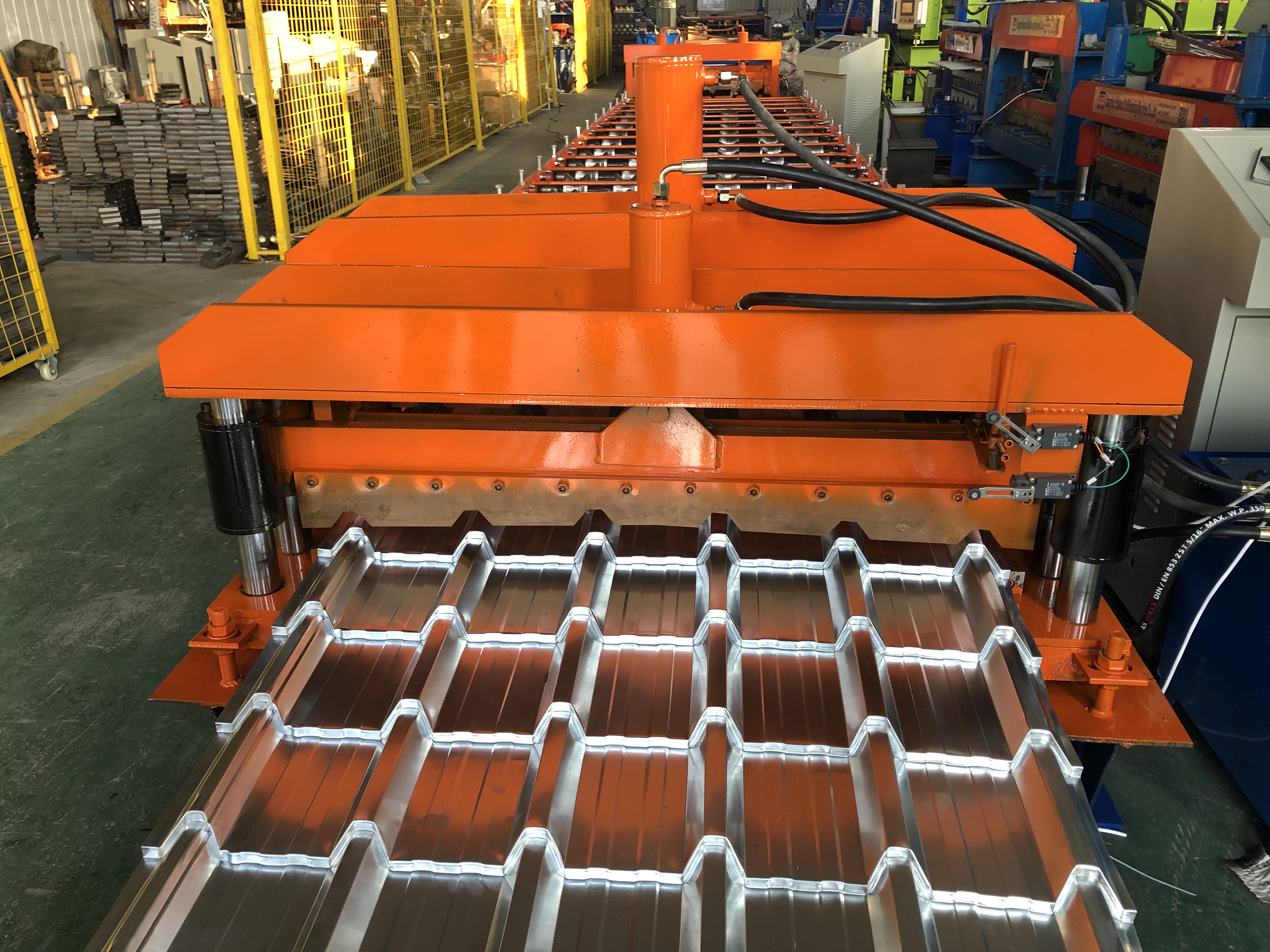

1000 type roof panel glazed tile pressing machine
- 11500.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| use: | roof | weight: | 4500 kg |
| Core components: | Bearings, gears, PLCs | Feeding width: | 1220mm |
| Roller Station: | 15 stations | Packaging Details: | nude |
| Cutting blade material: | Cr 12 high-quality steel | Voltage: | 380V 50Hz 3 phase or as your request |
| Mechanical test report: | if | type: | tile forming machine |
| Origin: | Hebei china | payment terms: | wire transfer |
| Tiles Type: | Glass steel | Production capacity: | 0-5m/min |
| After-sales service provided: | Online SupportVideoTechnical Support | Showroom location: | not any |
| Core component warranty: | 1.5 years | Rolling Thickness: | 0.3-0.8mm |
| product name: | Roof tile forming machine | Applicable industries: | Hotels, building material stores, manufacturing plants, machinery repair shops, home use, construction projects |
| usage: | steel structure | Dimensions (L*W*H): | 7.7*1.6*1.2m |
| Roller material: | 45# steel chrome plated | Health status: | new |
| Main selling points: | easy to operate | Marketing Type: | New Products for 2021 |
| raw material: | PPGI PPGL GI GL | brand: | Northland |
| Supply capacity: | 30 sets per month | Video outbound inspection: | if |
| Warranty: | 2 years | port: | Tianjin, Qingdao, Shanghai, Guangzhou |
Product Description
| 1 | suitable for processing | Color steel |
| 2 | effective width | 1000 mm |
| 3 | Feeding width | 1220 mm |
| 4 | roller | 15 rows |
| 5 | Drum diameter | 70mm |
| 6 | Steel thickness | 0.3-0.6mm |
| 7 | Motor Power | 5.5 kW |
| 8 | pump power | 5.5 kW |
| 9 | Speed of work | 0-6m/min |
| 10 | Cutting knife material | Cr12 quenching |
| 11 | Roller material | 45# steel quenching |
| 12 | Main Frame | 350H steel |
| 13 | Voltage | According to customer's request |
| 14 | weight | About 4.5T |
