Tpdt disables on ignition switch with light, toggle switch 12v dc

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nancy Yang
Price: $1.20 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

type:	Illuminated toggle switch	brand:	Xuri
Electrical life:	More than 100,000 times	port:	Ningbo or Shanghai
maximum. current:	25A	Packaging Details:	Carton(cm) :382238 1000pcs/carton 500pcs/carton 300pcs/carton
model:	XT-33A	Shell material:	nylon
place of origin; place of origin:	Zhejiang, China	payment terms:	Letter of Credit, T/T, Western Union, MoneyGram
waterproof:	protective cap	Certificate:	UL CCC CE TUV
terminal:	Screw terminal or Tab terminal	specified load:	15A 250VAC / 25A 250VAC
Supply capacity:	10000 pieces per day	maximum. Voltage:	250VAC
Mechanical life:	More than 500,000 times	Contact list:	TPDT switch on

Tpdt on off on illuminated toggle switch, 12v dc toggle switch

feature:

Adopt thermoplastic shell, compact structure and simple installation;
can be installedProtective cover to prevent oil and dust;
Manual reset and automatic reset, flexible choice;
Widely used in electrical equipment, automated machinery, communication equipment and instruments, power tools, etc.

Technical Specifications:

thing		data
specified load		15A/250VAC, 25A/250VAC
working frequency		30 times/min
Insulation resistance		Above 100MΩDC500V
Contact resistance		25mΩ initial value
Pressure resistance	unconnected line	1000VAC
	per terminal	1500VAC
vibration	misoperation	10-55Hz amplitude 1.5mm
influences	durable	1000m/s²
	misoperation	300m/s²
Life	electric	More than 100,000
	Mechanical	More than 500,000
Protection class		IP40
Operating temperature		-25~+80℃
Working humidity		<85%

Mounting holes and product structure:

Terminal form:

Dimensions:

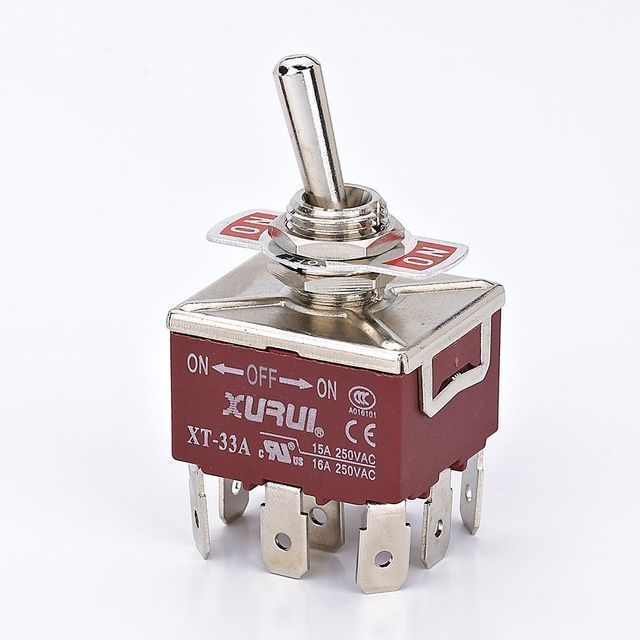

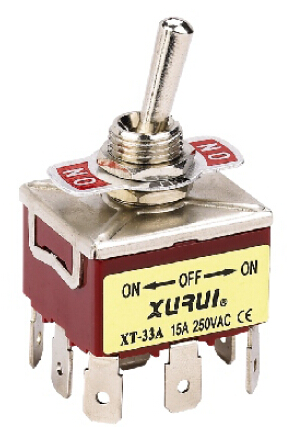

Model: XT-33A (ON-OFF-ON, TPDT)

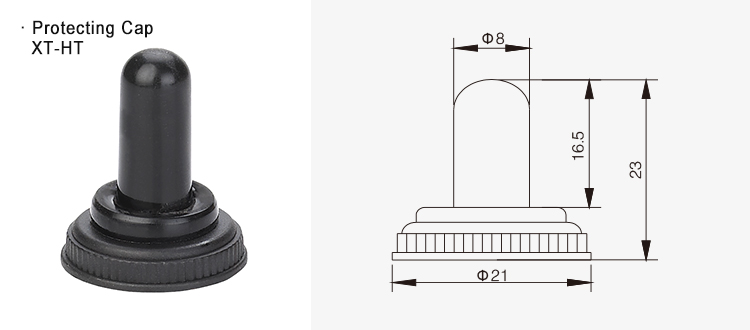

Waterproof protective cap:

Our complete range of toggle switches:

Toggle switch certification: UL KC TUV CE CCC

Our certification

main products

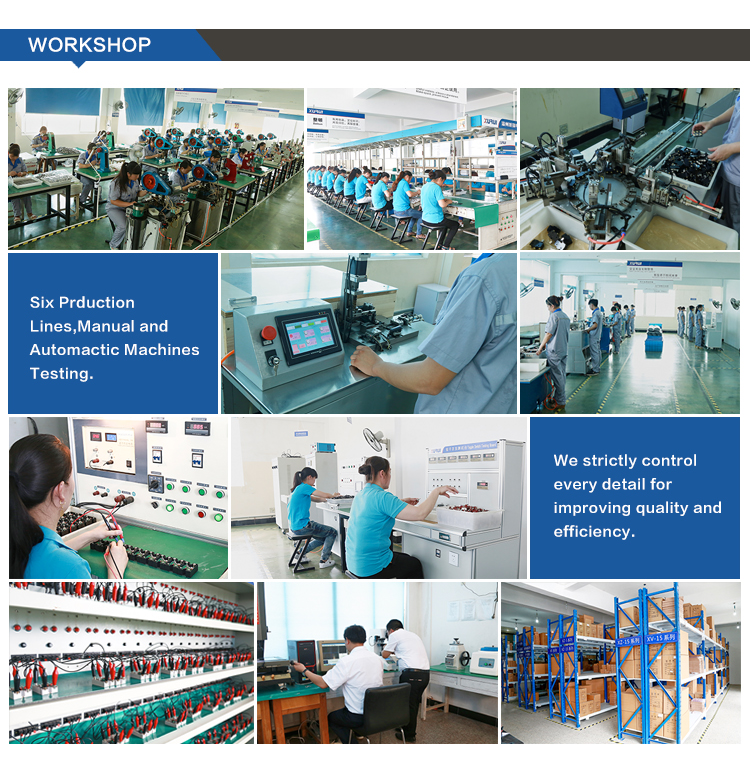

Our factory
