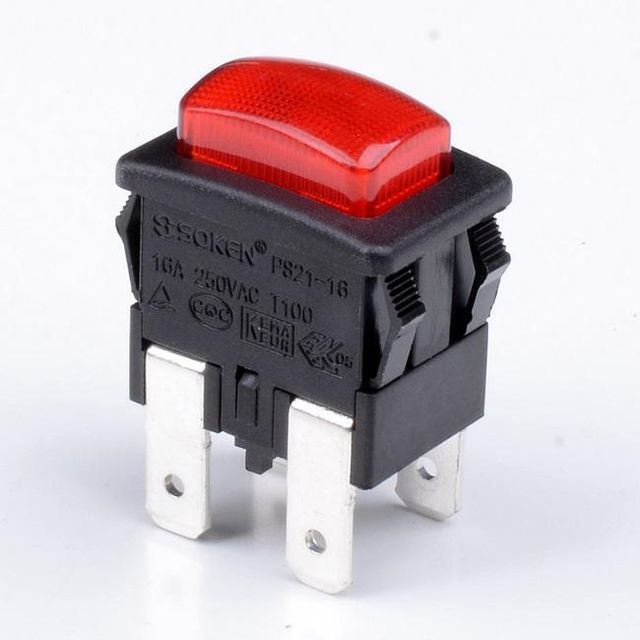

PS21-16 Momentary push button switch 16A 250VAC

Supplier: Ningbo Master Soken Electrical Co., Ltd
Region: Zhejiang, China
Contact: Ms Mandy Xia
Price: $0.50 / 1 - 2999 pieces
$0.40 / 3000 - 19999 pieces
$0.36 / >=20000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Electrical life:	10000 cycles	terminal:	4.8mmx0.8mm
maximum. Voltage:	250VAC	maximum. current:	16A
Certificate:	RoHS CQC TUV	Shell color:	black and white
application:	Vacuum cleaner	Packaging Details:	1 piece/opp bag/box
Origin:	Zhejiang, China	Shell color:	black and white
Function:	push away / push away	model:	PS21-16
brand:	Research	Sales unit:	single product
Mechanical life:	10000 cycles	Certification:	TUV CB KEMA ENEC
Gross weight per piece:	0.020 kg	category:	power switch button
Single package size:	2.1X1.5X3.1 cm	Button color:	black and white

PS21-16 Momentary push button switch 16A 250VAC

Rocker switch

---Production Instructions---

Model	PS21-16
Function	push away / push away

---Production specification---

score	250VAC 16A
Contact resistance	Maximum 100MΩ
Dielectric strength	1500VAC/ 5S terminals and terminals. 3000VAC 5s terminal and ground
Operating temperature	-25~85℃
Insulation resistance	500VDC, min 100MΩ
Electrical life	≥10,000 cycles
pin (terminal)	2,4 pins
building materials	Nylon 66
Button material	personal computer

---Materials---

Primer	Nylon 66
button plastic	personal computer
Copper parts such as terminals	copper
Terminal surface treatment	silver
touch	silver or composite silver
spring	steel wire
waterproof material	pvc

-- Advantage- -

. CQC, UL, TUV, KEMA, VDE, CE, RoHS certification

. For home appliances and electronic equipment

. On-demand processing

. Customized according to your samples, drawings, pictures or photos

---Production display---

----Production Application---

instructions

--- Button model description ---

---company exhibition---

Established in 1996, Ningbo Master Chuangyan Electric Appliance Co., Ltd. is a governing unit of the Electrical Accessories and Electrical Controller Branch of China Electronics and Electrical Appliances Industry Association. We are a manufacturer specializing in the R&D, production, sales and service of various switches, including rocker switches, rotary switches, push button switches, key switches, and indicator lights, which are widely used in different fields such as household appliances, industrial facilities, instruments, and communication equipment. , Fitness and beauty equipment.
