Switch Switch 10A 277VAC 20A 1250VAC Car Toggle Switch

Supplier: Huizhou Grandye Industrial Co., Ltd.
Region: Guangdong, China
Contact: Ms Anna Xie
Price: $0.01 /piece
Min. Order: 1 piece

Click here to contact

Product details

model:	MT-3021	Function:	switch
Whether smart:	No	Supply capacity:	3,000,000 pieces per month
score:	6A 125VAC/ 3A 250VAC	Packaging Details:	1200pcs/ctn 3.5kgs For more details, please feel free to contact us Zingear G5T16 AC DC 0.1-22A 25t125 5e4 SPDT SPST Lever Basic Defond Snap Action Micro Switch, Micro Switch
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	product name:	Toggle switch on/off
Origin:	Guangdong, China	maximum. current:	10A
Certification:	ULcul, CQC, ENEC	Package preview:
port:	Hong Kong, Shenzhen, Guangzhou, Huizhou	brand:	Linger
maximum. Voltage:	277V	Material:	metal base/phenolic base

Why choose us?

1. Zing Ear factory has high standards in product quality control;

2. We have passed ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC and other certifications.

3. Our customers come from all over the world, such as the United States, the United Kingdom, Japan, Germany, Argentina, Mexico, Singapore, so that we can understand the shipping policies of different countries

4. Provide customers with one-stop service, save your time and money

5. Provide free samples, data sheets and 3D files for corporate customers

Product Description

Case cover material	Metal
Housing base material	Phenolic Resin

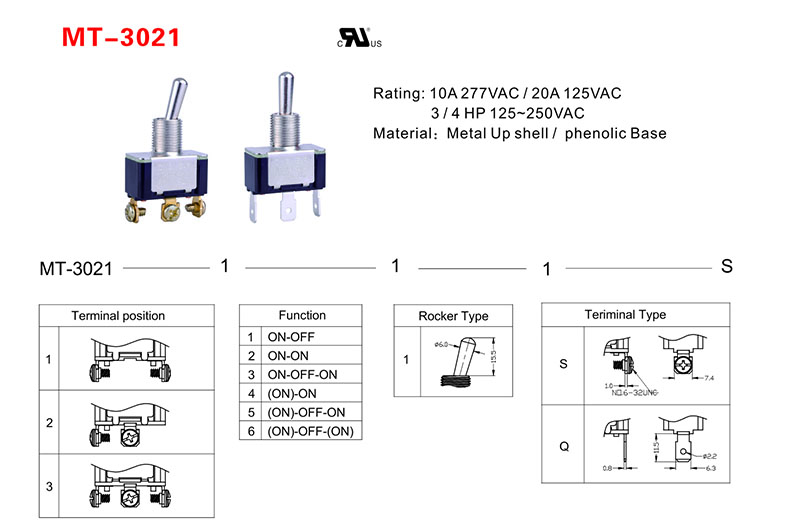

MT-2021 Rating	10A 277VAC/ 20A 125VAC
Function	On-Off, On-On, On-Off-On, (ON)-ON, (ON)-OFF-ON, (ON)-OFF-(ON)
free sample	usable

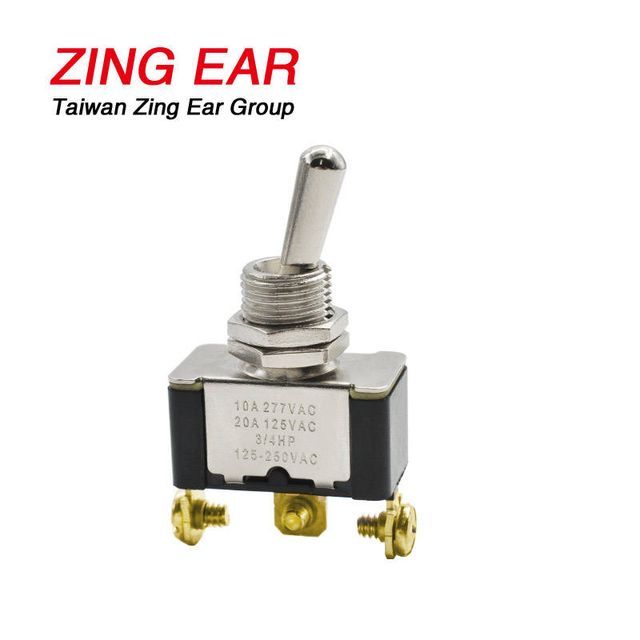

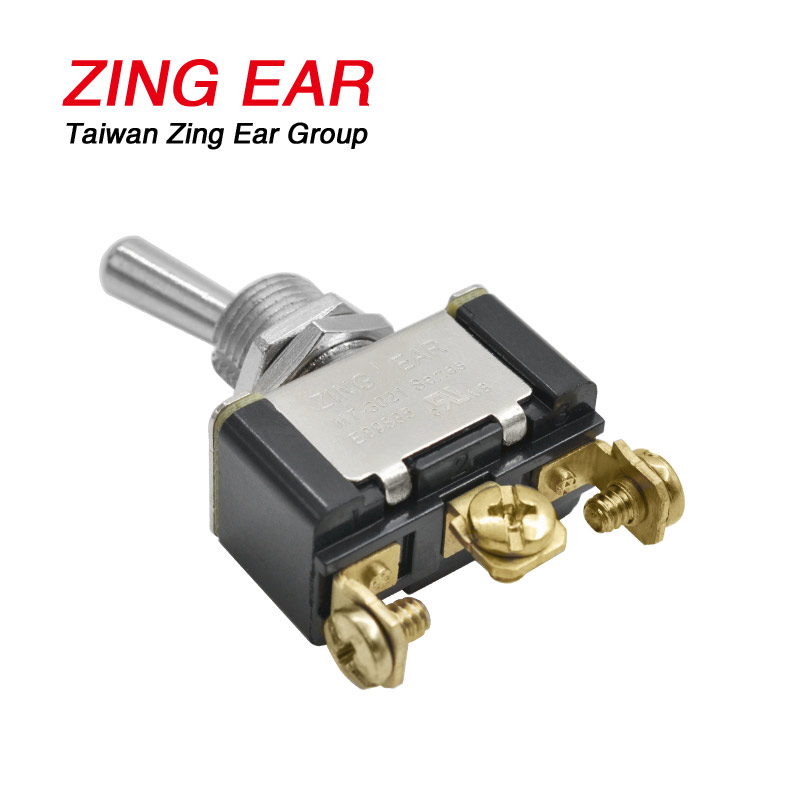

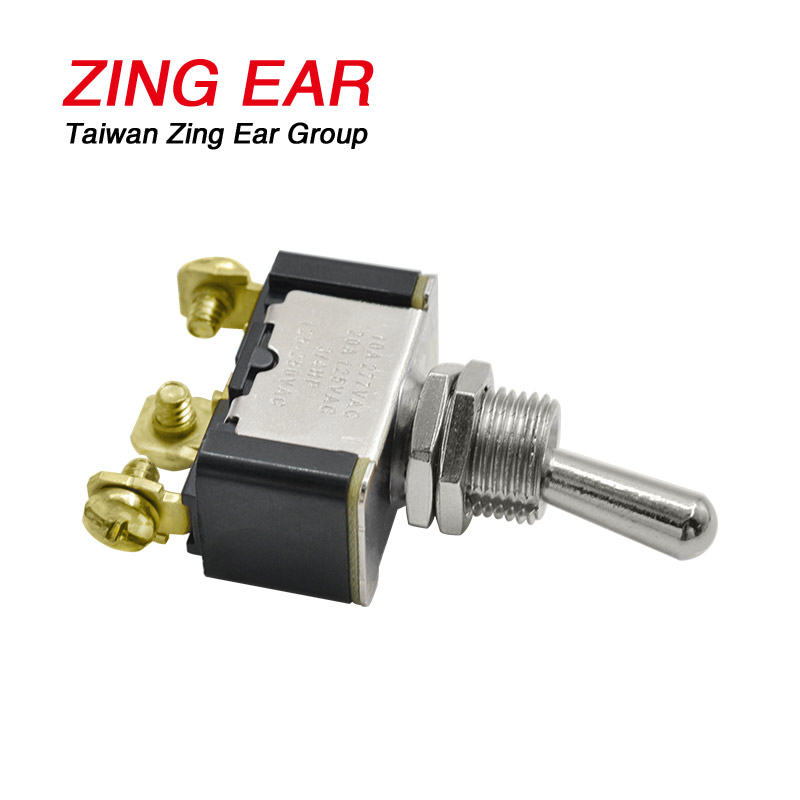

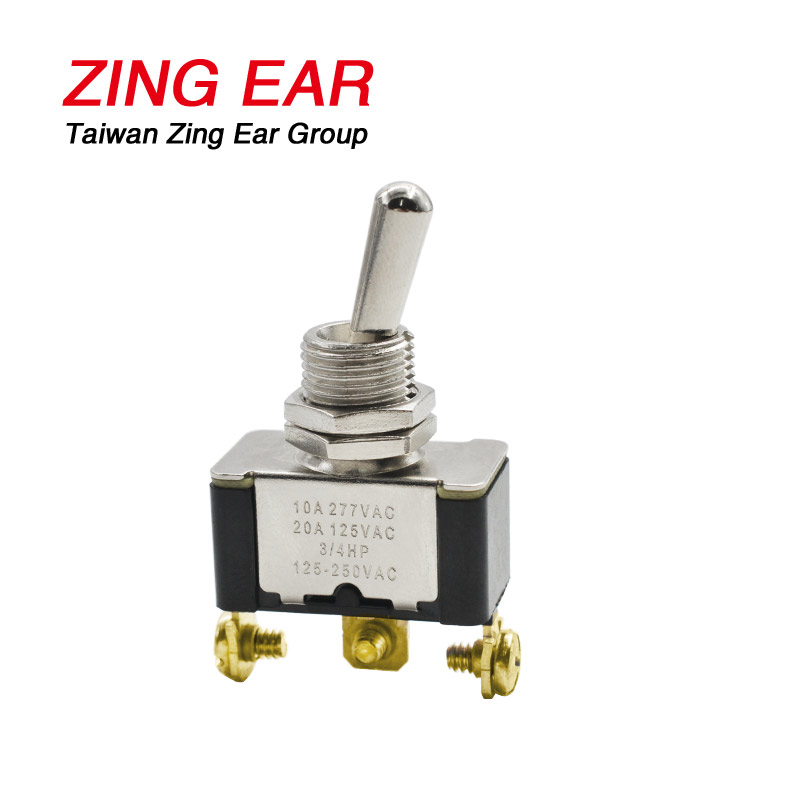

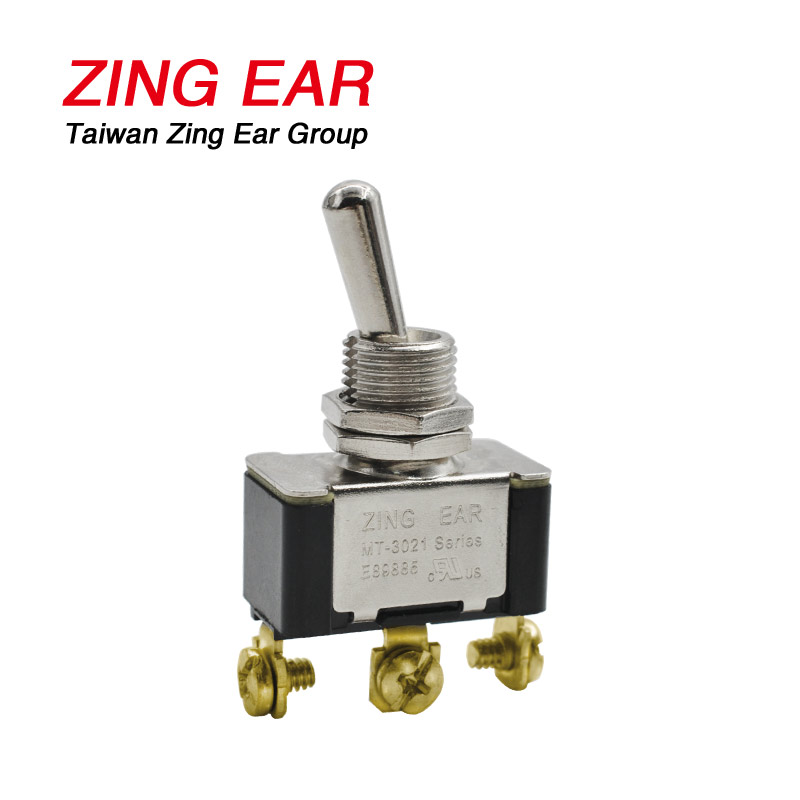

MT-3021 Toggle Switch Features

1. MT-3021 is a high current toggle switch, Max. The safety certification current is 20A, and most equipment can be used;

2. High-quality materials, high production standards, to ensure the quality of the switch. For example, the terminal metal is pure copper and the contacts are silver, so itsConductivity will be so good;

3. A variety of functions for your choice. For example ON-OFF, ON-ON, ON-OFF-ON, (ON)-ON, (ON)-OFF-ON, and (ON)-OFF-(ON).
