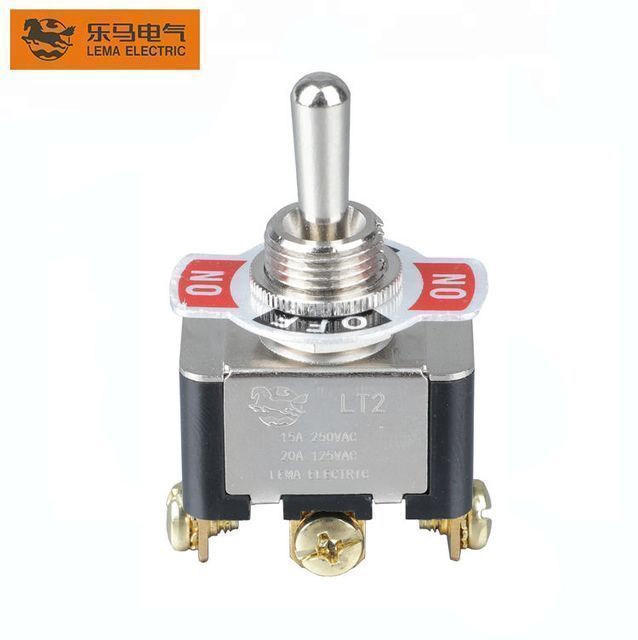

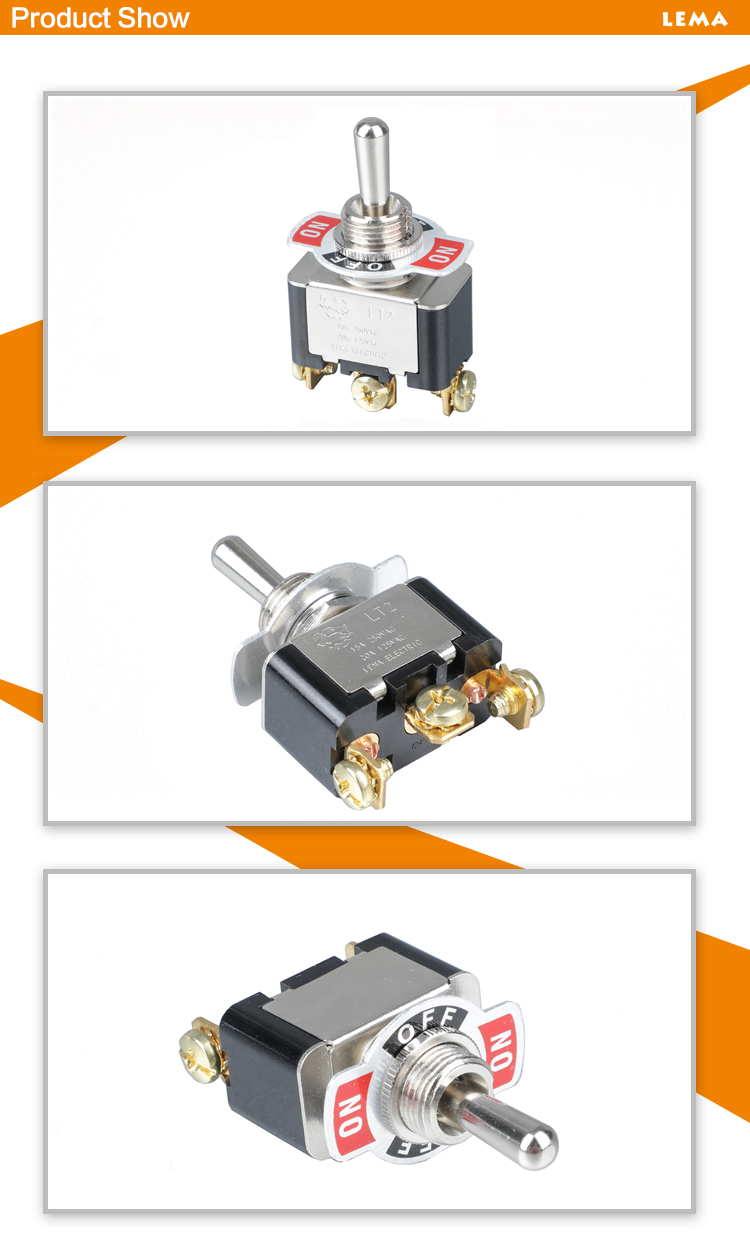

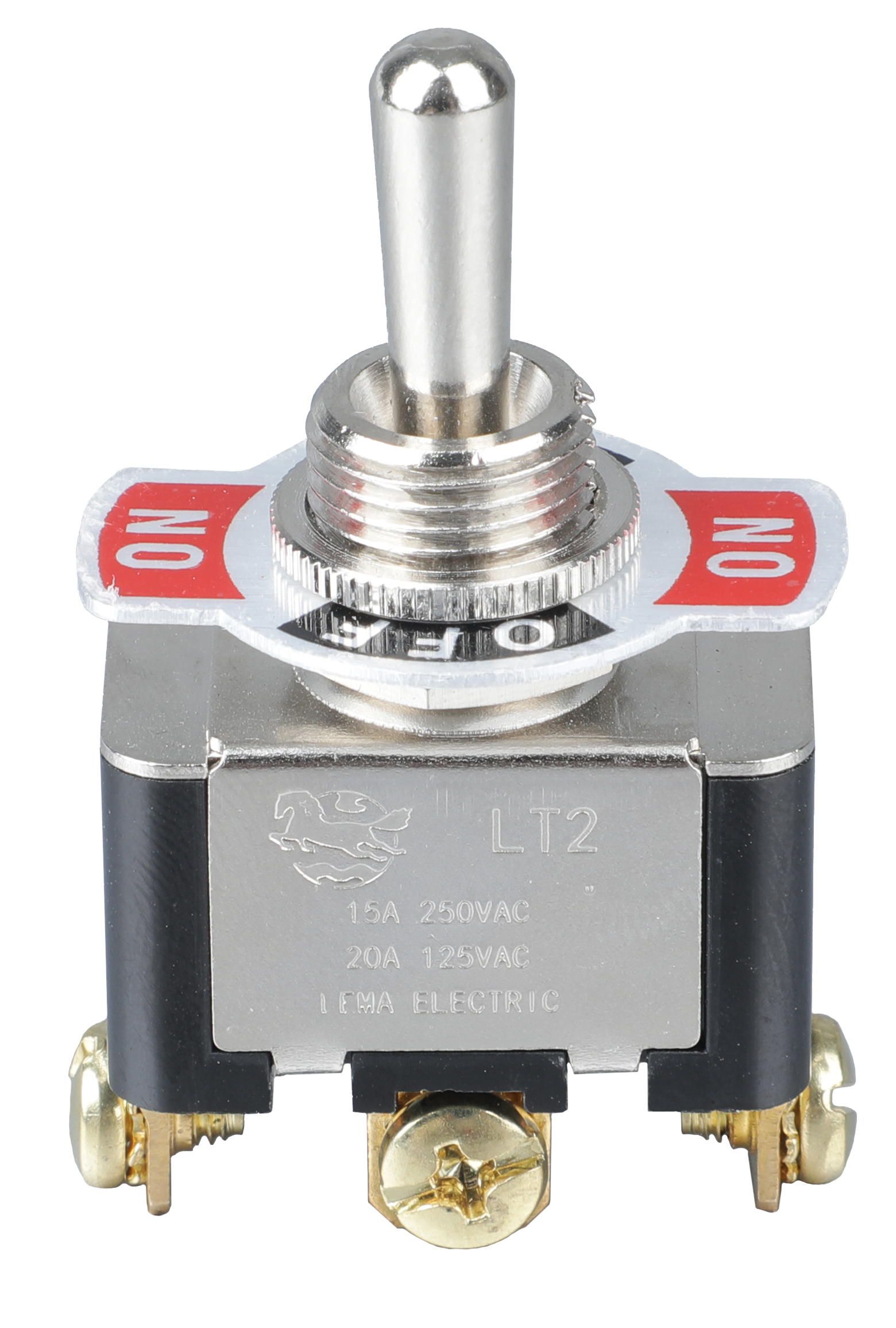

Lema LT2132B Auto Reset On-Off & Enable 3 Pin CE 3 Way Toggle Switch
- 1.20 20 - 499 pieces
- 1.03 500 - 999 pieces
- 0.95 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Mechanical life: | at least 100,000 cycles | Supply capacity: | 100000 pieces per week |
| model: | LT2132B | Is it smart: | No |
| brand: | Rema | color: | Black |
| Certification: | chief executive | port: | Ningbo, Shanghai |
| maximum. current: | 15A | application: | Electrical equipment, instrumentation, automation machinery |
| size: | 29*52.5*16.2mm | Installation size: | 12.00mm |
| Packaging Details: | standard package | place of origin; place of origin: | Zhejiang, China |
| Contact type: | (ON)-OFF-(ON) | terminal: | screw terminal |
| Package: | carton | Protective cap: | usable |
| payment terms: | Western Union, T/T, Paypal | maximum. Voltage: | 125/250VAC |
| Material: | bakelite |
Product Description
 |
||
 |
||
| brand | Lema | |
| Model | LT2132B | |
| Voltage: | 250/125 VAC | |
| Current: | 15A | |
| Mounting hole size | φ12mm | |
| Contact list: | (ON)-OFF-(ON) | |
| pack: |
carton |
|
| size: | 29*52.5*16.2mm | |
| Material: | bakelite | |
| working frequency | 30 times/min | |
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| initial contact resistance | Maximum 25MΩ | |
| Dielectric strength |
non-consecutive terminal |
1,000Vrms, 50/60Hz for 1 minute |
| non-current-carrying room metal parts and each terminal |
2,000Vrms, 50/60Hz for 1 minute | |
| between the ground and each terminal |
2,000Vrms, 50/60Hz for 1 minute | |
| Vibration resistance | 10-55Hz, 1.5mm double amplitude | |
| Impact resistance | Durable: 1000m/s2(100G) max. Failure: 300m/s2(30G) max |
|
