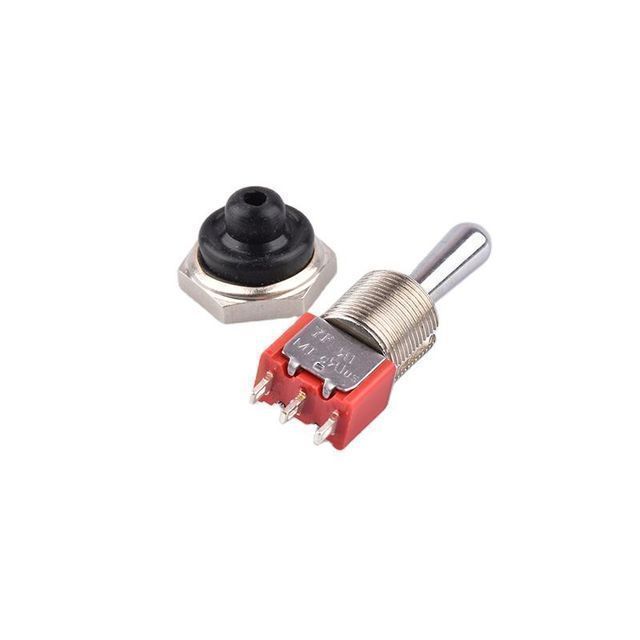

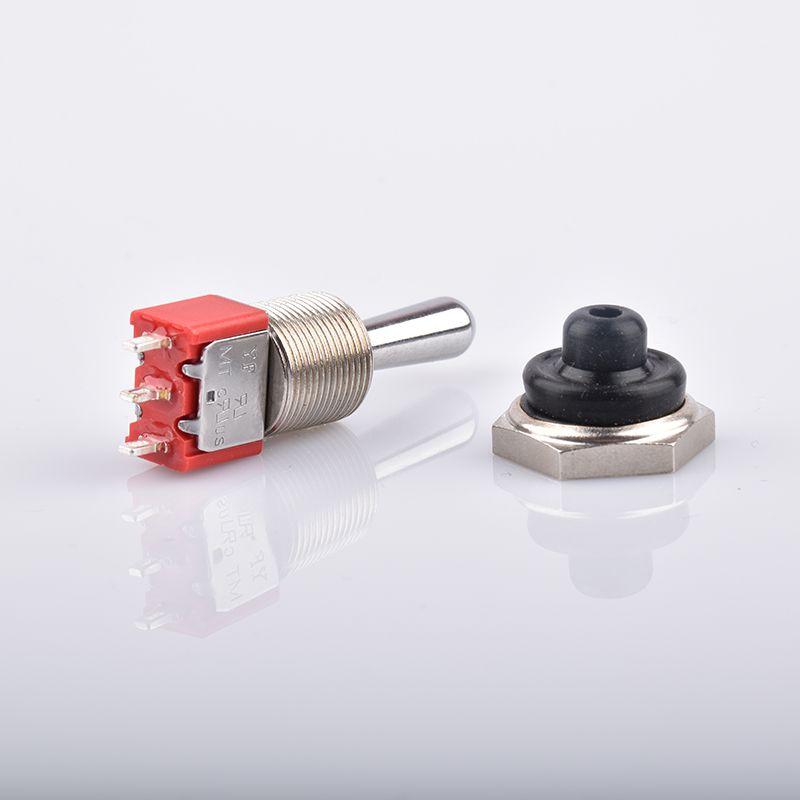

3-speed off and on toggle switch single-pole double-throw solder piece installation terminal machine agricultural toggle switch
- 0.60 10 - 999 pieces
- 0.52 1000 - 9999 pieces
- 0.50 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| maximum. current: | 5A | Is it smart: | No |
| Packaging Details: | carton | payment terms: | L/C, D/P, D/P |
| score: | 3A/250V 5A/125V | Certification: | Elective |
| application: | Plant protection machine | maximum. Voltage: | 125VAC |
| Rated current: | 5a 125vac | Operation type: | deal with |
| Package preview: | Material: | H65/PPA | |
| place of origin; place of origin: | Guangdong, China | model: | MT-0-103-D001-D000-RS |
| brand: | Yuanfeng | Electrical life: | 10000 cycles |
| product name: | M12 mini toggle switch | Mechanical life: | 40000cycles, 40000cycles |
Product Description
Specification | ||
score | 5A 125VAC, 2A 250VAC | |
Contact resistance | Maximum 20MΩ | |
Insulation resistance | 500VDC 1000MΩ min. | |
Dielectric strength | 1500V AC, 1 minute | |
Operating temperature | -25ºC~+85ºC | |
Electrical life | 10000 cycles | |
Mechanical life | 40000 cycles | |
circuit | SPDT | |
switch function | switch on | |
Material: | ||
case | PPA (UL94V-0) | |
Actuator | Brass, aluminum alloy, nickel-plated, chrome-plated | |
bushing | Brass, aluminum alloy, nickel-plated, chrome-plated | |
housing | Stainless steel | |
support frame | Brass, tin plated | |
Contacts/terminals | Copper alloy, silver plated or gold plated | |
Note: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, please feel free to contact us.
typical application:
• medical equipment
• Telecommunications
• Meters
• Machinery
typical application:
• medical equipment
• Telecommunications
• Meters
• Machinery
hardware available separately
