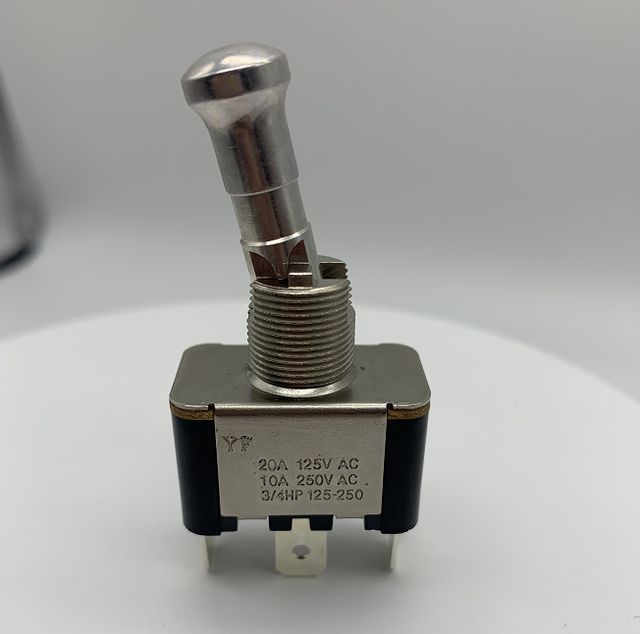

KN3(A) 102 20A 125VAC 15A 250VAC SPDT LOCK toggle switch
- 3.00 500 - 9999 pieces
- 2.80 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | KN3(A)-102-L3P-RS | place of origin; place of origin: | China |
| maximum. current: | 20A | Certification: | Do not |
| Mechanical life: | 40000 times | maximum. Voltage: | 250 VAC |
| brand: | Yongfeng | payment terms: | wire transfer |
Product Description
Specification | ||
score | (L)10A 125VAC, 6A 250VAC (M) 15A 125VAC, 10 250VAC (H)20A 125VAC, 20A 250VAC | |
Contact resistance | 50MΩ max | |
Insulation resistance | 500VDC 1000MΩ min | |
Dielectric strength | 1500VAC, 1 minute | |
Operating temperature | -25ºC~+85ºC | |
Electrical life | 10000 cycles | |
Mechanical life | 40000 cycles | |
circuit | SPDT | |
switch function | unlock | |
Material: | ||
case | bakelite | |
Actuator | PF (UL 94V-0) | |
bushing | alloy. | |
housing | SPCC Nickel Plating | |
Contact/Terminal | Copper alloy, silver or gold plated | |
NOTE: Specifications and materials listed above apply to switches with standard options. Please feel free to contact us for information on specific and custom switches.
typical application:
• medical equipment
• Telecom
• Meters
• Mechanical
typical application:
• medical equipment
• Telecom
• Meters
• Mechanical
