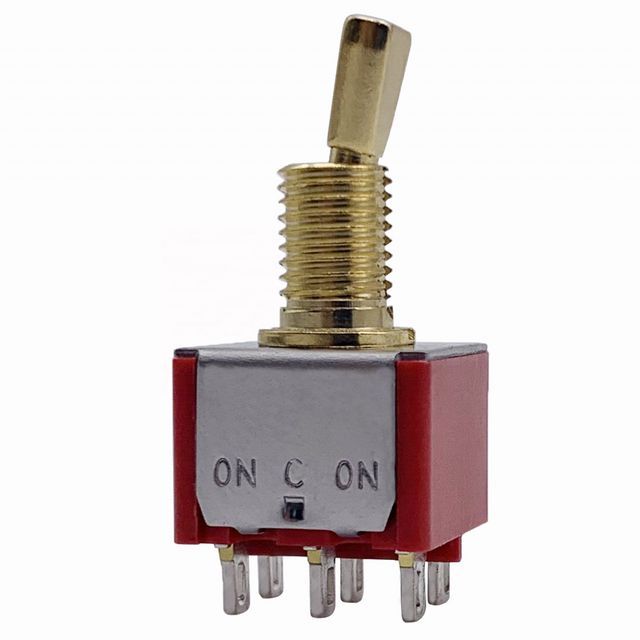

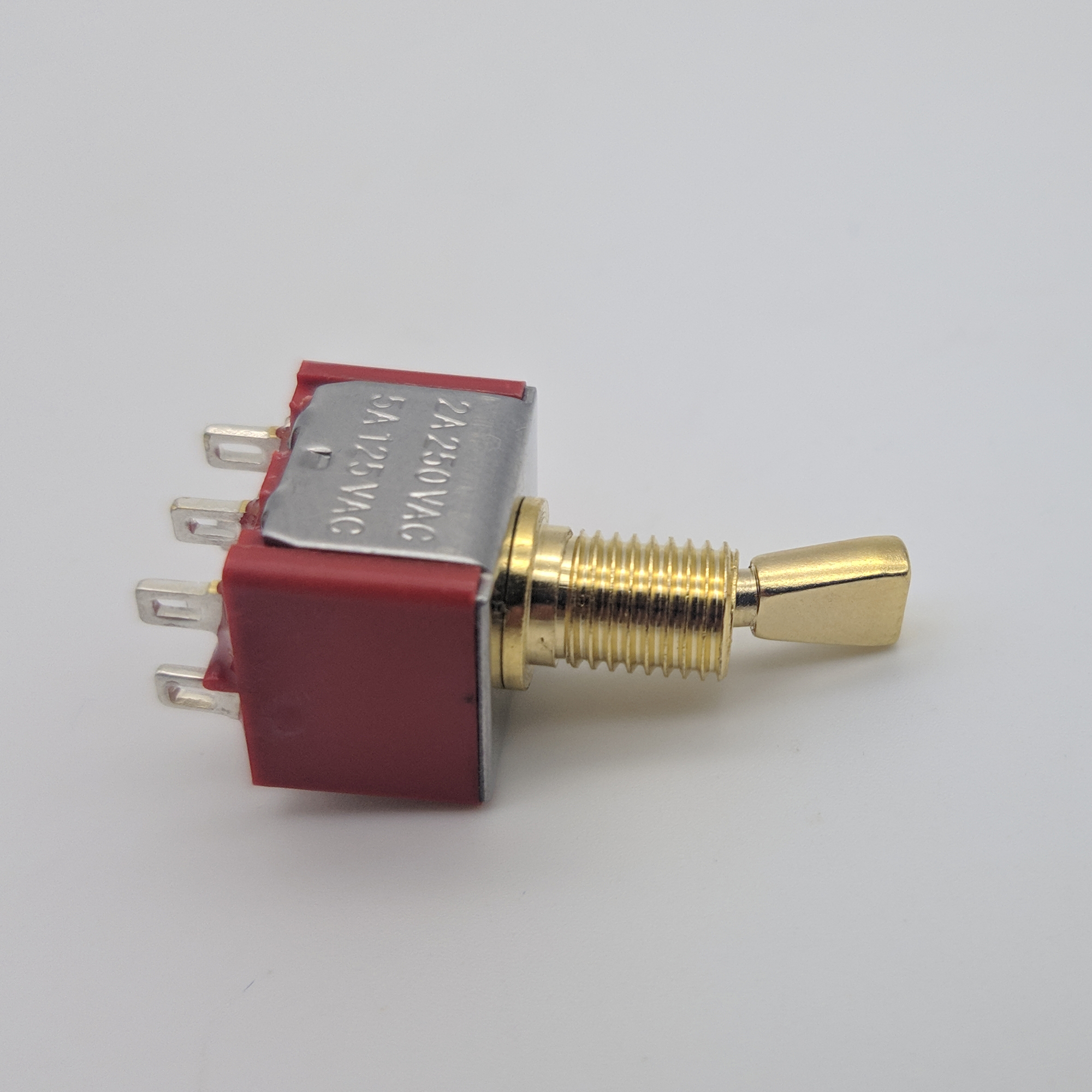

6 Pin Mini Gold Guitar Switch
- 0.70 10 - 999 pieces
- 0.68 1000 - 4999 pieces
- 0.65 5000 - 9999 pieces
- 0.62 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Is it smart: | No | payment terms: | L/C, D/P, D/P |
| Processing options: | gold/black/chrome | score: | 2A 250VAC / 5A 125VAC |
| Certification: | RoHS Directive | color: | Golden |
| product name: | mini toggle switch | terminal type: | Solder terminal |
| Origin: | Guangdong, China | application: | Guitar/Bass |

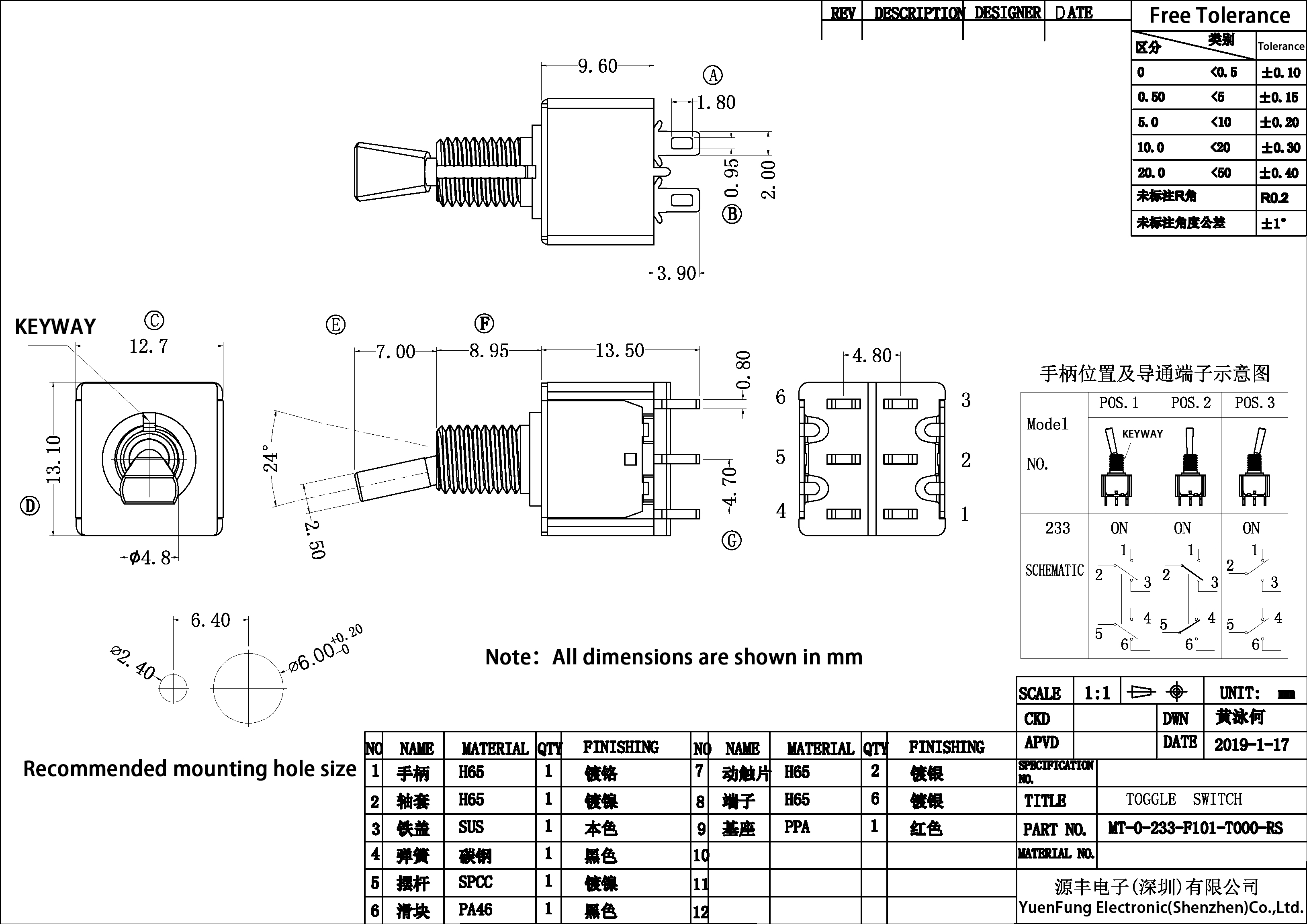

| maximum. Voltage: | 250VAC | model: | MT-0-233-F101-T000-RS |
| maximum. current: | 5A | brand: | Yongfeng |
| Delivery methods: | DHL\UPS\Fedex\TNT | Electrical life: | 10000 cycles |
| Mechanical life: | 40000 cycles | Packaging Details: | Carton PE bag |
Product Description

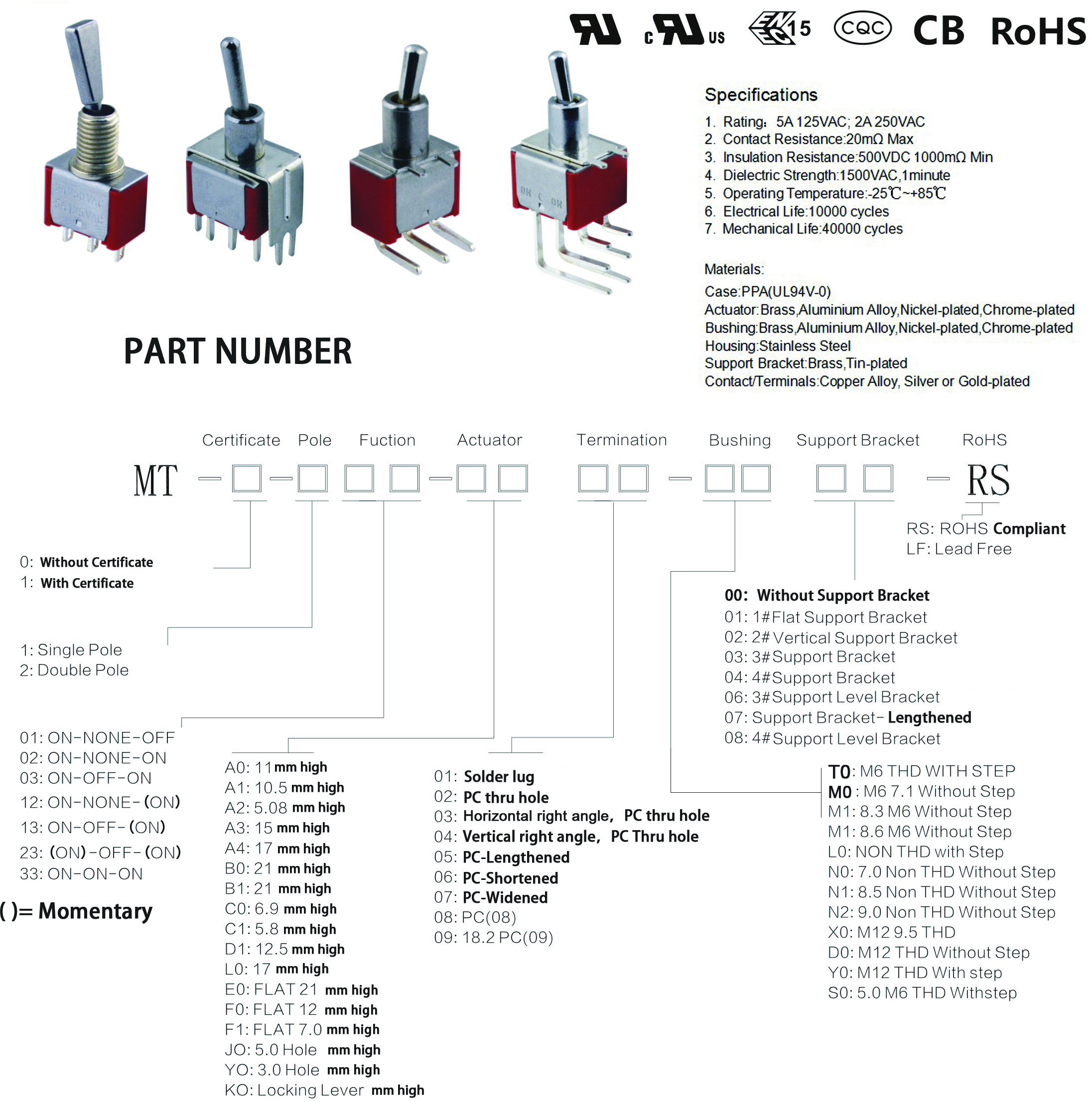

Specification | |
score | 5A 125VAC, 2A 250VAC |
Contact resistance | Maximum 20MΩ |
Insulation resistance | 500VDC 1000MΩ min. |
Dielectric strength | 1500V AC, 1 minute |
Operating temperature | -25ºC~+85ºC |
Electrical life | 10000 cycles |
Mechanical life | 40000 cycles |
circuit | 1 a.m. PST |

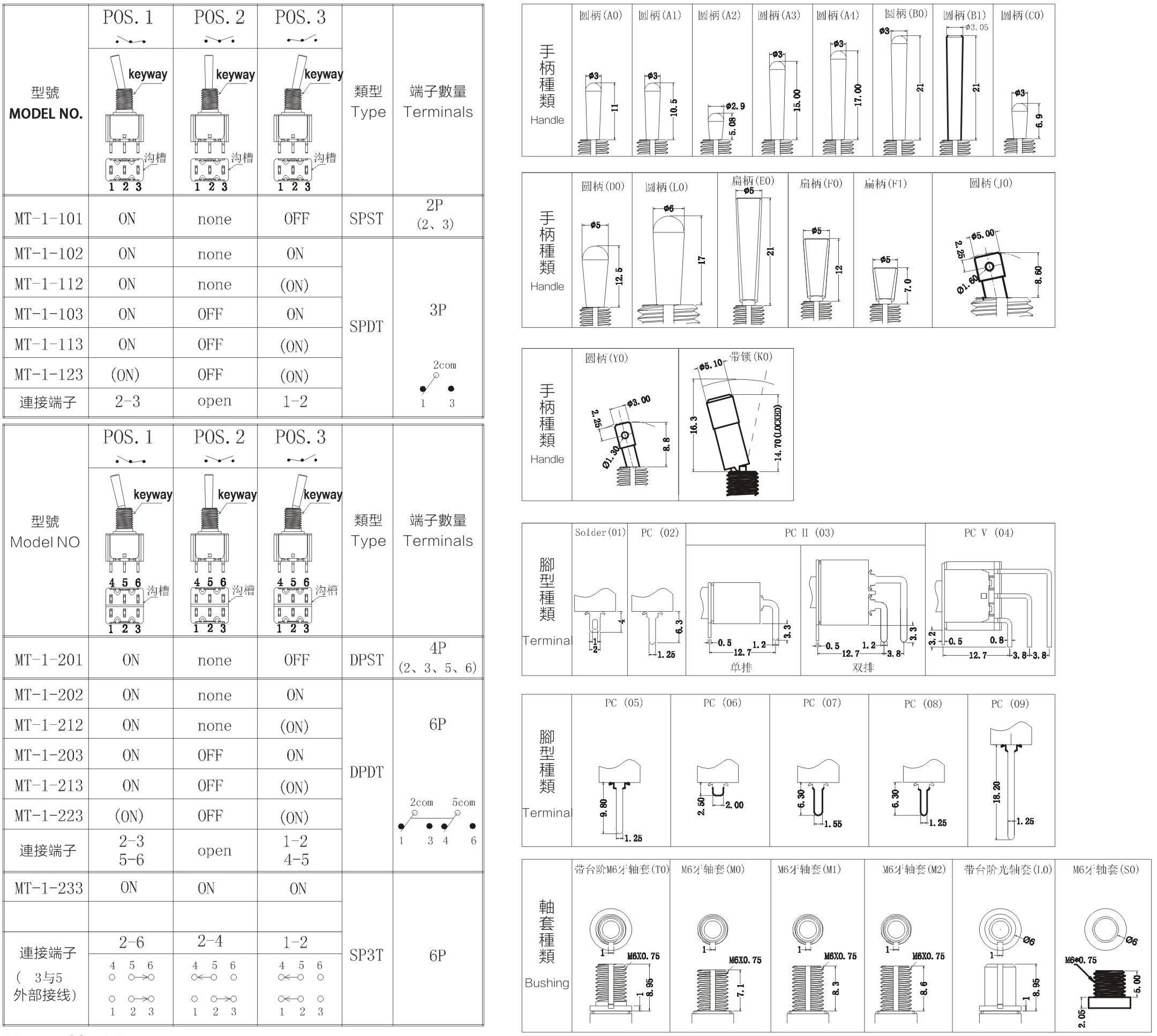

switch function | open open open |
Material: | |
case | PPA (UL94V-0) |
Actuator | Brass, Gold-plated (chrome-plated, black zinc-plated) |
bushing | Brass, gold plated (nickel plated, black zinc plated) |
housing | Stainless steel |
support frame | Brass, tin plated |
Contacts/terminals | Copper alloy, silver plated or gold plated |
Note: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, please feel free to contact us.
typical application:
• medical equipment
• Telecommunications
• Meters
• machinery
• medical equipment
• Telecommunications
• Meters
• machinery

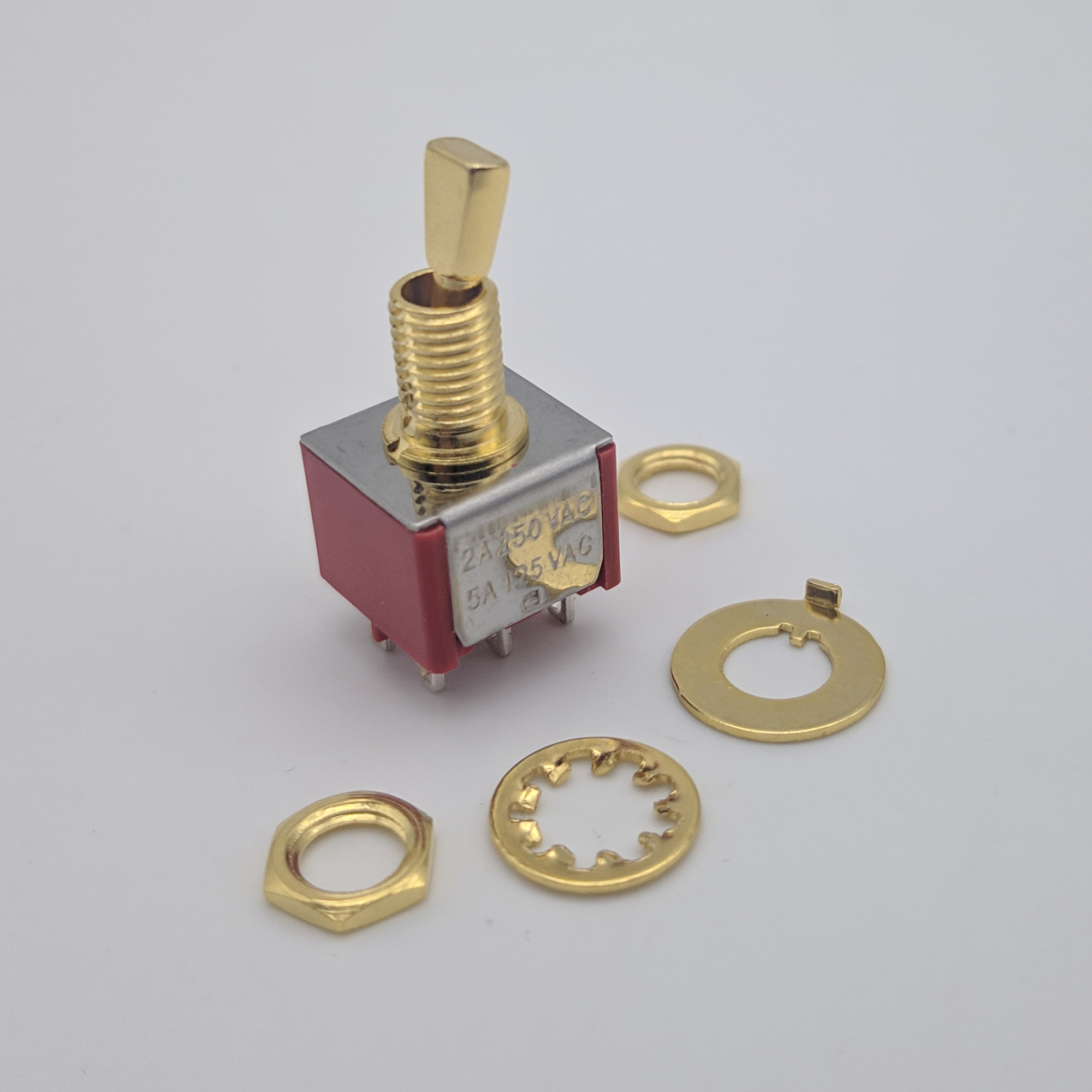

Hardware: nut*2, lock washer*1, lock ring*1
