Zing Ear Microswitch Waterproof rubber roller type microswitch

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	terminal type:	Quick connection
Operating temperature:	-40℃~+85℃	Place of origin:	Guangdong, China
port:	Hong Kong Shenzhen	score:	16A 250VAC
product name:	Waterproof mouse micro switch	Contact resistance:	Maximum 50m
Is it smart:	No	Packaging details:	1. Packing: 1000 pieces/carton. 2. Gloss weight: about 4.8kgs For more details, please feel free to contact us
maximum. Voltage:	250VAC	maximum. current:	16A
Supply capacity:	3,000,000 pieces per month	application:	Home appliances
Certification:	ENEC, CQC, CE	lever:	short
brand:	Zinger	Electrical life:	10,000 cycles
type:	Micro micro switch	model:	G5W11-WZ200-W2
thing:	Long life micro switch	color:	Black
Protection level:	IP67 rating

☞For more product details, please click to learn》》》

best shipping cost

1. Provide different shipping methods for you to choose from and find fast and cheap shipping costs.

Our advantage

1.Zing Ear factory has high standards in product quality control;

2. We have passed ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC and other certifications.

3. Our customers come from all over the world, such as the United States, Britain, Japan, Germany, Argentina, Mexico, and Singapore

4. Provide one-stop service to customers

Product Description

G5W11-WZ200-W2 micro switch drawing

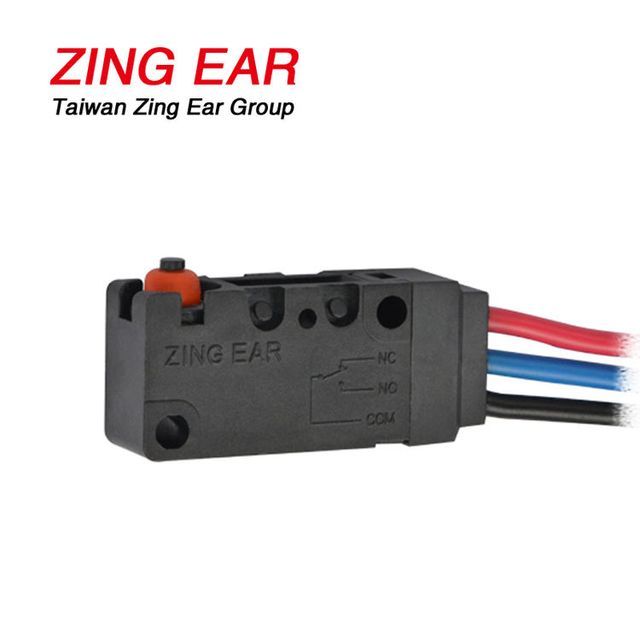

G5W11-WZ200-W2 micro switch picture

G5W11 Micro Switch Specification

Rated W1	ENEC 0.1A 48VDC, 0.1A 125/250VAC, 40T85, 5E4, u UL 0.1A 48VDC, O.1A 125/250VAC, T85
Rated W2	ENEC: 5A 48VDC, 0.1A 125/250VAC, 40T85, 5E4, u UL: 5A 125/250VAC, 5A 30VDC T85
Rated W3	ENEC 10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, 40T85, u, 2e4 UL 10. 1A 1/10HP 125/250VAC, 0. 5A 125VDC, 0. 25A 250VDC, T85
0 operating frequency - electrical	10~30 times/minute
0 operating frequency - mechanical	60 times/minute
Contact resistance (initial value) - with terminal type	Maximum 50mΩ
Contact resistance (initial value) - with line type	100m Ω max (depending on wire length)
Insulation resistance	500vdc, minimum 100M Ω
Dielectric strength -between terminals	AC 1000V 50-60Hz 1 minute
Dielectric Strength - Terminals and Housings	AC 1500V 50-60Hz 1 minute
Storage temperature	-40°C^+85°C
Storage humidity	Maximum 85%RH
Protection level-with terminal type	IEC IP67 (without terminals)
Protection level-line type	International Electrotechnical Commission IP67
Protection against electric shock level	Level 2
electronic life	2E4~10E4 cycle (depending on P/N)
M-life	Over 500,000 cycles 1,000,000 cycles (60 cycles/minute)
Unit net weight	About. 7g (with terminal type, without lever)
