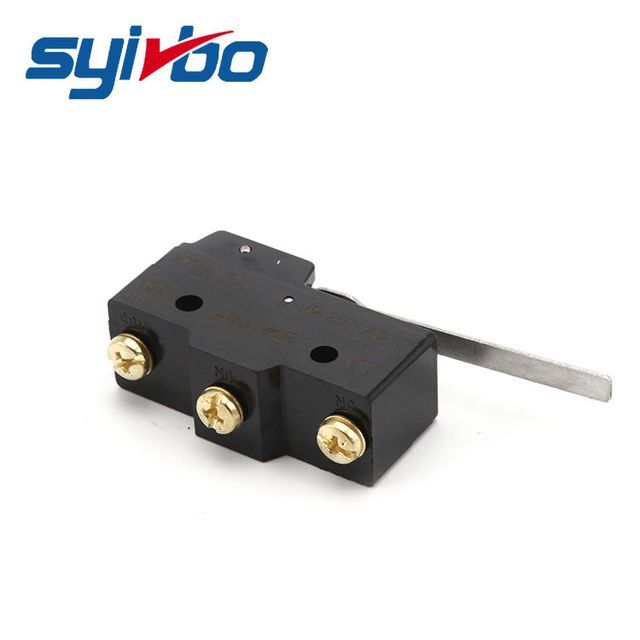

Xingbo wholesale price wenzhou factory hinge lever/omron equivalent microswitch

Rated voltage

Non-inductive load (A)

Inductive load (A)

Inrush current (A)

road of resistance

lamp load

Inductive load

Motor load

CNC

Do not

CNC

Do not

CNC

Do not

CNC

Do not

CNC

Do not

125VAC

15

3

1.5

15

5

2.5

30 max.

Up to 15.

250VAC

15

2.5

1.25

15

3

1.5

500 VAC

3

1.5

0.75

2.5

1.5

0.75

8VDC

15

3

1.5

15

5

2.5

14VDC

15

3

1.5

10

5

2.5

30VDC

6(2)

3

1.5

5

5

2.5

125VDC

0.4

0.4

0.4

0.05

0.05

0.05

250VDC

0.2

0.2

0.2

0.03

0.03

0.03

running speed

0.01mm-1m/s

working frequency

Mechanical: 240 operations/min

Electrical: 20 operations/min

Contact resistance

Maximum 15MΩ (initial value)

Insulation resistance

100MΩ minimum (at 500VDC)

Dielectric strength

1000VAC, 50/60Hz for 1 minute between terminals of the same polarity

1500VAC. 50/60Hz 1 minute between energized and de-energized metal parts

1500VAC, 50/60Hz 1 minute between each terminal and ground

vibration

10-55Hz, 1.5mm double amplitude

Shock

Mechanical durability: 1,000m/Sec2 (about 100G' S)

Failure: 300m/Sec2 (about 30G' S)

ambient temperature

Ordinary type: -25℃- 80℃, sealed type: -15-80℃

humidity

Normal type: 85%RH, sealed type: 95%RH

Life

Mechanical: 20,000,000+ operations (below rated OT)

Electrical: 500,000+ operations

weight

About. 22 to 58 grams

Model

TM1300

TM1301

TM1303

TM1305

TM1306

TM1307

TM1308

OF (maximum)

350 grams

300 grams

300 grams

350 grams

350 grams

350 grams

350 grams

RF (minimum)

114 grams

50 grams

50 grams

114 grams

114 grams

114 grams

114 grams

PT(max)

0.4mm

4mm

4mm

0.4mm

0.4mm

0.4mm

0.4mm

OT (max)

0.13mm

1.6mm

1.6mm

1.6mm

1.6mm

5.5mm

3.58mm

MD(Max)

0.05mm

1.3mm

1.3mm

0.05mm

0.05mm

0.05mm

0.05mm

FP(max)

20.6mm

31.8mm

OP(mm)

15.9±0.4

17.4±0.8

28.6±0.8

28.2±0.5

21.5±0.5

21.8±0.8

33.4±1.2

role model

TM1309

TM1701

TM1702

TM1703

TM1704

TM1705

TM1743

OF (maximum)

350 grams

70 grams

160 grams

100 g

160 grams

10gram

160 grams

RF (minimum)

114 grams

14 grams

28 grams

22 grams

42 grams

3g

42 grams

PT(max)

0.4mm

10mm

5mm

7.1mm

2.7mm

20mm

2.7mm

OT (max)

3.58mm

5.6mm

2mm

4mm

2.4mm

5.6mm

2.4mm

MD(Max)

0.05mm

1.27mm

1mm

1.02mm

0.5mm

3mm

0.5mm

FP(max)

28.2mm

24.8mm

38.5mm

32.5mm

43.6mm

OP(mm)

33.4±1.2

19±0.8

19±0.4

30.2±0.8

30.2±0.4

19±0.8

43.1±0.8
